Power Door Systems Component Views

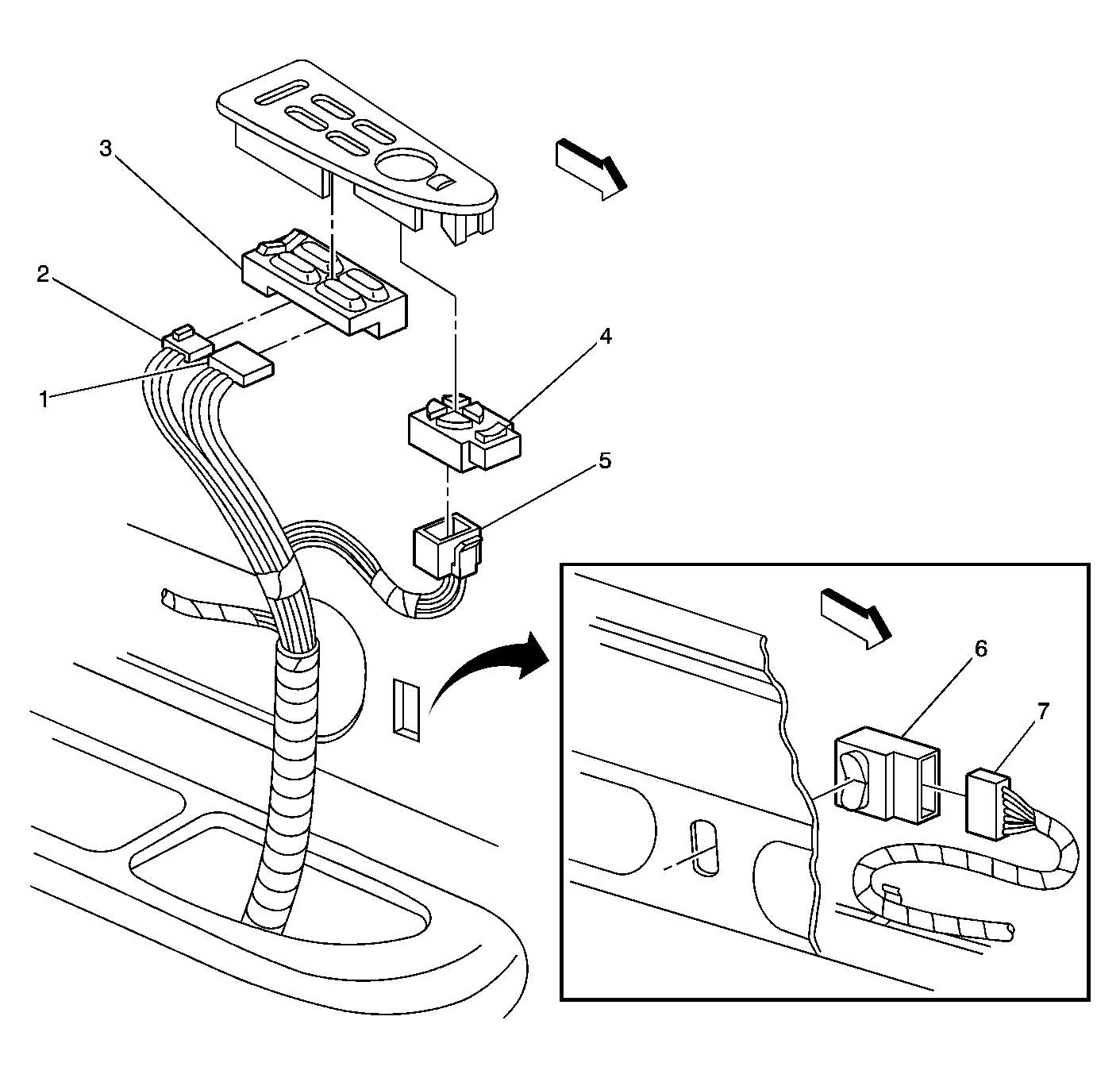

Fig 1: Center Of Left Front Door Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Master Switch - Driver Connector, C1
2	Window Master Switch - Driver Connector, C2
3	Window Master Switch - Driver
4	Outside Rearview Mirror Switch
5	Outside Rearview Mirror Switch Connector
6	Door Lock Switch - Driver, Front Passenger Similar
7	Door Lock Switch - Driver Connector, Front Passenger Similar

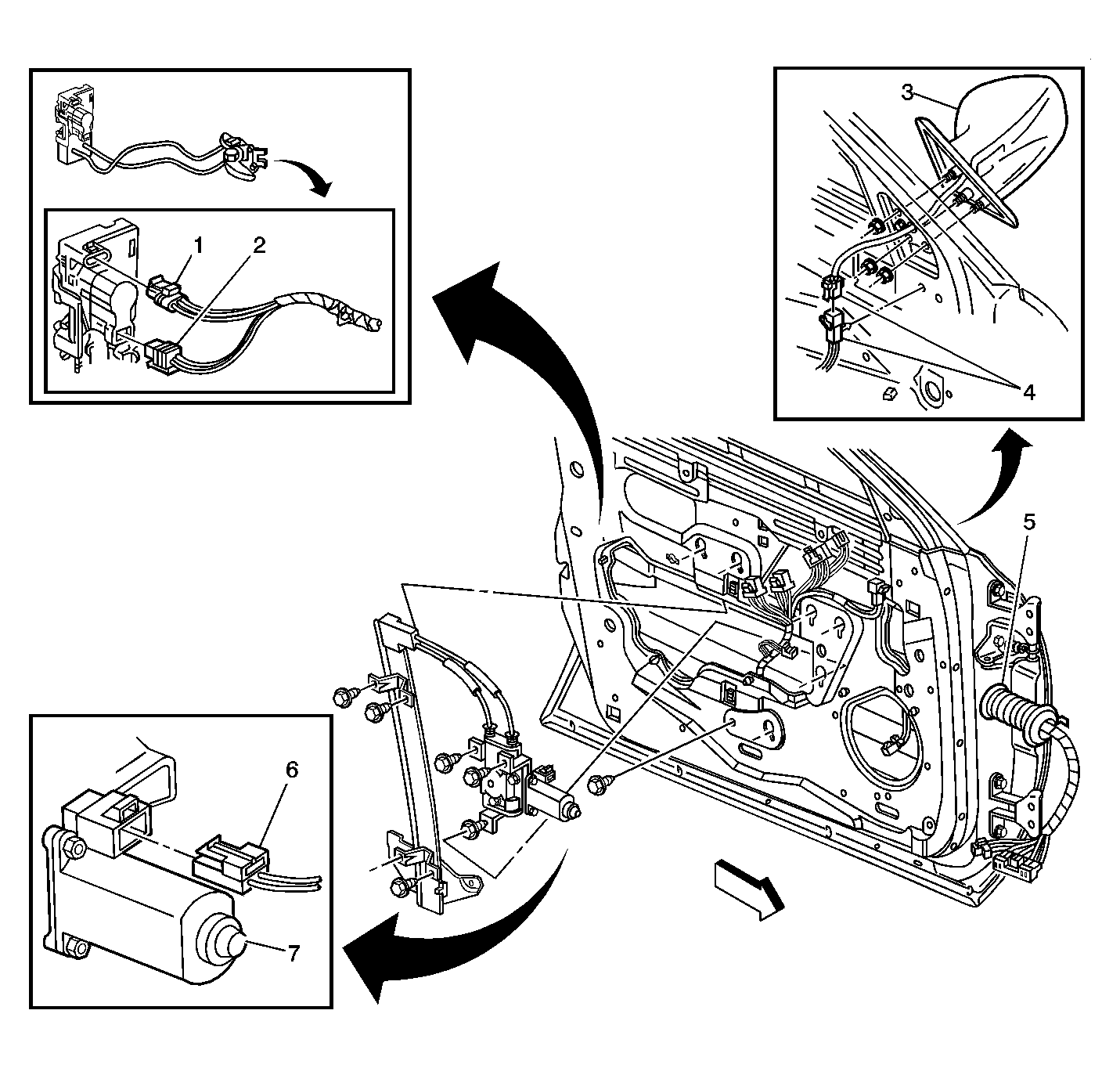

Fig 2: Left Front Door Components (Right Front Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Connector C1
2	Door Lock Connector C2
3	Outside Rearview Mirror - Driver Shown, Passenger Similar
4	Outside Rearview Mirror - Driver Connector Shown, Passenger Similar
5	P500 Shown, P600 Similar
6	Window Motor - Driver Connector Shown, Front Passenger Similar
7	Window Motor - Driver Shown, Front Passenger Similar

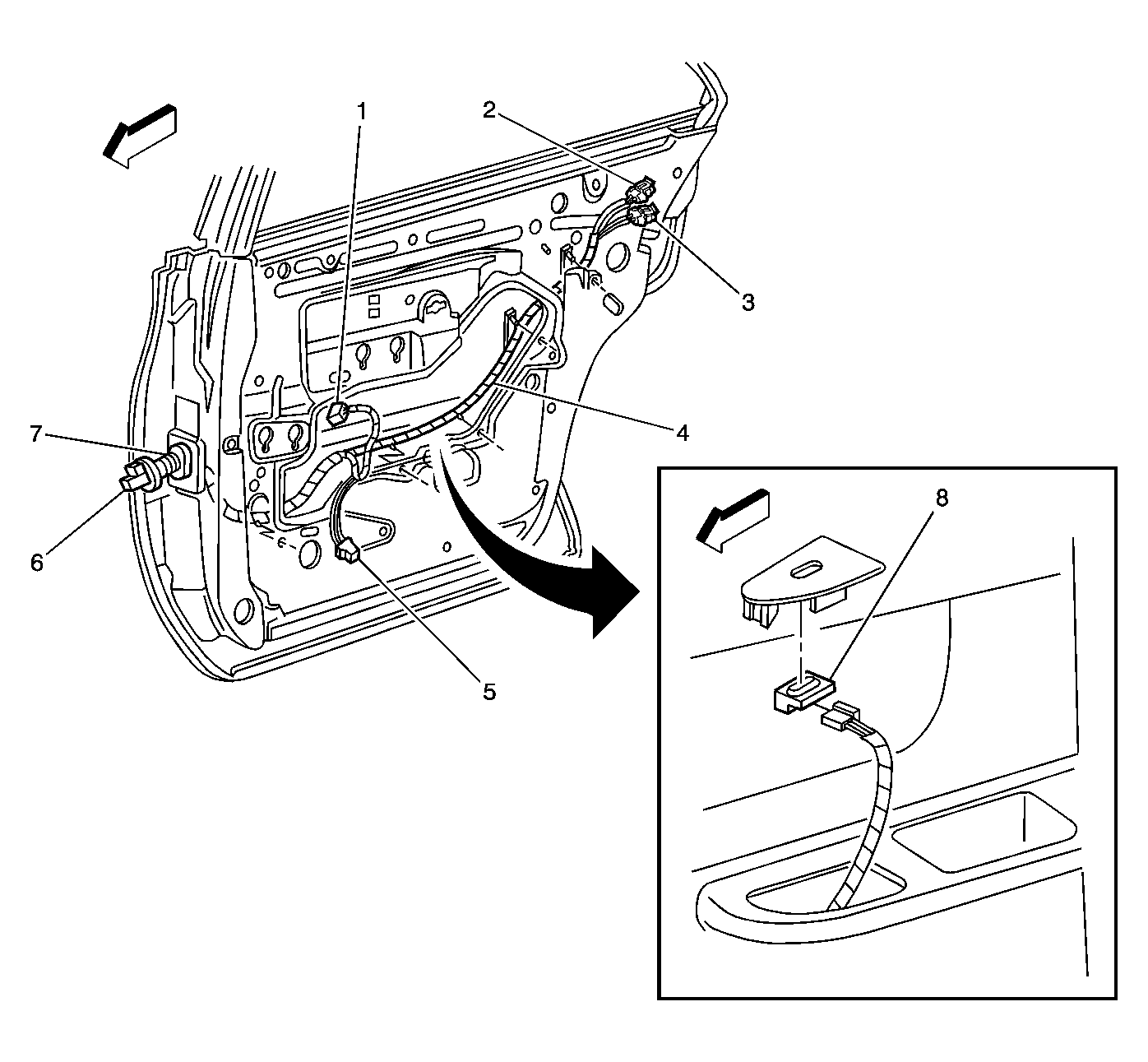

Fig 3: Right Rear Door Components (Left Rear Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - RR Connector, LR Similar
2	Door Lock, C1
3	Door Lock, C2
4	Door Harness
5	Window Motor -RR Connector, LR Similar
6	C352, C351 Similar
7	P800, P700 Similar
8	Window Switch - RR, LR Similar
