Removal Procedure

  1. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  2. Remove the wiper motor water deflector. Refer to Wiper Motor Water Deflector Replacement .

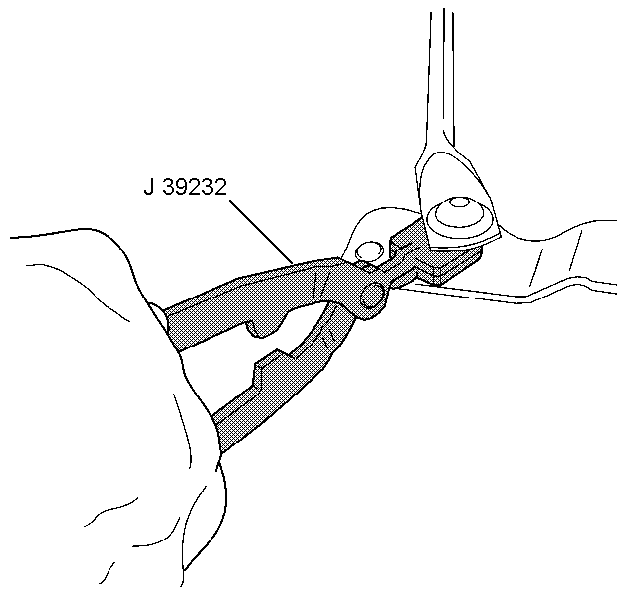

    3. Fig 1: Disconnecting Wiper Transmission From Wiper Motor Crank Arm
    GM306506Courtesy of GENERAL MOTORS CORP.
  3. Using the J 39232  , disconnect the wiper transmission from the wiper motor crank arm to aid in the removal of the wiper drive system module. See Special Tools .
    4. Fig 2: Wiper Drive System Module & Screws
    GM815220Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiper drive system module screws.
  5. Disconnect the wiper motor electrical connector.
  6. Remove the wiper drive system module from the vehicle.
