Installation Procedure

WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

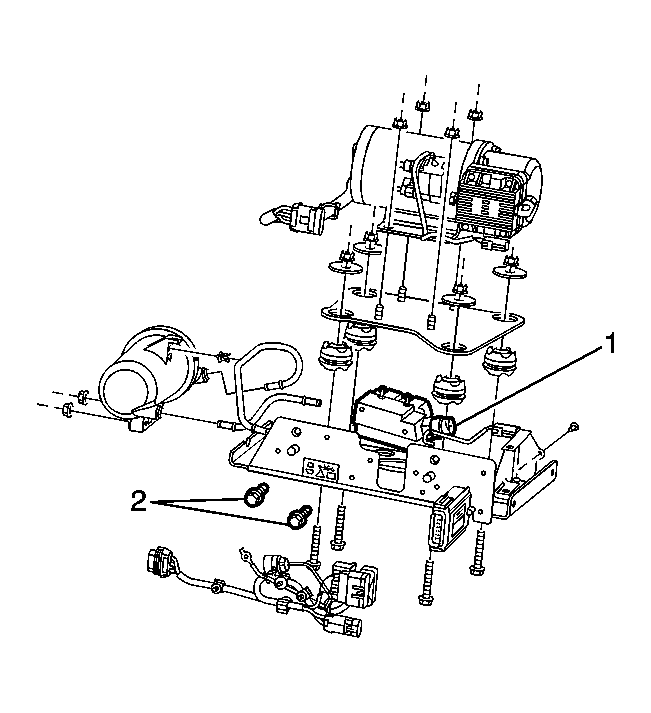

    Fig 1: Solenoid Assembly
    GM1234313Courtesy of GENERAL MOTORS CORP.
  1. Install the solenoid assembly (1).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the mounting screws (2).

    Tighten:  Tighten the screws to 5.0 N.m (44 lb in).

  3. Install and connect the pigtail harness to the compressor assembly mounting bracket.
  4. Install the air lines. Refer to Air Suspension Air Line Replacement .
  5. Connect and lock the electrical connector to the pressure transducer/sensor by turning the connection clockwise.
  6. Install the compressor assembly to the vehicle. Refer to Compressor Assembly Automatic Level Control Air Replacement (Single Compressor)  or Compressor Assembly Automatic Level Control Air Replacement (Dual Compressors) .
