Installation Procedure

WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

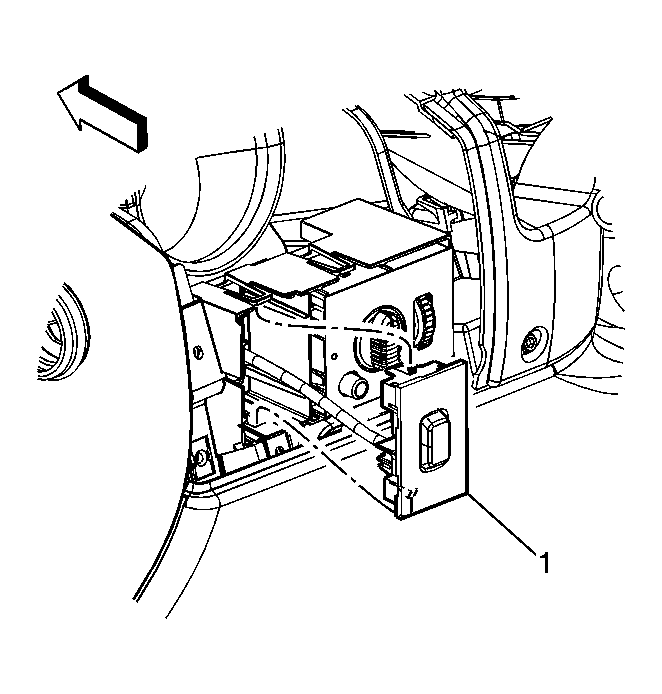

    Fig 1: Midgate Switch
    GM1453843Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the midgate switch.
  2. Align the switch to the I/P and snap into place.
    3. Fig 2: I/P Accessory Left Trim Panel
    GM816356Courtesy of GENERAL MOTORS CORP.
  3. Install the driver side I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Left in Interior Trim.
