Installation Procedure

WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Midgate Electrical Connector
    GM1243191Courtesy of GENERAL MOTORS CORP.
  1. With the aid of an assistant, position the midgate structure (3) to the vehicle.

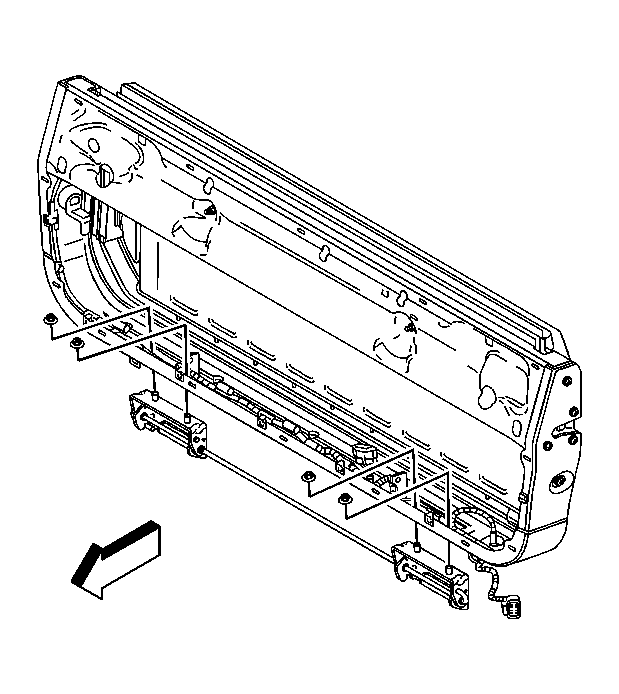

    2. Fig 2: Midgate Hinges
    GM1412514Courtesy of GENERAL MOTORS CORP.
  2. Install the midgate hinges. Refer to Hinge Replacement - Midgate .

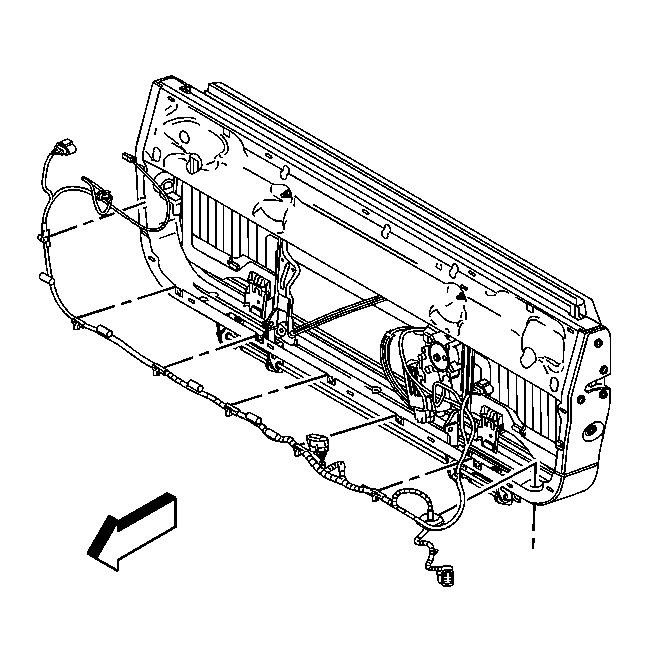

    3. Fig 3: Midgate Electrical Harness
    GM1412515Courtesy of GENERAL MOTORS CORP.
  3. Install the midgate electrical harness. Refer to Wiring Harness Replacement - Midgate .
  4. Install the midgate latches. Refer to Latch Replacement - Midgate .
  5. Install the midgate window channels. Refer to Window Channel Replacement - Midgate .
  6. Install the midgate window regulator. Refer to Window Regulator Replacement - Midgate .
    7. Fig 4: Midgate Window
    GM1412518Courtesy of GENERAL MOTORS CORP.
  7. Install the midgate window. Refer to Window Replacement - Midgate .
    8. Fig 5: Separating Inner Midgate
    GM1412513Courtesy of GENERAL MOTORS CORP.
  8. Install the midgate inner panel. Refer to Midgate Panel Replacement - Inner .

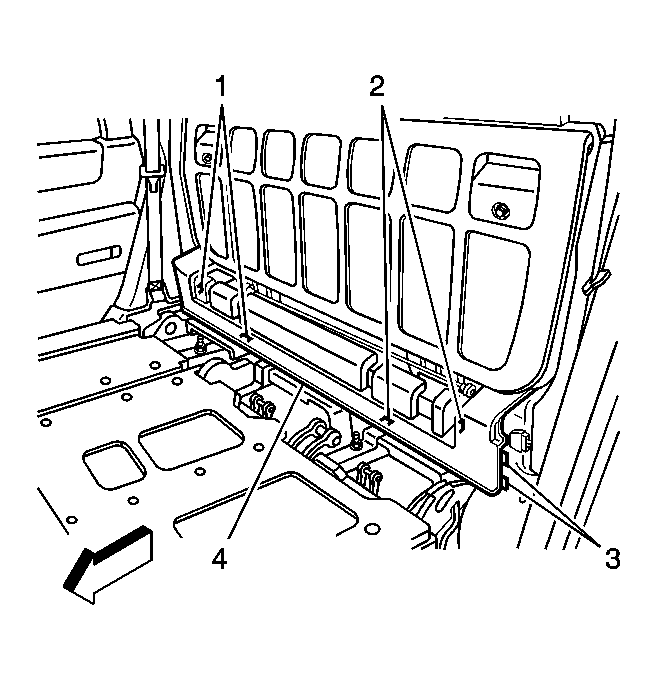

    9. Fig 6: Lower Center Garnish Molding
    GM1427695Courtesy of GENERAL MOTORS CORP.
  9. Install the lower center garnish molding (4). Refer to Molding Replacement - Endgate Center in Interior Trim.
  10. Install the rear folding floor trim panels. Refer to Seat Back Cover Replacement - Rear Folding in Seats.
  11. Close the midgate.
  12. Close the midgate window.
  13. Adjust the midgate window, if needed. Refer to Window Adjustment - Midgate .
  14. Reposition the second row seats.
