Installation Procedure

WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Midgate Latch Switches
    GM1412510Courtesy of GENERAL MOTORS CORP.
  1. Install both midgate latch switches to the midgate inner trim panel.
    2. Fig 2: Separating Inner Midgate
    GM1412513Courtesy of GENERAL MOTORS CORP.
  2. Position the midgate inner panel to the midgate structure.
  3. Connect both midgate switch electrical connectors.
  4. Align the inner panel tabs to the midgate structure.

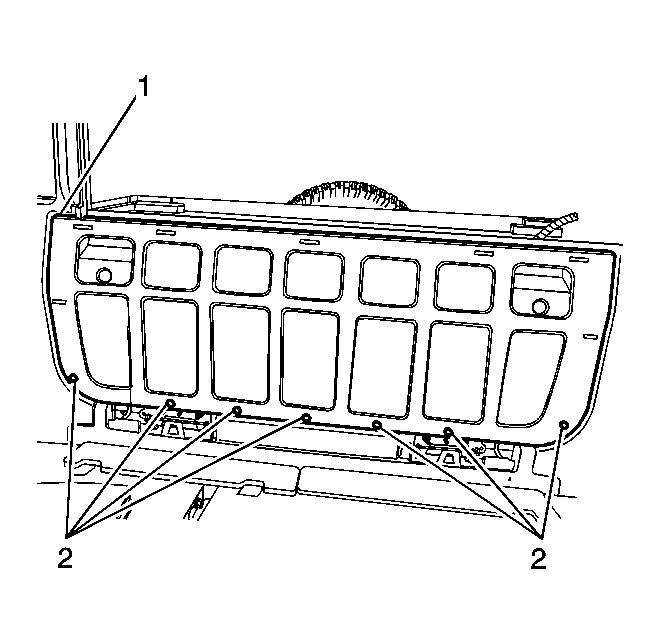

    5. Fig 3: Inner Midgate Panel (1), Push Pins (2)
    GM1486636Courtesy of GENERAL MOTORS CORP.
  5. Once aligned, begin at one end of the panel (1) and gently push inward on the midgate inner trim panel (1) to secure the upper attachment clips.
  6. Install the push pins (2) along the bottom of the midgate inner trim panel (1).
  7. Raise the seatbacks into position.
  8. Restore the rear seat cushions to the upright position.
  9. Adjust both front seats back to the original position.
