Installation Procedure

WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

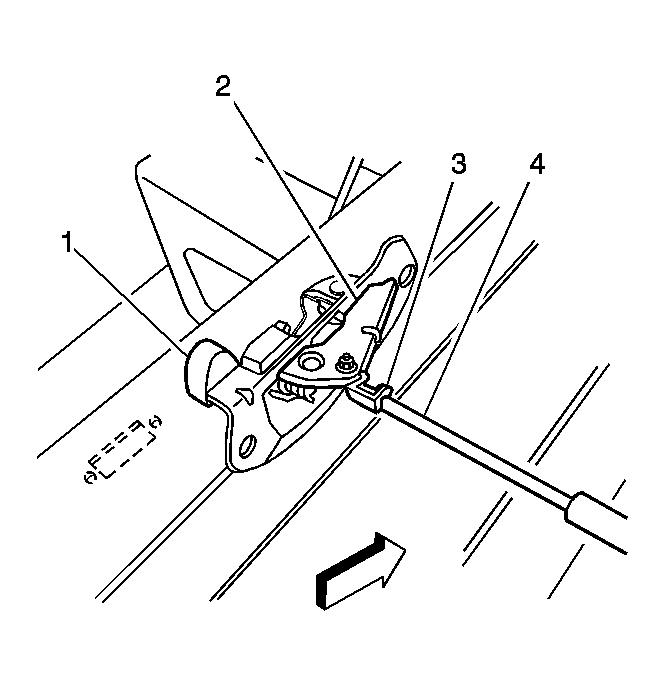

Fig 1: Latch And Related Components

Courtesy of GENERAL MOTORS CORP.

Install the following parts:
- Endgate liner
- Endgate cap
- Endgate handle/lock rods
- Endgate handle bezel
- Endgate latch assembly (2)
- Both lower trunnions
Position the left side of the endgate to the lower left trunnion.

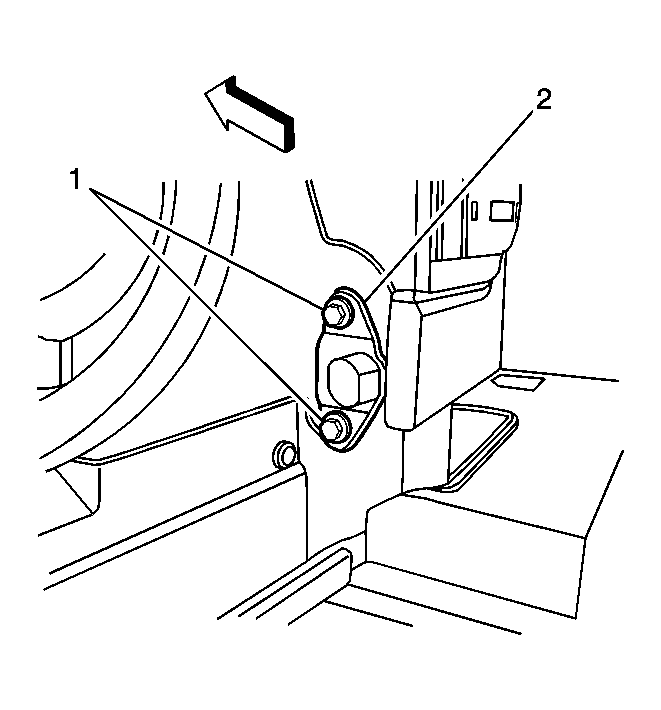

Fig 2: Bolts (1), Endgate Trunnion (2)

Courtesy of GENERAL MOTORS CORP.

At a 45-degree angle, set the right side onto the right lower trunnion (2).

Fig 3: End Gate Strap

Courtesy of GENERAL MOTORS CORP.

Secure both cables to the side panel cable bolts.
Close the endgate.
Latch and secure the spare tire carrier.
