Enabling Procedure

WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: CPA & EFS Connectors Located On The Frame Crossmember
    GM832839Courtesy of GENERAL MOTORS CORP.
  1. Connect the EFS connectors to the EFS.
  2. Install the CPA to the EFS connectors.

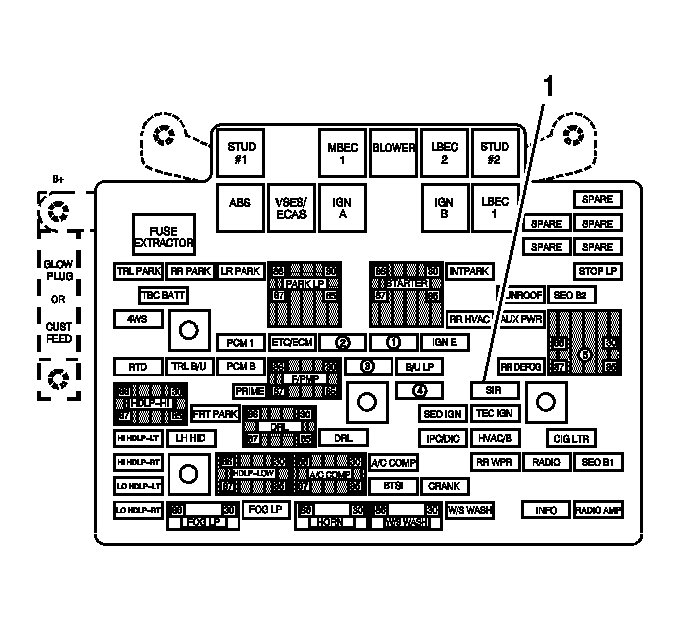

    3. Fig 2: SIR Fuse & Underhood Fuse Block
    GM848445Courtesy of GENERAL MOTORS CORP.
  3. Install the SIR fuse (1) into the underhood fuse block.
  4. Staying well away from all air bags, turn ON the ignition, with the engine OFF.
    1. The AIR BAG indicator will flash 7 times.
    2. The AIR BAG indicator will then turn OFF.
  5. Perform the Diagnostic System Check - Vehicle in Vehicle DTC Information if the AIR BAG indicator does not operate as described.
