Installation Procedure
WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

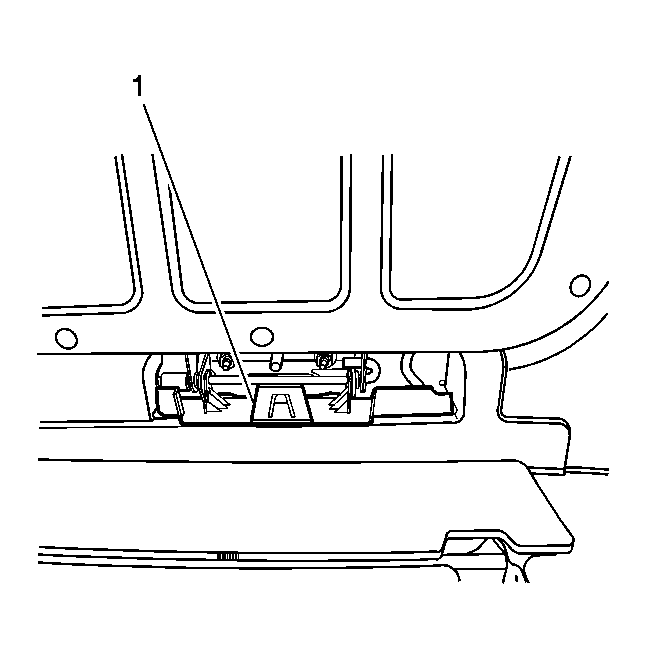

- Install the midgate hinge trim cover (1) to the midgate hinge pin.
Courtesy of GENERAL MOTORS CORP.

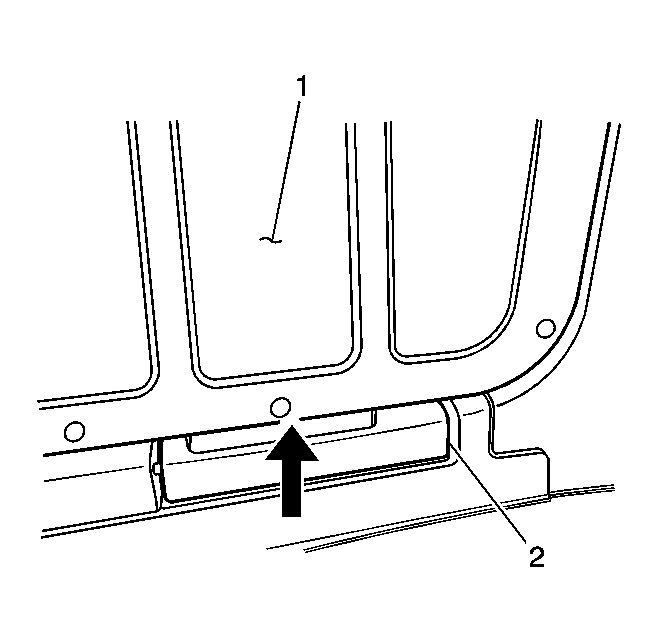

- Roll the midgate hinge trim cover (2) up and snap into place.
- Ensure proper operation of the midgate (1).
