Automatic Transmission Controls Schematics

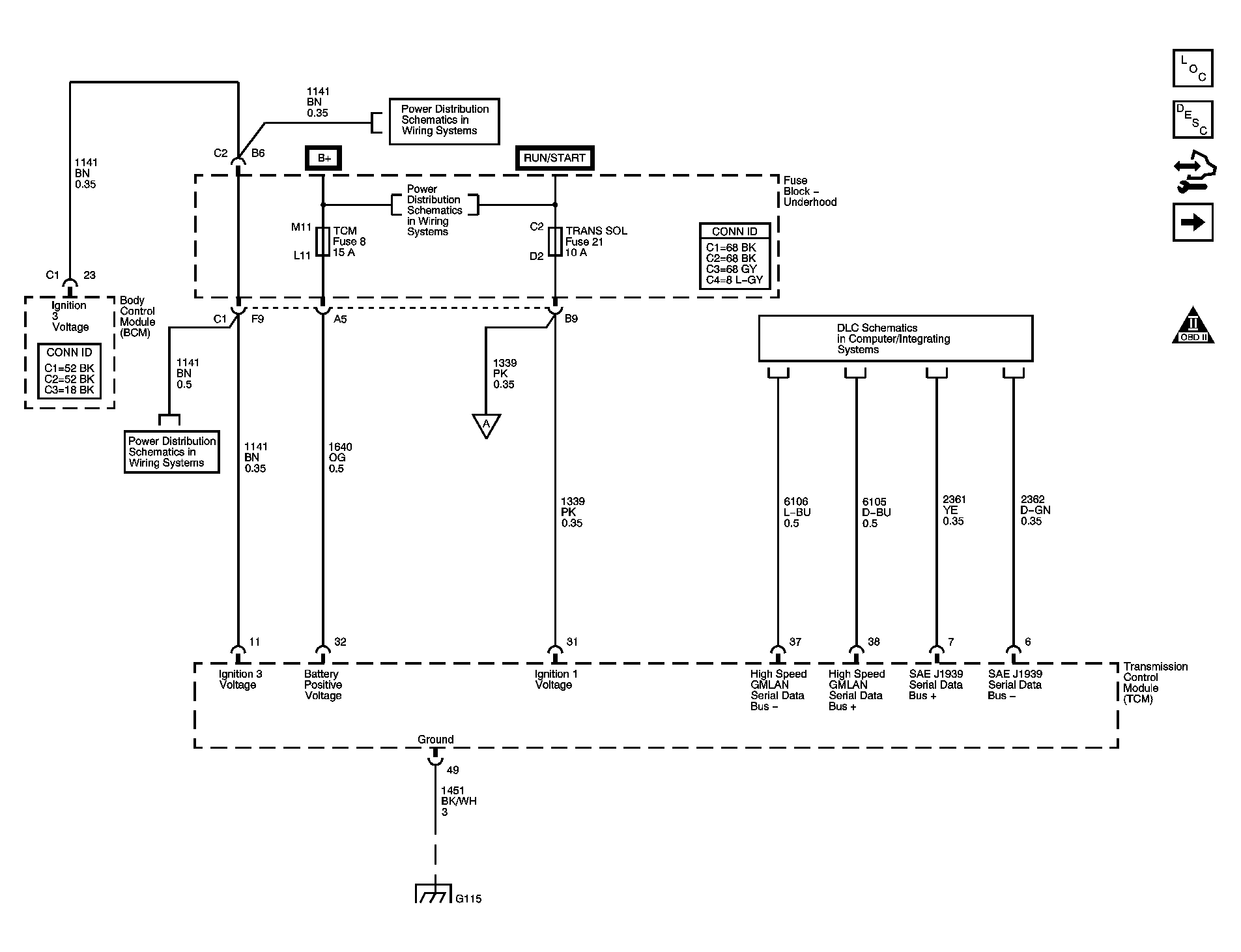

Fig 1: TCM Power, Ground, and Serial Data (LY7) Schematic

Courtesy of GENERAL MOTORS CORP.

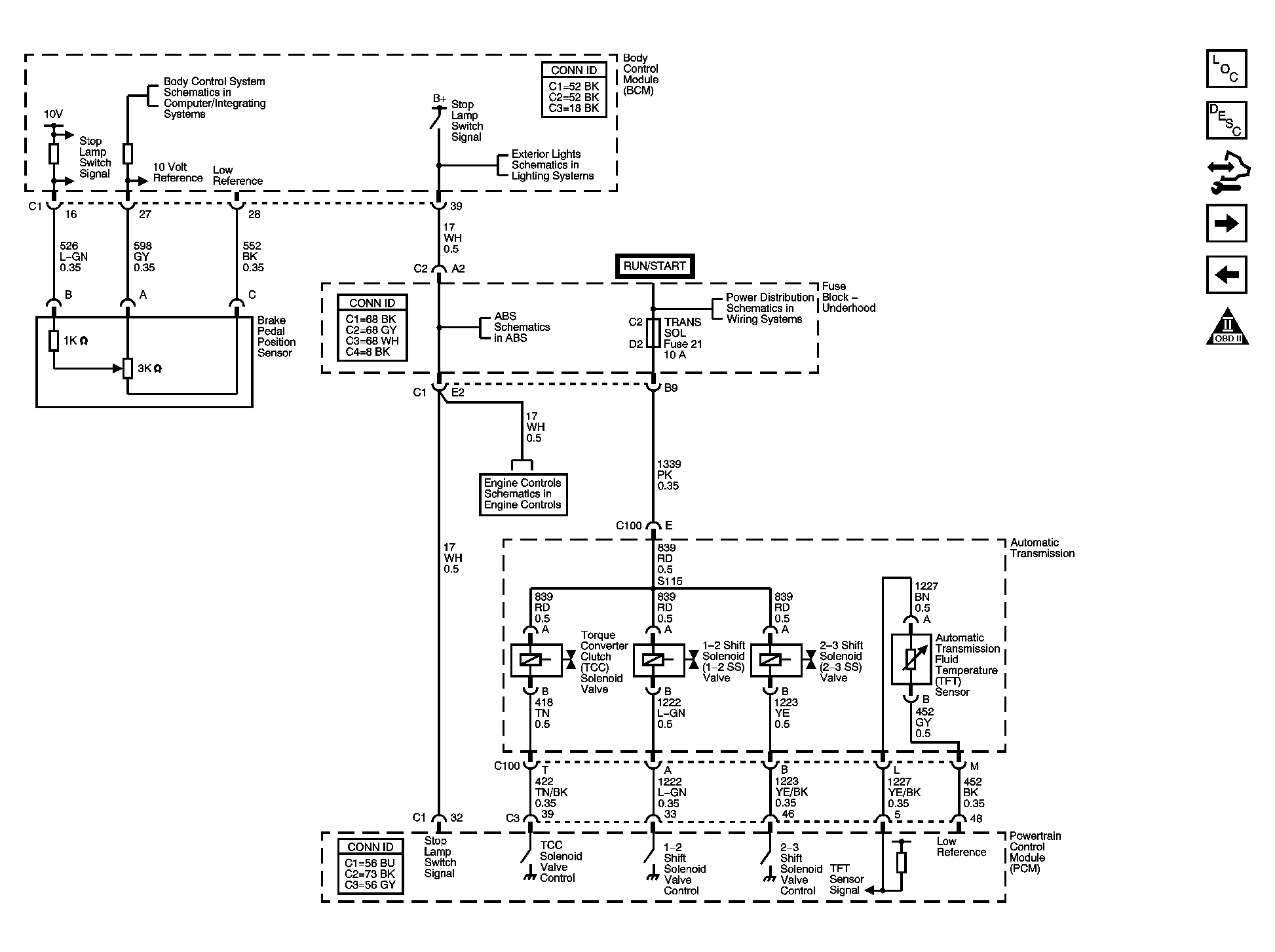

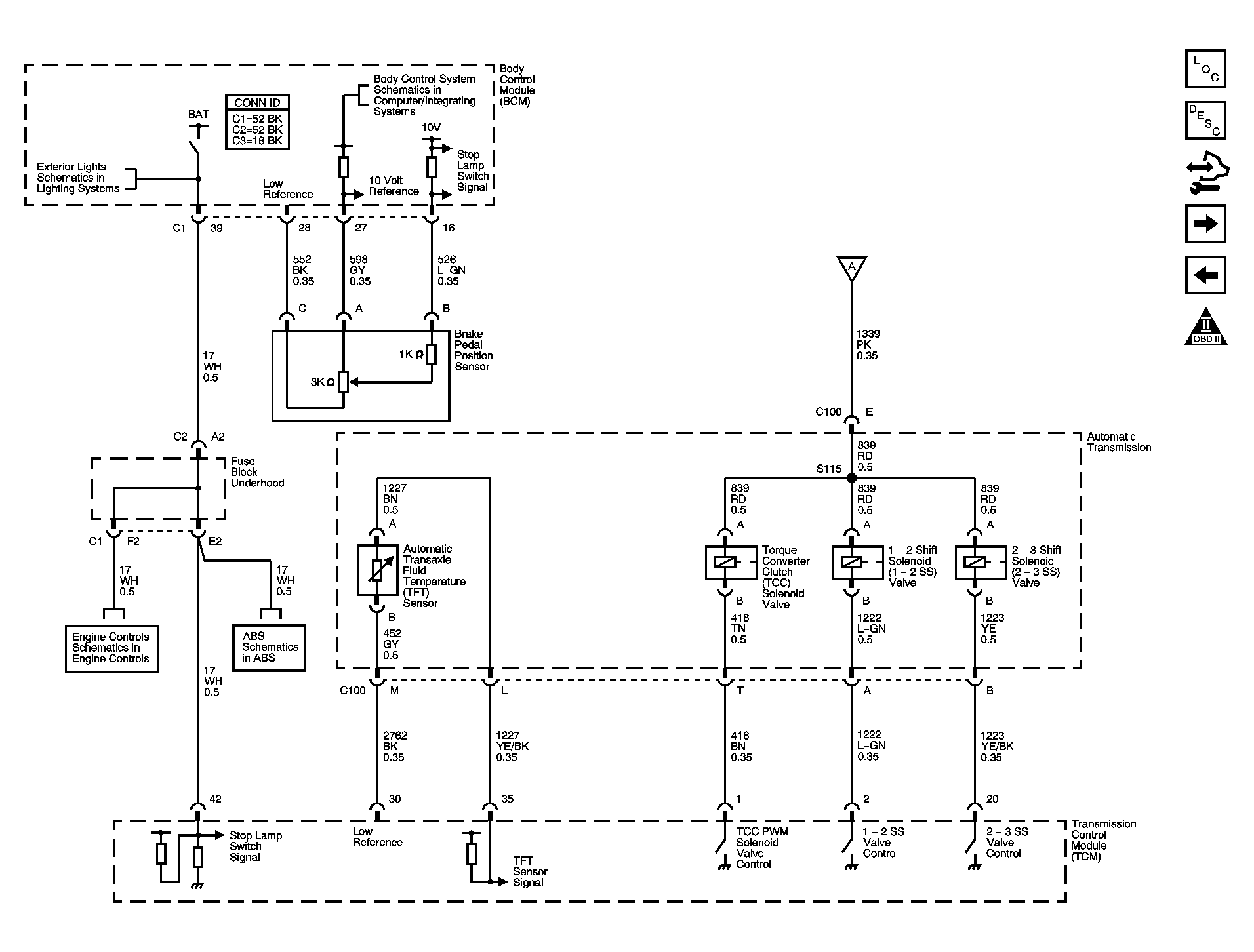

Fig 2: Shift and TCC Solenoid Valves, TFT Sensor, and Stop Lamp Switch (LY7) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: PC Solenoid Valve, Fluid Pressure Manual Valve Position Switch, ISS and VSS Sensors (LY7) Schematic

Courtesy of GENERAL MOTORS CORP.

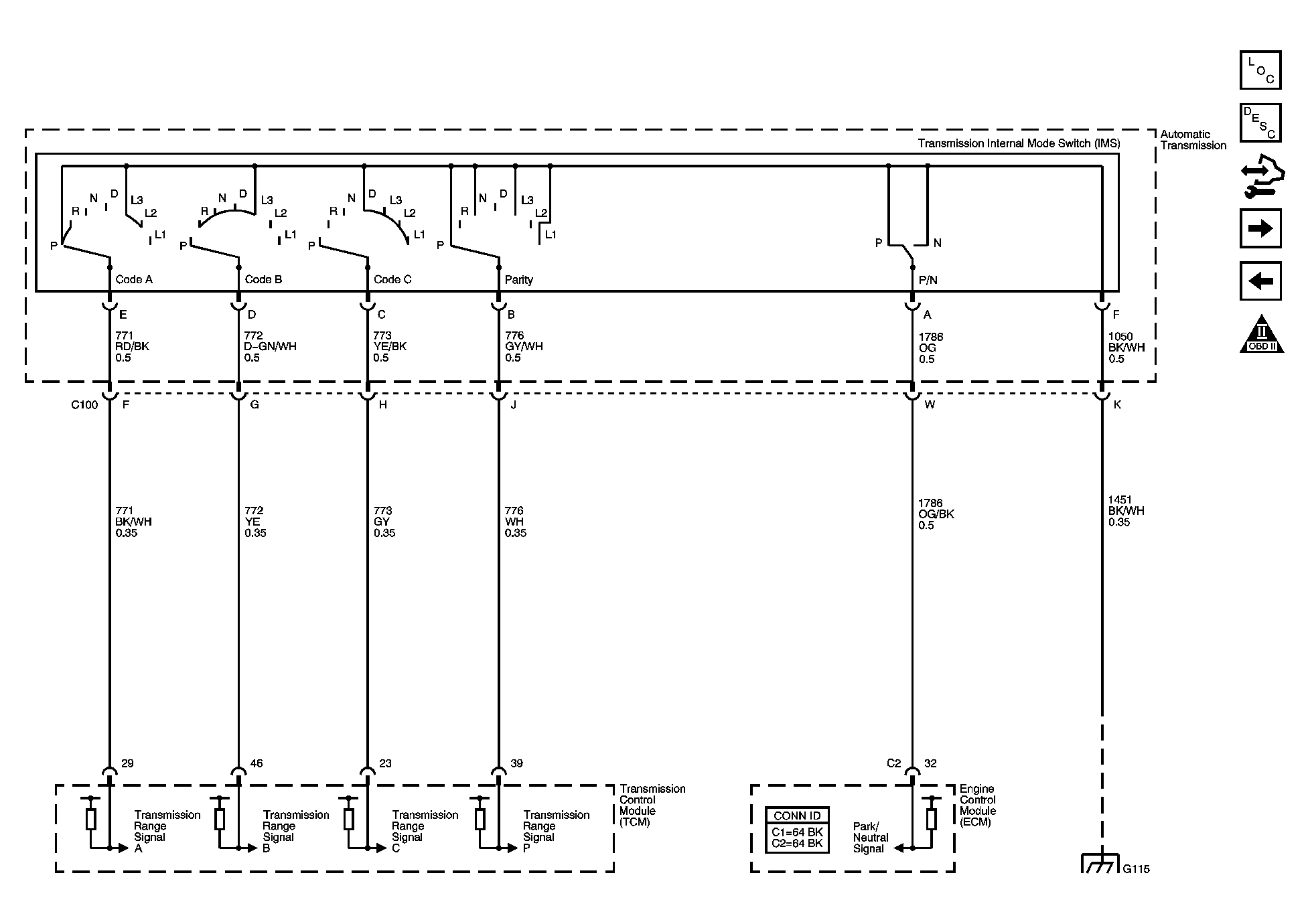

Fig 4: Internal Mode Switch (LY7) Schematic

Courtesy of GENERAL MOTORS CORP.

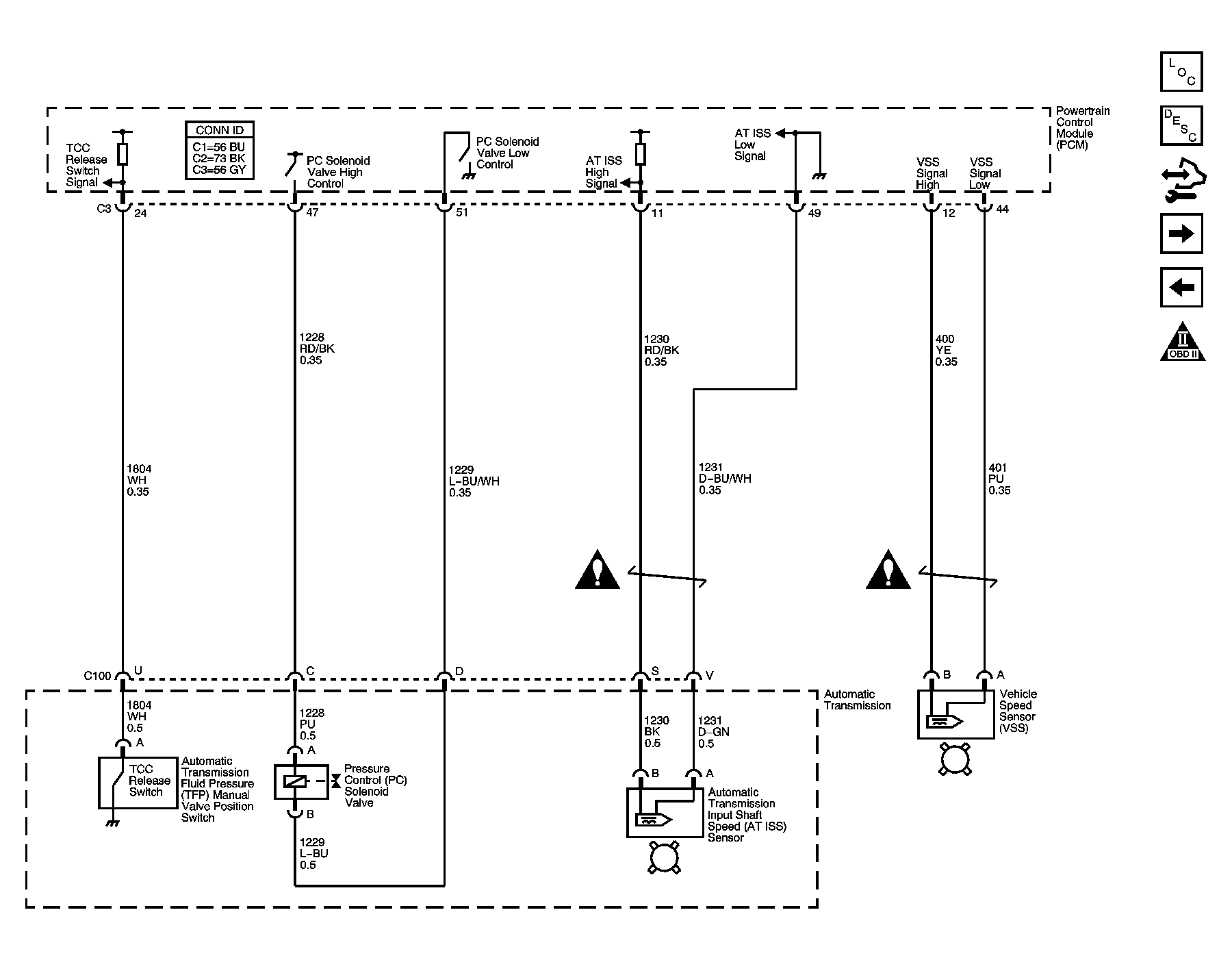

Fig 5: Shift and TCC Solenoid Valves, TFT Sensor, and Stop Lamp Switch (L26) Schematic

Courtesy of GENERAL MOTORS CORP.

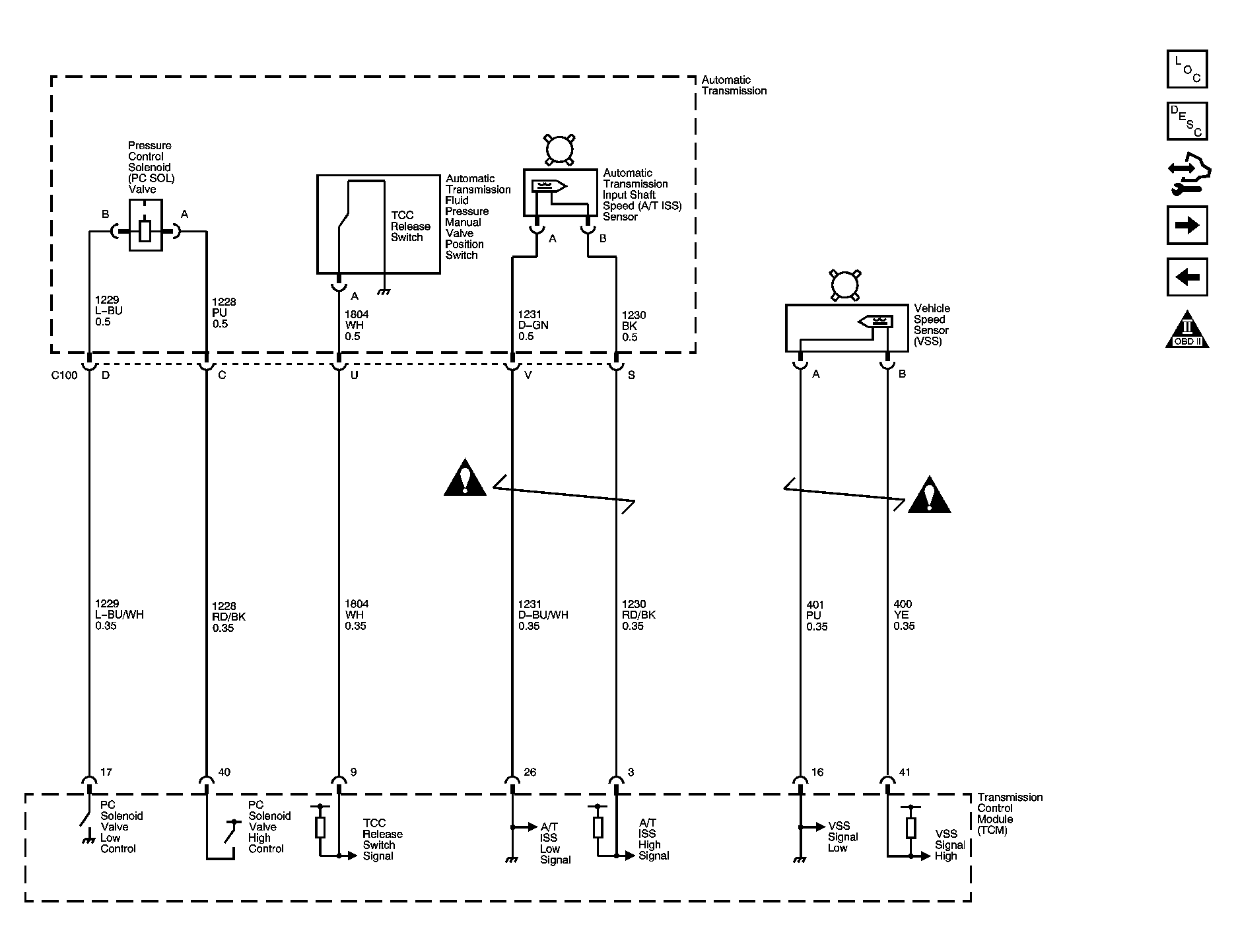

Fig 6: PC Solenoid Valve, Fluid Pressure Manual Valve Position Switch, ISS and VSS Sensors (L26) Schematic

Courtesy of GENERAL MOTORS CORP.

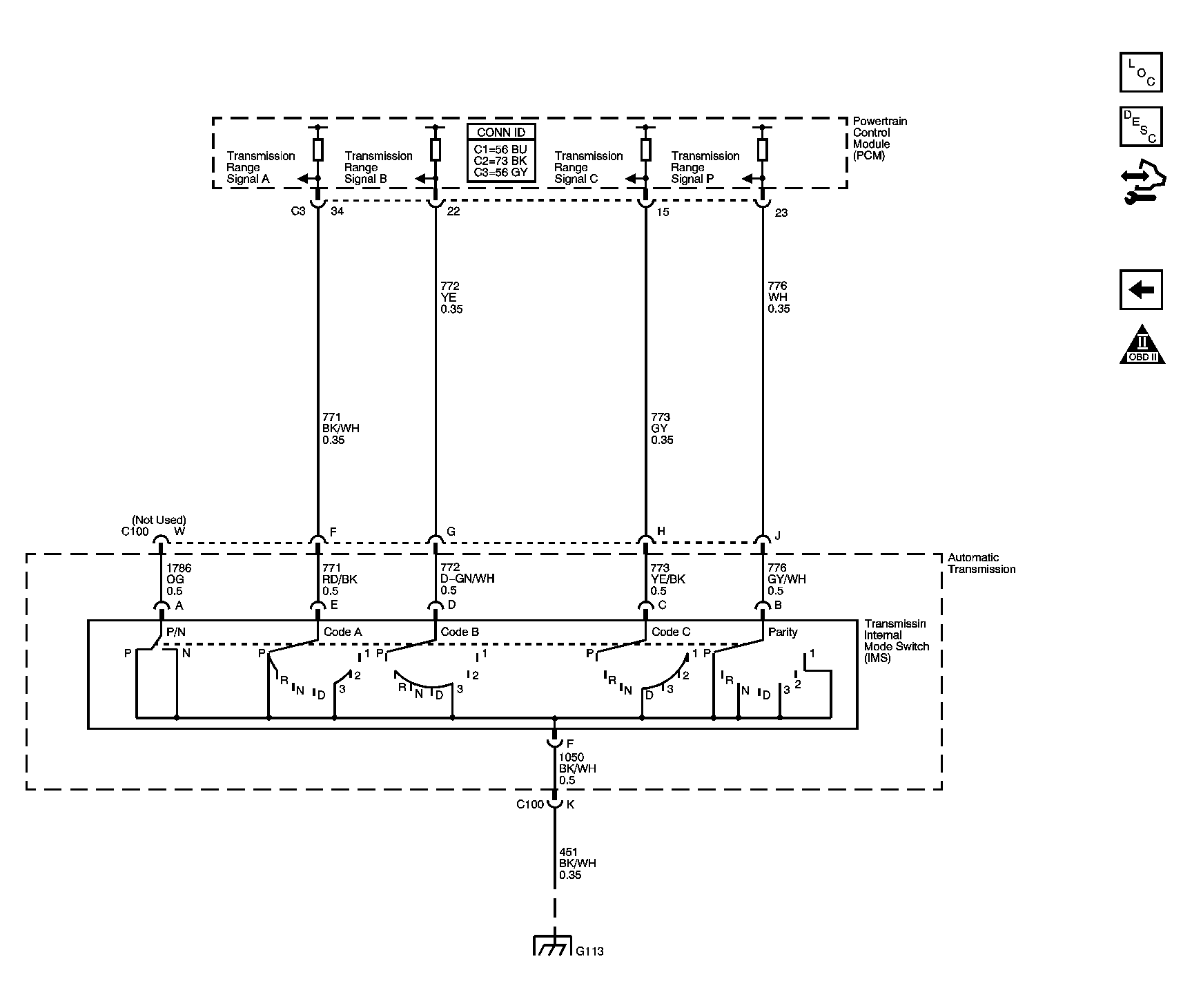

Fig 7: Internal Mode Switch (L26) Schematic

Courtesy of GENERAL MOTORS CORP.
