Battery Positive Cable Replacement
Battery Positive Cable Replacement

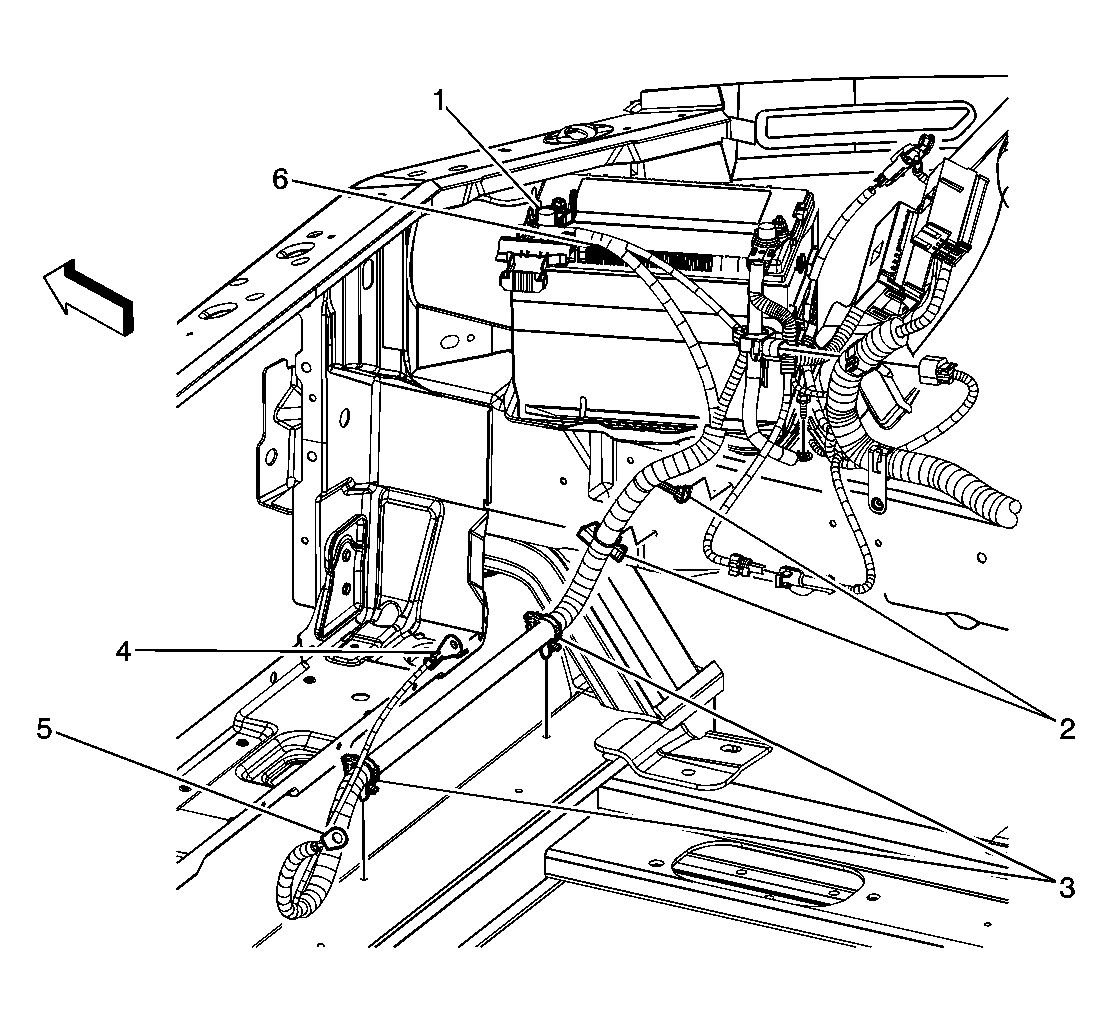

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the battery current senor. Refer to Battery Current Sensor Replacement . |
|
| 1 | Nut, Positive Battery Terminal Clamp Tighten: 13 N.m (115 lb in) |
| 2 | Retainer, Positive Battery Cable Harness (Qty: 2) Tip: When removing the retainers, use an appropriate tool as not to damage the retainer. |
| 3 | Retainer, Positive Battery Cable (Qty: 2) Tip: When removing the retainers, use an appropriate tool as not to damage the retainer. |
| 4 | Terminal, Battery Cable Generator Tip: Remove the retaining nut for the generator. Tighten: 13 N.m (115 lb in) |
| 5 | Terminal, Engine Ground Tip: Remove the retaining screw for the chassis ground. Tighten: 20 N.m (15 lb ft) |
| 6 | Cable, Positive Battery |
