Battery Negative Cable Replacement
Battery Negative Cable Replacement

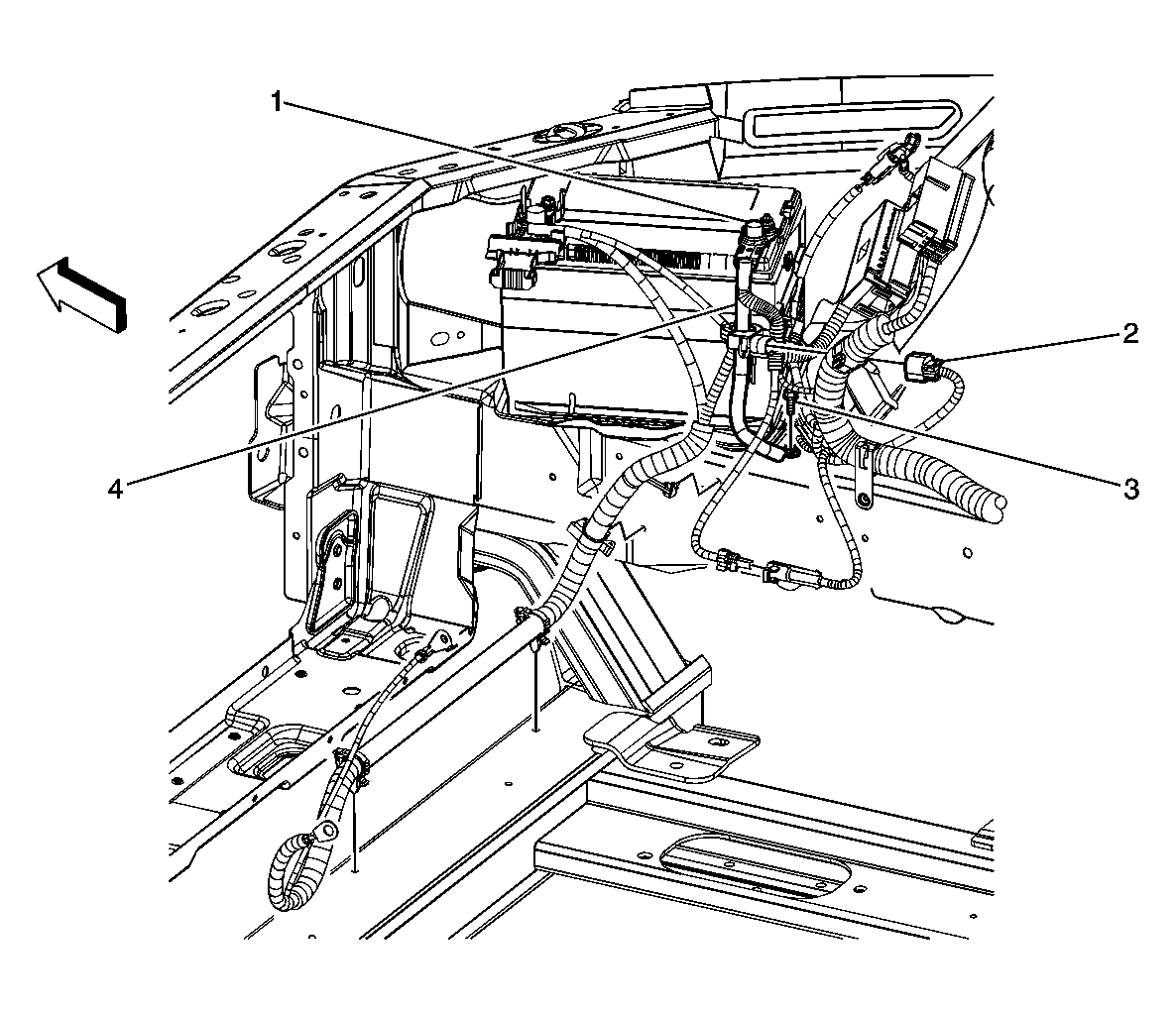

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Nut, Negative Battery Terminal Clamp Tighten: 13 N.m (115 lb in) |
| 2 | Connector, Battery Current Sensor |
| 3 | Bolt, Ground Cable to Frame |
| 4 | Cable, Negative Battery Tip: Remove the retaining clips from the current sensor to the negative battery cable. Before removing the current sensor, mark the relationship of the retaining clips on the old cable. After the cable has been removed, mark the position of the retainers on the cable. |
