Installation Procedure

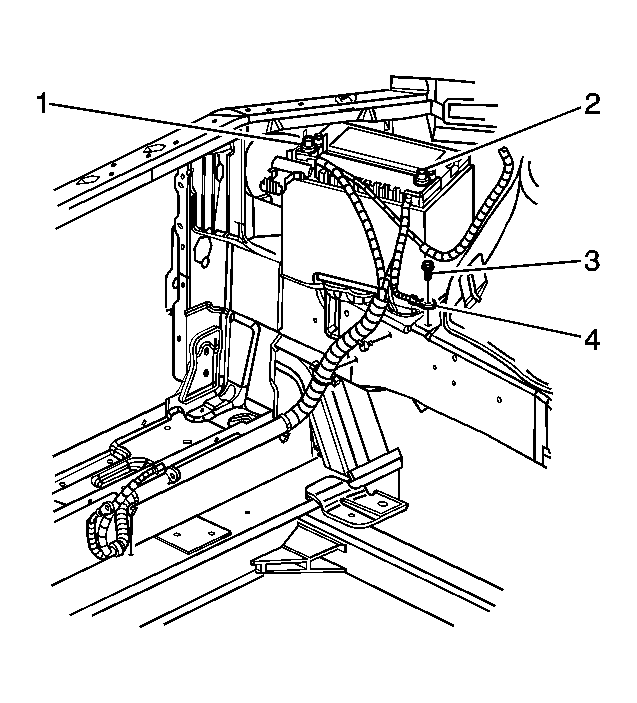

Fig 1: Identifying Battery Terminals & Ground Wire

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

IMPORTANT: Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.

Install the negative battery terminal (2) to the battery.
Tighten: Tighten the negative battery terminal nut to 15 N.m (11 lb ft).
Set the clock and program the radio stations back into the radio as recorded at the beginning of the procedure for digital radios. Refer to Digital Radio Receiver Setup .
