Body Control System Schematics

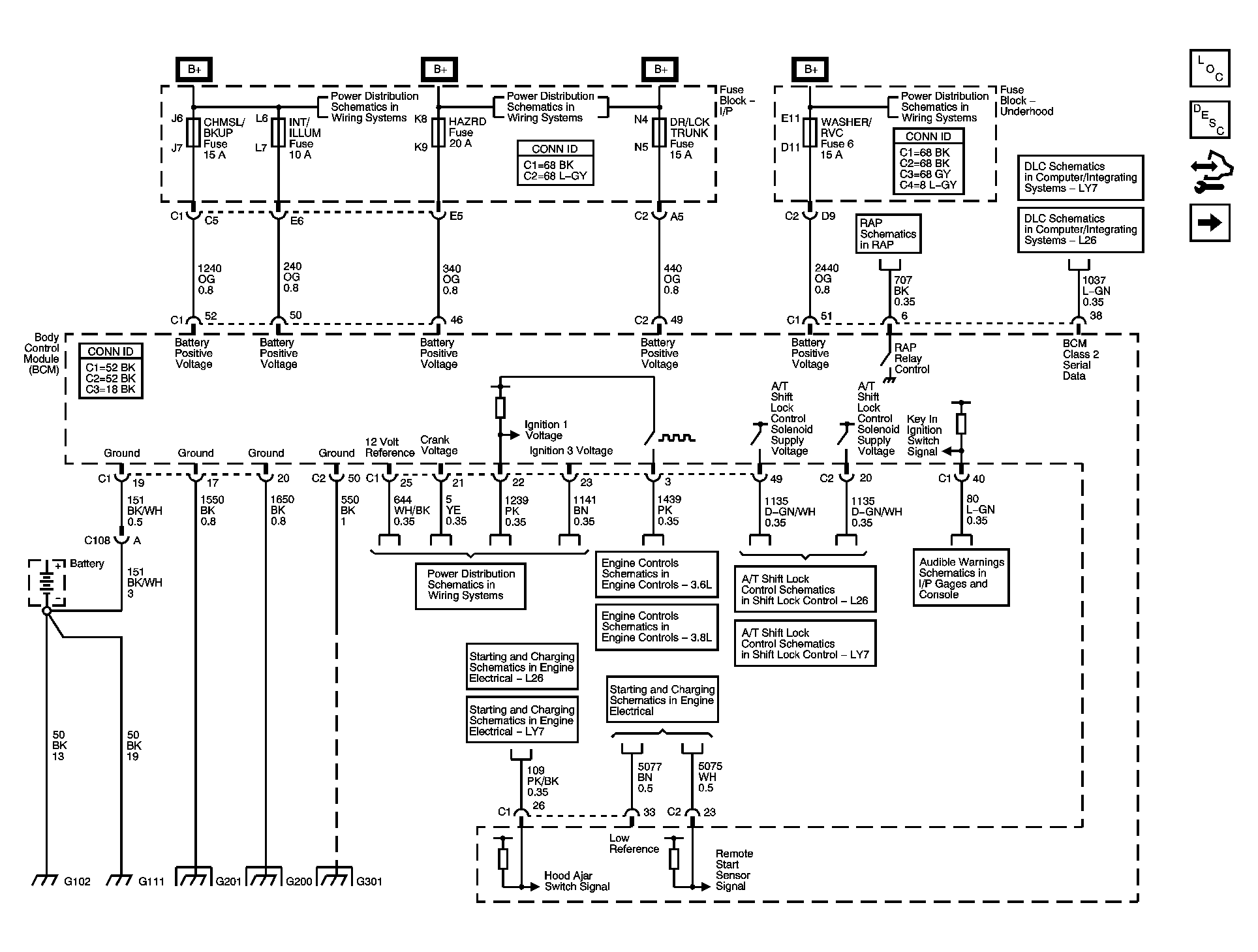

Fig 1: Power, Ground, A/T Shift Lock Control, Audible Warnings, DLC, Engine Controls, RAP, Starting and Charging References Schematic

Courtesy of GENERAL MOTORS CORP.

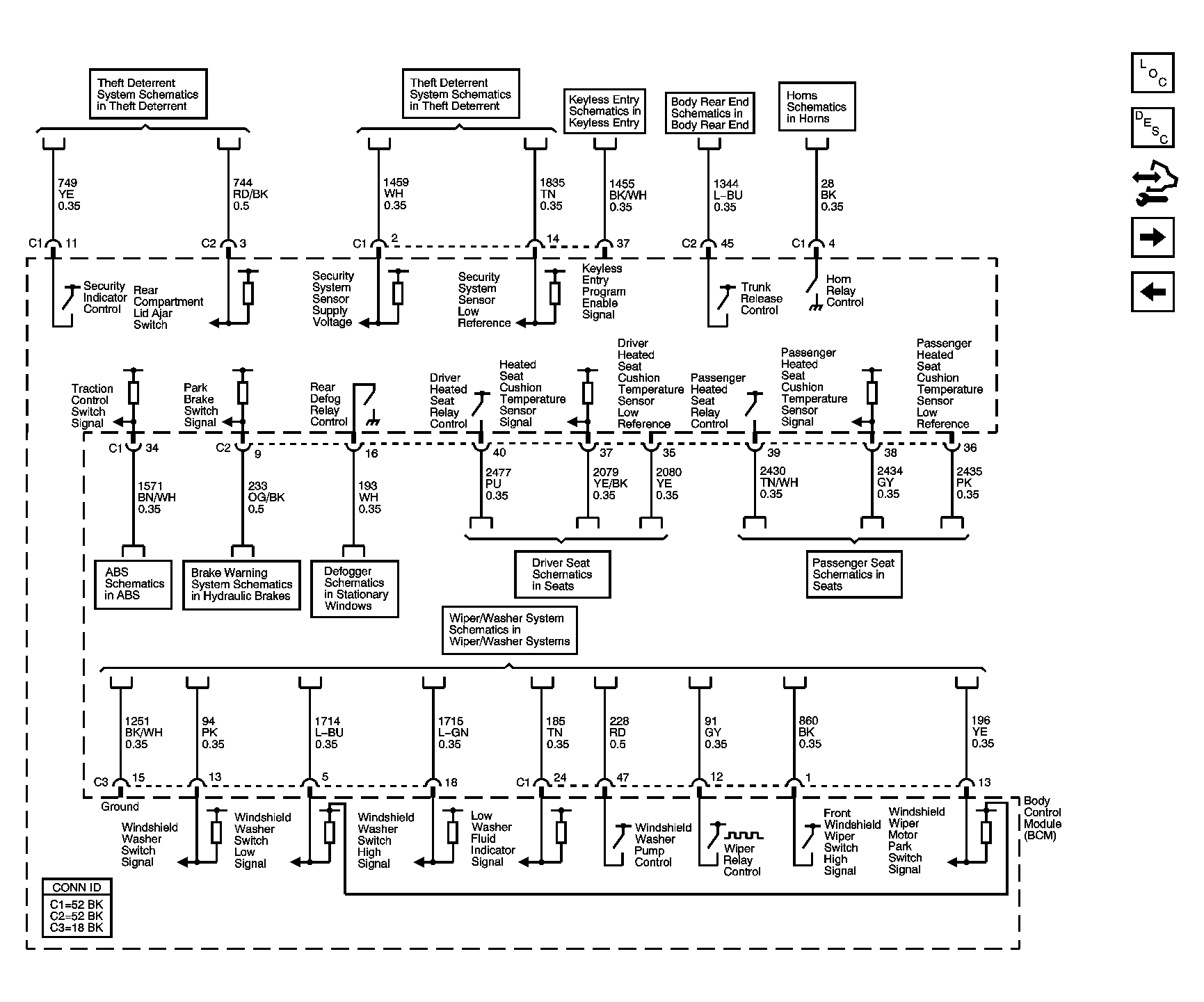

Fig 2: ABS, Body Rear End, Brake Warning System, Defogger, Driver Seat, Horns, Keyless Entry, Passenger Seat, Theft Deterrent and Wiper/Washer System References Schematic

Courtesy of GENERAL MOTORS CORP.

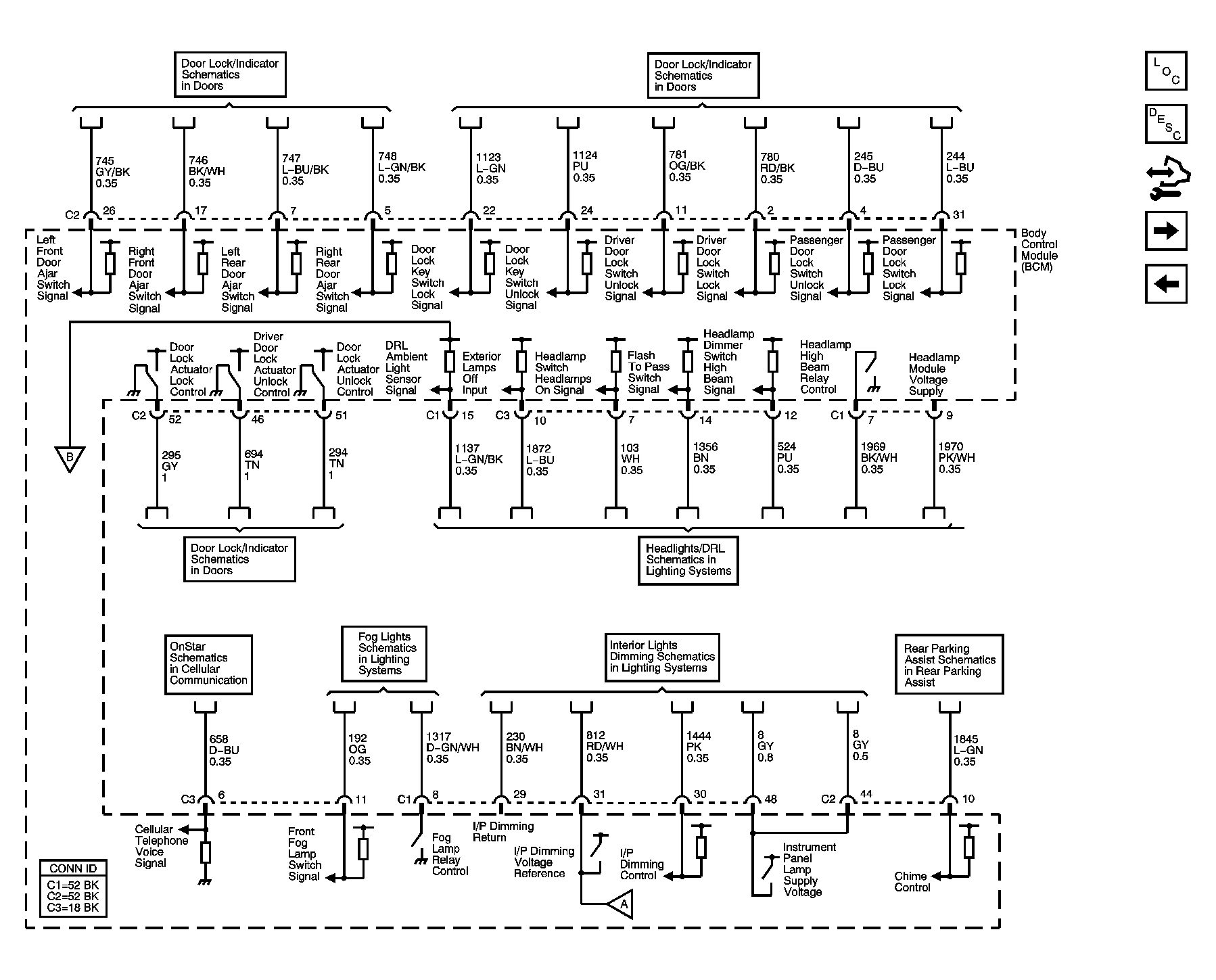

Fig 3: Door/Lock Indicator, Fog Lights, Headlights/DRL, Interior Lights, OnStar and Rear Parking Assist References Schematic

Courtesy of GENERAL MOTORS CORP.

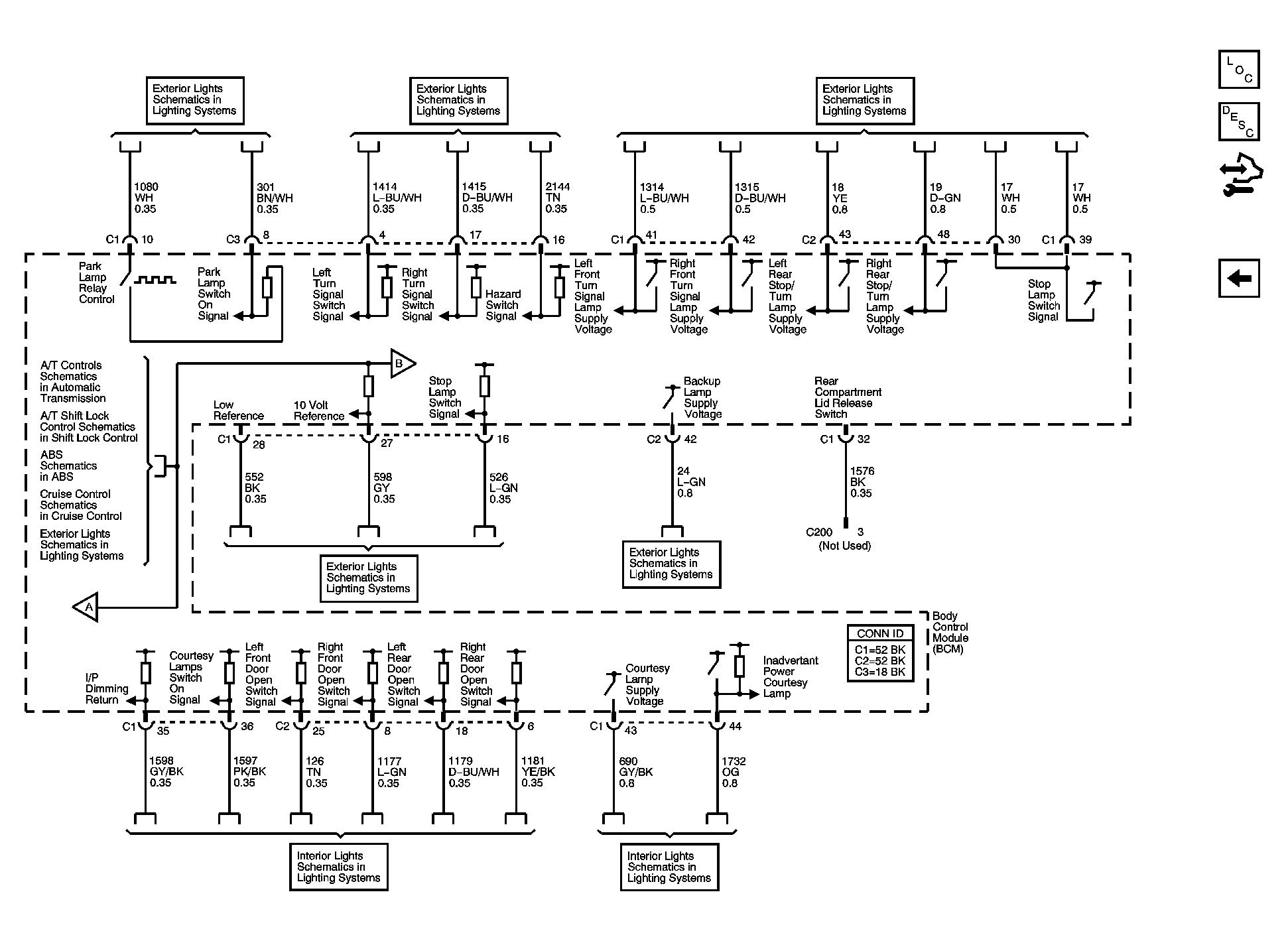

Fig 4: Exterior Lights and Interior Lights References Schematic

Courtesy of GENERAL MOTORS CORP.
