Installation Procedure

Fig 1: Removing/Installing Cruise Control Module Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Install the cruise control module (1) to the bracket (2).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the module to the bracket bolts (3).
Tighten: Tighten the fasteners to 7.5 N.m (66 in. lb.).

Fig 2: Removing/Installing Retaining Nuts & Module

Courtesy of GENERAL MOTORS CORP.

Install the cruise control module (1) onto the studs on the cowl.
Install the 2 nuts (2).
Tighten: Tighten the bracket retaining nuts to 9 N.m (80 in. lb.).
Connect the electrical connector to the module.

Fig 3: Disconnecting/Connecting Cruise Control Cable At Module Assembly Connector

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not twist the ribbon when connecting the cable to the module.

IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.

Install the cruise control cable (1) to the module assembly connector (3).

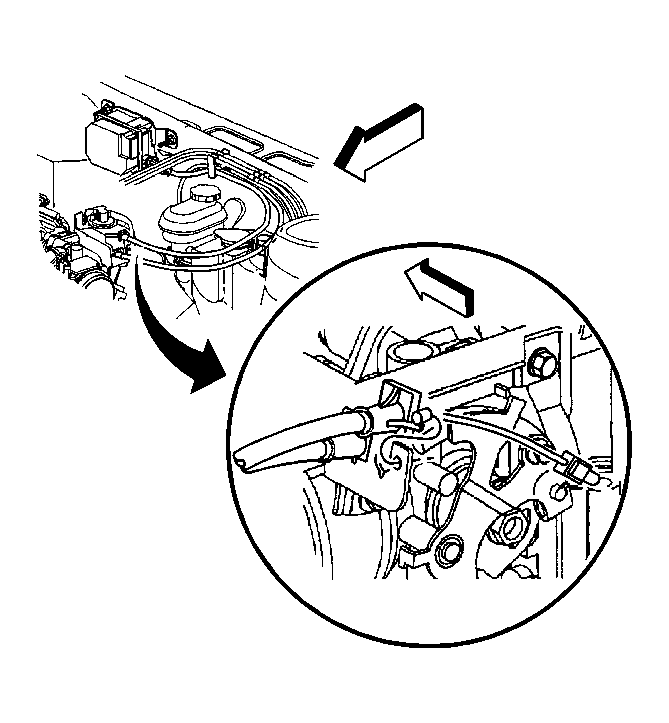

Fig 4: Disconnecting/Connecting Cruise Control Cable

Courtesy of GENERAL MOTORS CORP.

Install the cruise control cable housing connector to the engine bracket and throttle body.
