Body Control System Component Views

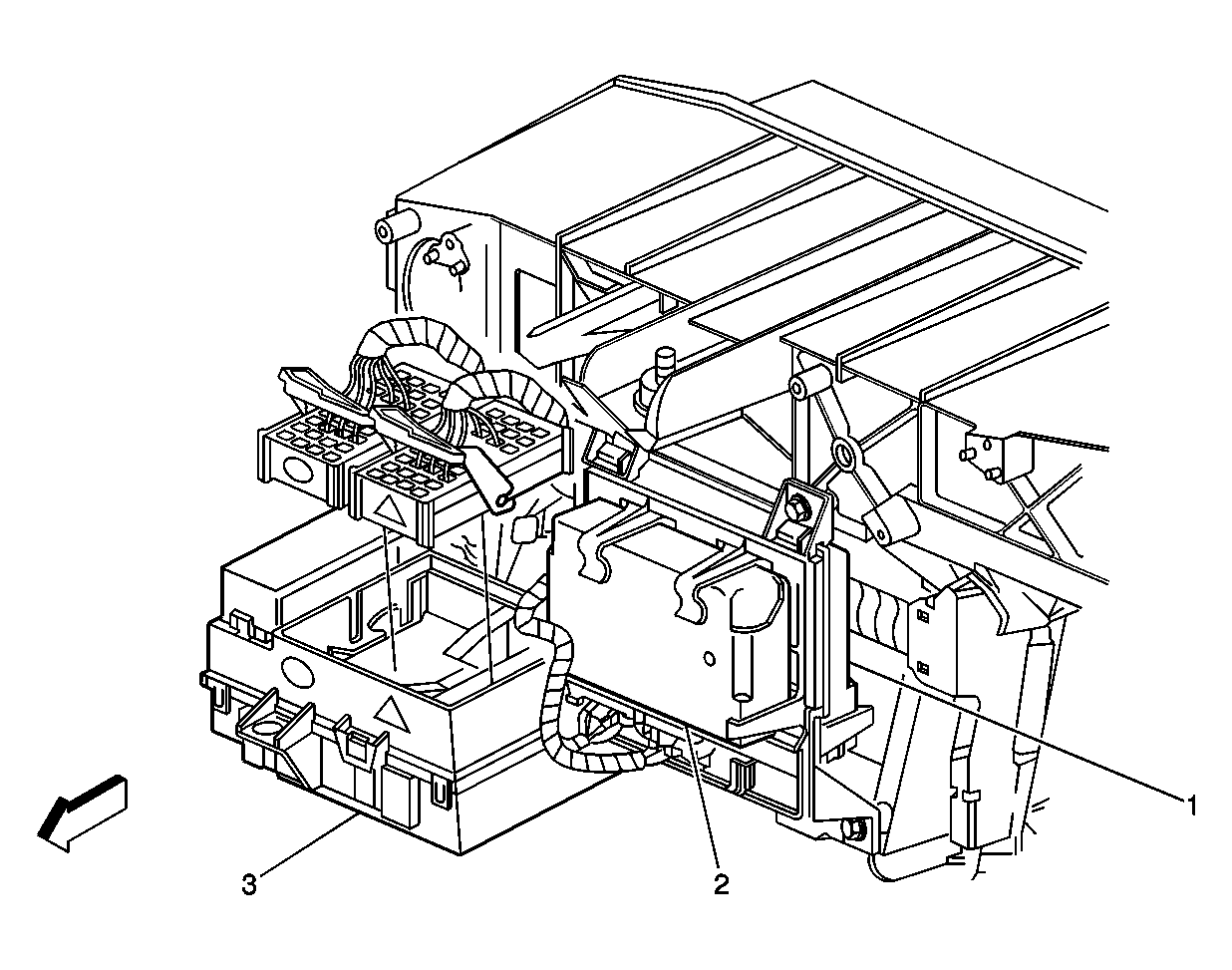

Fig 1: Identifying Components Behind Right Side Of Instrument Panel
GM317633Courtesy of GENERAL MOTORS CORP.
Identifying Callouts For Fig. 4

Callout Component Name
1 Instrument Panel Integration Module (IPM)
2 Body Control Module (BCM)
3 Fuse Block - I/P
