Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

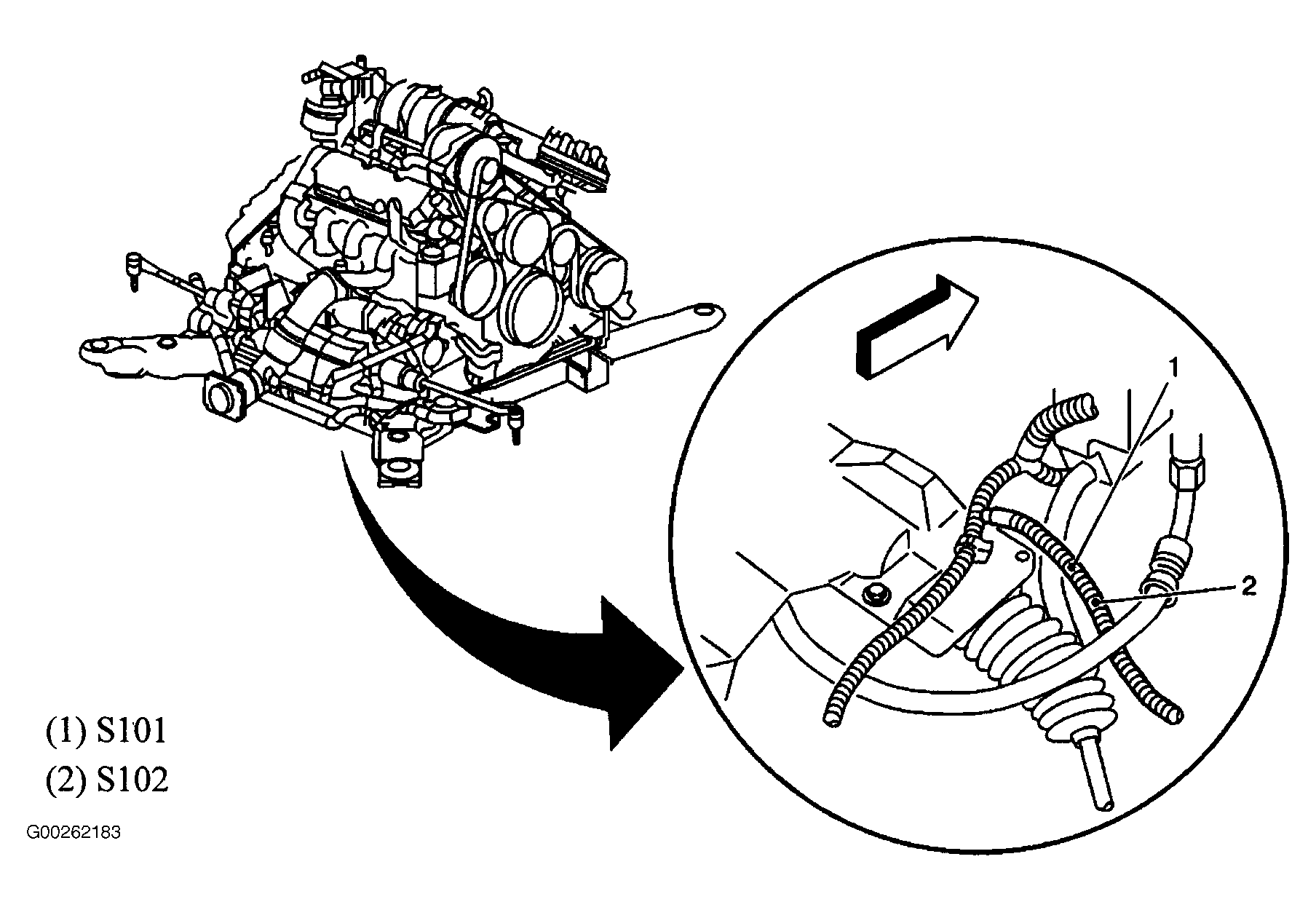

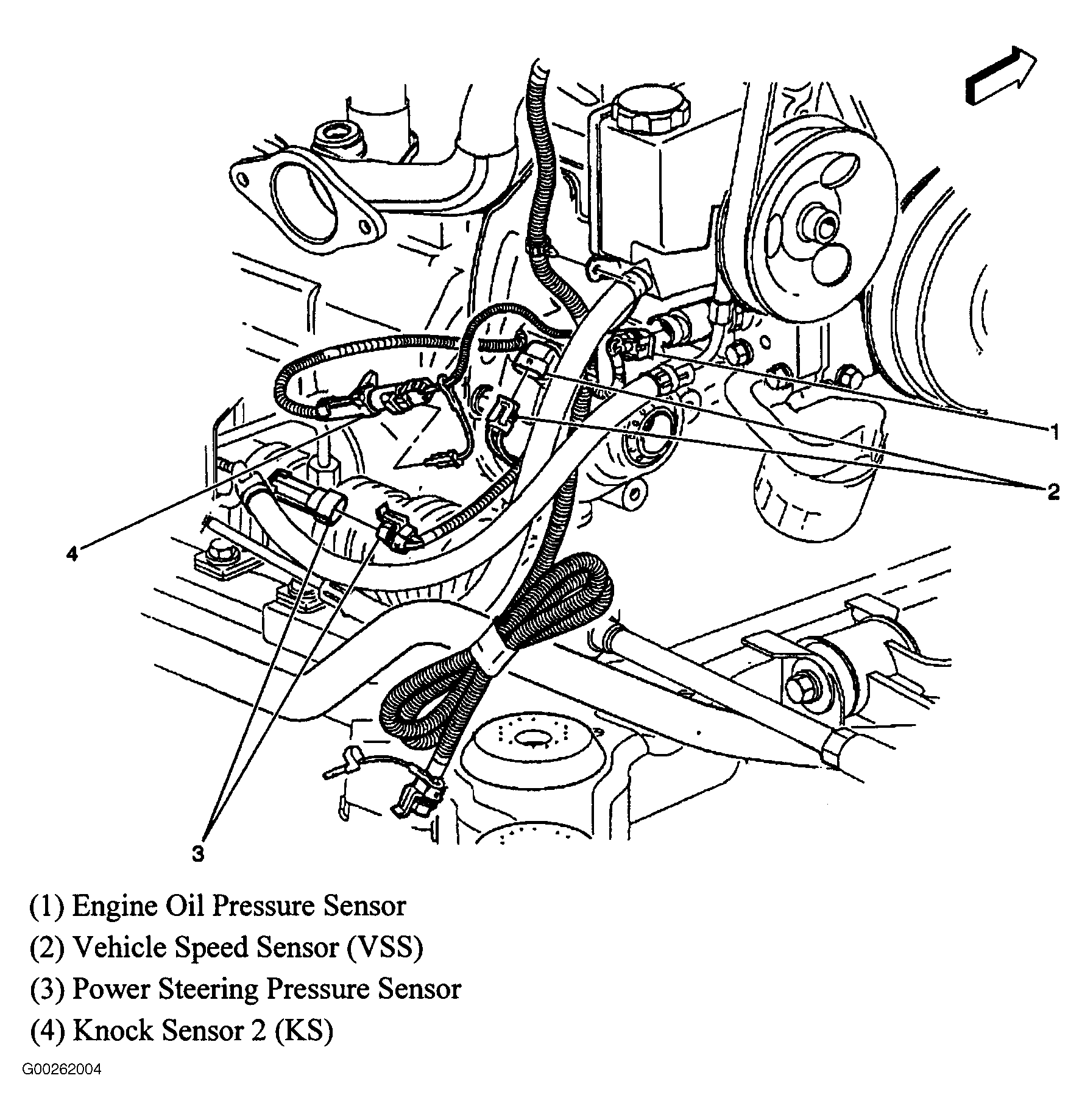

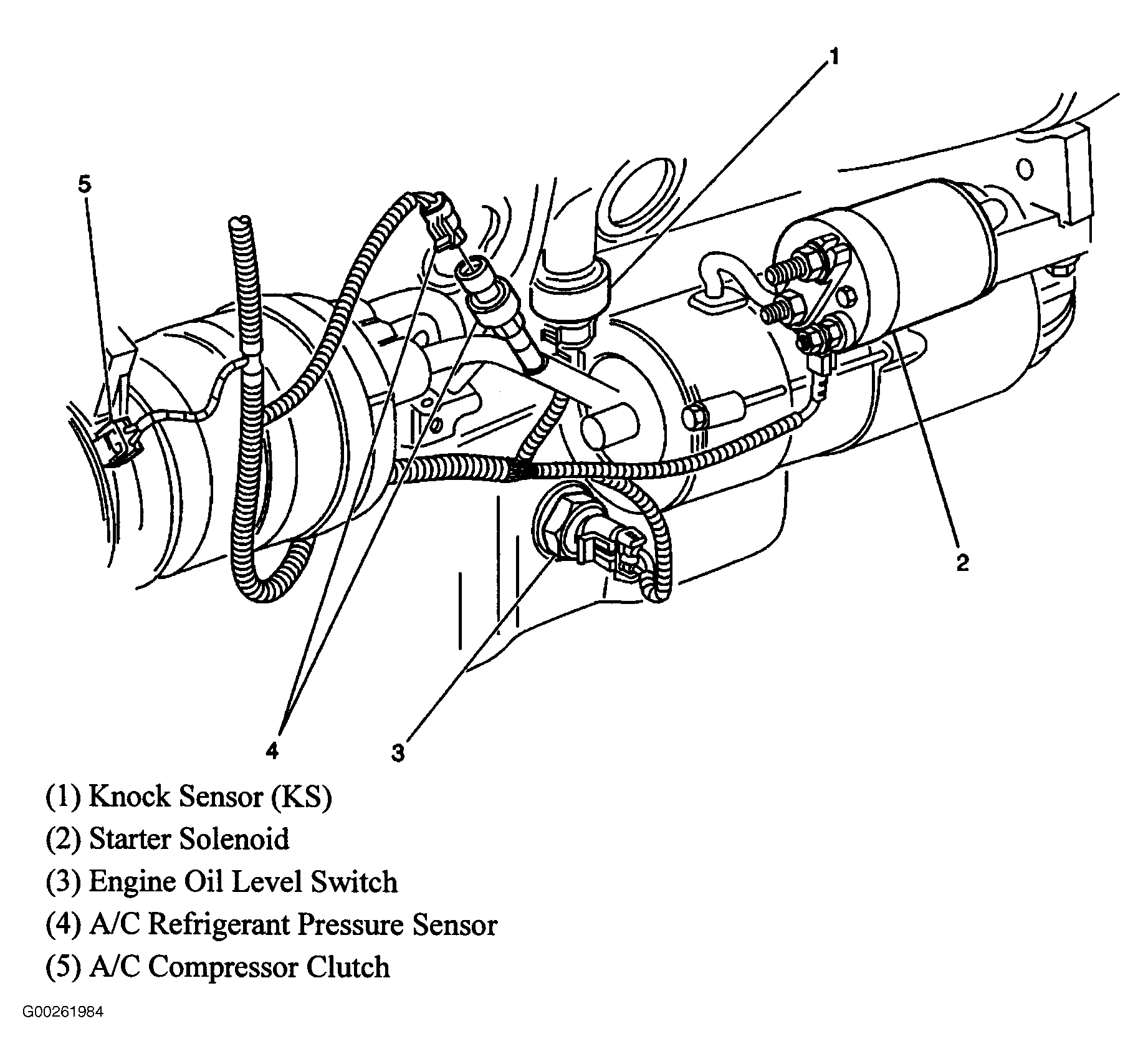

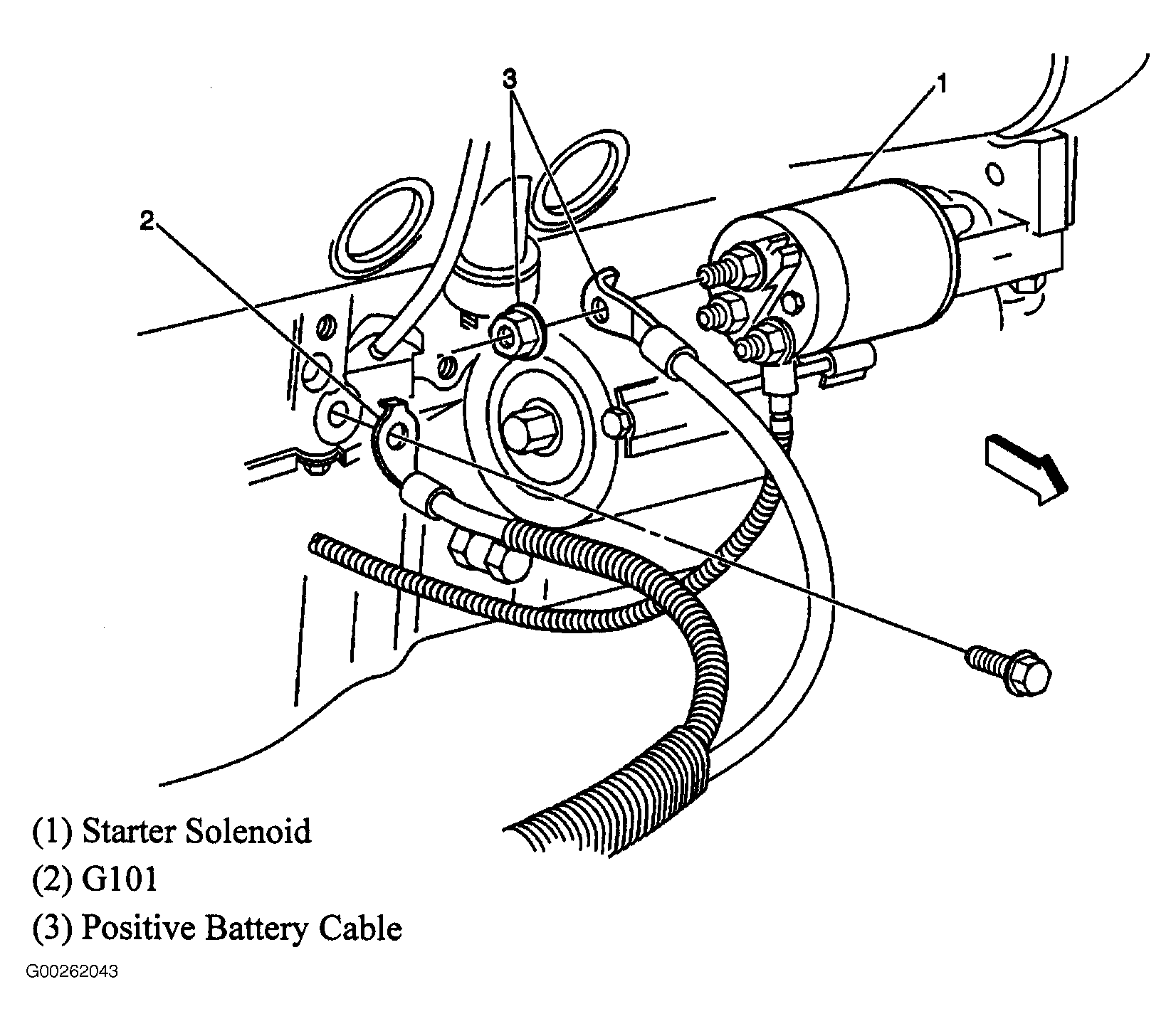

Fig 1: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.

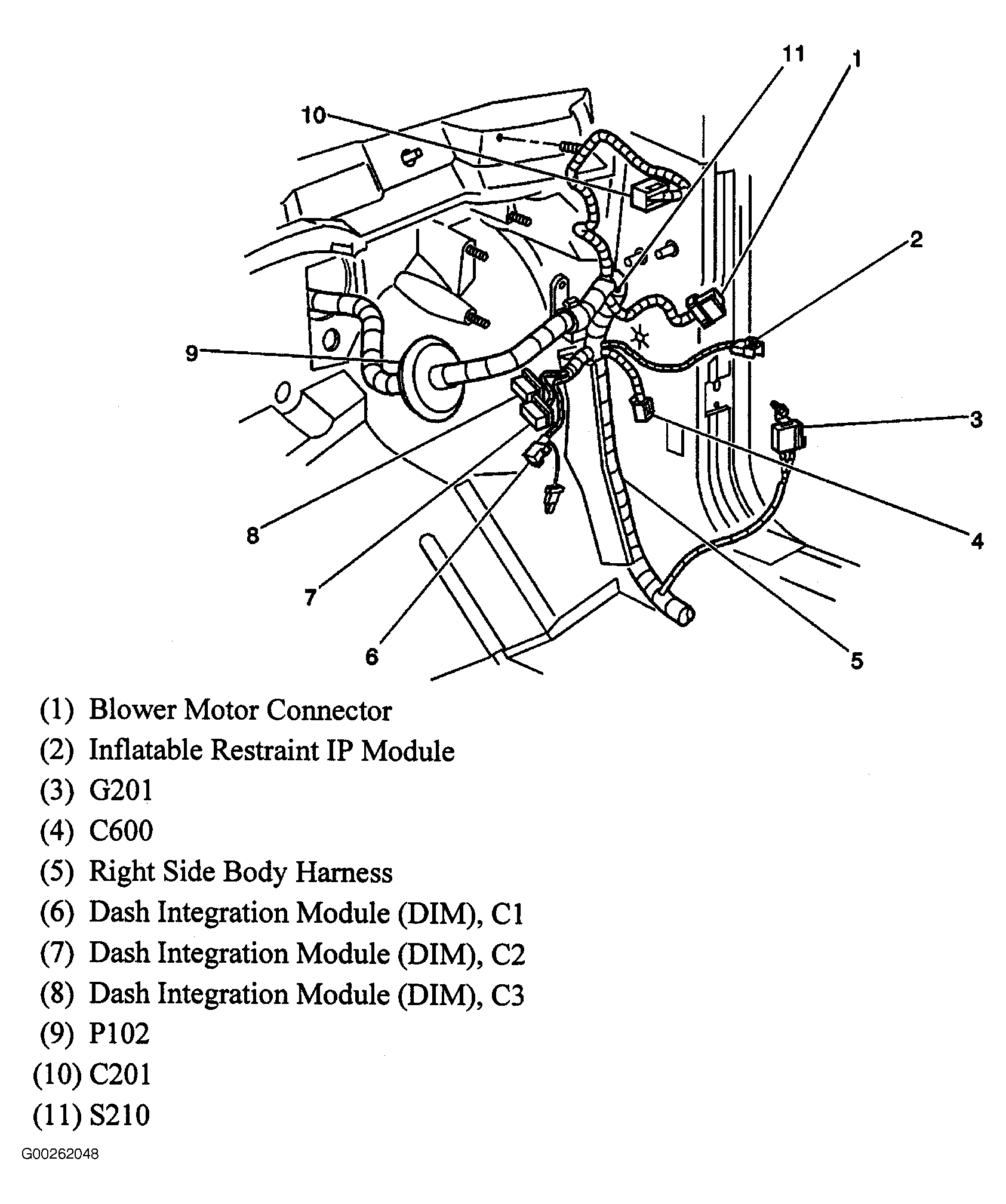

Fig 2: Right Side Of HVAC Housing
Courtesy of GENERAL MOTORS CORP.

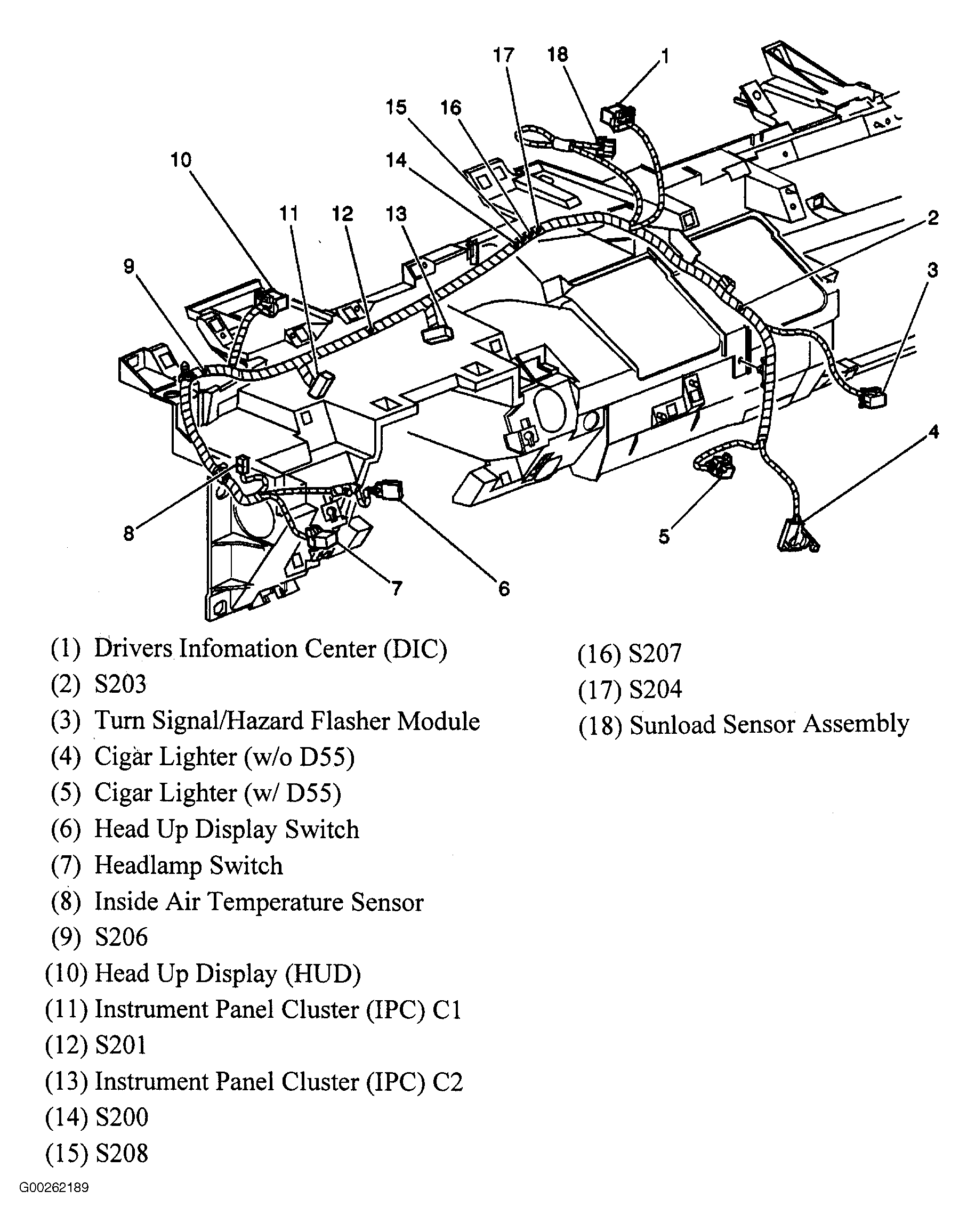

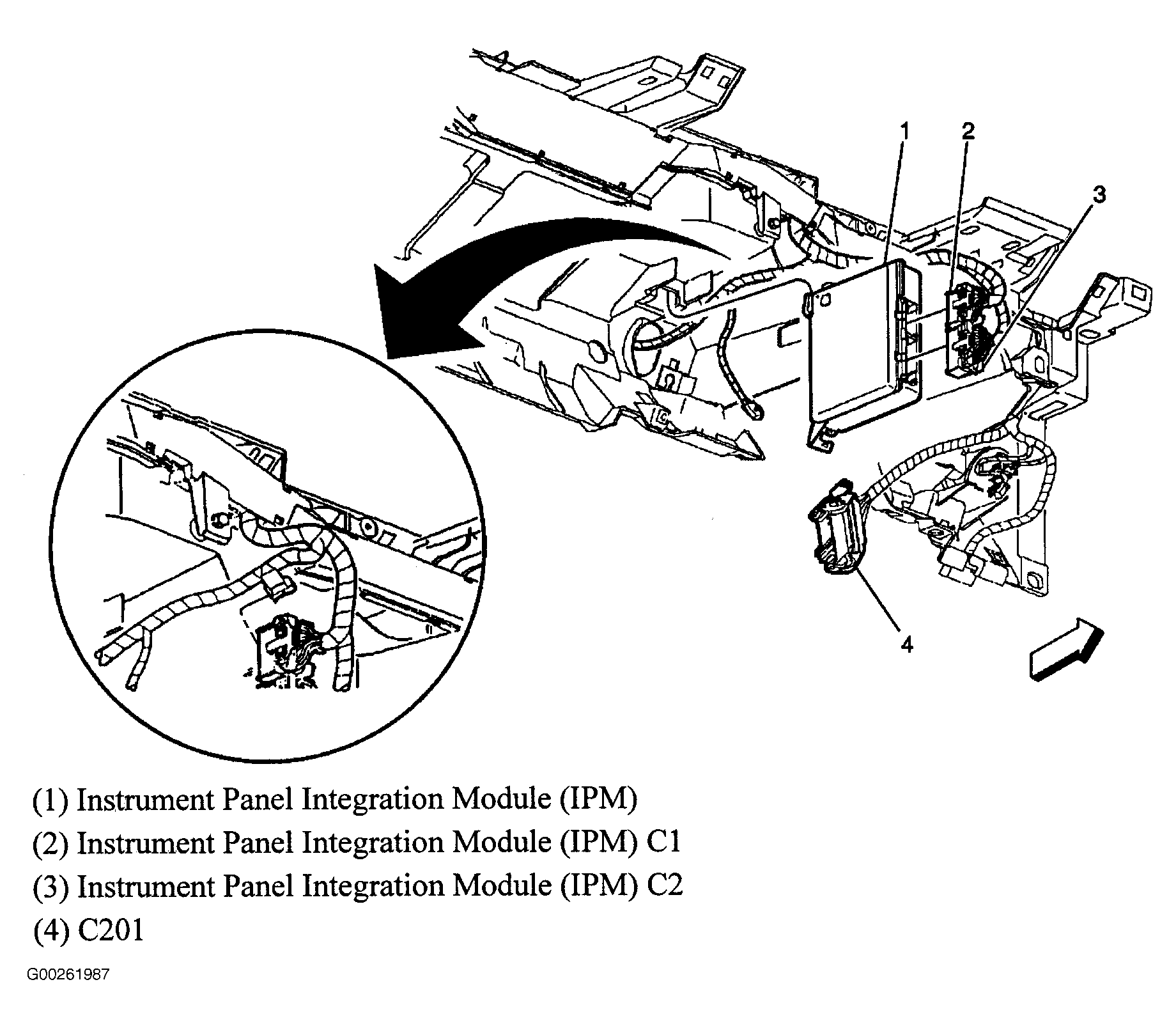

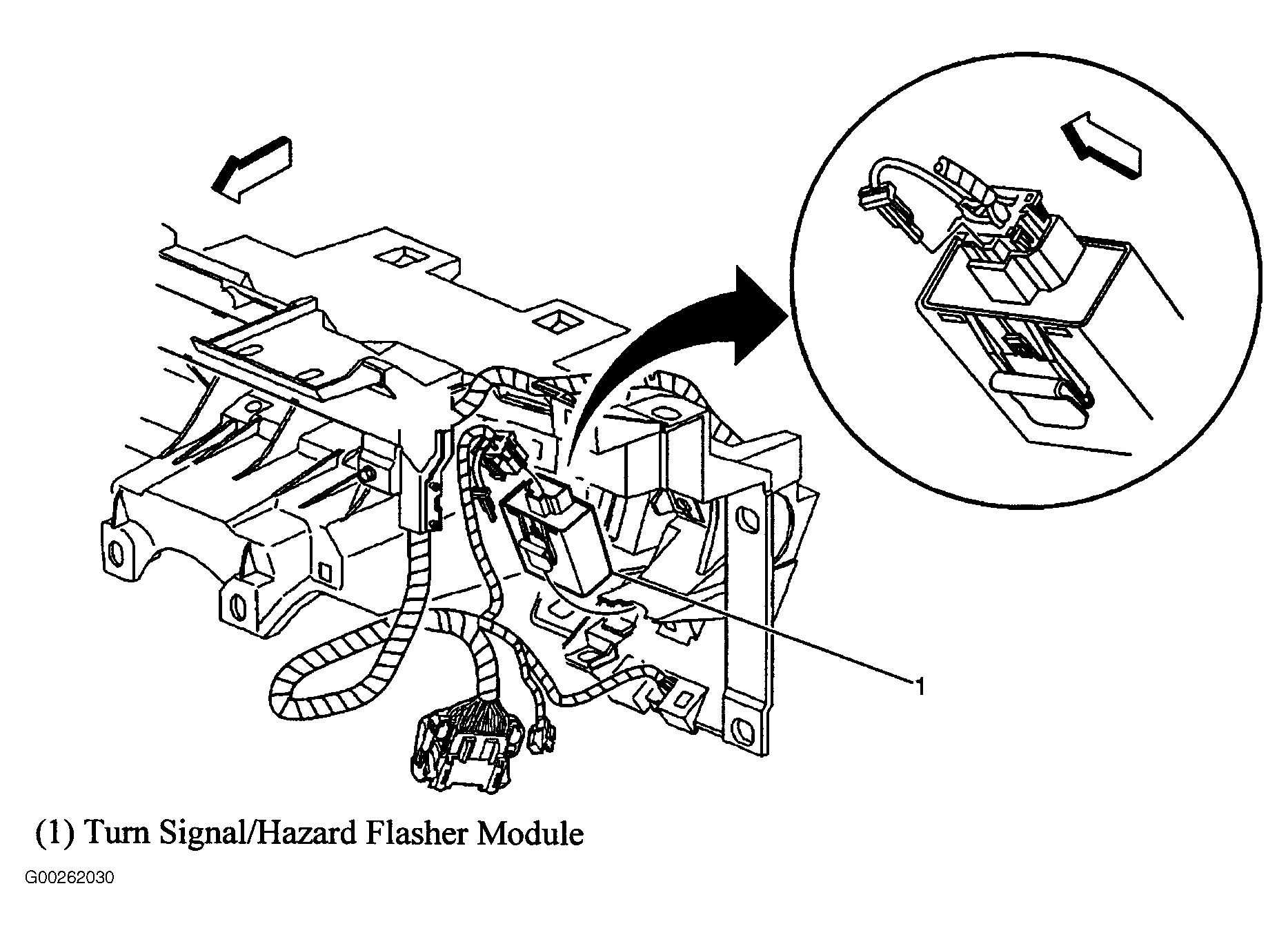

Fig 3: Behind Dash
Courtesy of GENERAL MOTORS CORP.

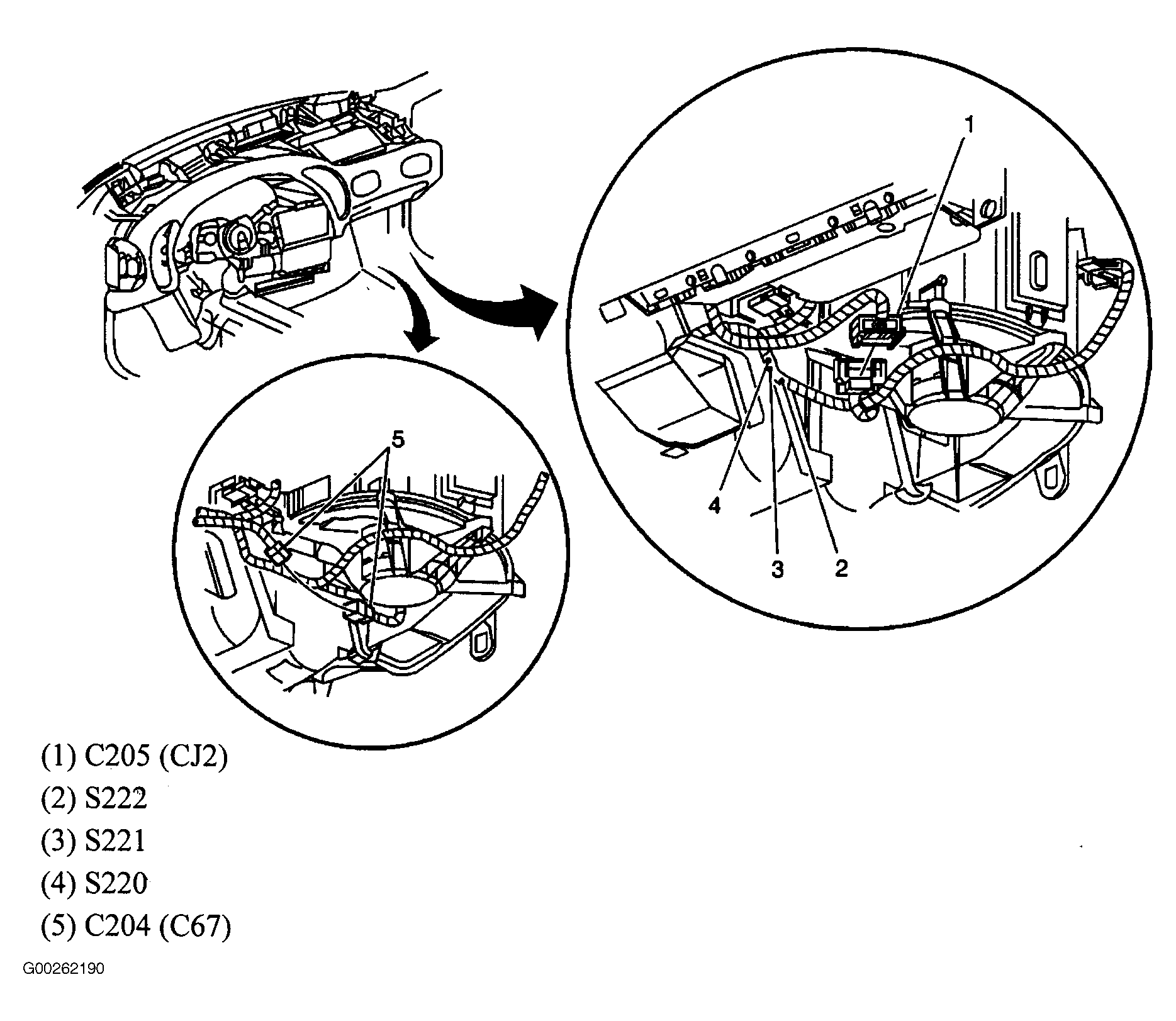

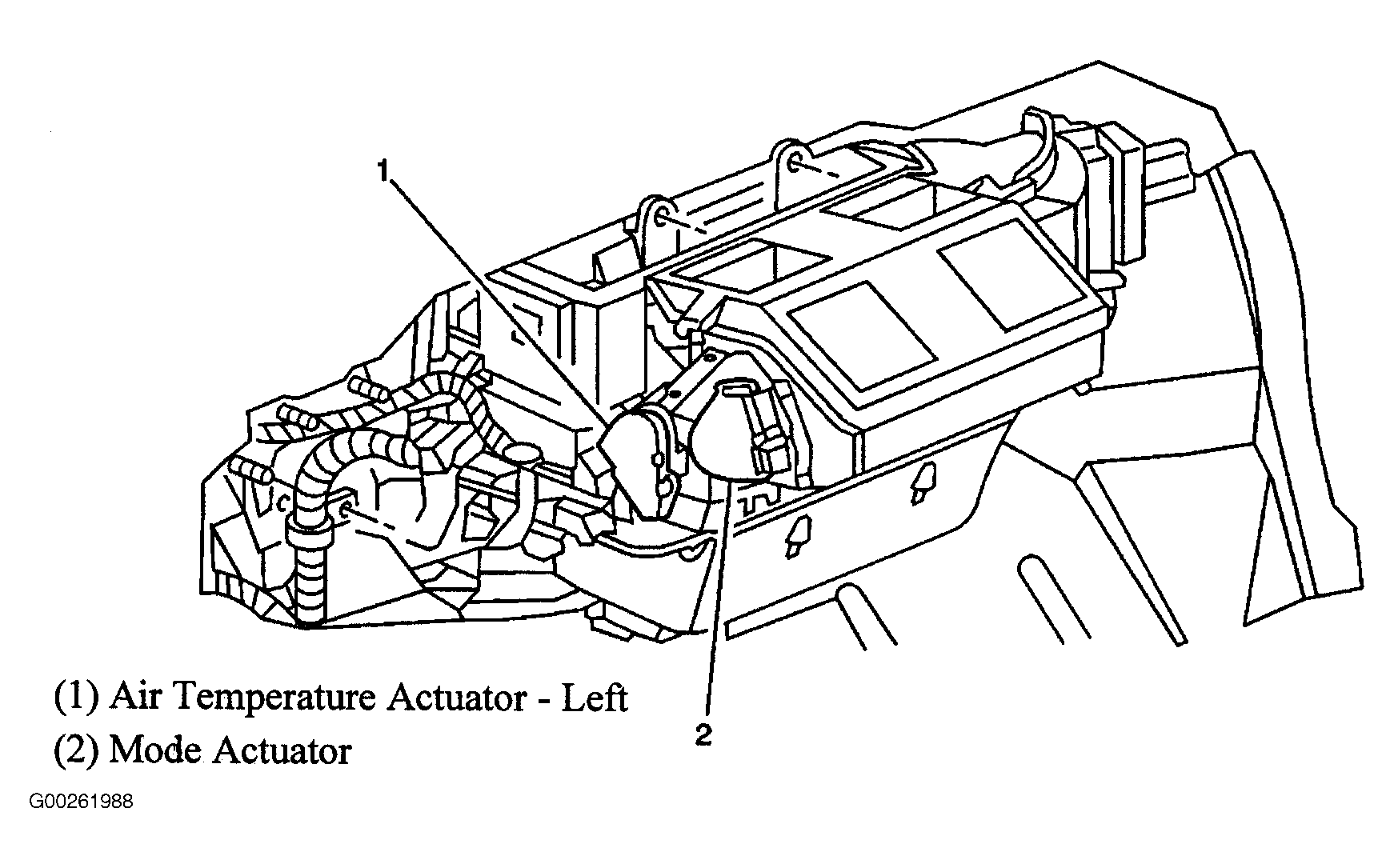

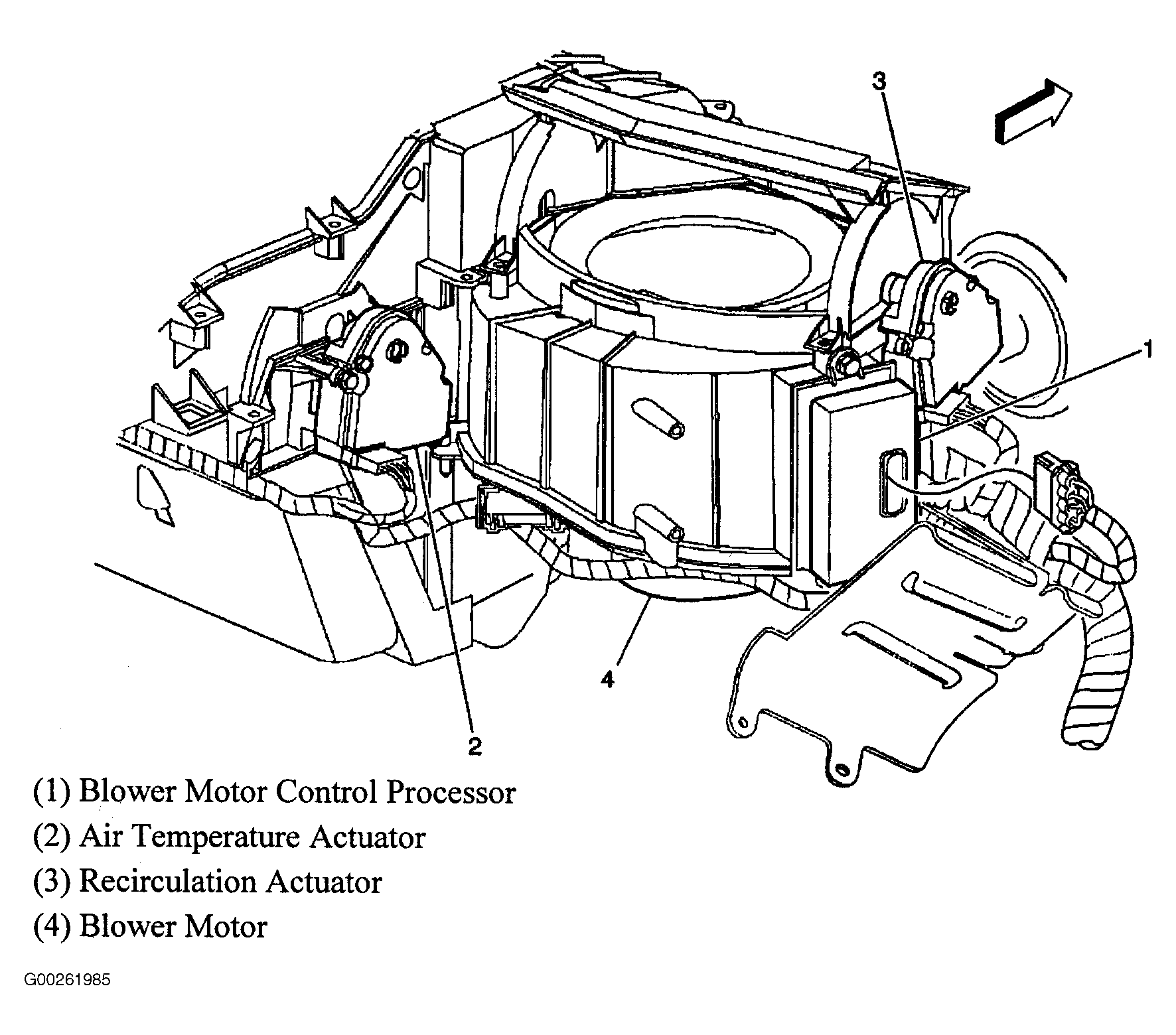

Fig 4: Left Side Of HVAC Housing
Courtesy of GENERAL MOTORS CORP.

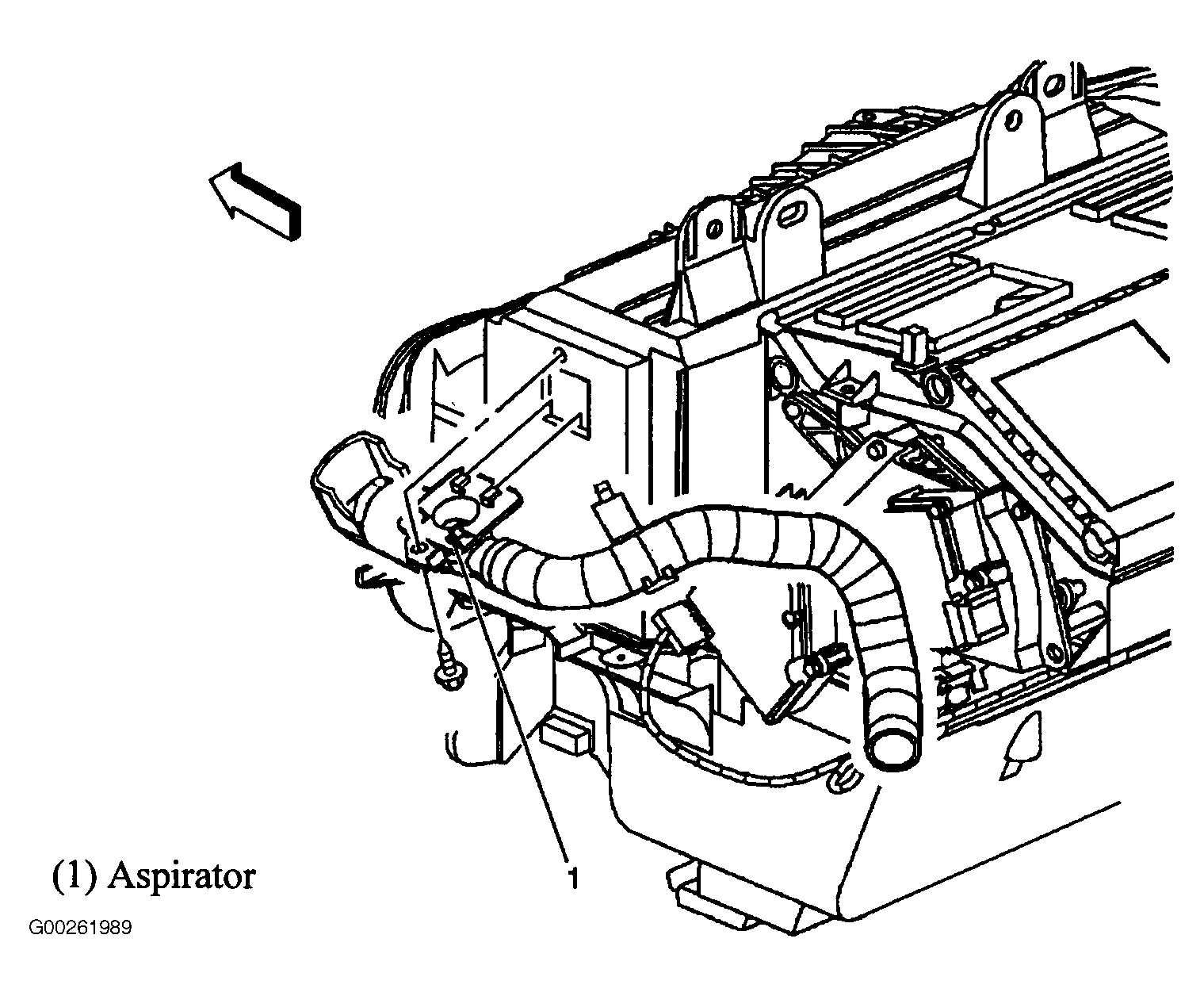

Fig 5: Left Side Of HVAC Module
Courtesy of GENERAL MOTORS CORP.

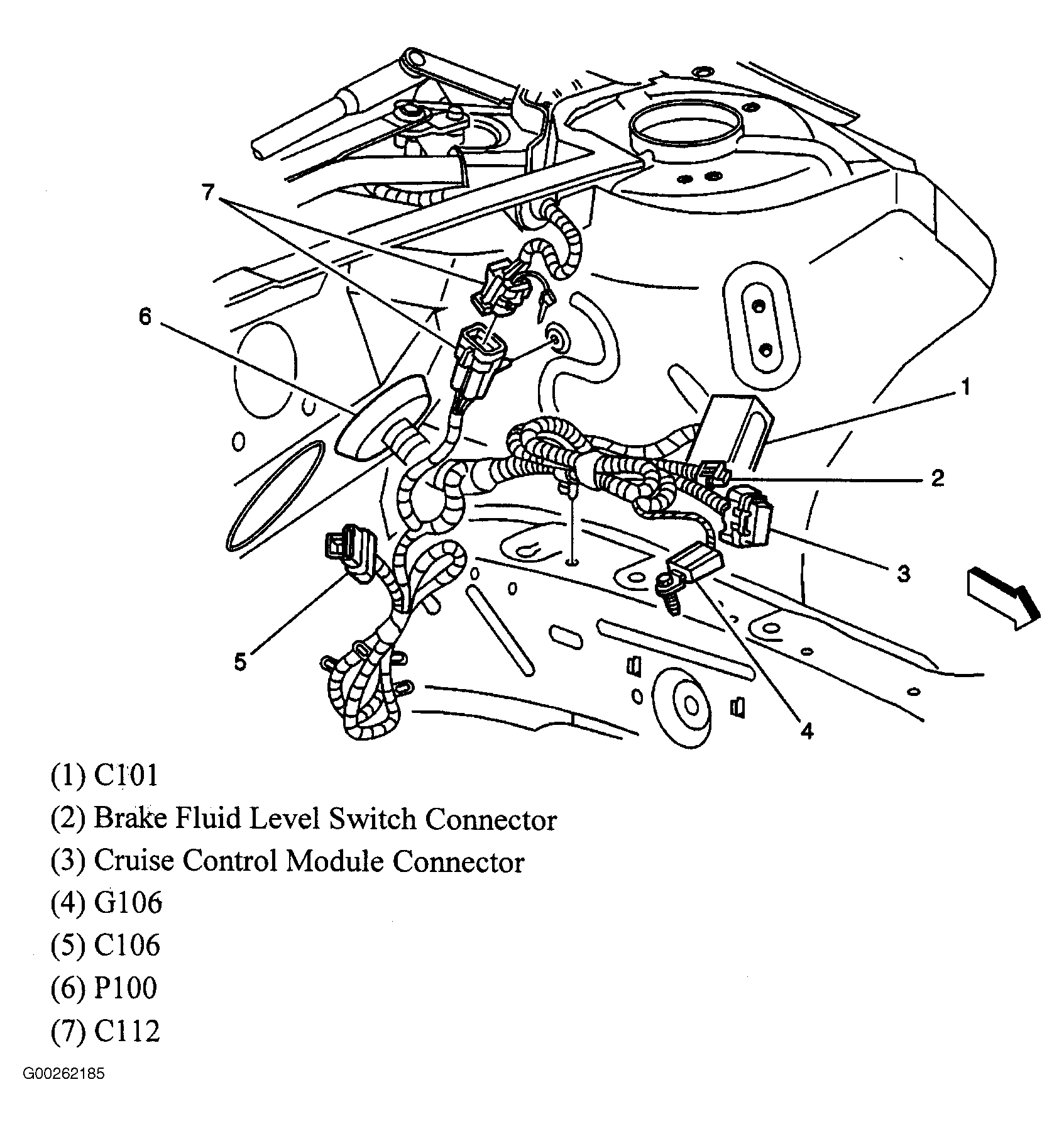

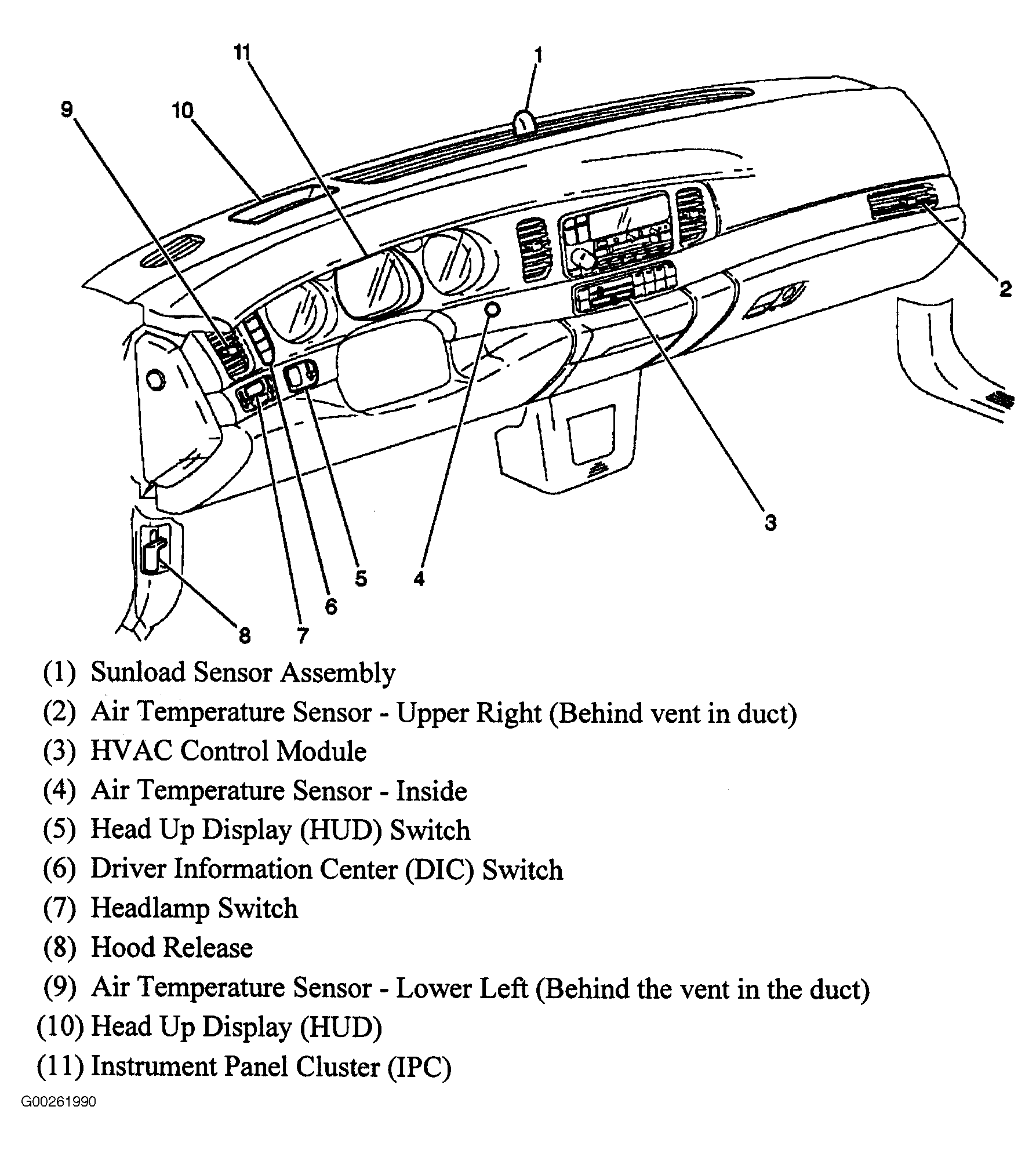

Fig 6: Front Of Dash
Courtesy of GENERAL MOTORS CORP.

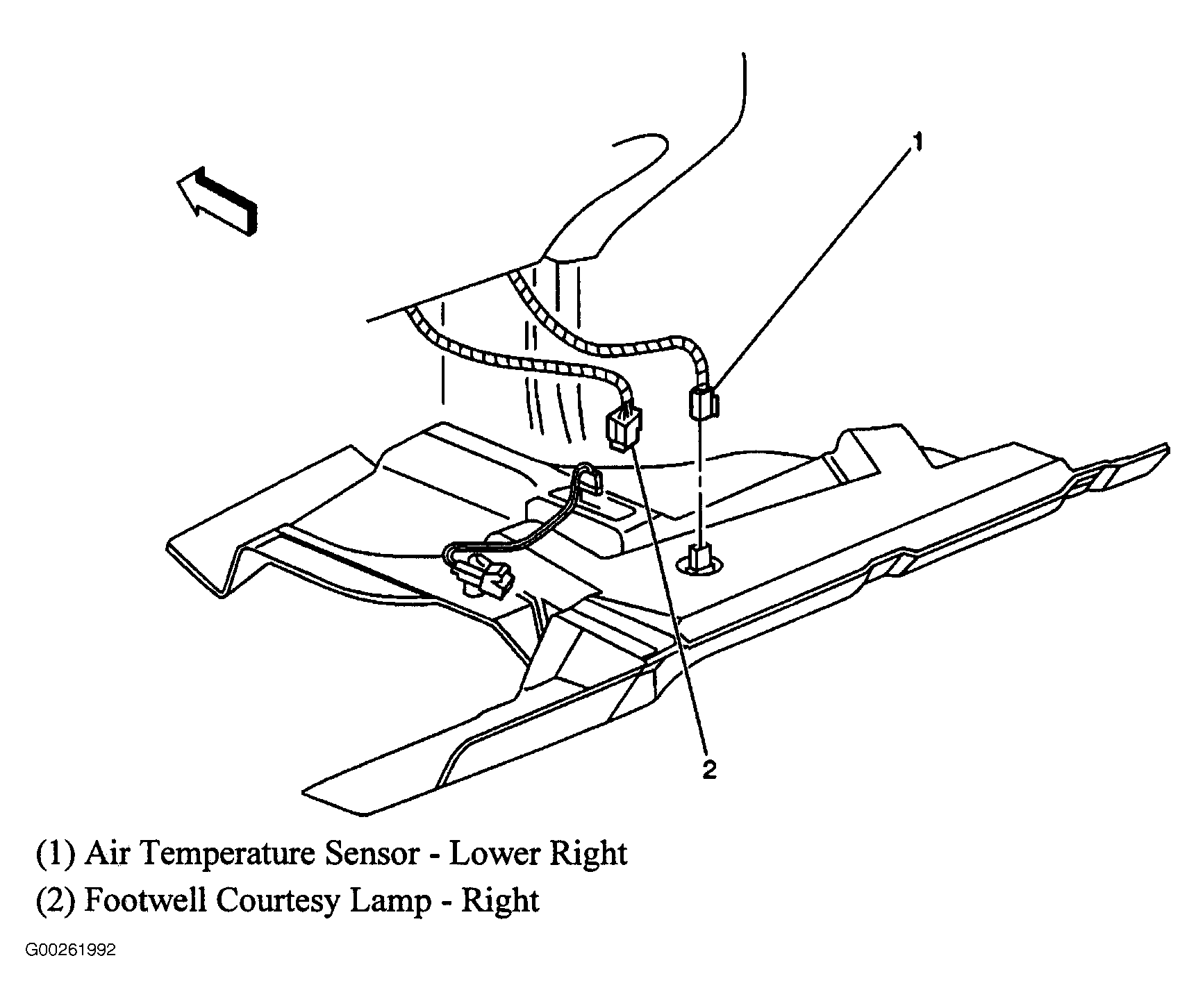

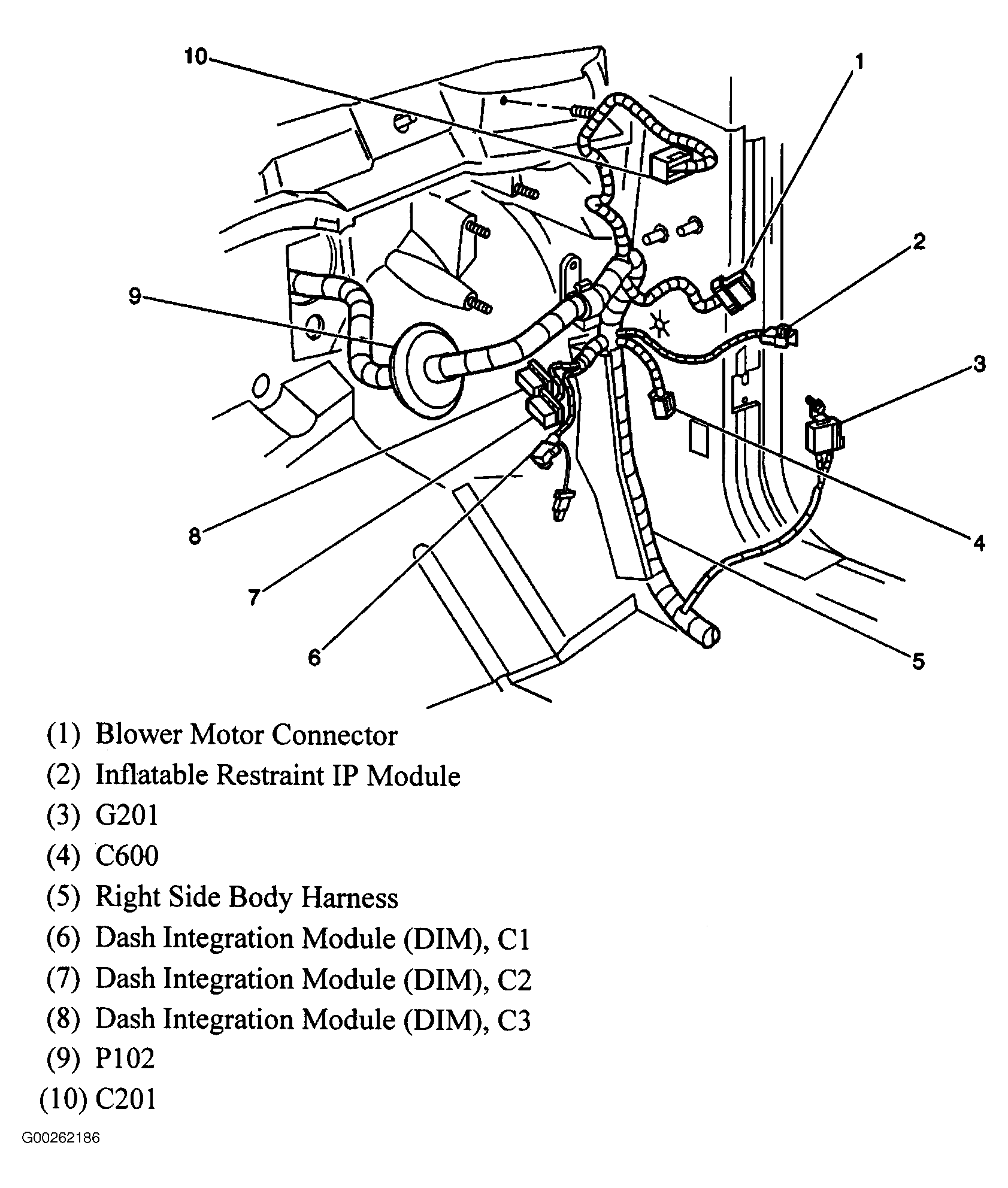

Fig 7: Right Side Footwell
Courtesy of GENERAL MOTORS CORP.

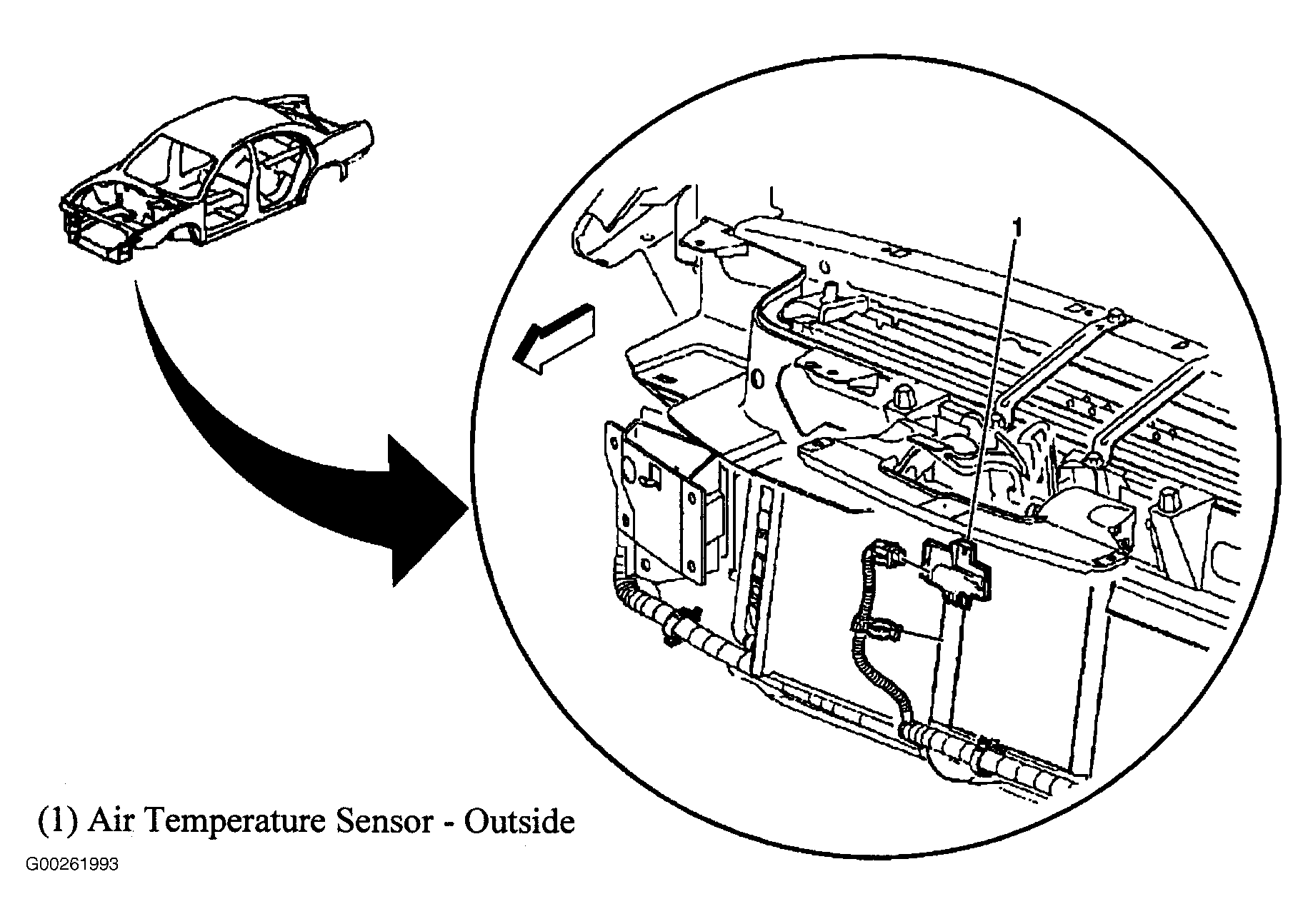

Fig 8: Center Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

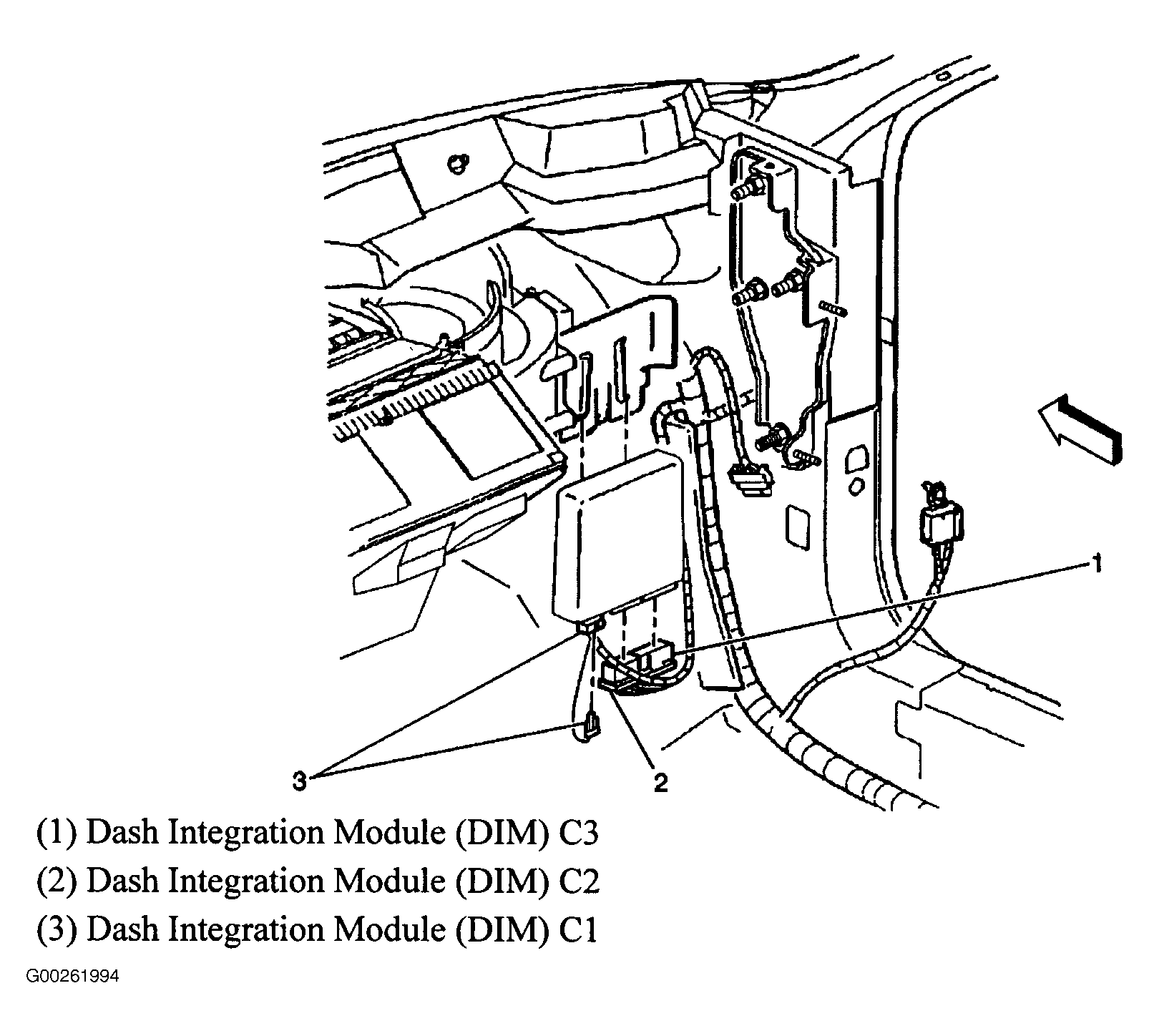

Fig 9: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

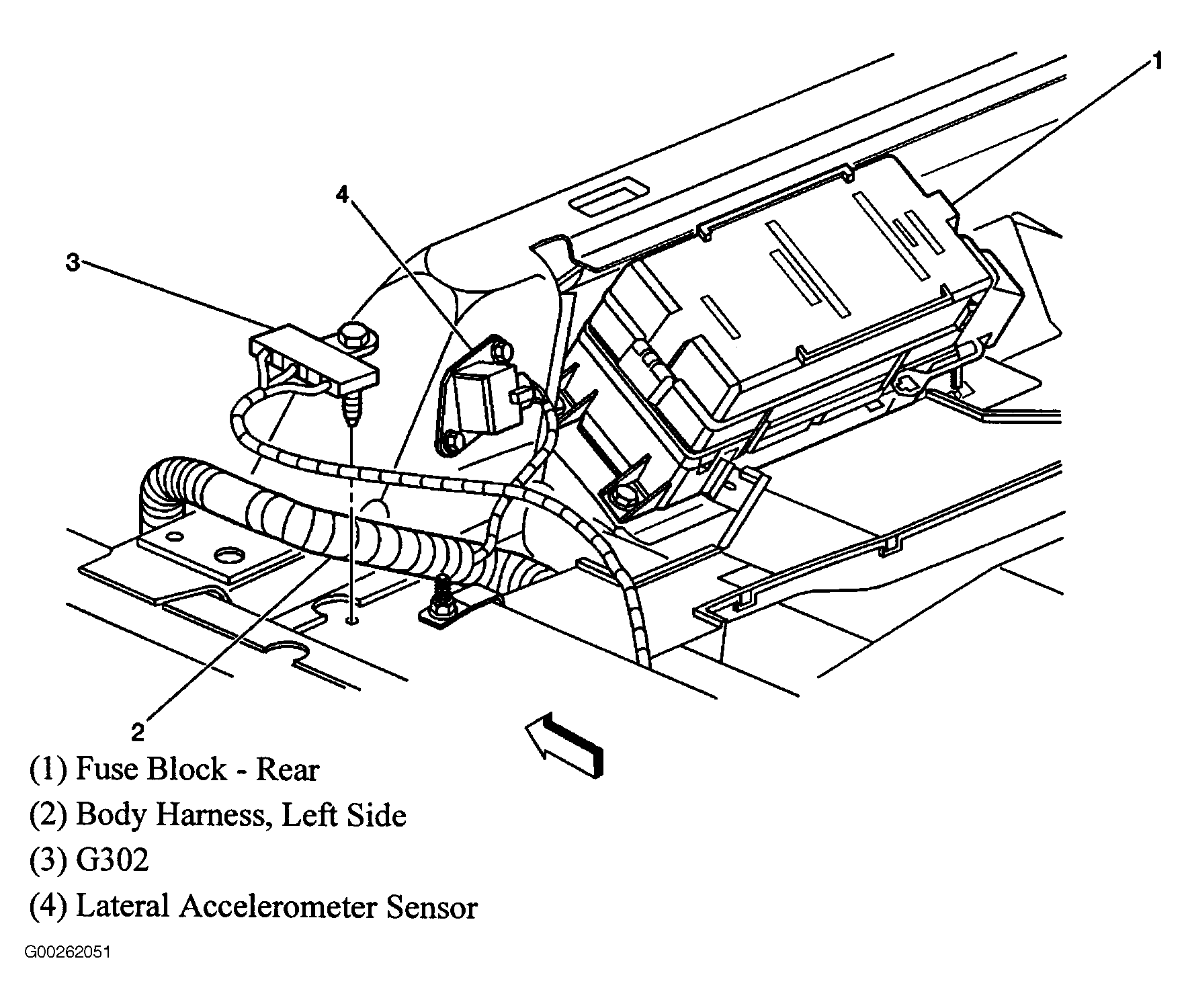

Fig 10: Behind Upper Left Of Rear Seat Back
Courtesy of GENERAL MOTORS CORP.

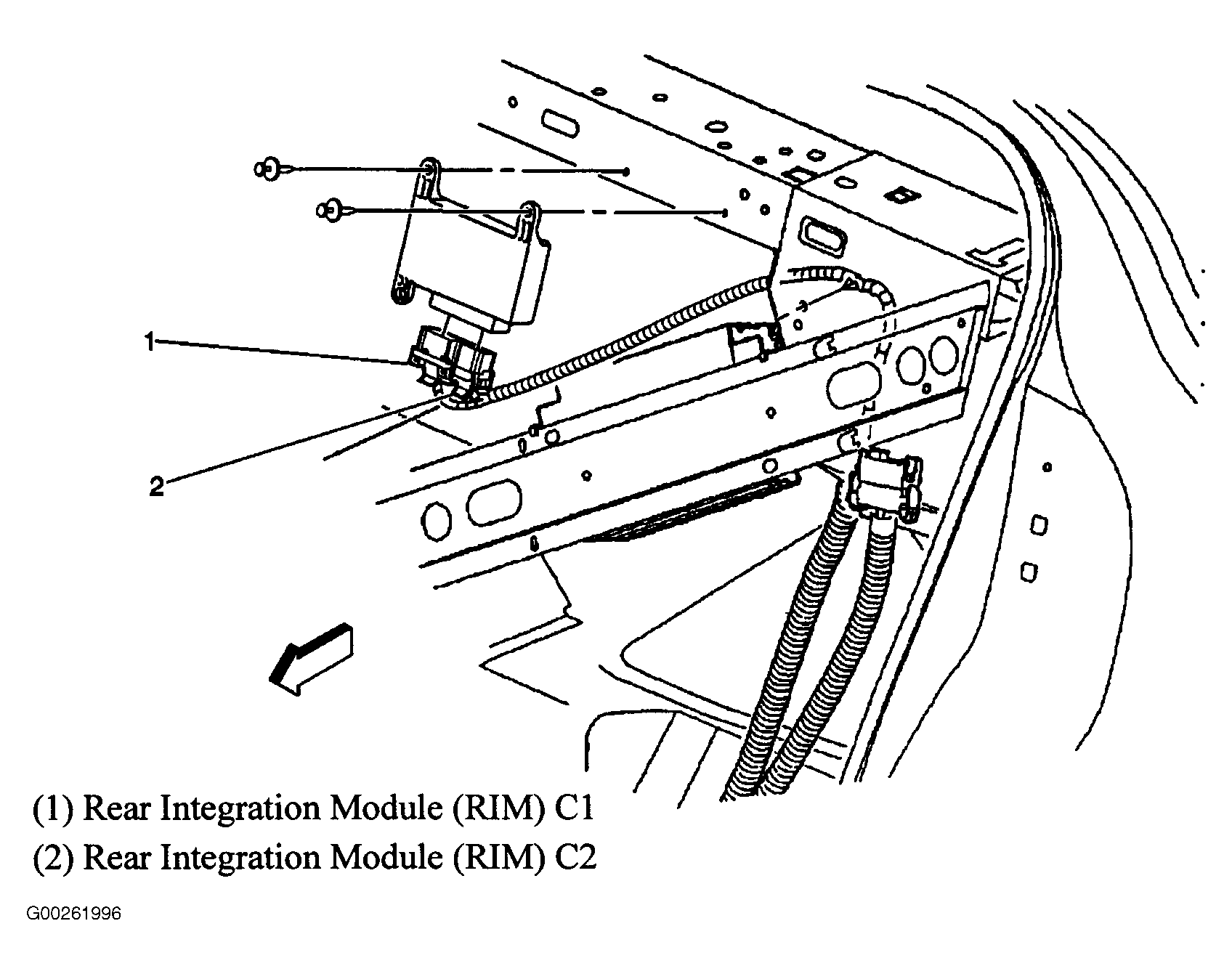

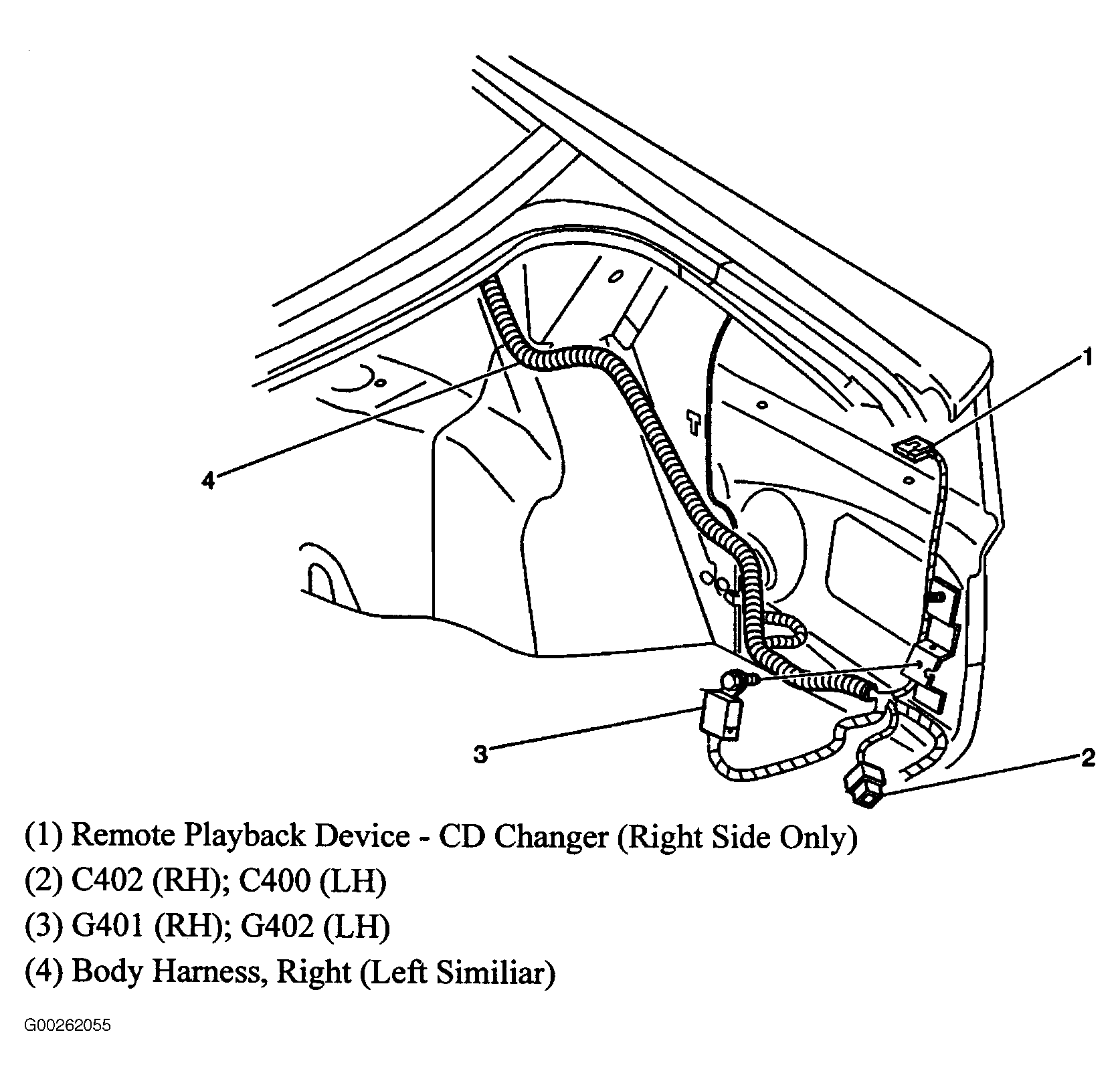

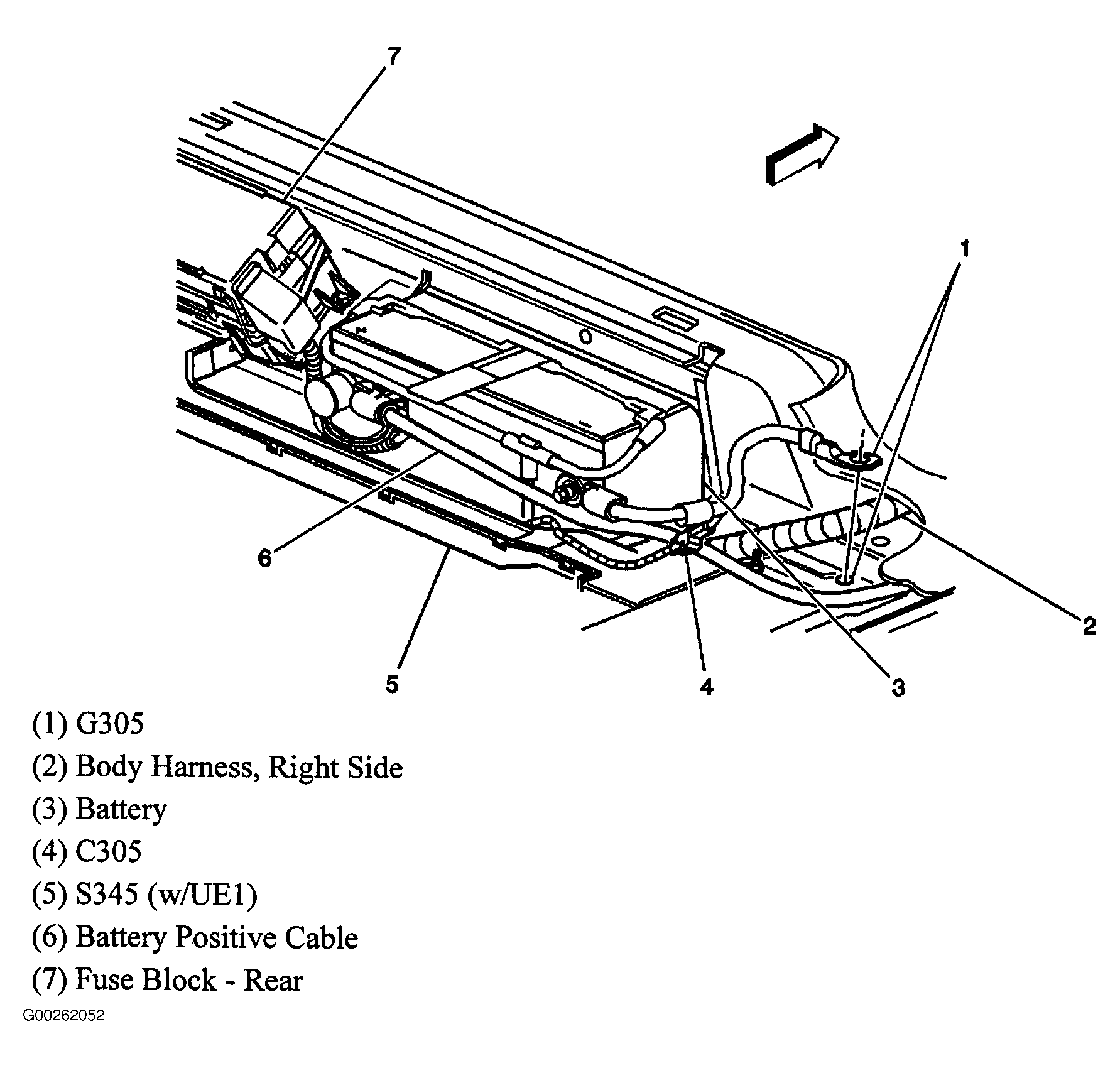

Fig 11: Rear Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.

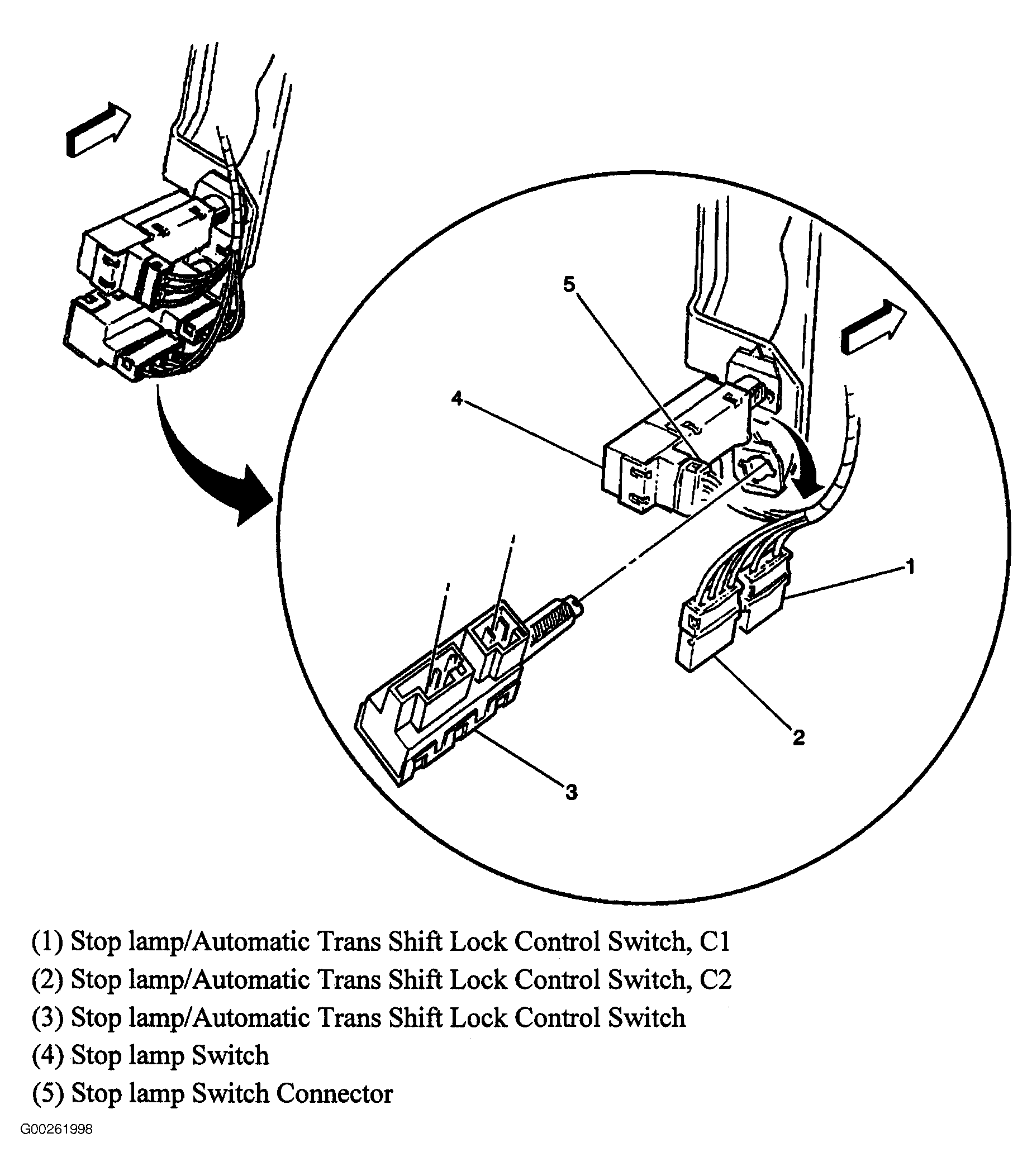

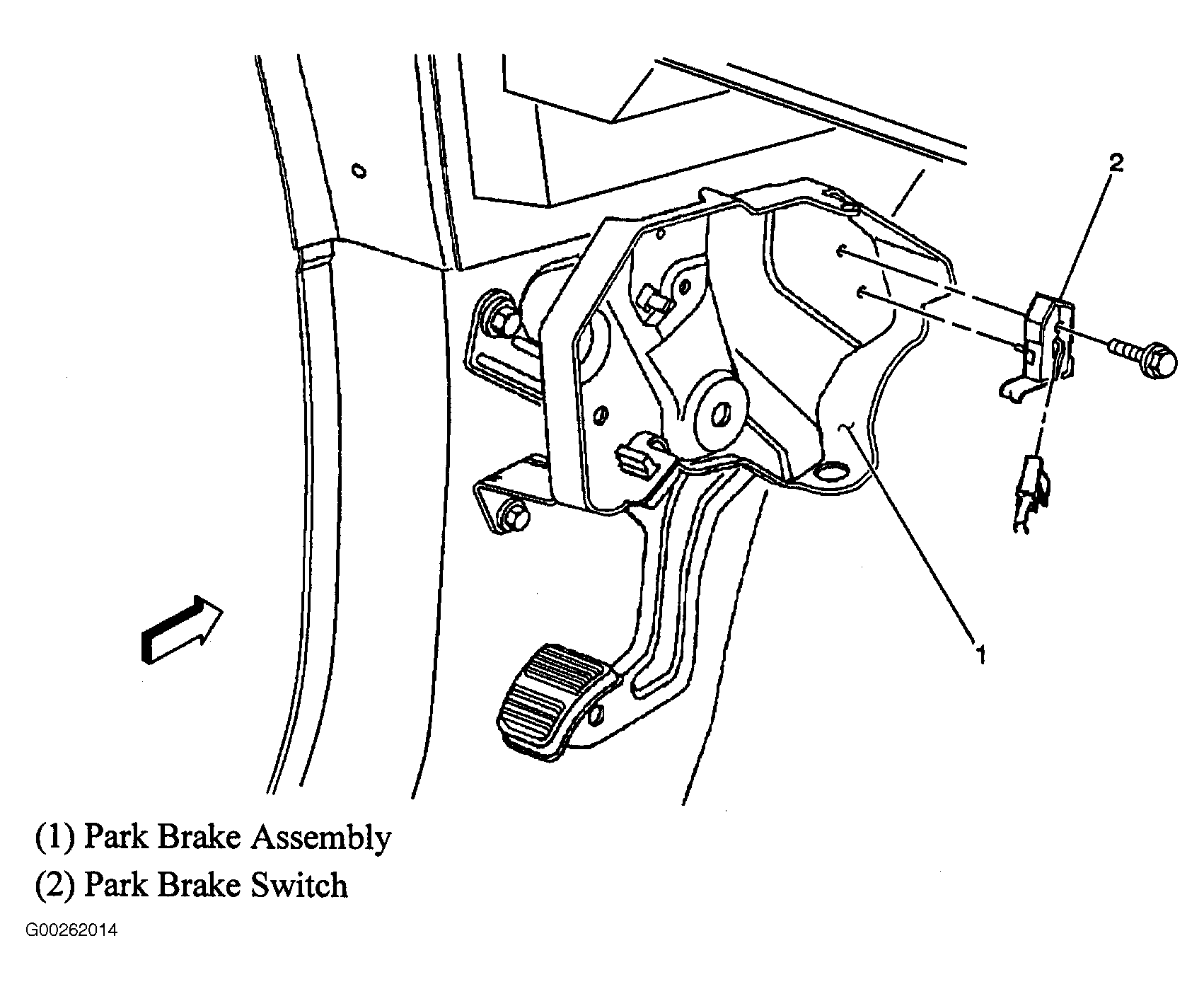

Fig 12: Brake Pedal Bracket
Courtesy of GENERAL MOTORS CORP.

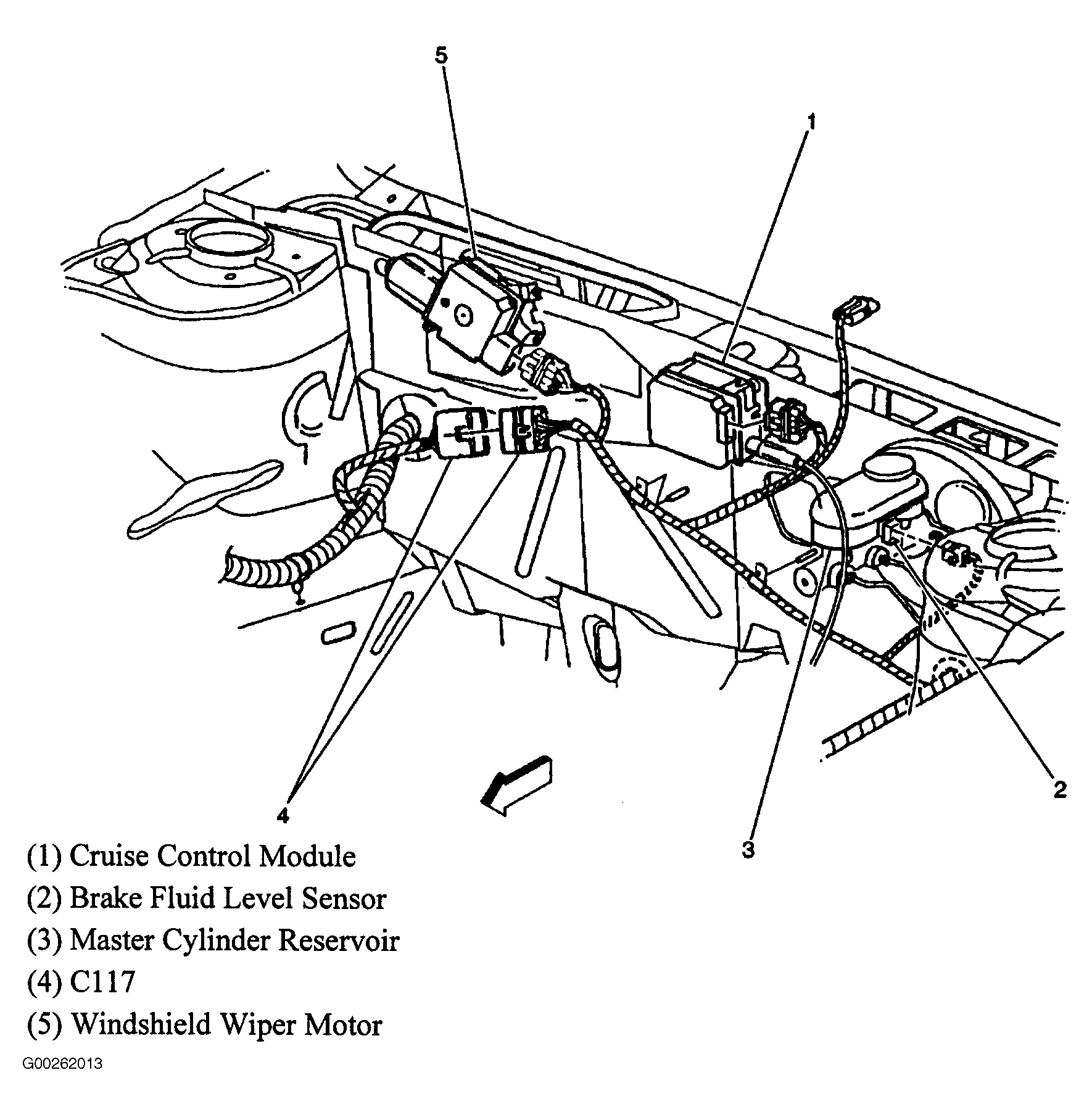

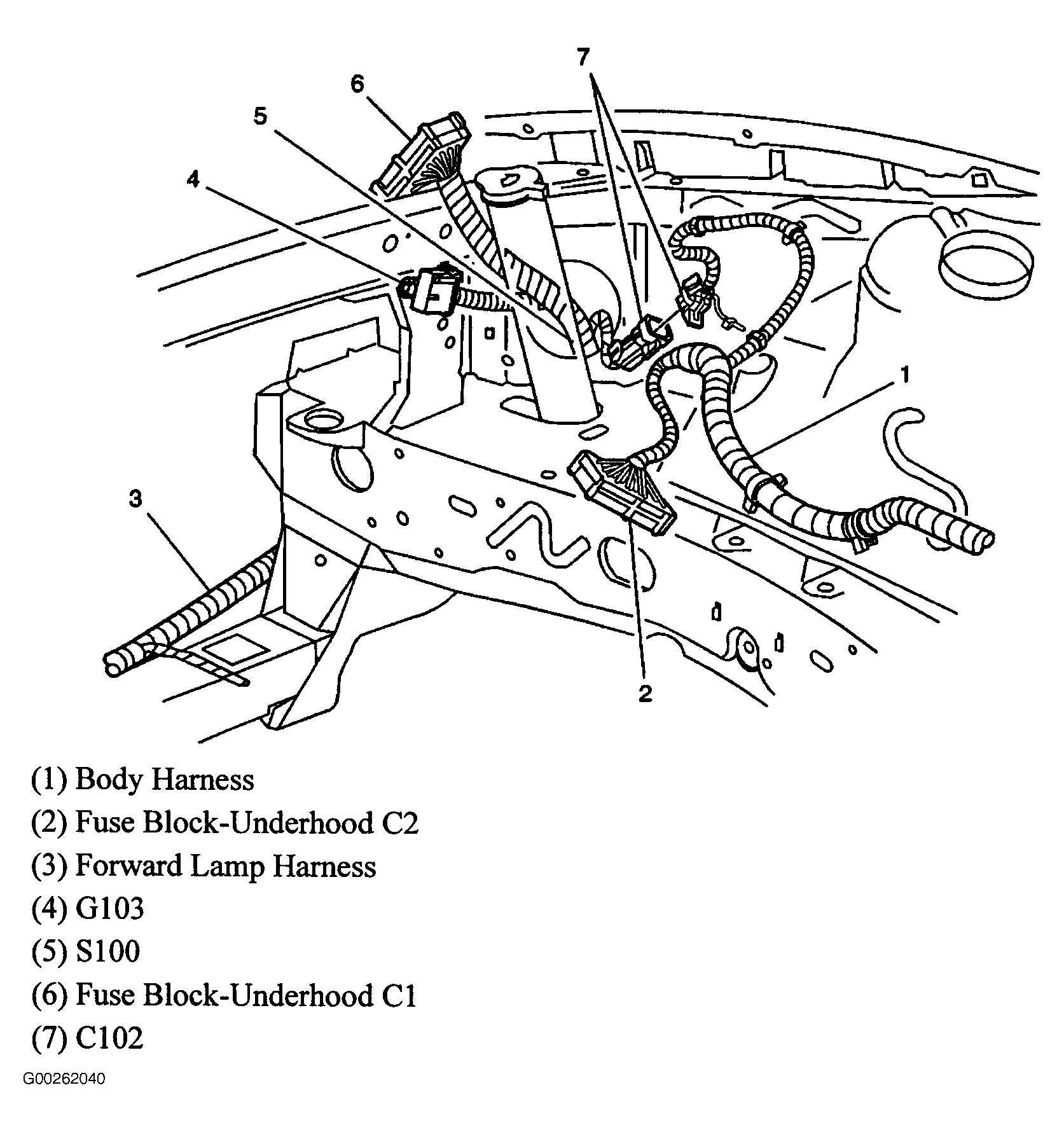

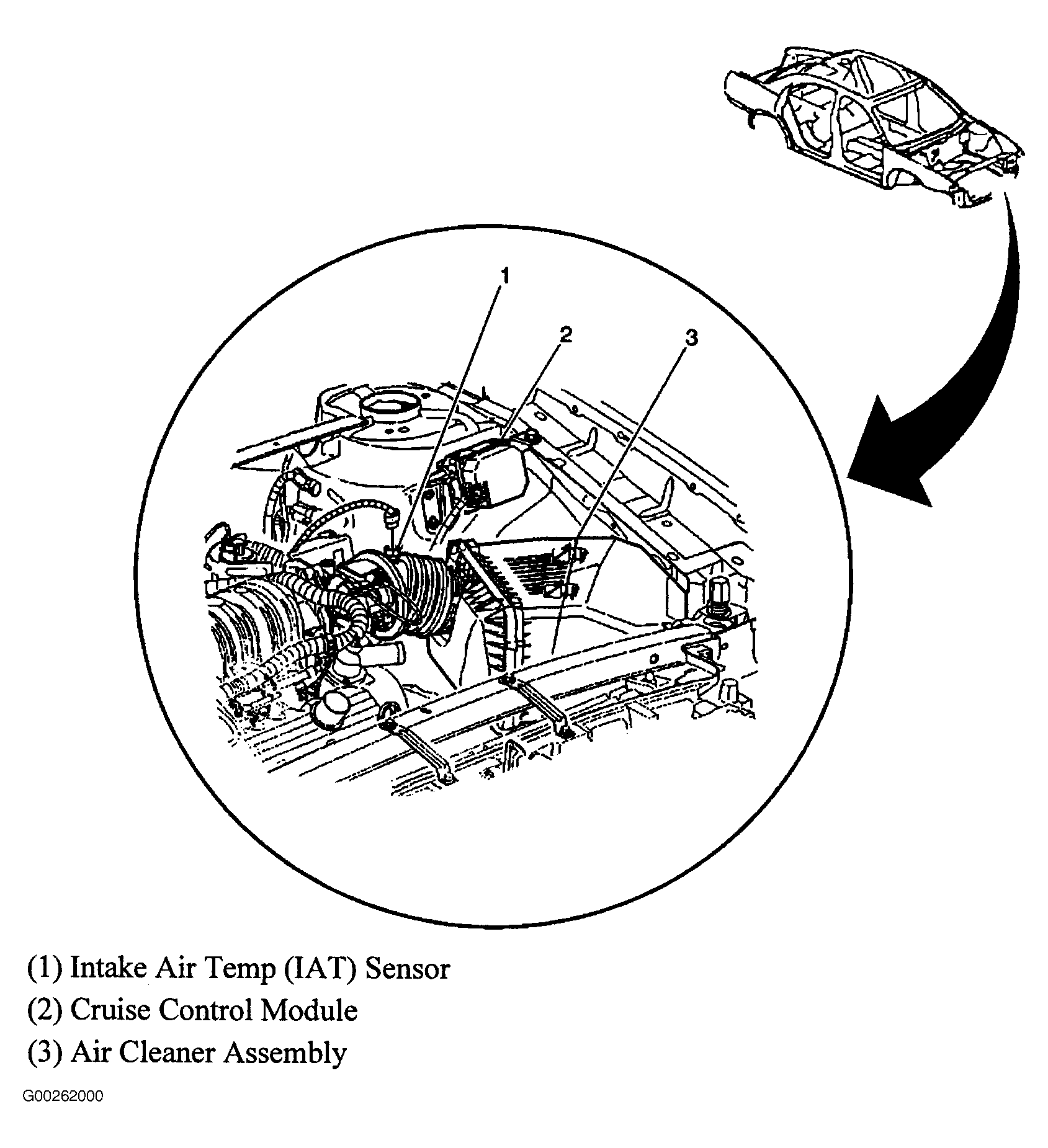

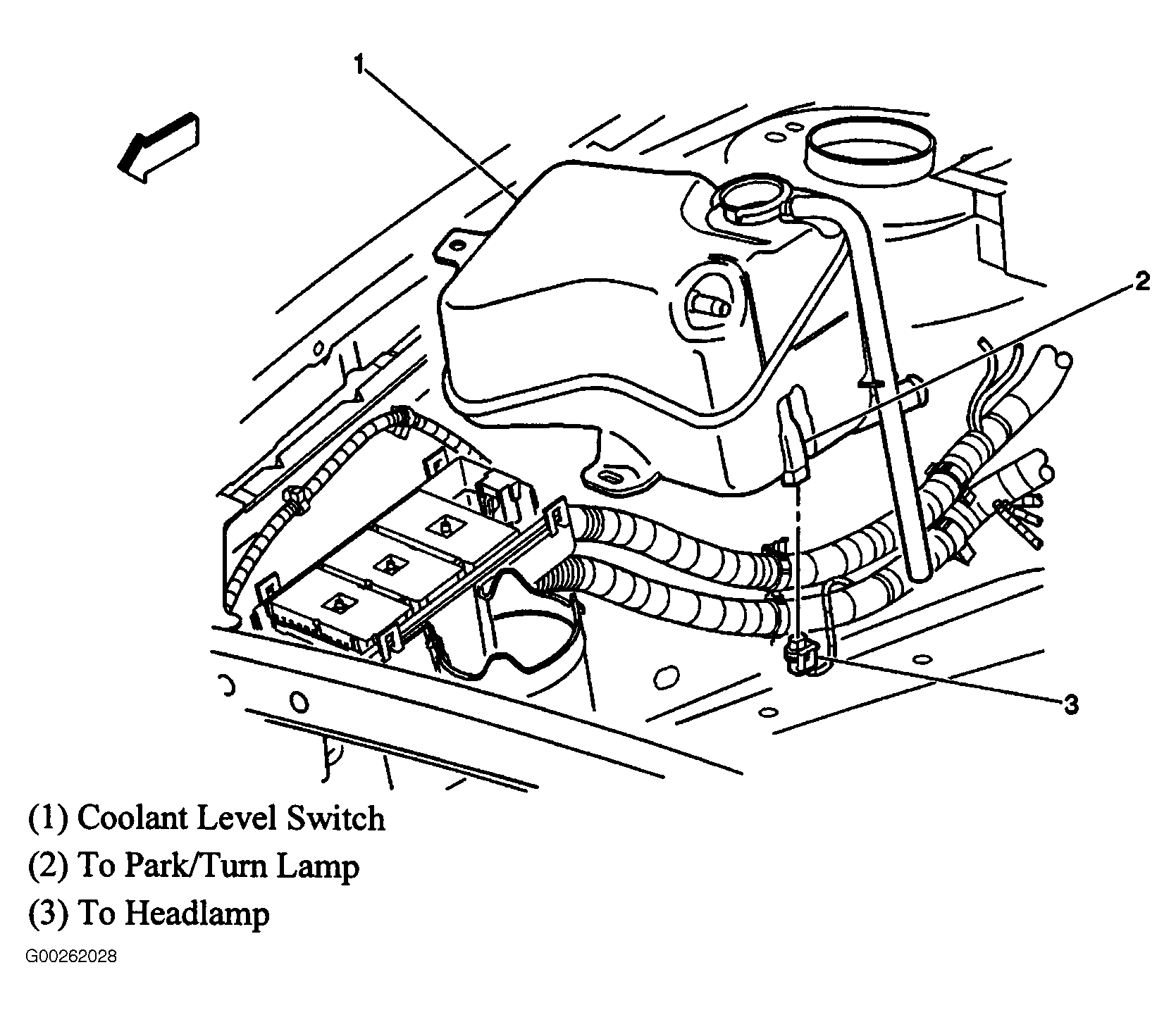

Fig 13: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 14: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

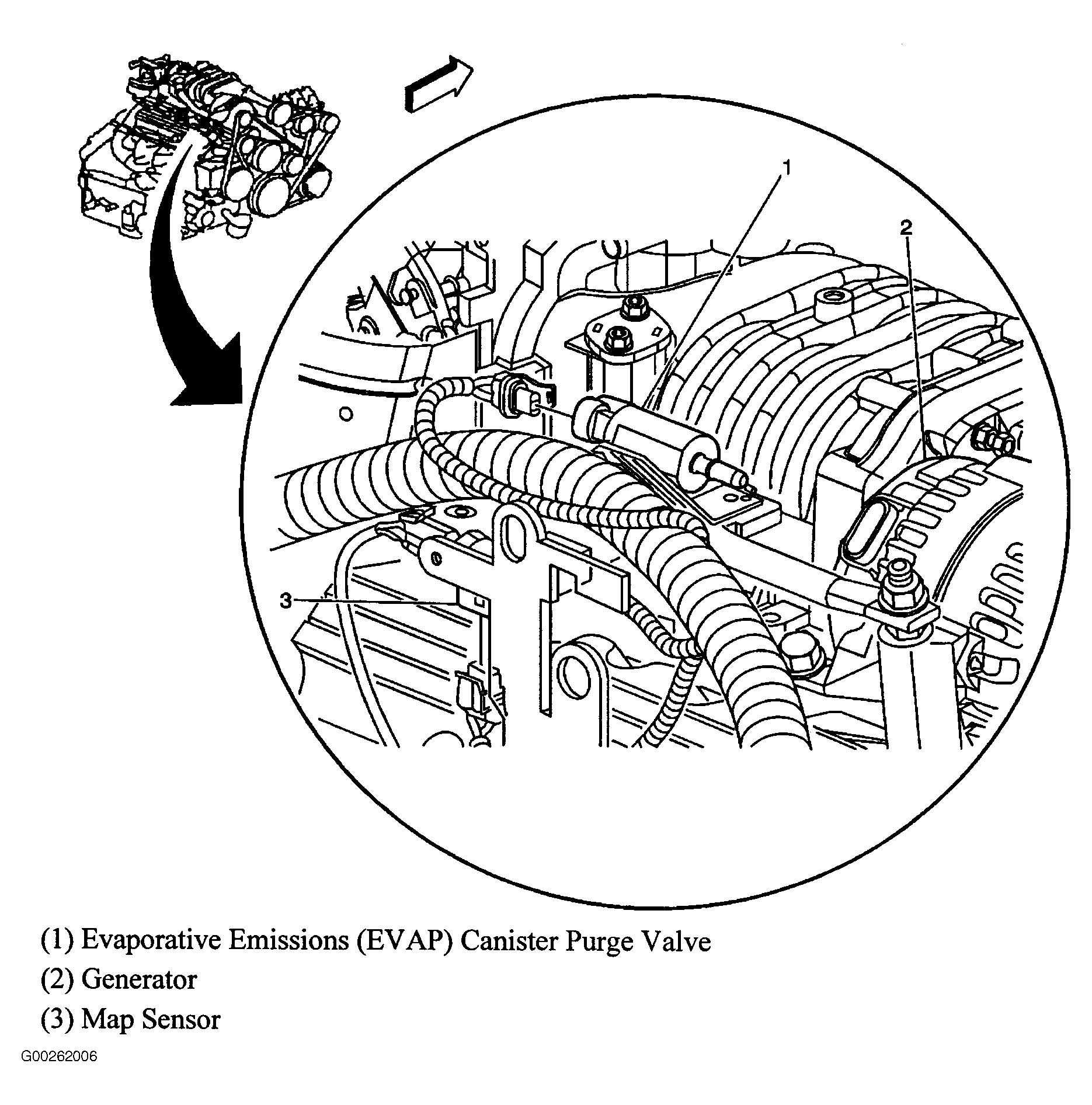

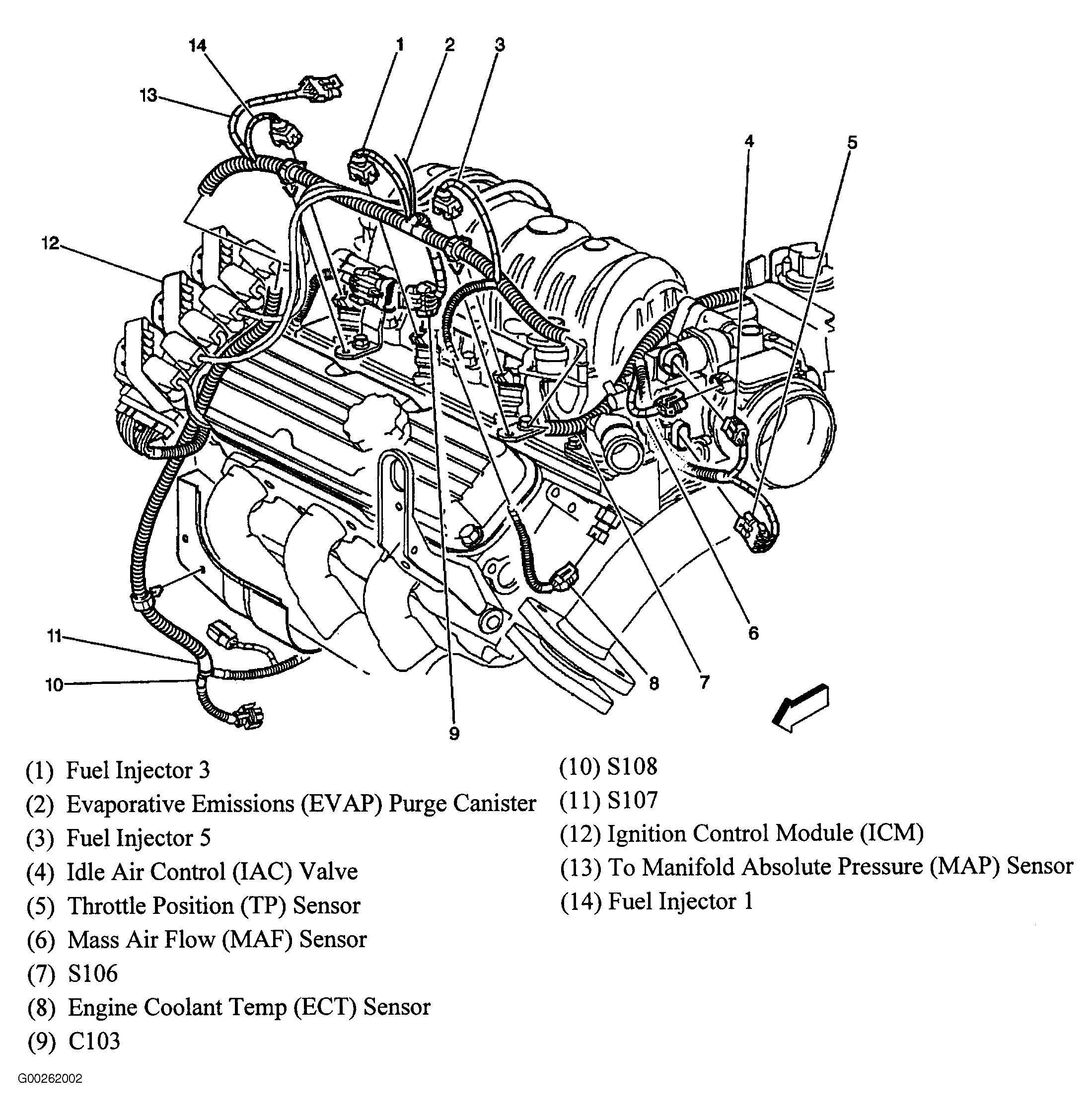

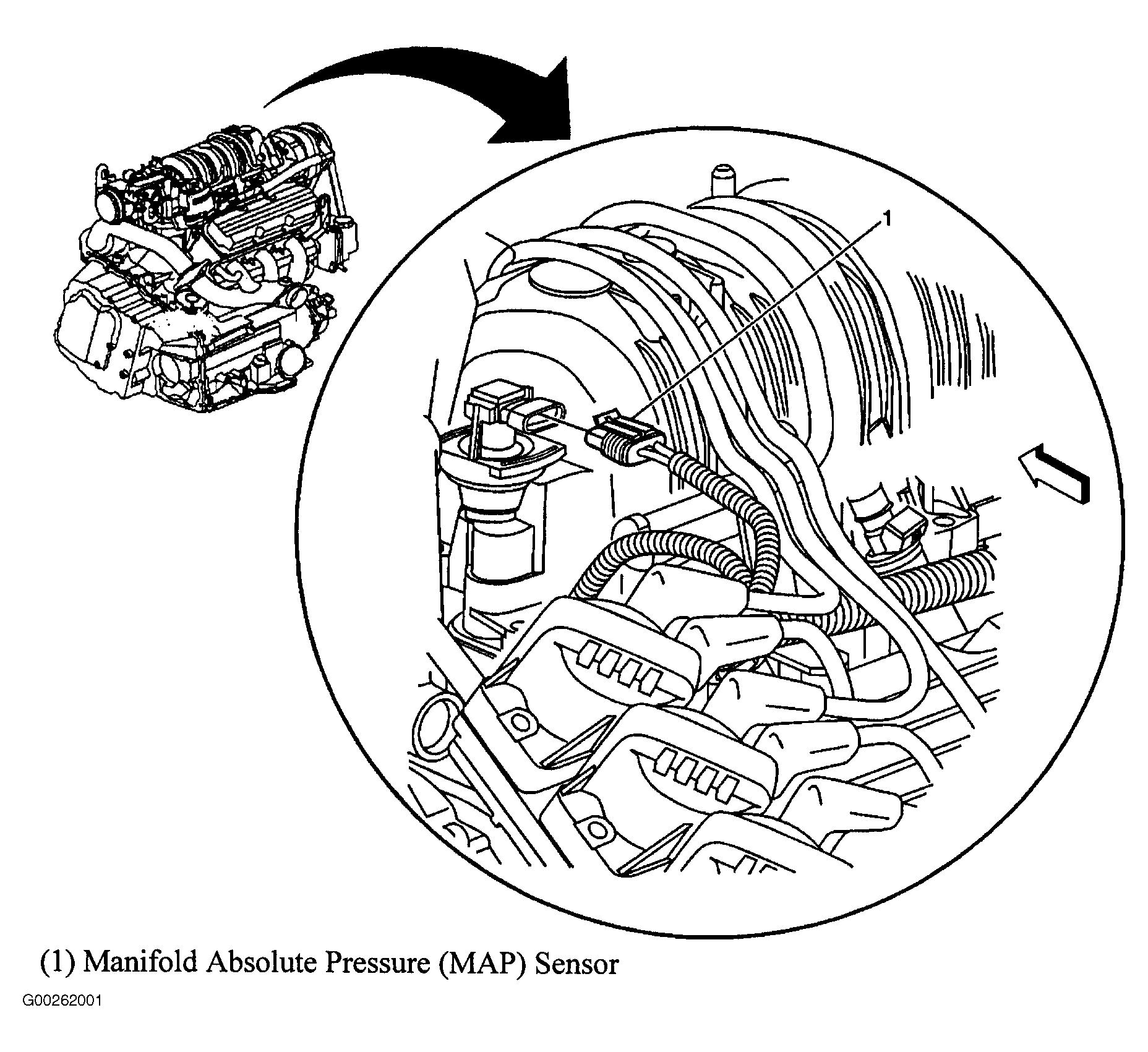

Fig 15: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

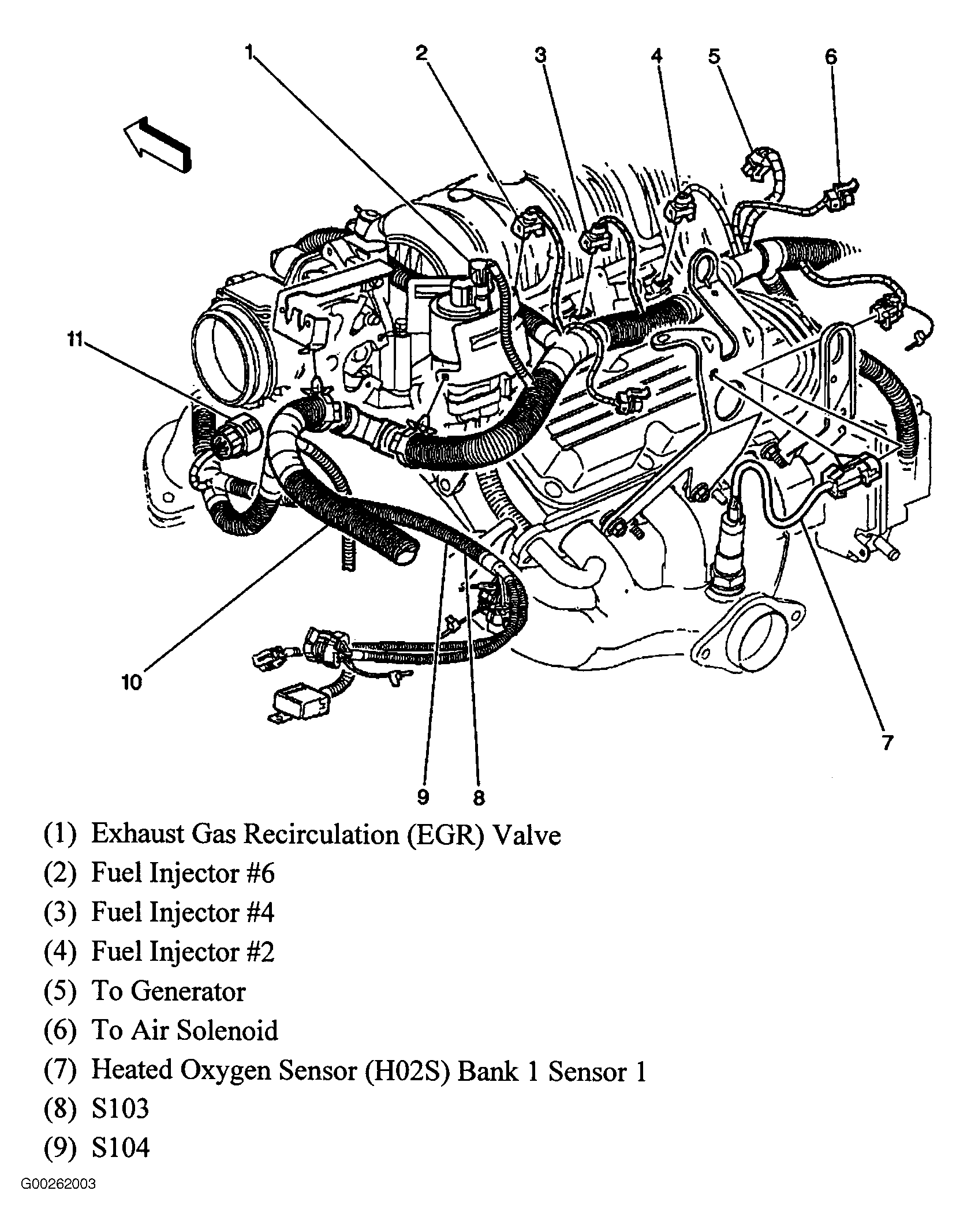

Fig 16: Upper Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 17: Upper Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 18: Lower Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 19: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

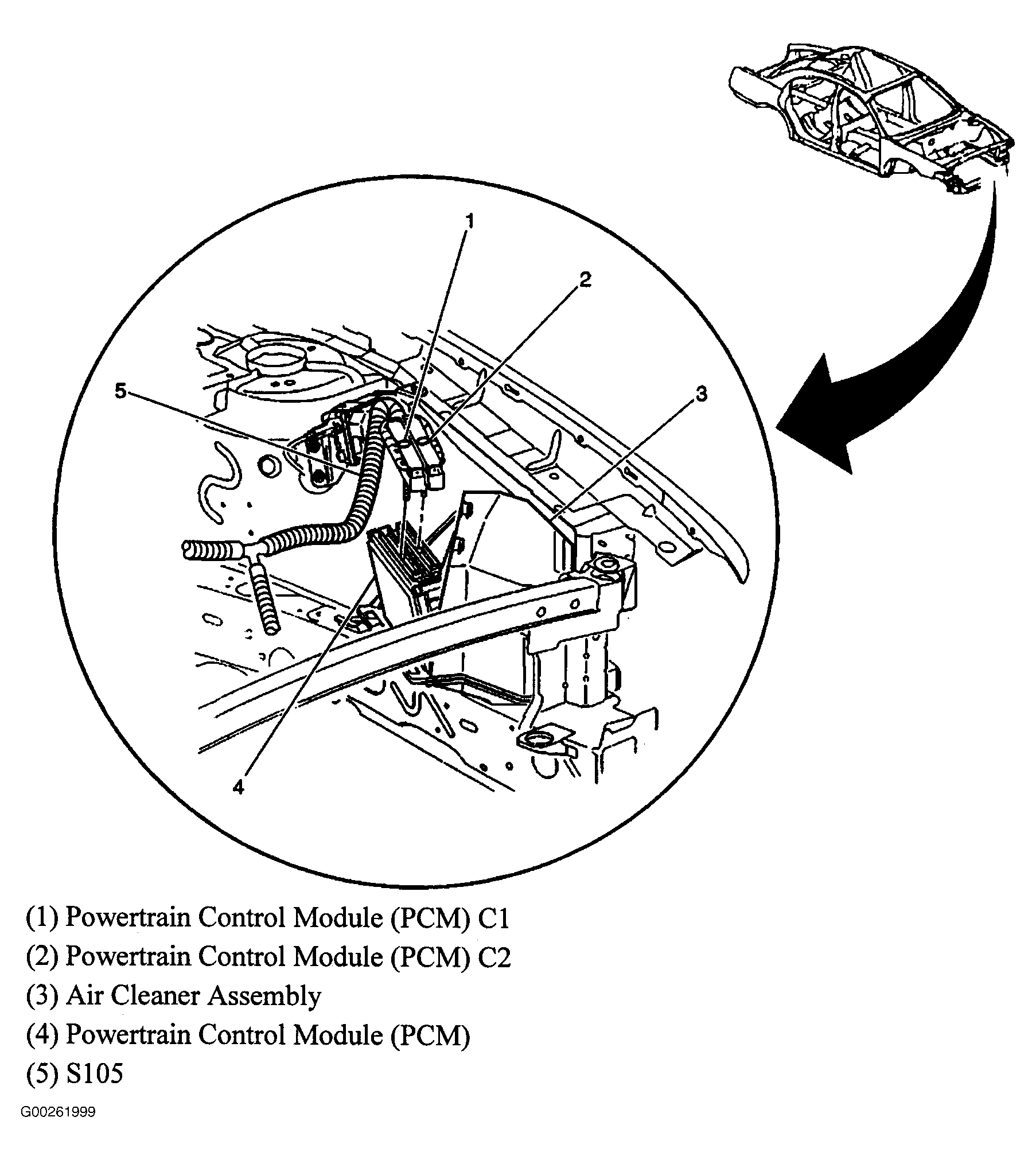

Fig 20: Front Center Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

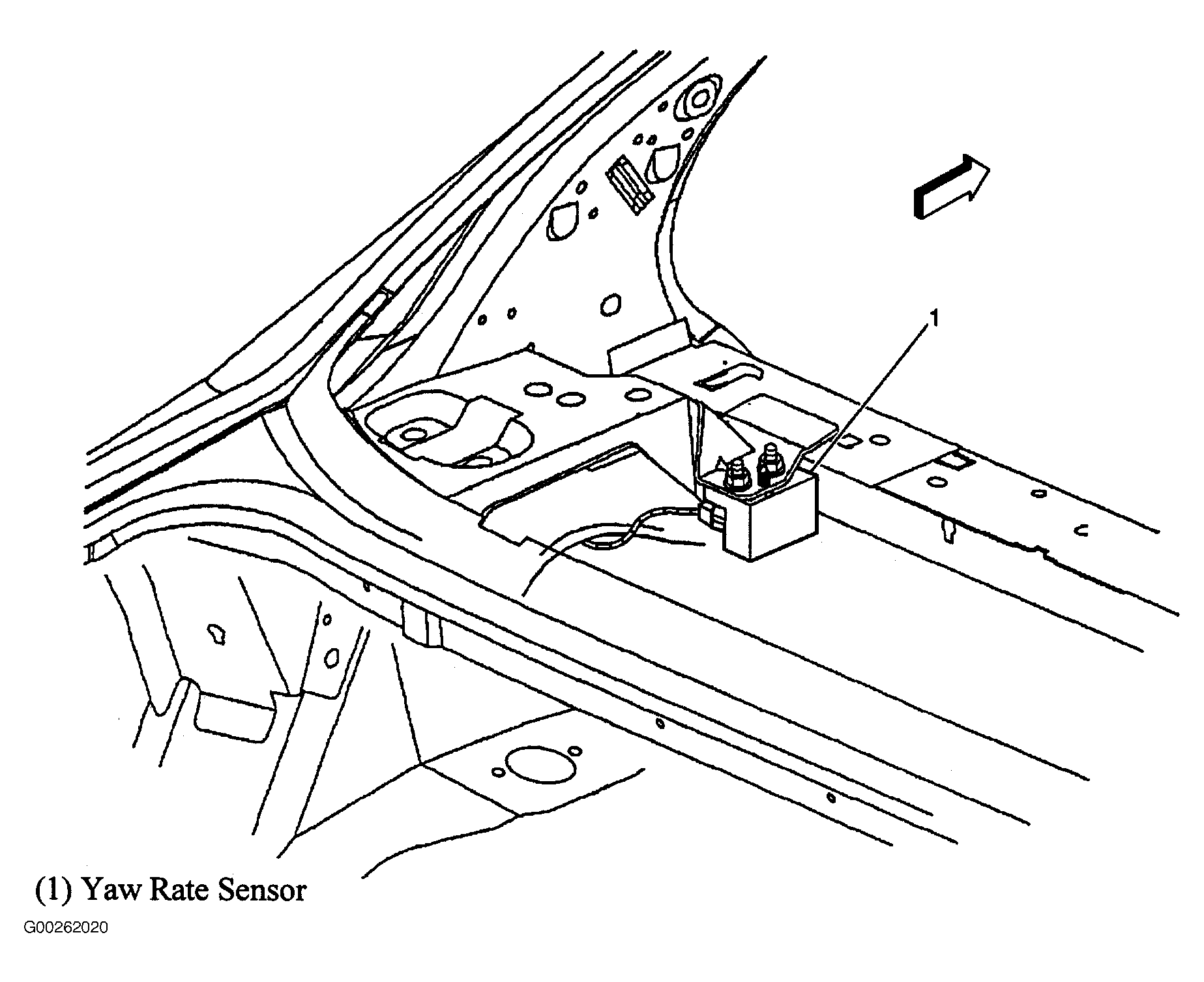

Fig 21: Under Right Rear Seat
Courtesy of GENERAL MOTORS CORP.

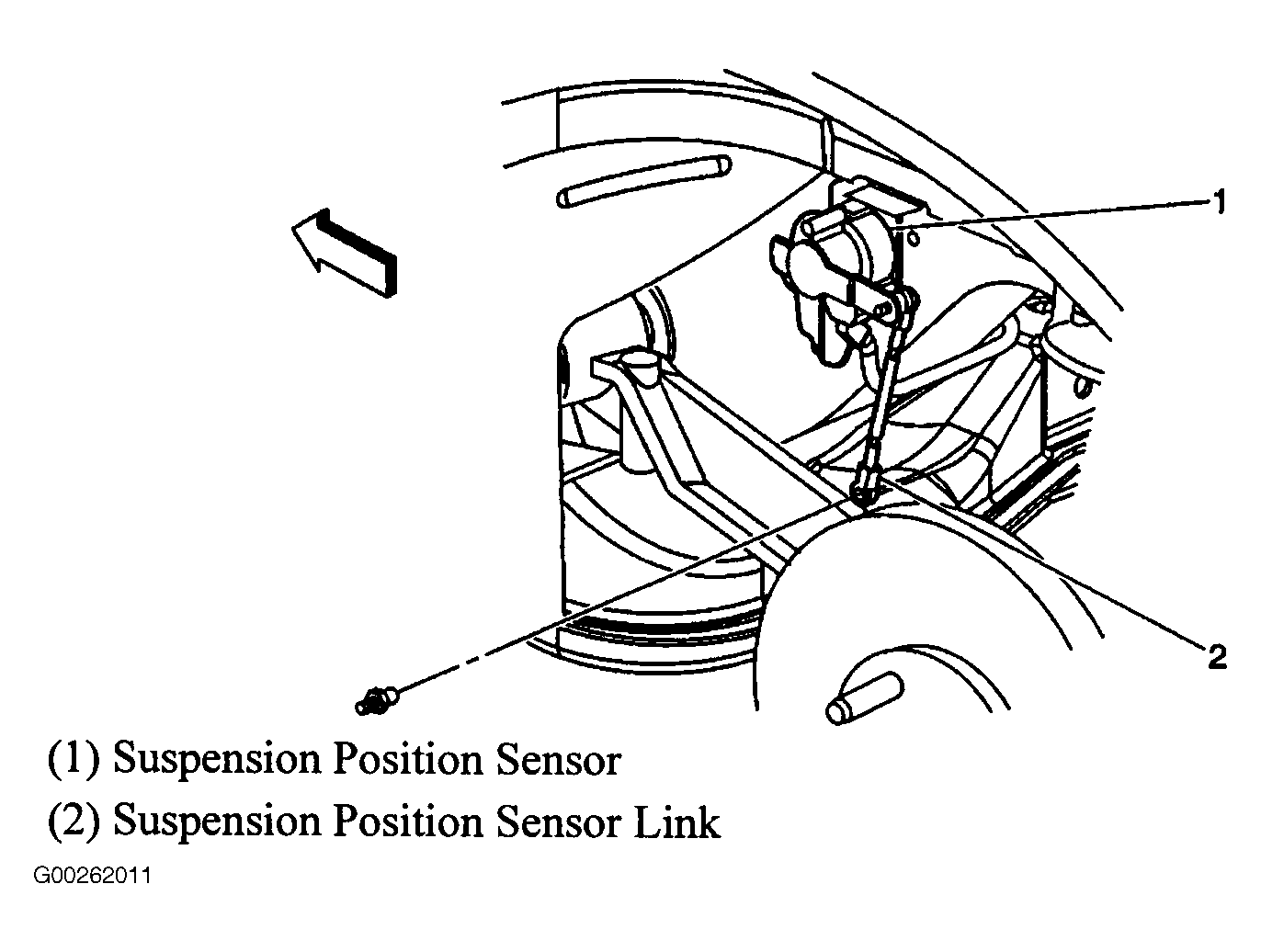

Fig 22: Left Rear Wheelwell
Courtesy of GENERAL MOTORS CORP.

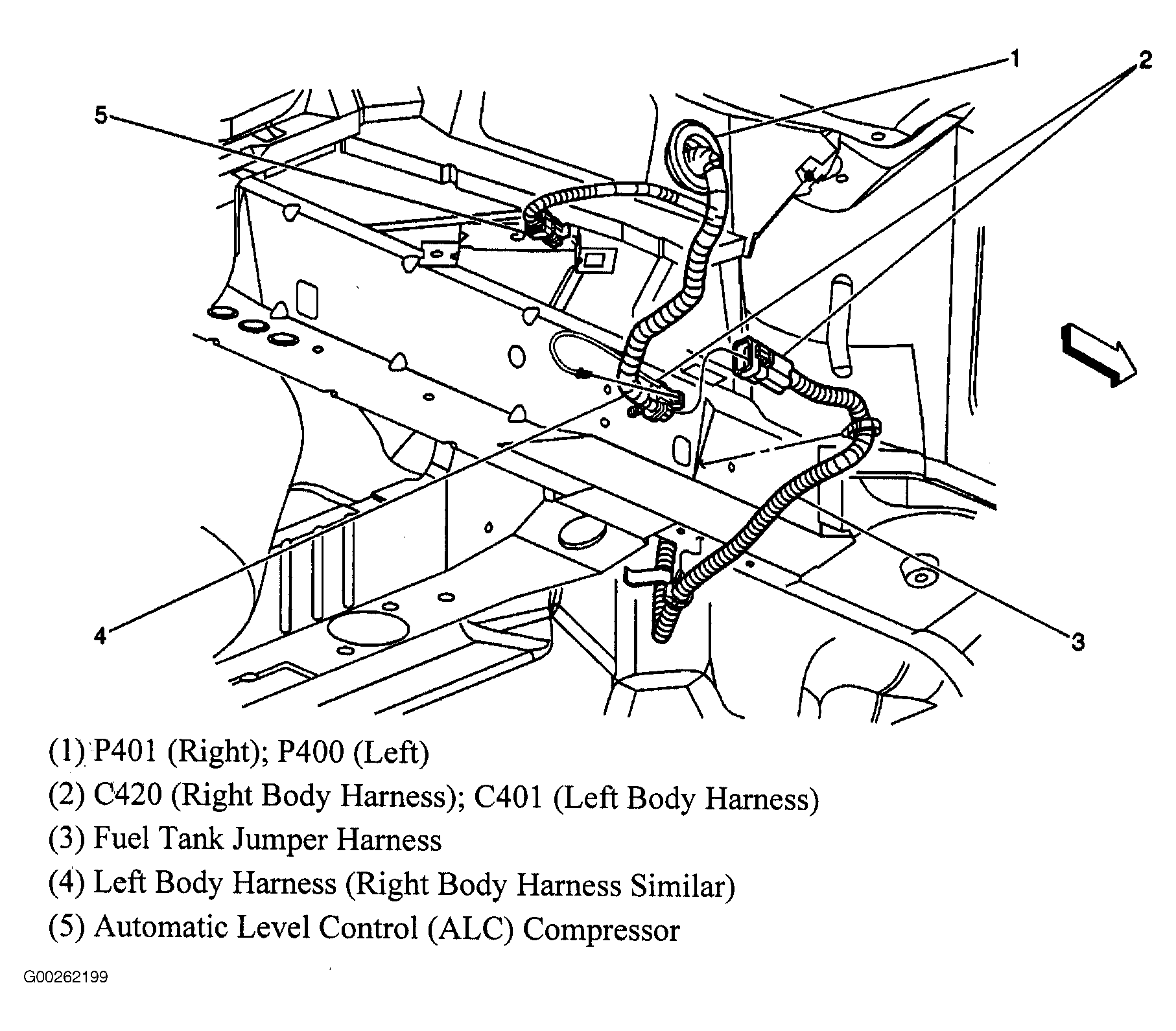

Fig 23: Under Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

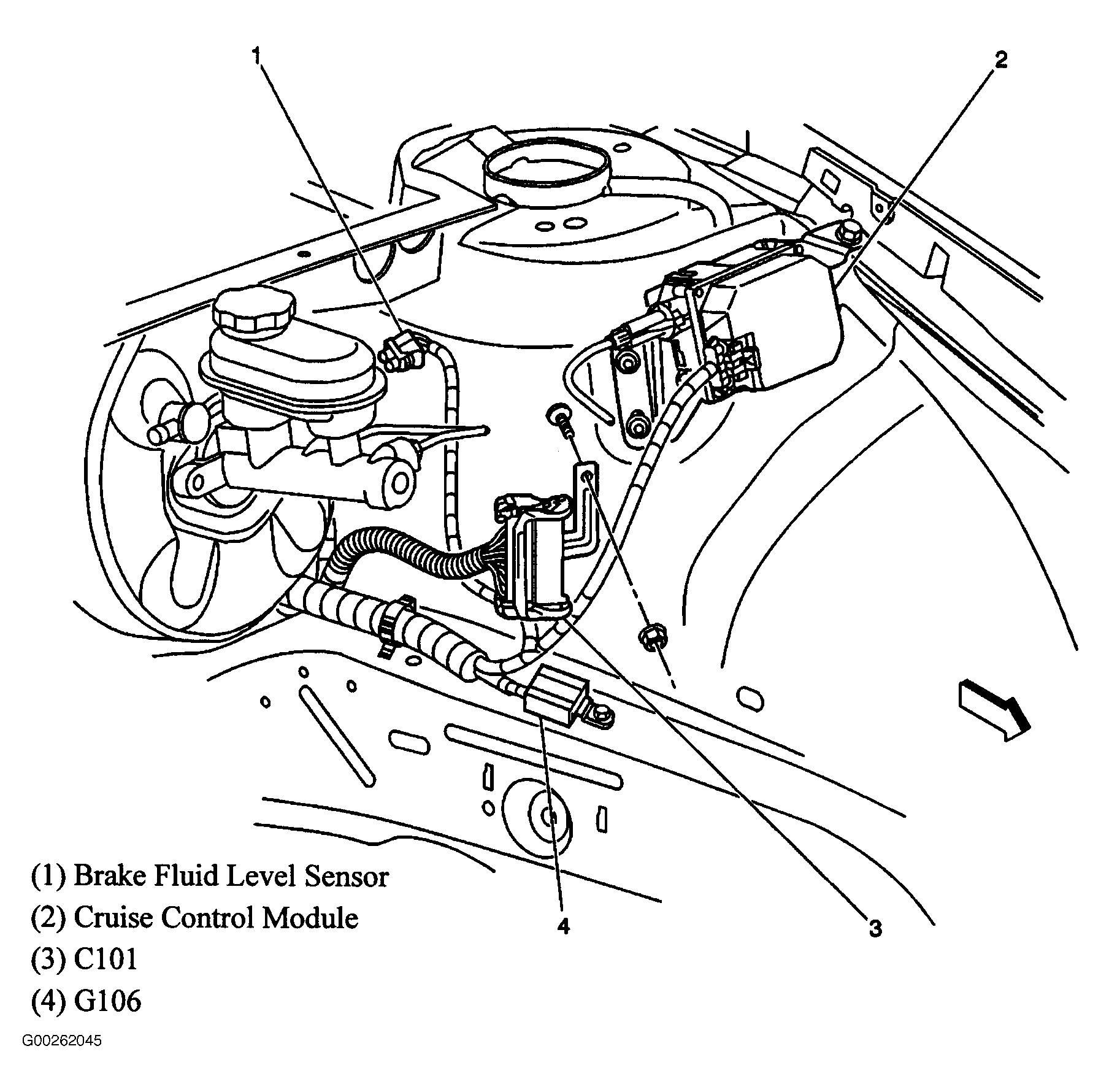

Fig 24: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

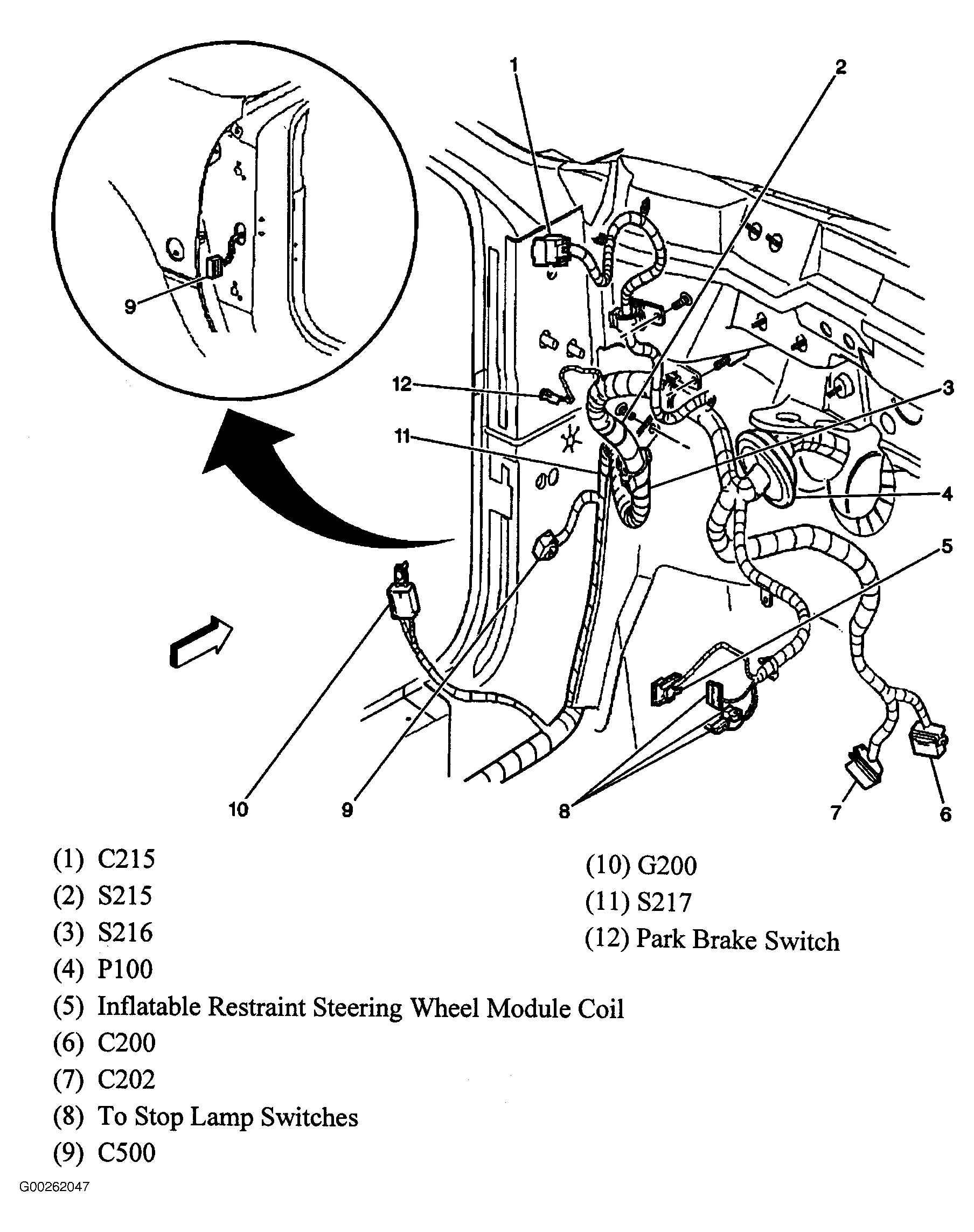

Fig 25: Under Left End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 26: Front Left Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

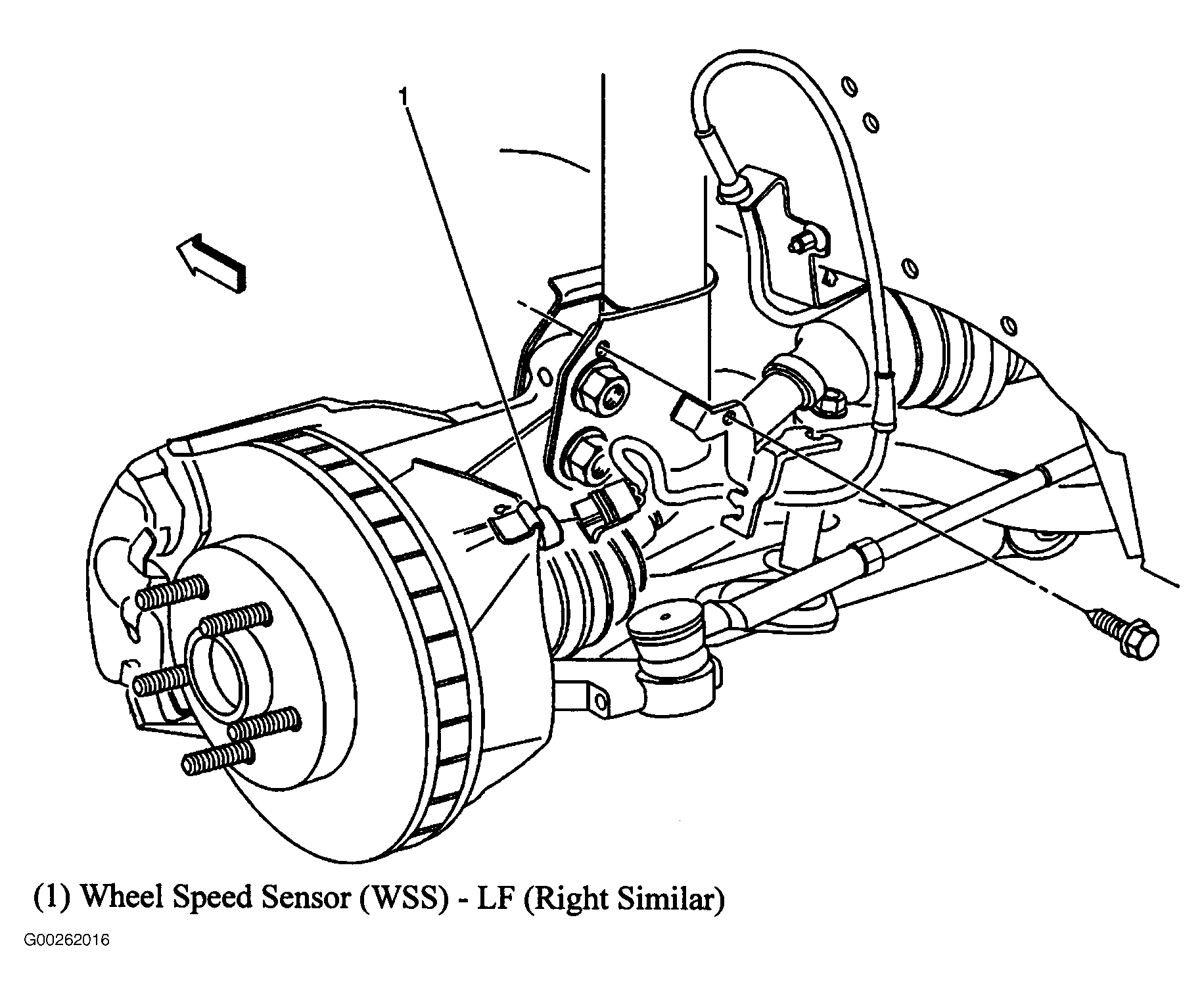

Fig 27: Left Front Wheelwell
Courtesy of GENERAL MOTORS CORP.

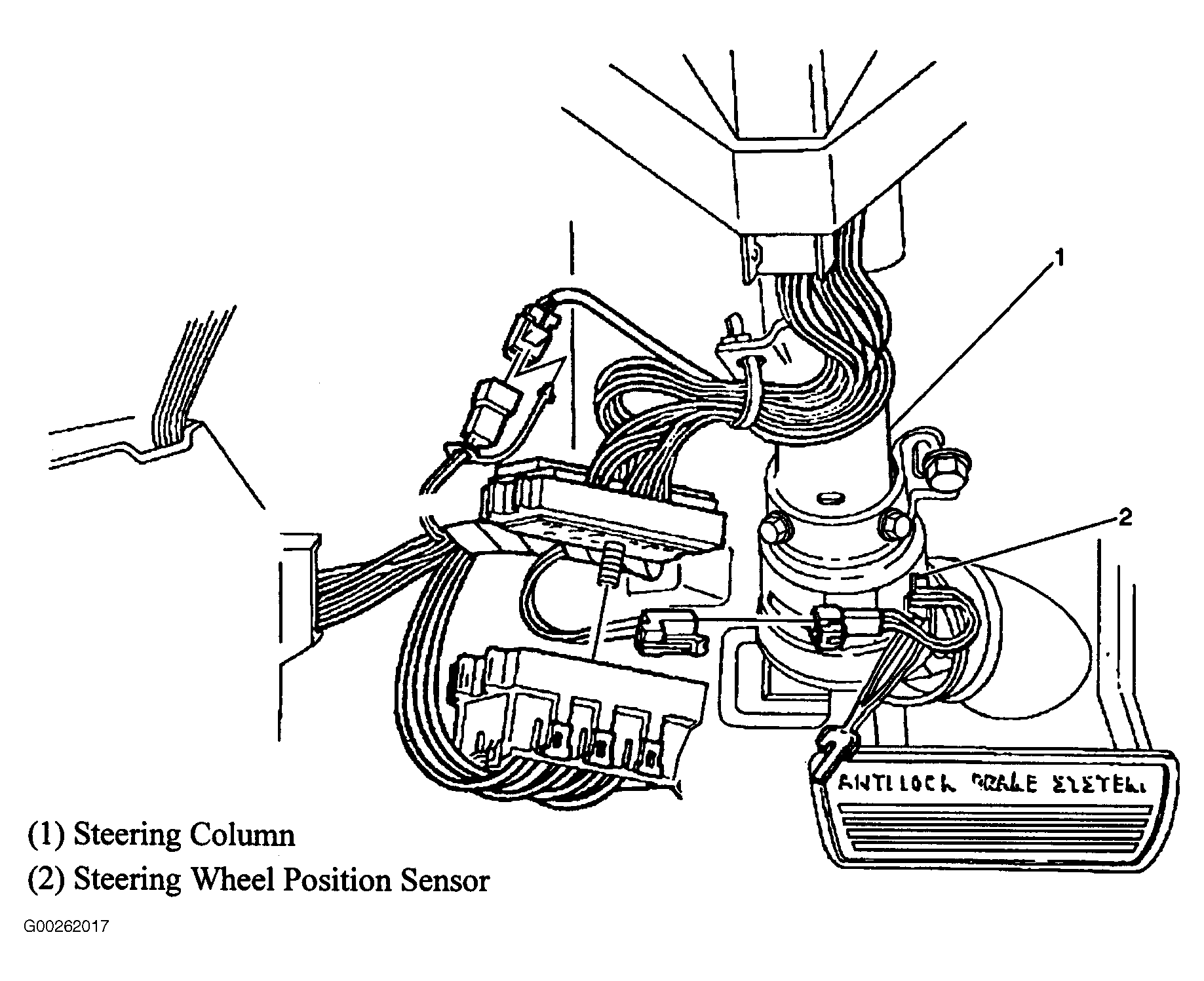

Fig 28: Lower Steering Column
Courtesy of GENERAL MOTORS CORP.

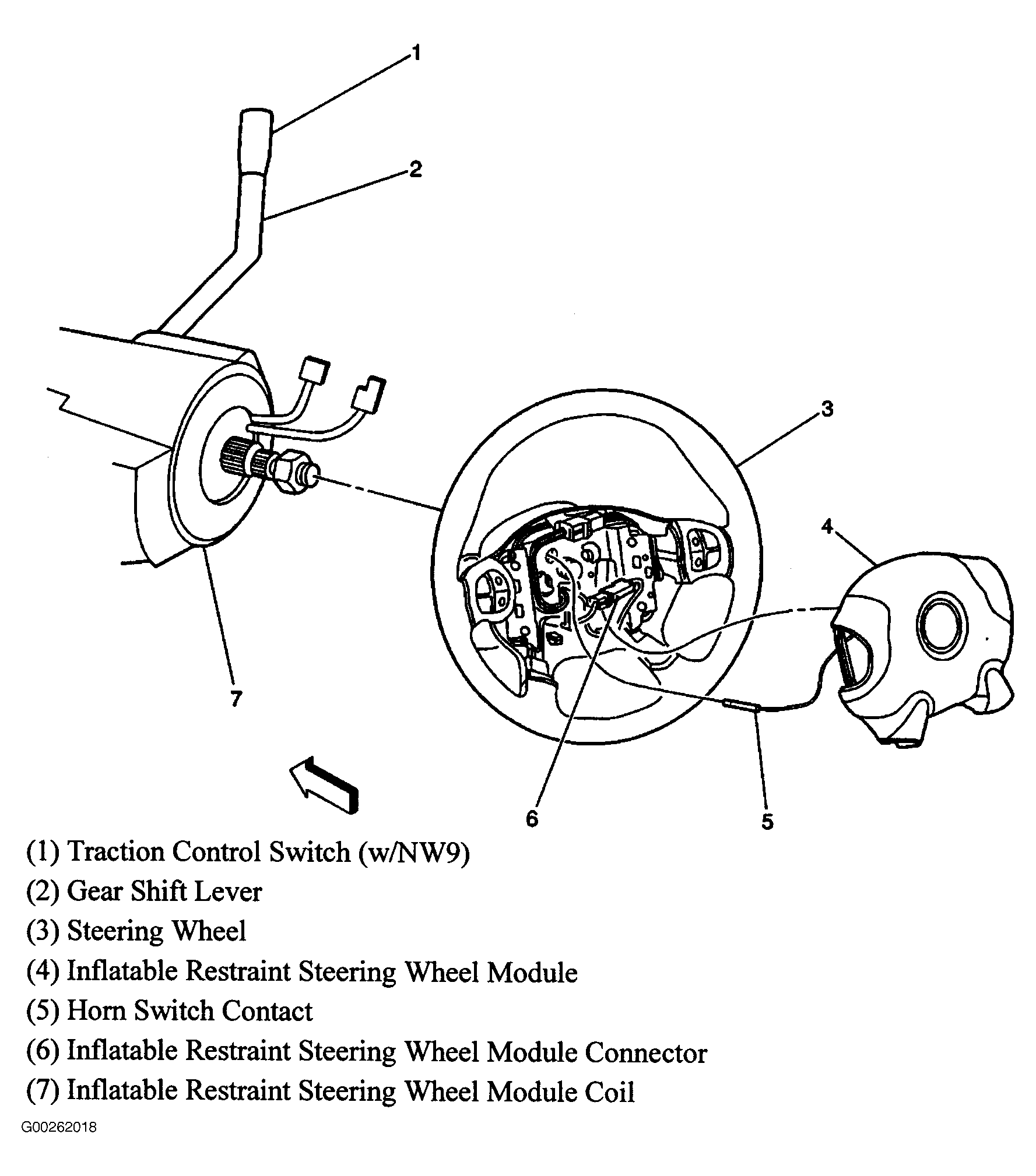

Fig 29: Steering Wheel
Courtesy of GENERAL MOTORS CORP.

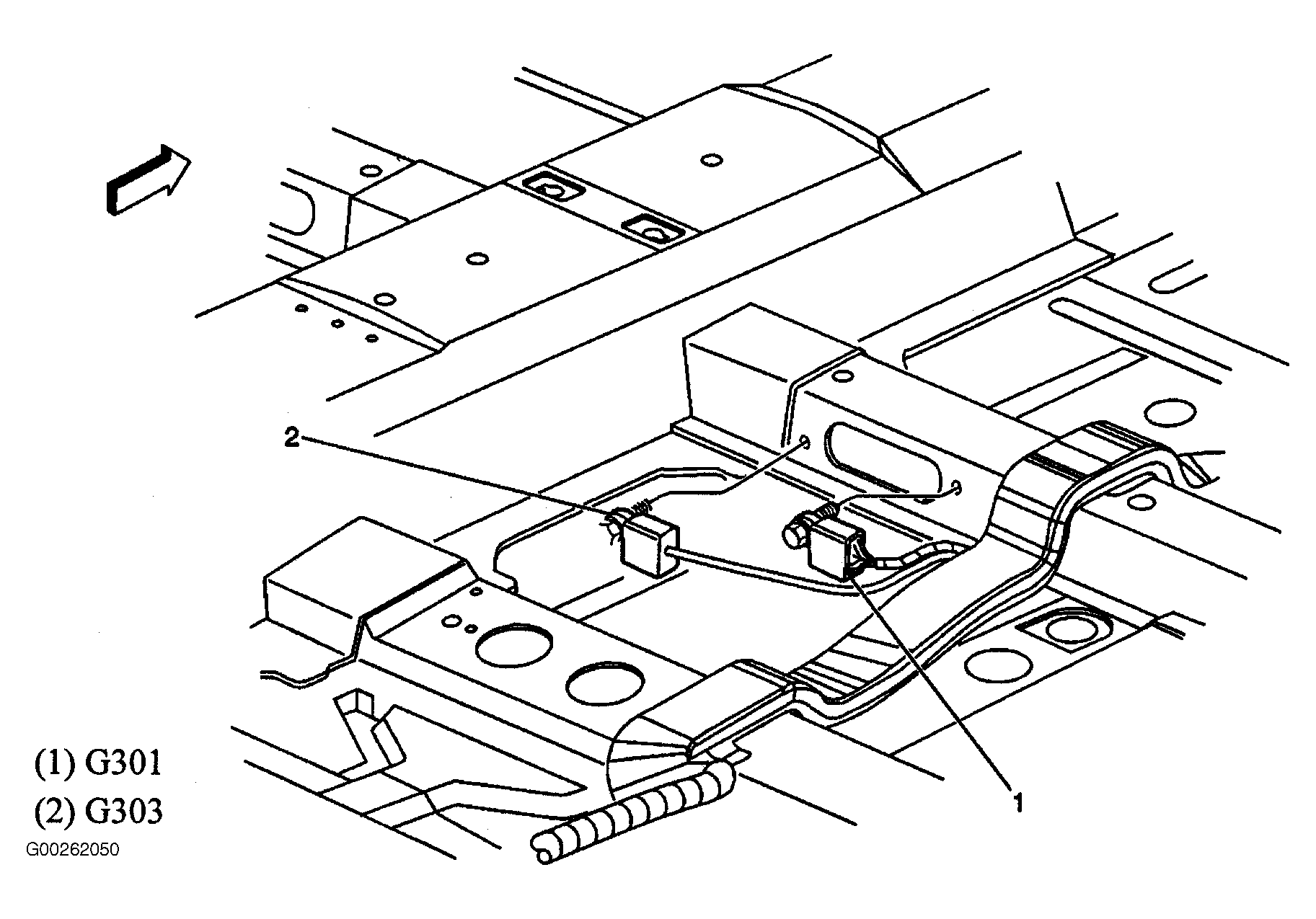

Fig 30: Under Left Rear Seat
Courtesy of GENERAL MOTORS CORP.

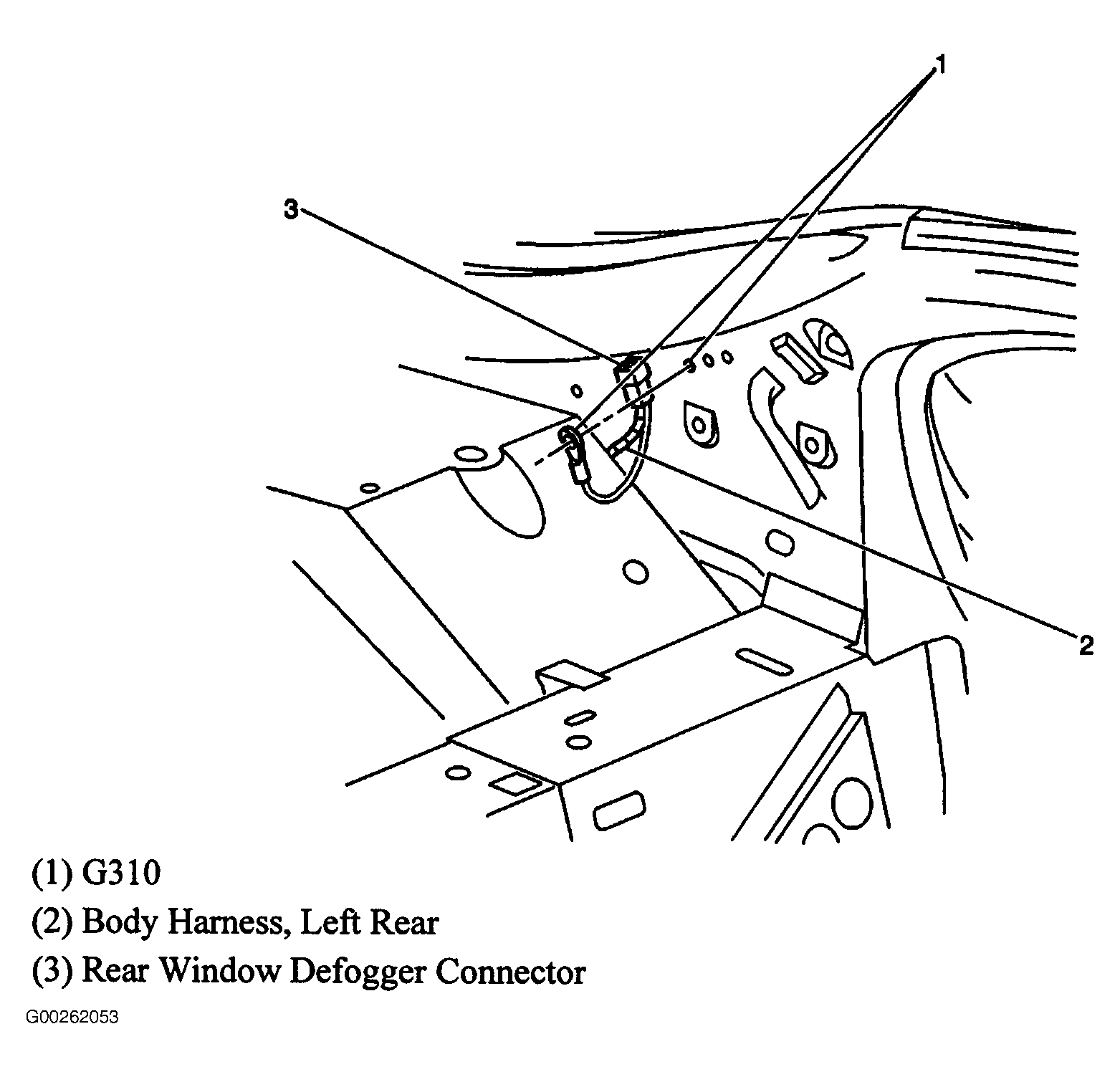

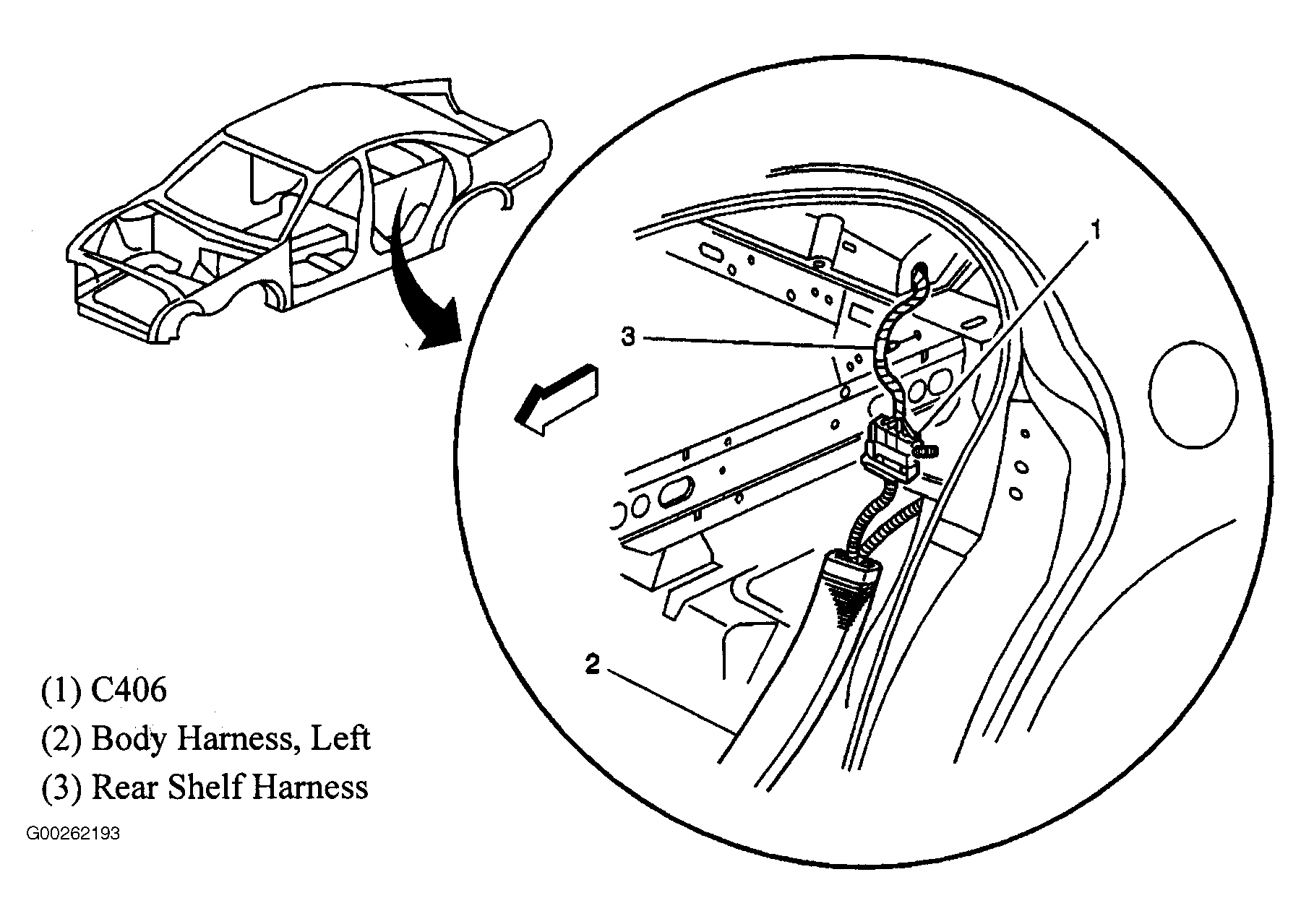

Fig 31: Left Corner Of Rear Shelf
Courtesy of GENERAL MOTORS CORP.

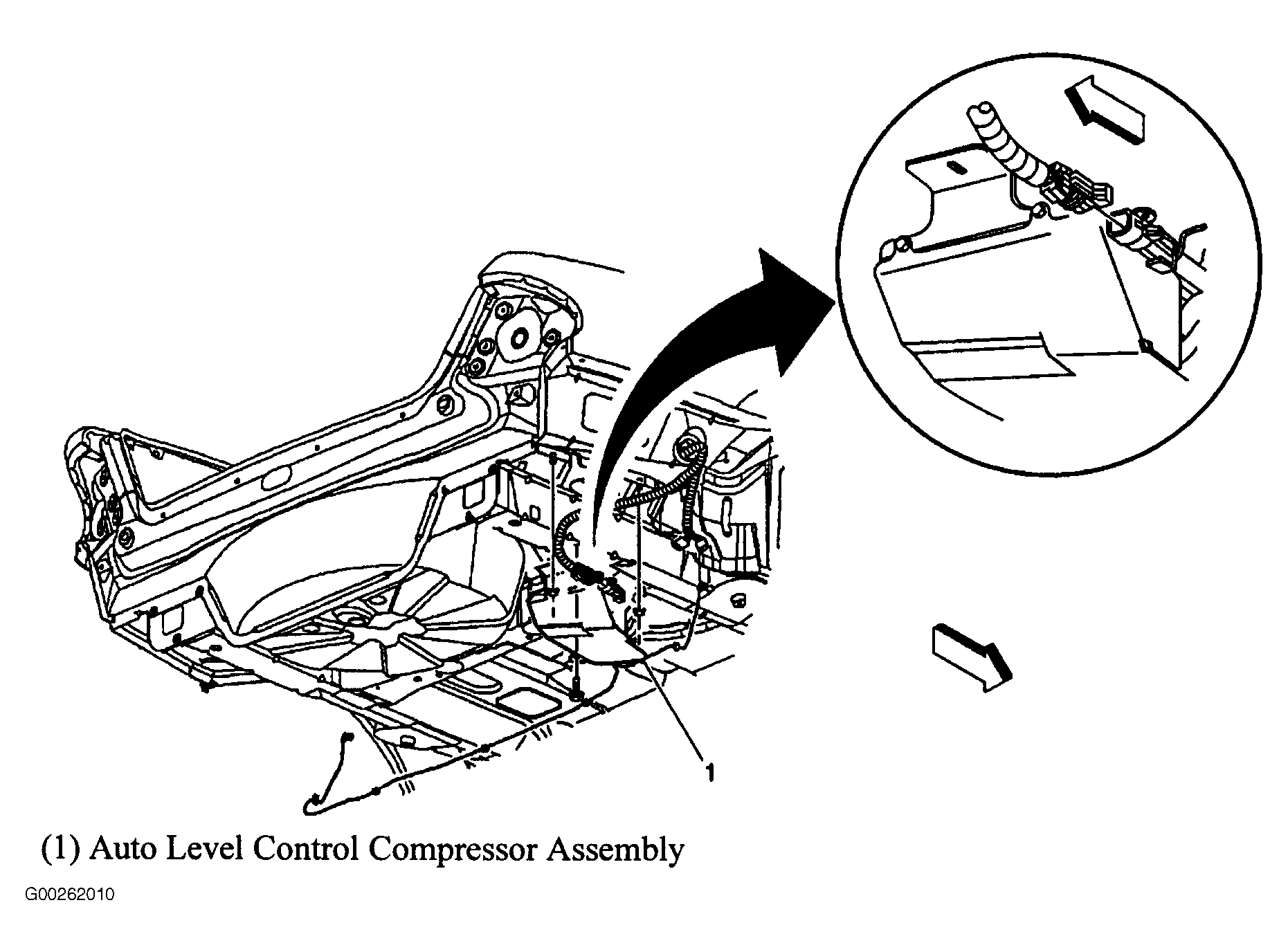

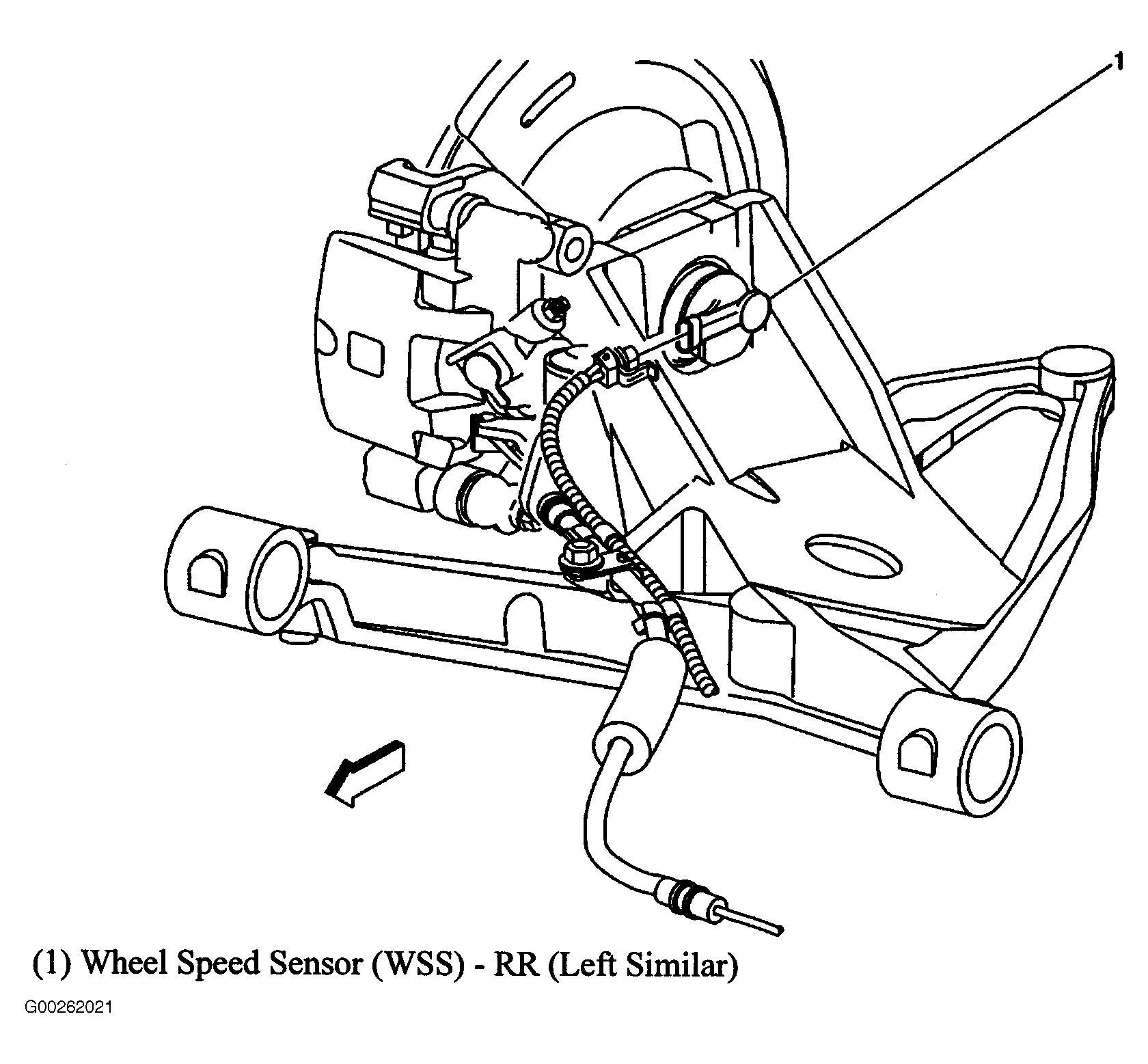

Fig 32: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

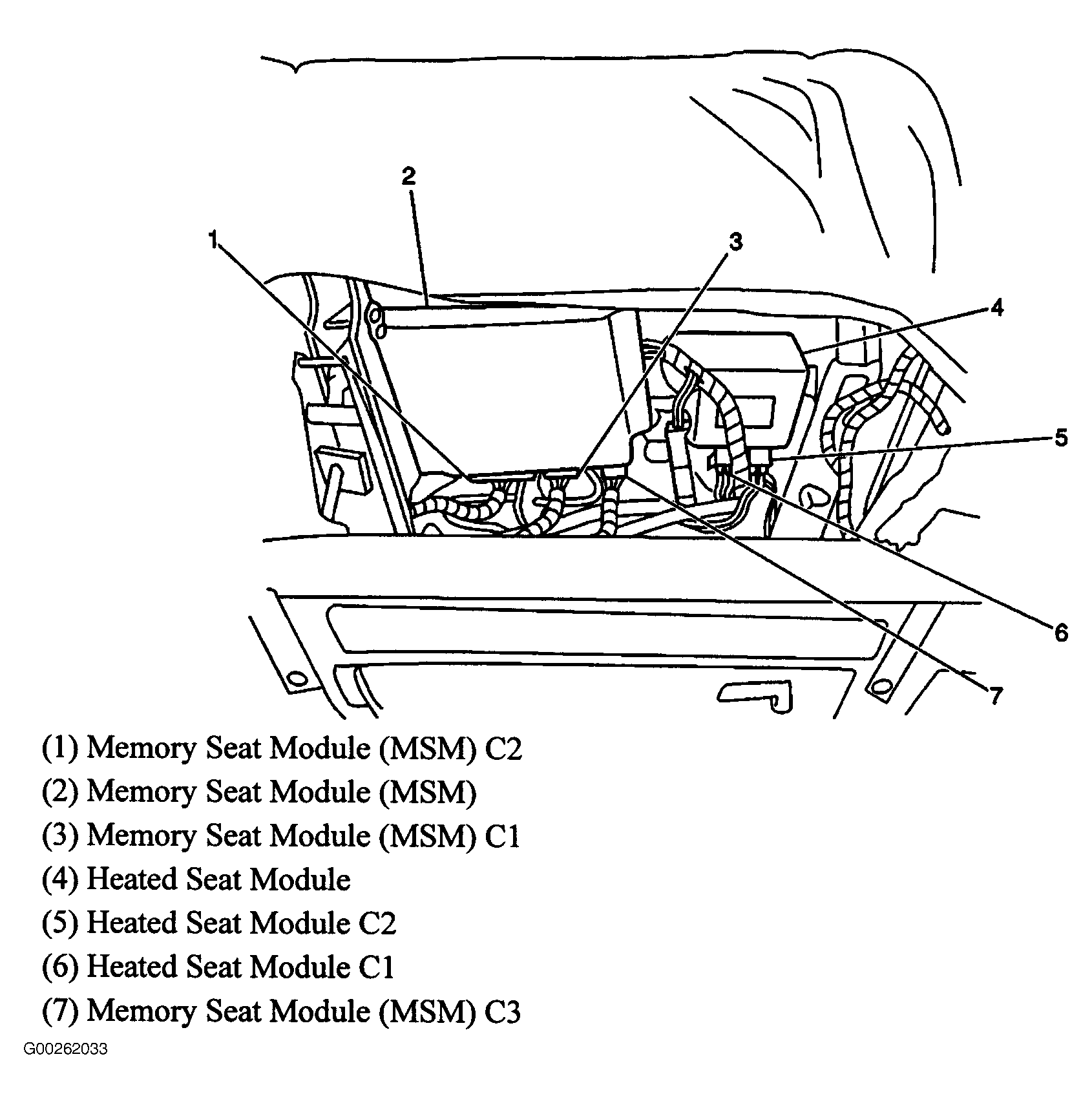

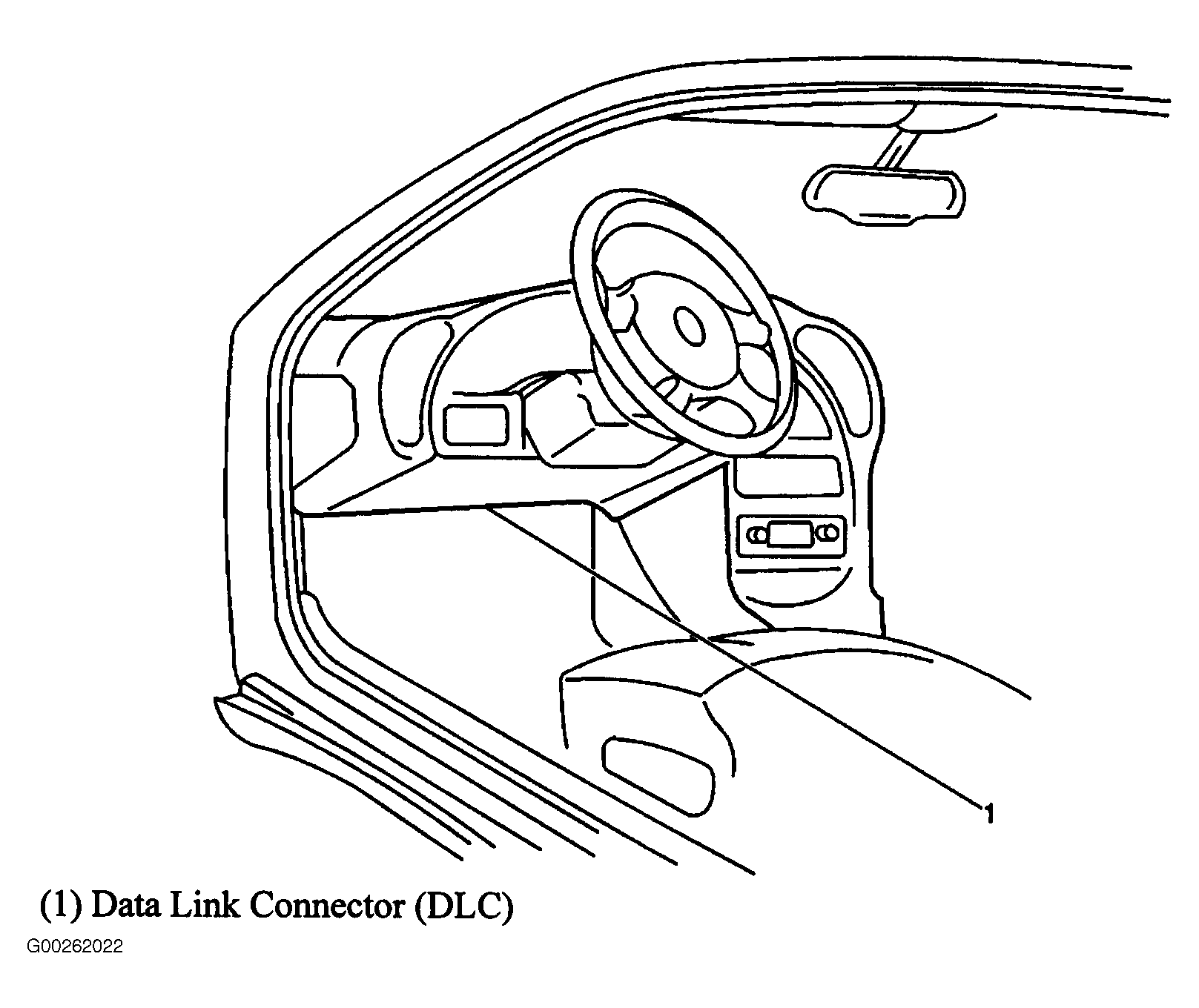

Fig 33: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

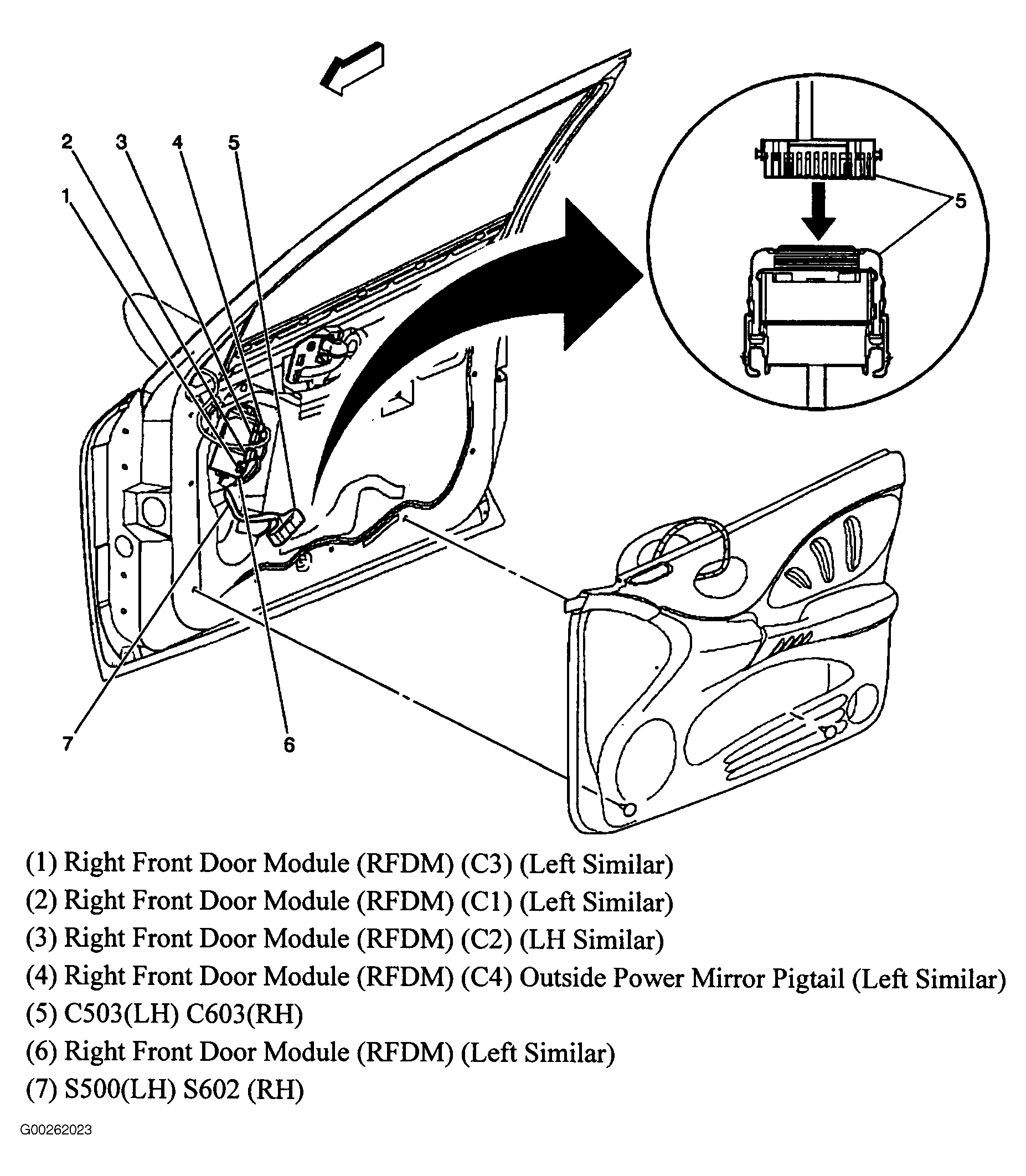

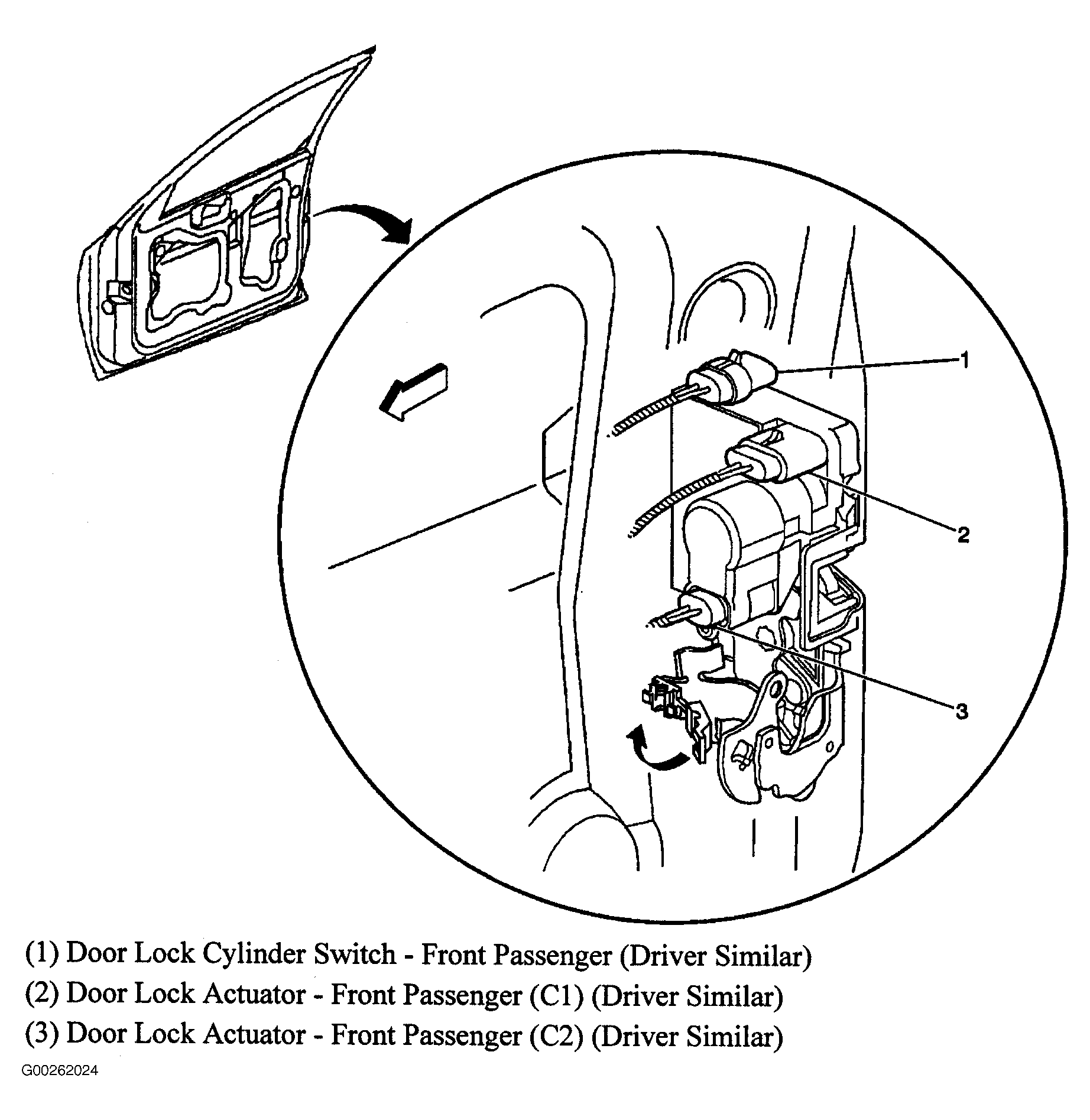

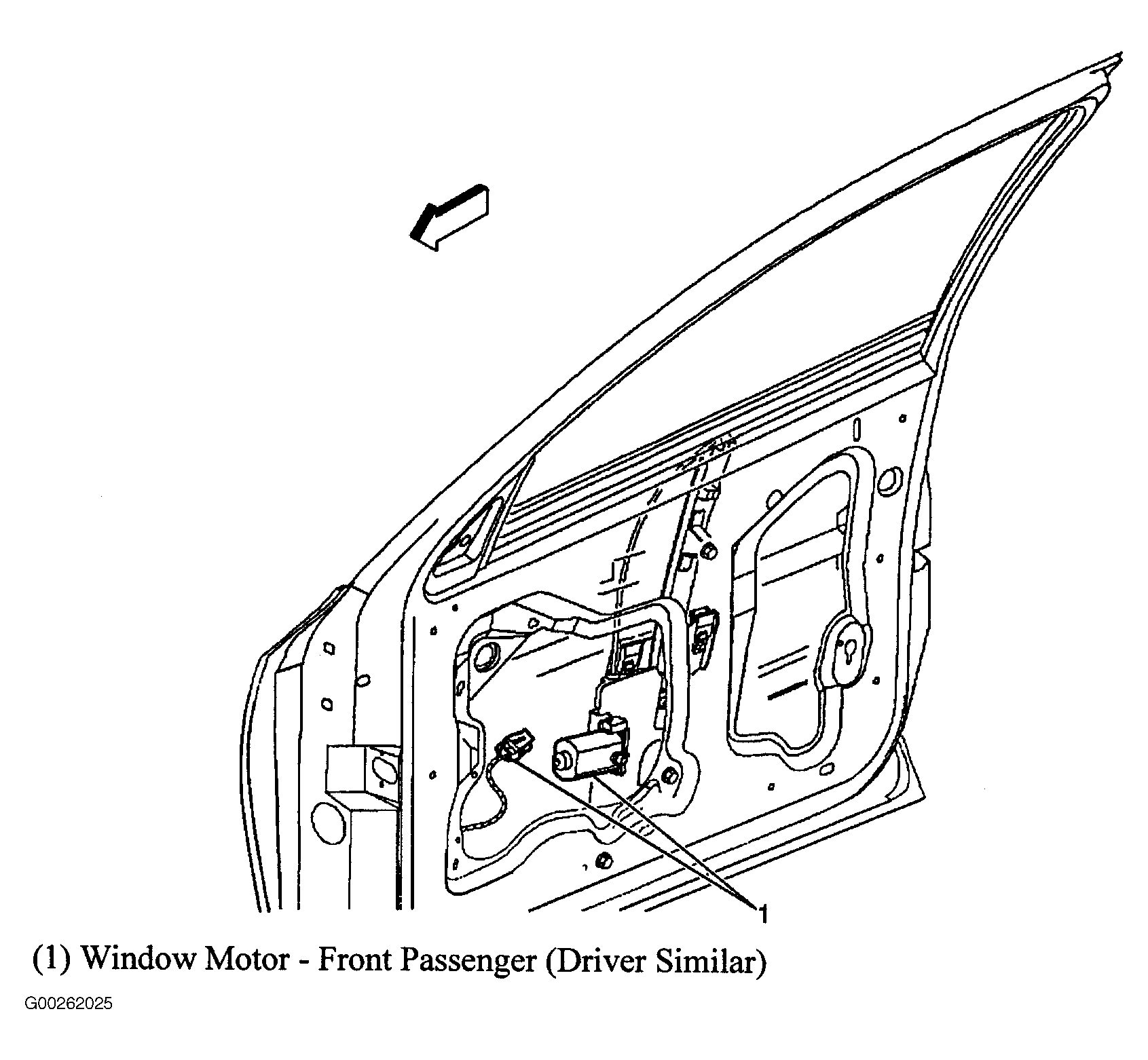

Fig 34: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 35: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 36: Right Front Door
Courtesy of GENERAL MOTORS CORP.

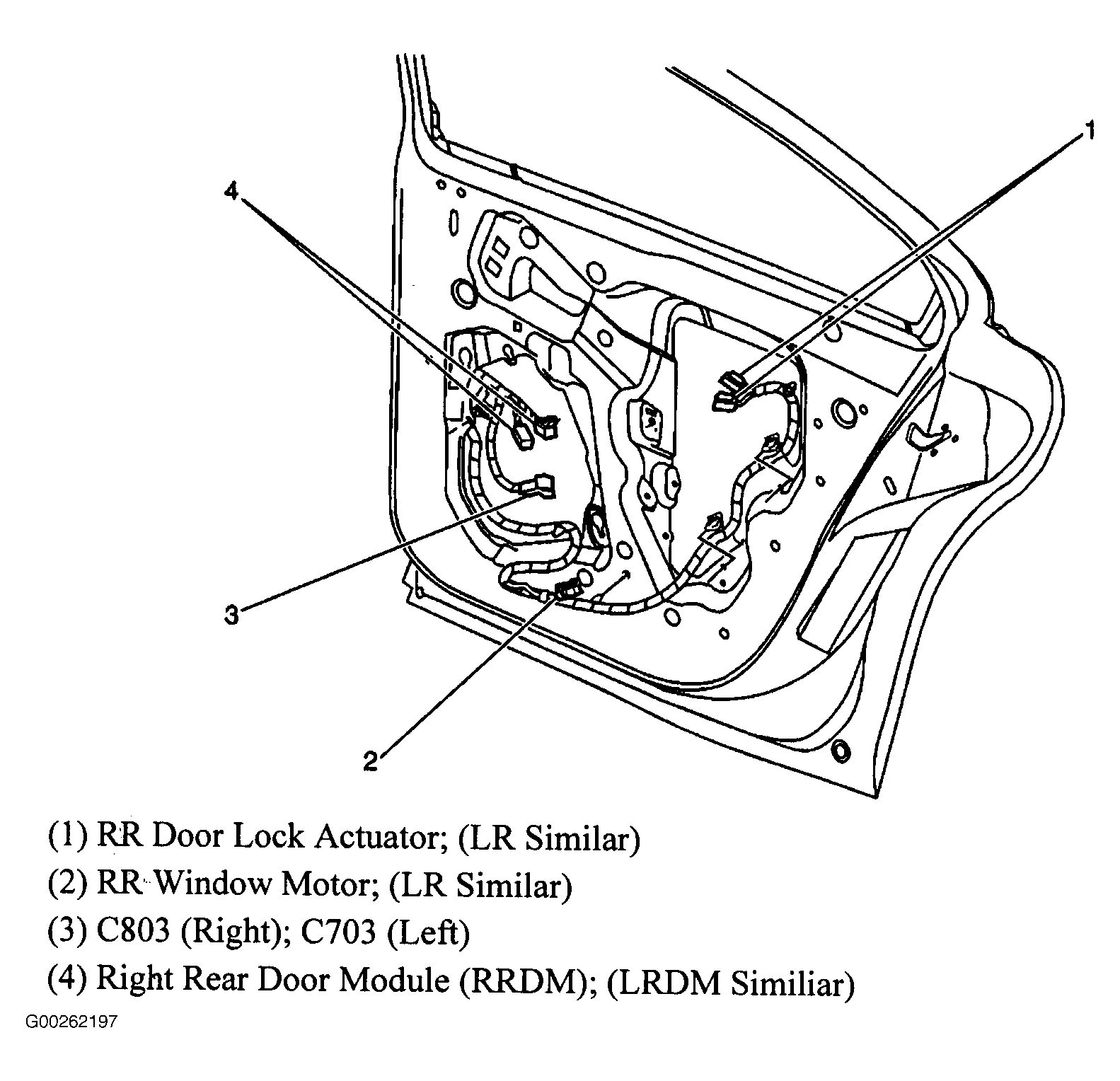

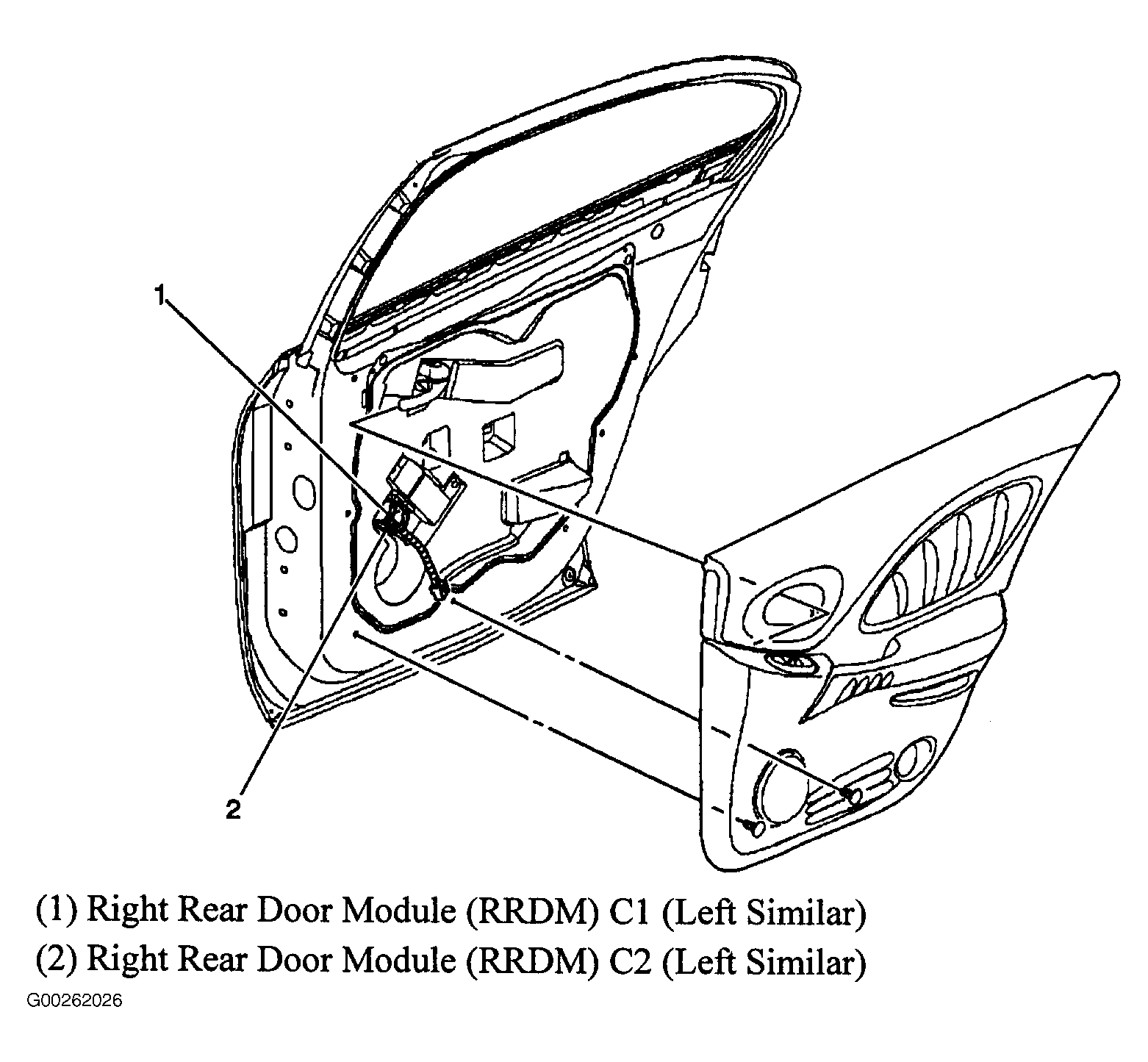

Fig 37: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

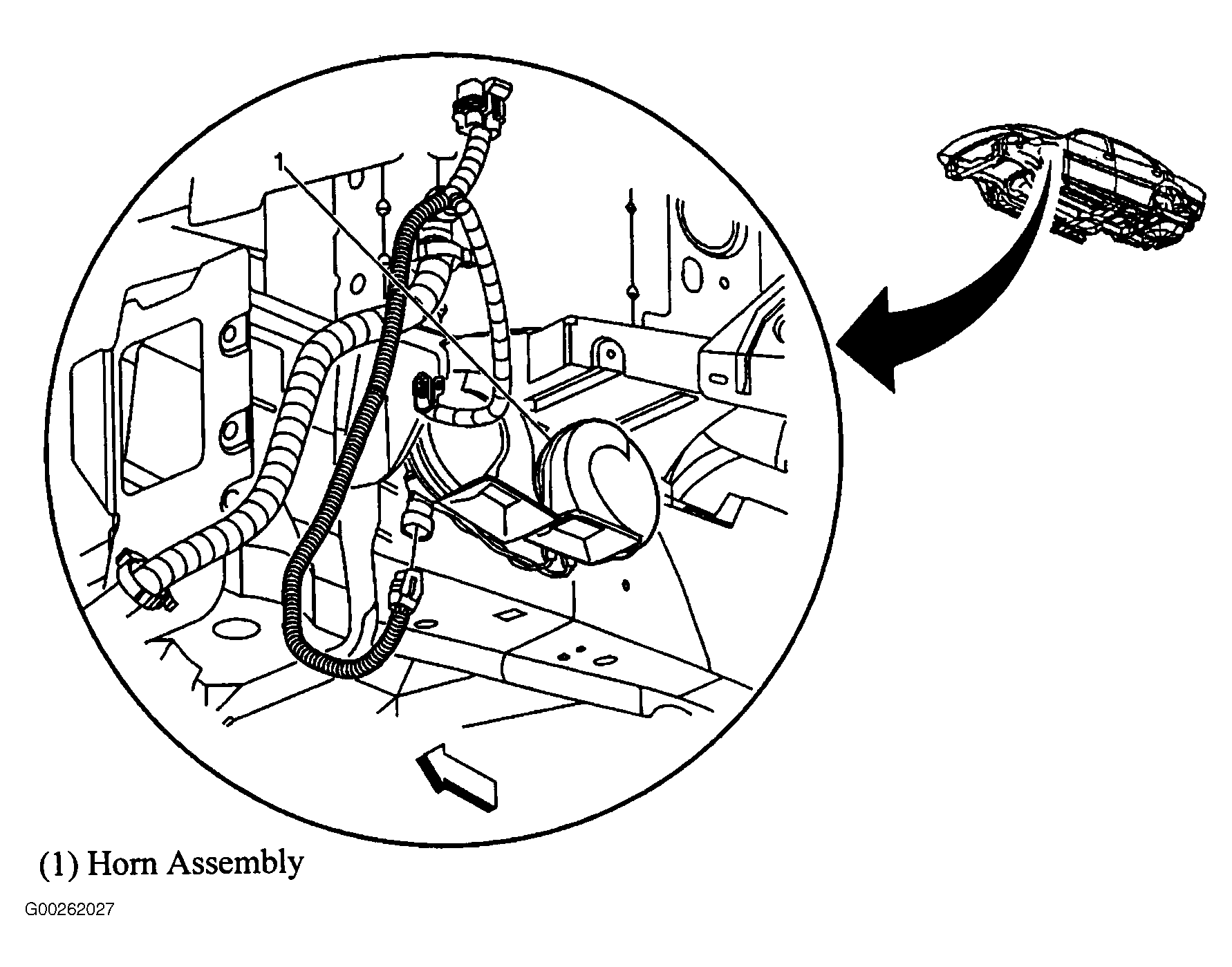

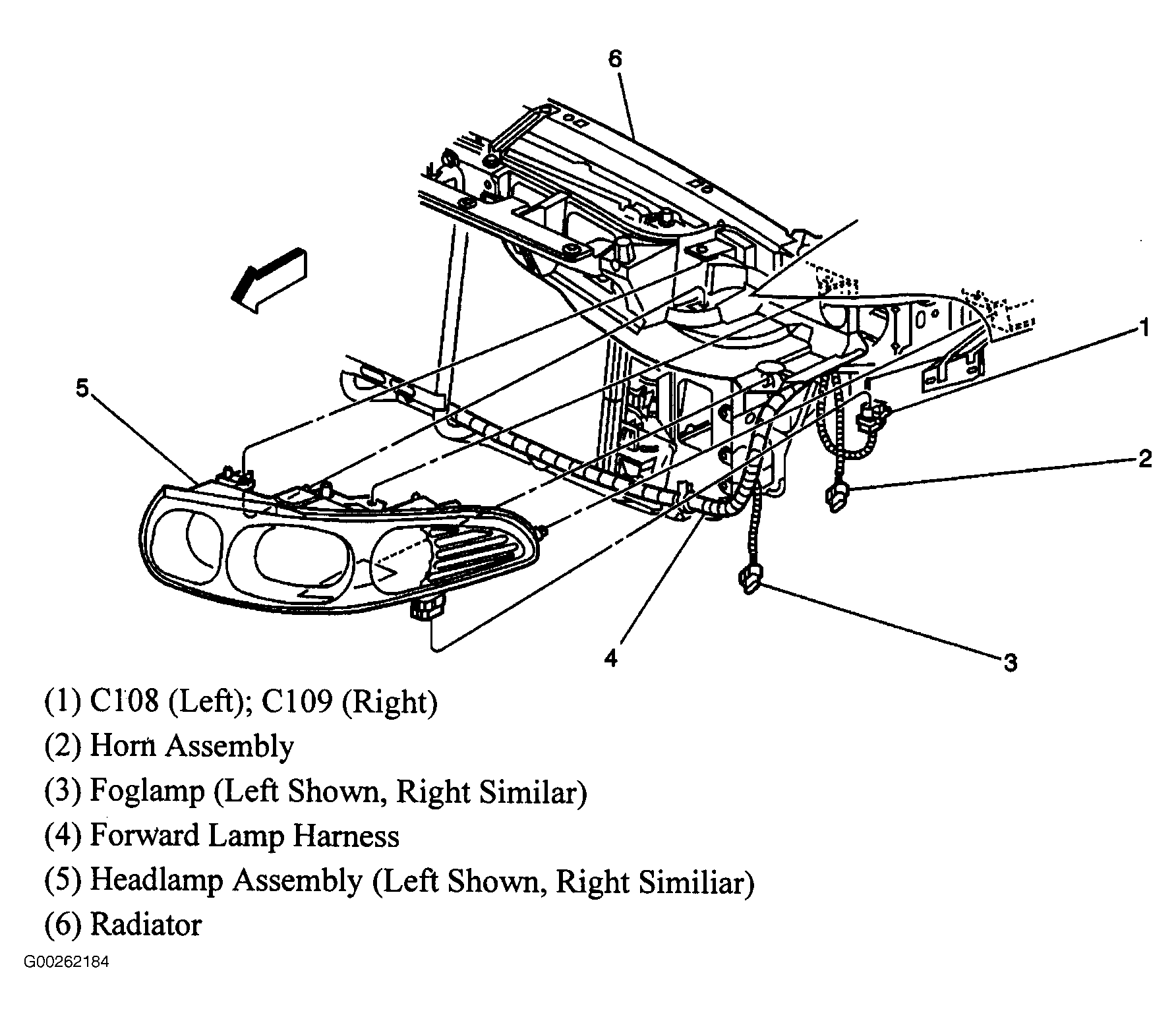

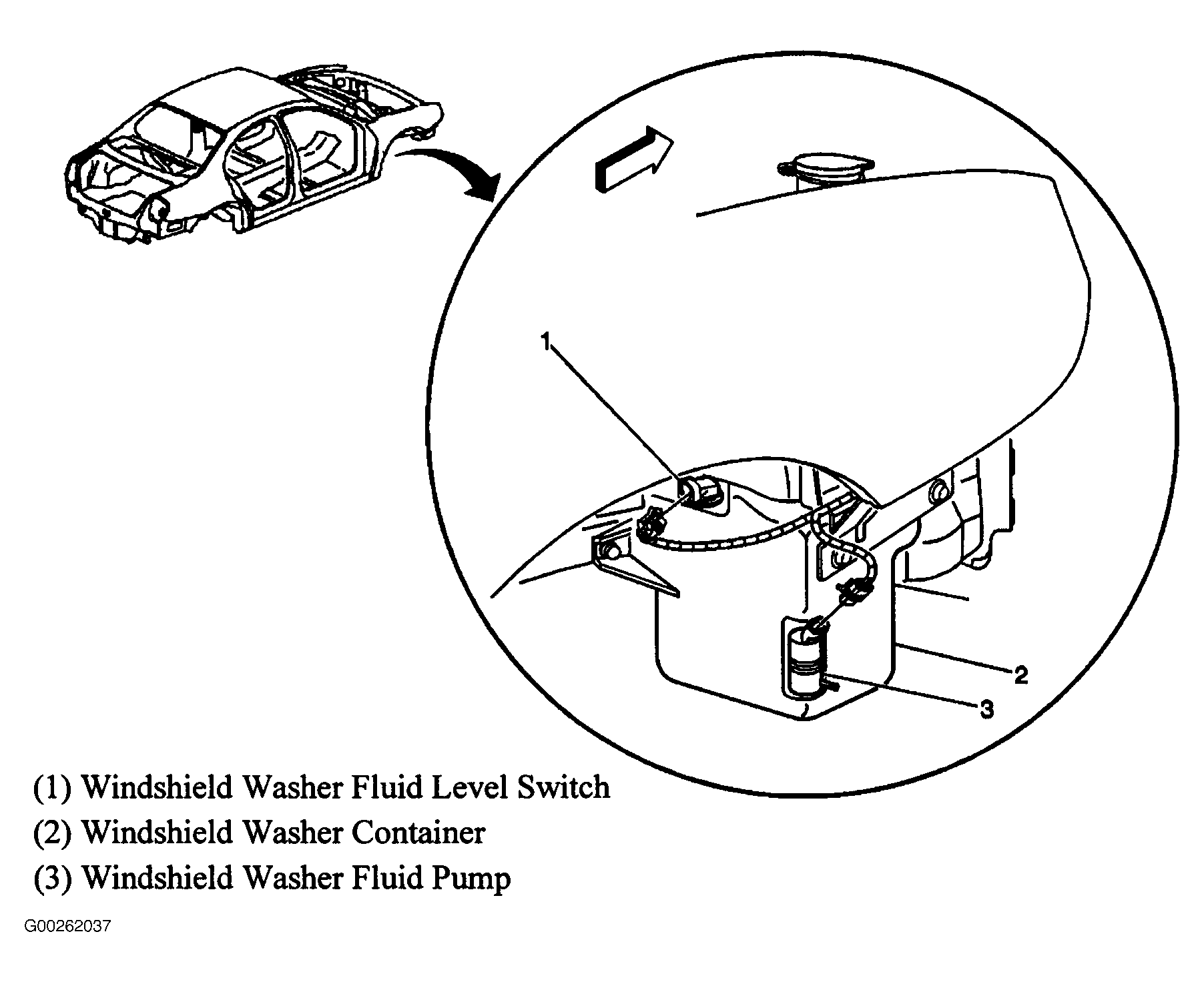

Fig 38: Left Front Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.

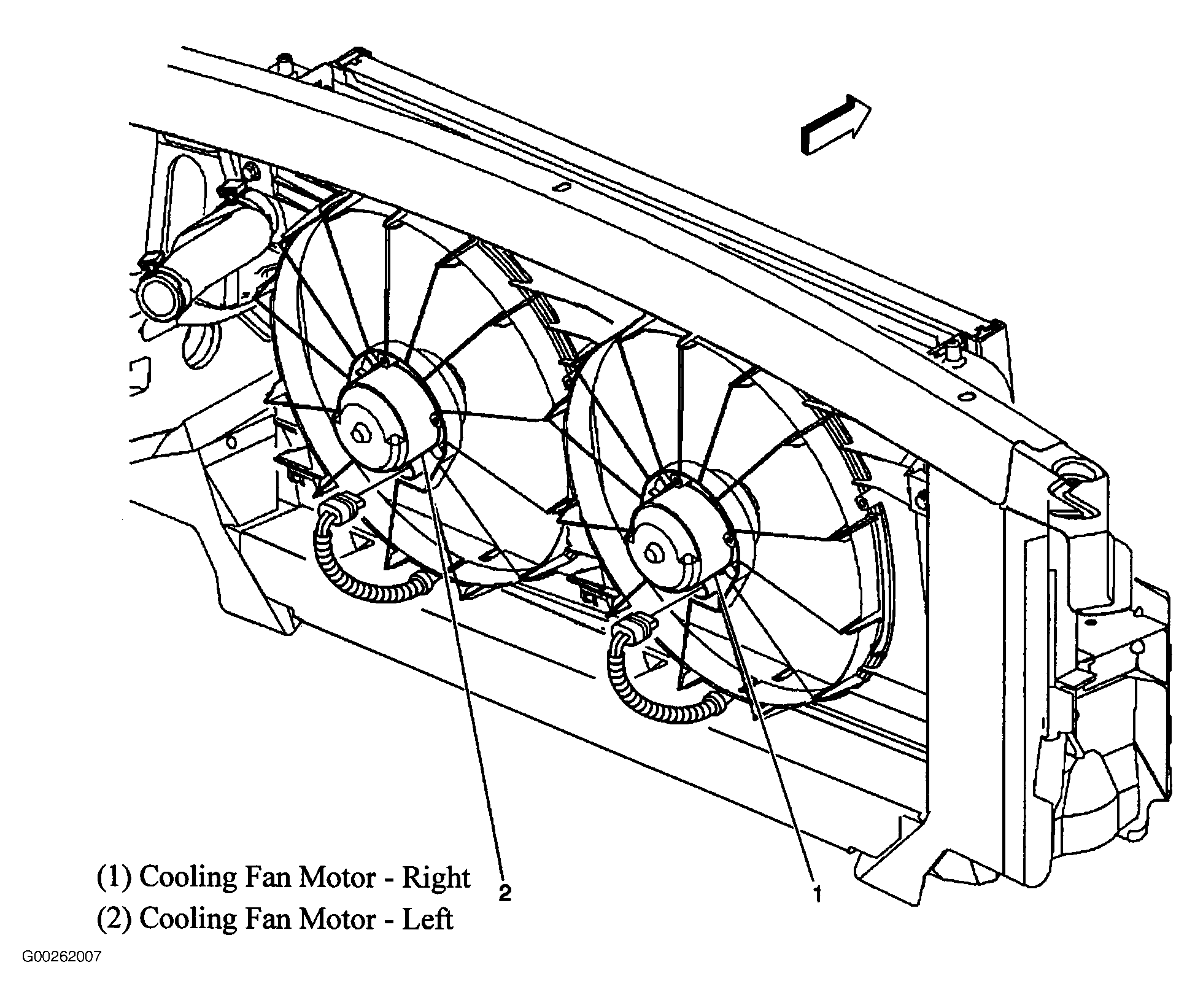

Fig 39: Left Side Of Radiator
Courtesy of GENERAL MOTORS CORP.

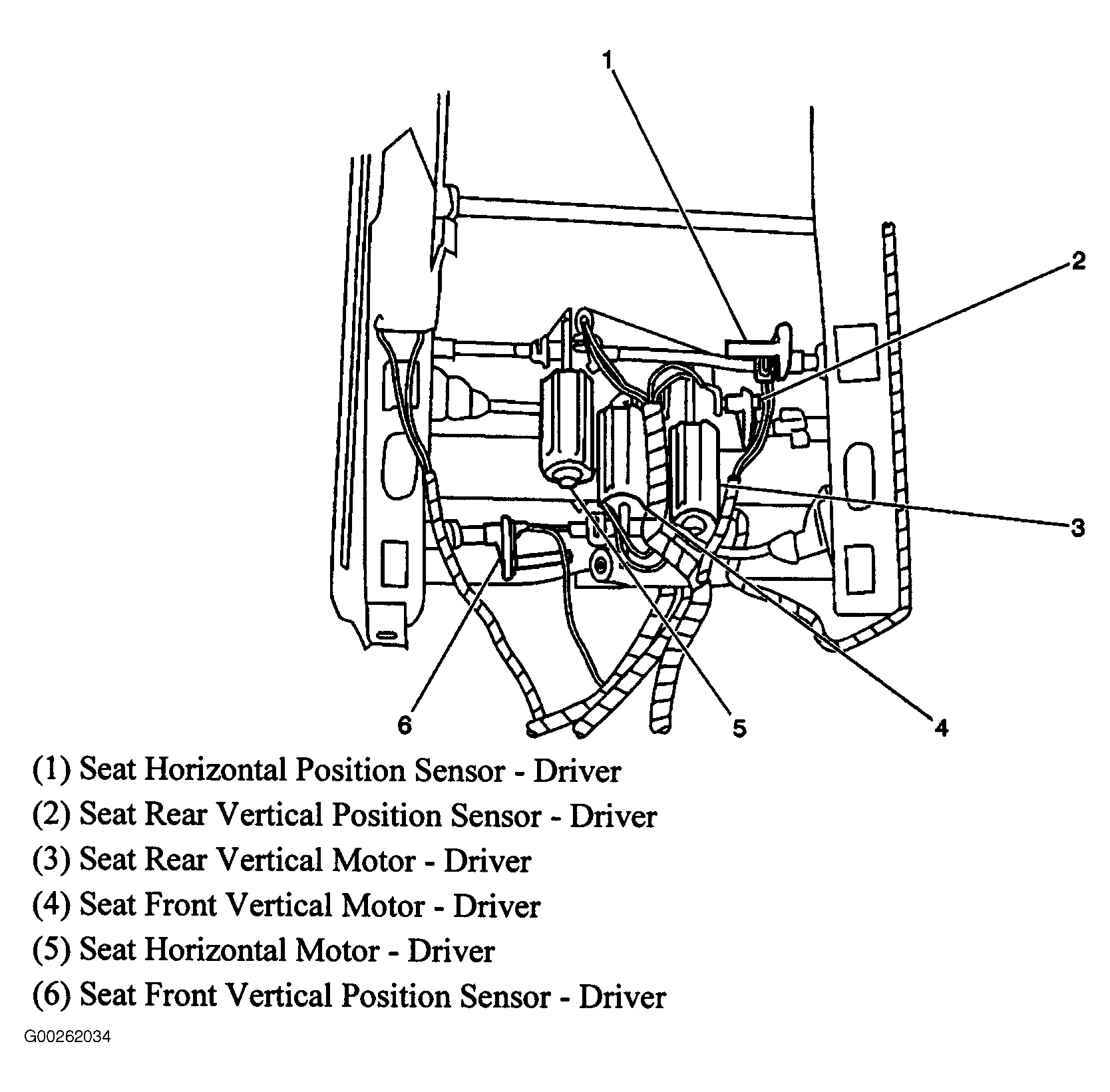

Fig 40: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 41: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

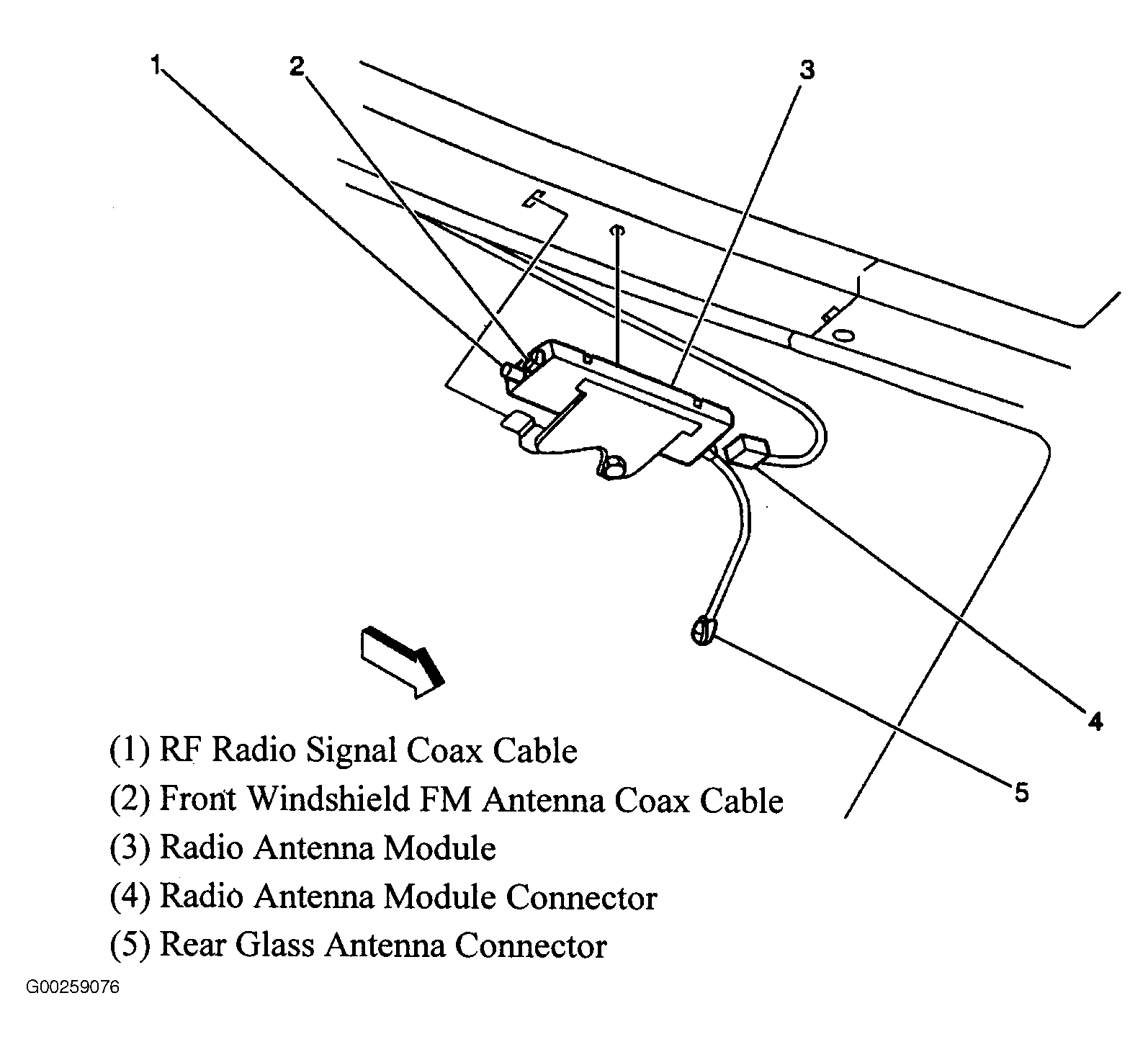

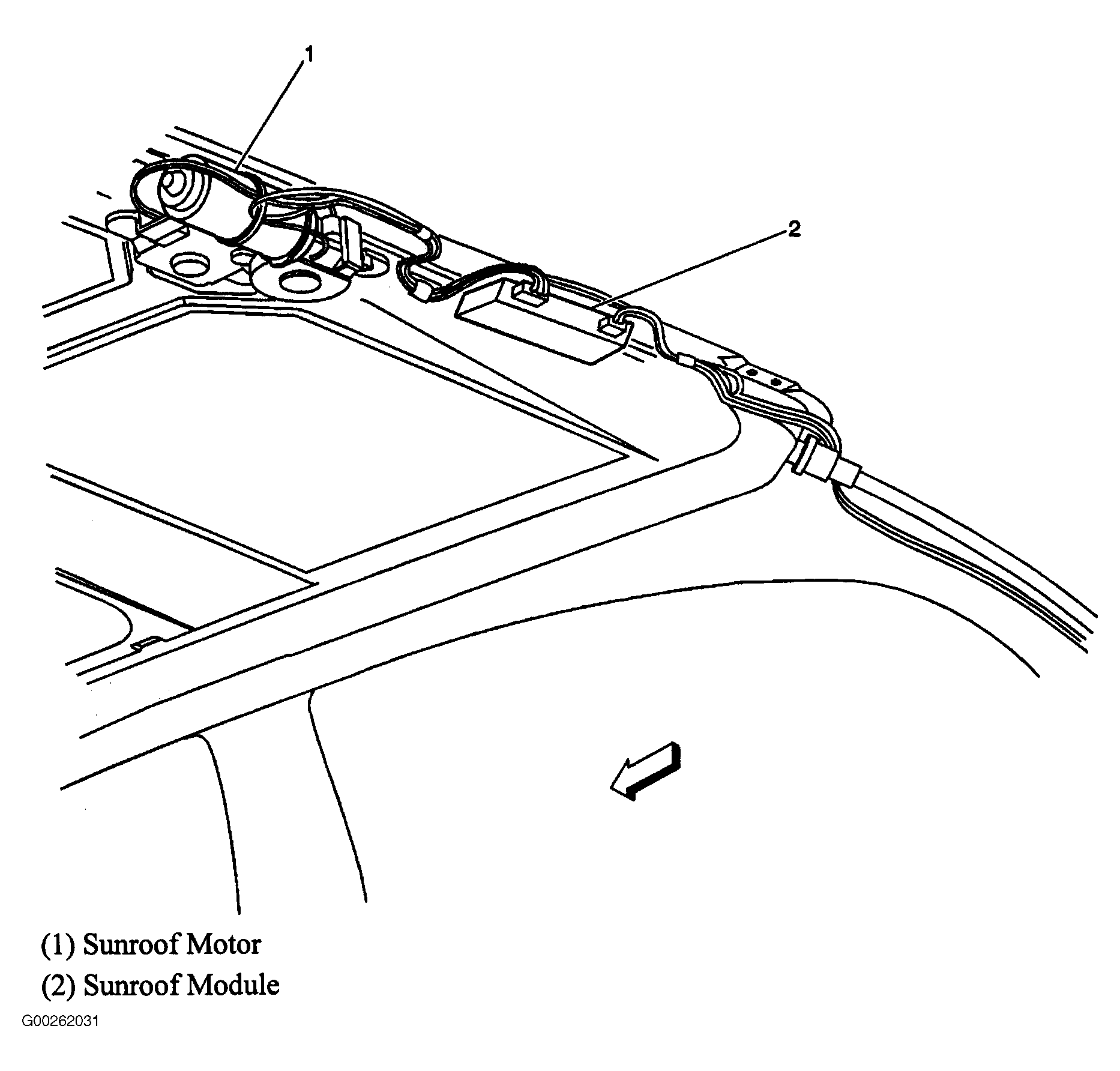

Fig 42: Rear Of Headliner
Courtesy of GENERAL MOTORS CORP.

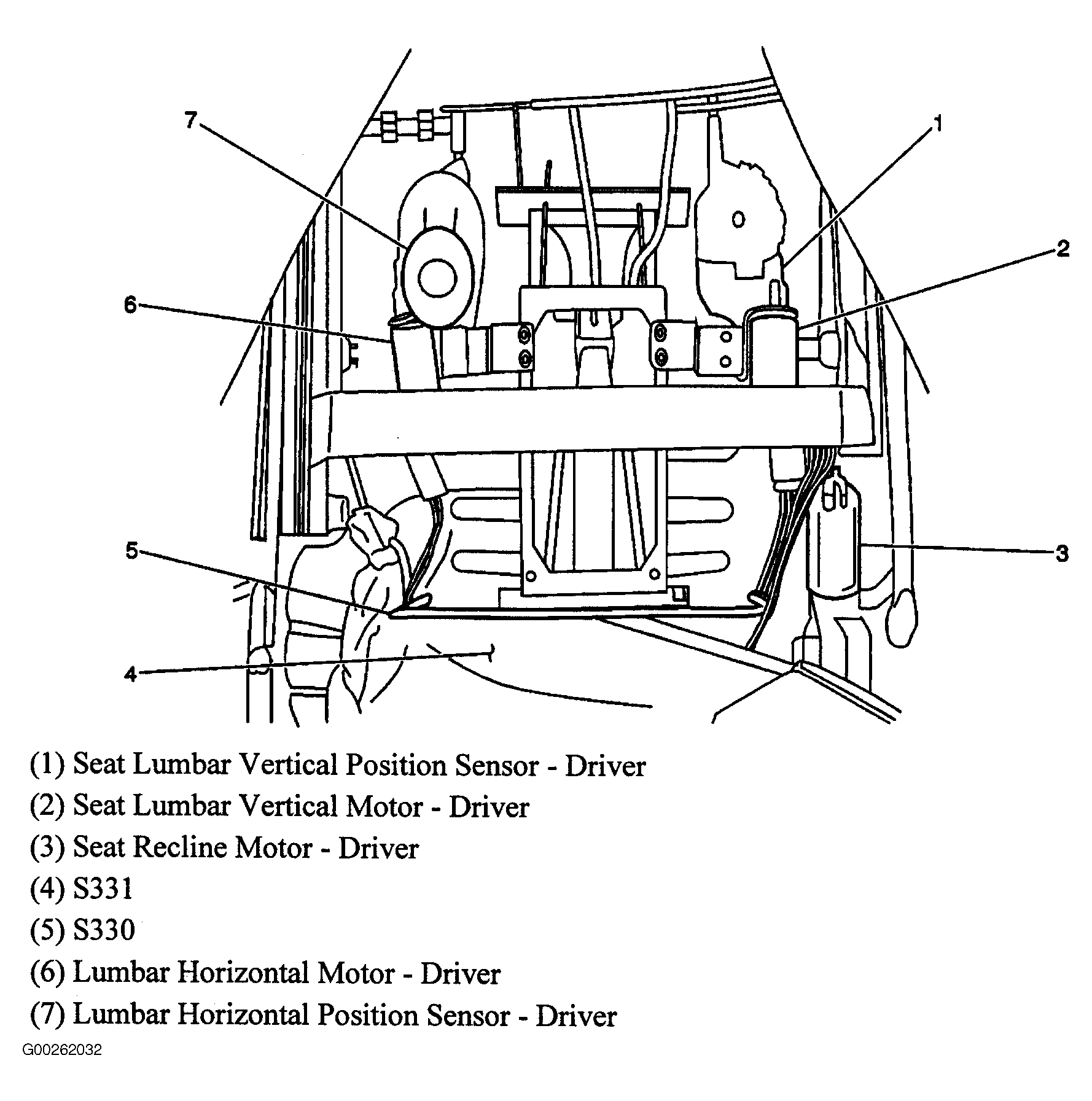

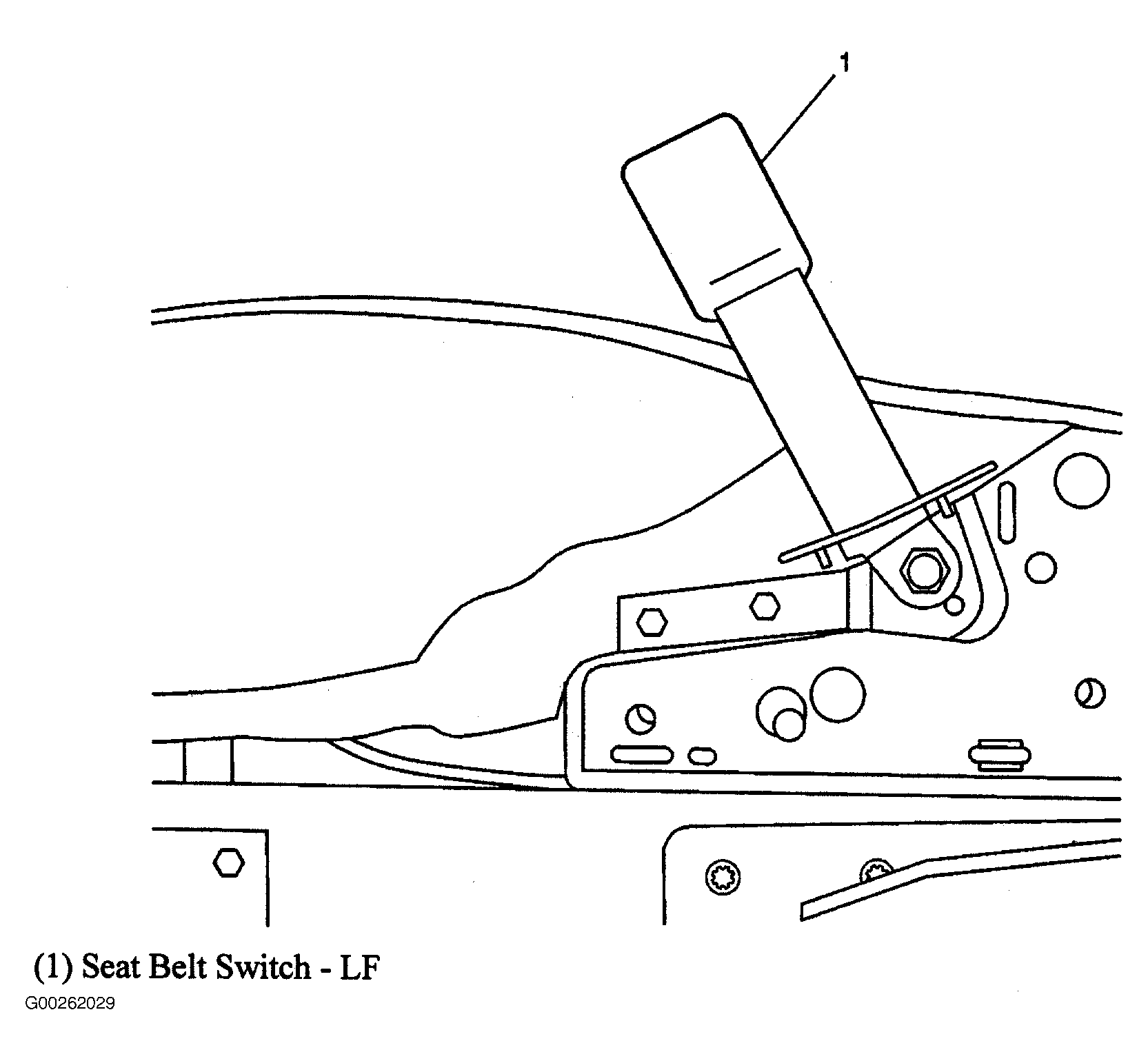

Fig 43: Left Front Seat Back
Courtesy of GENERAL MOTORS CORP.
Fig 44: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 45: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.

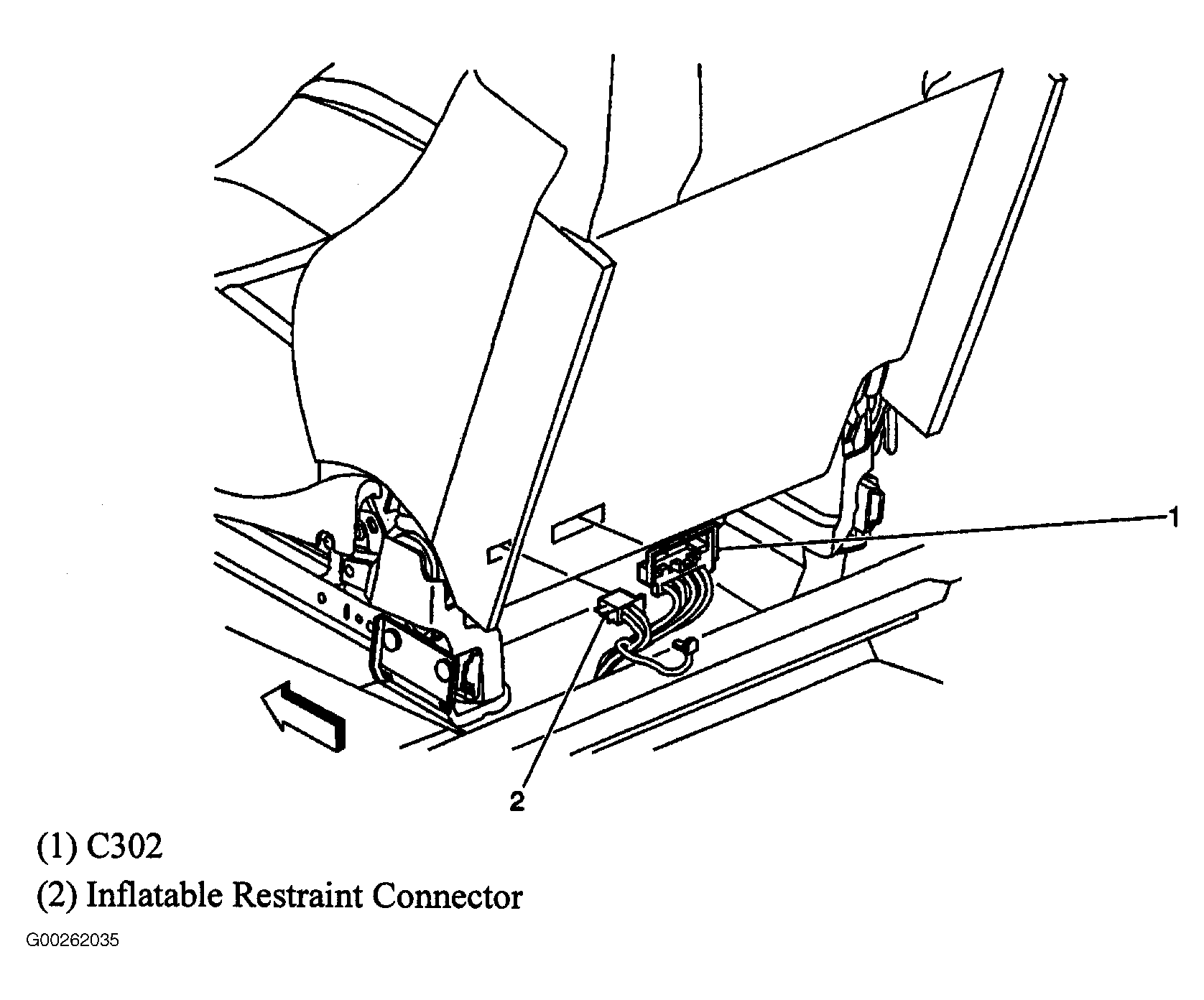

Fig 46: Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 47: Right Front Wheelwell
Courtesy of GENERAL MOTORS CORP.

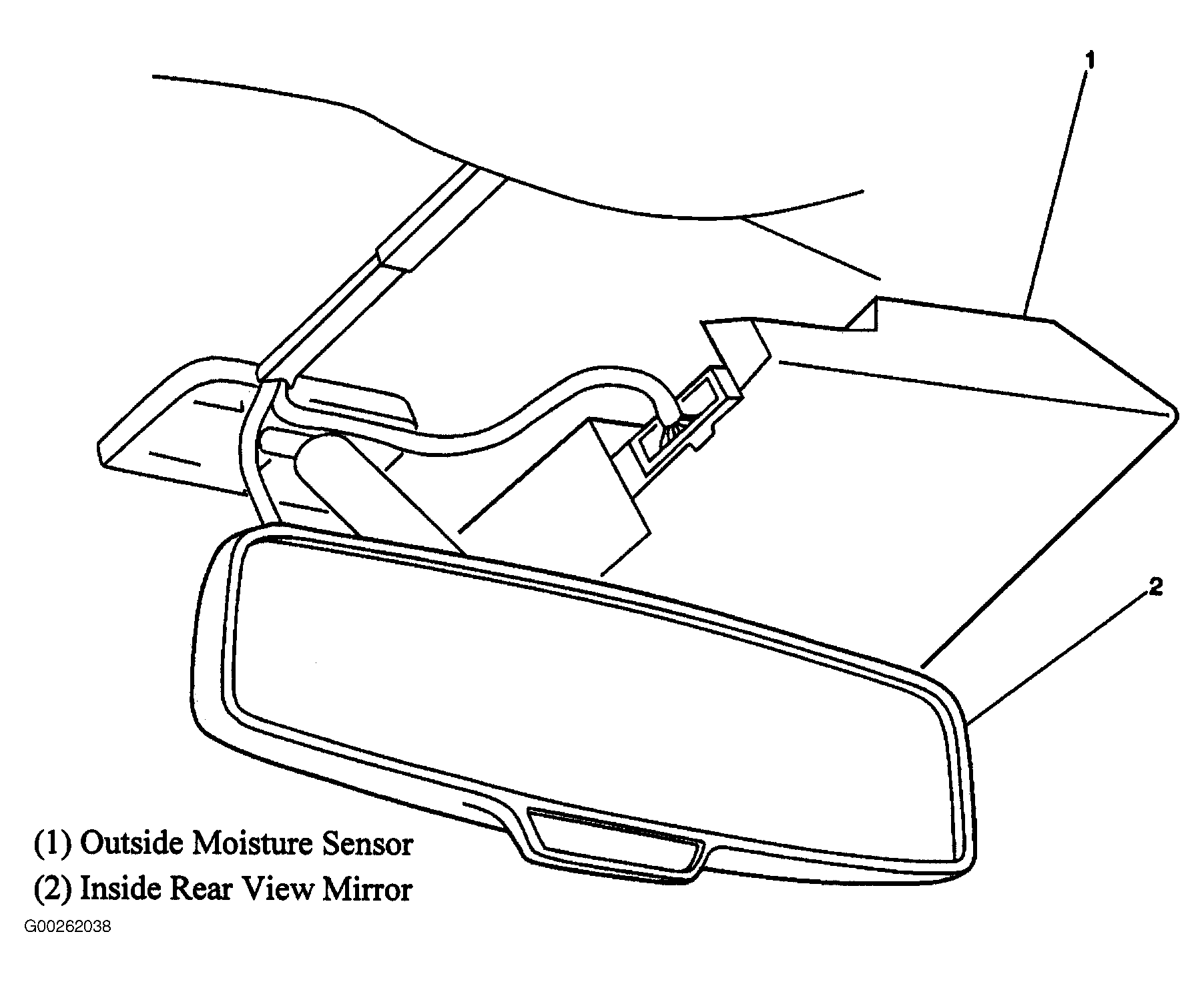

Fig 48: Inside Rear View Mirror
Courtesy of GENERAL MOTORS CORP.

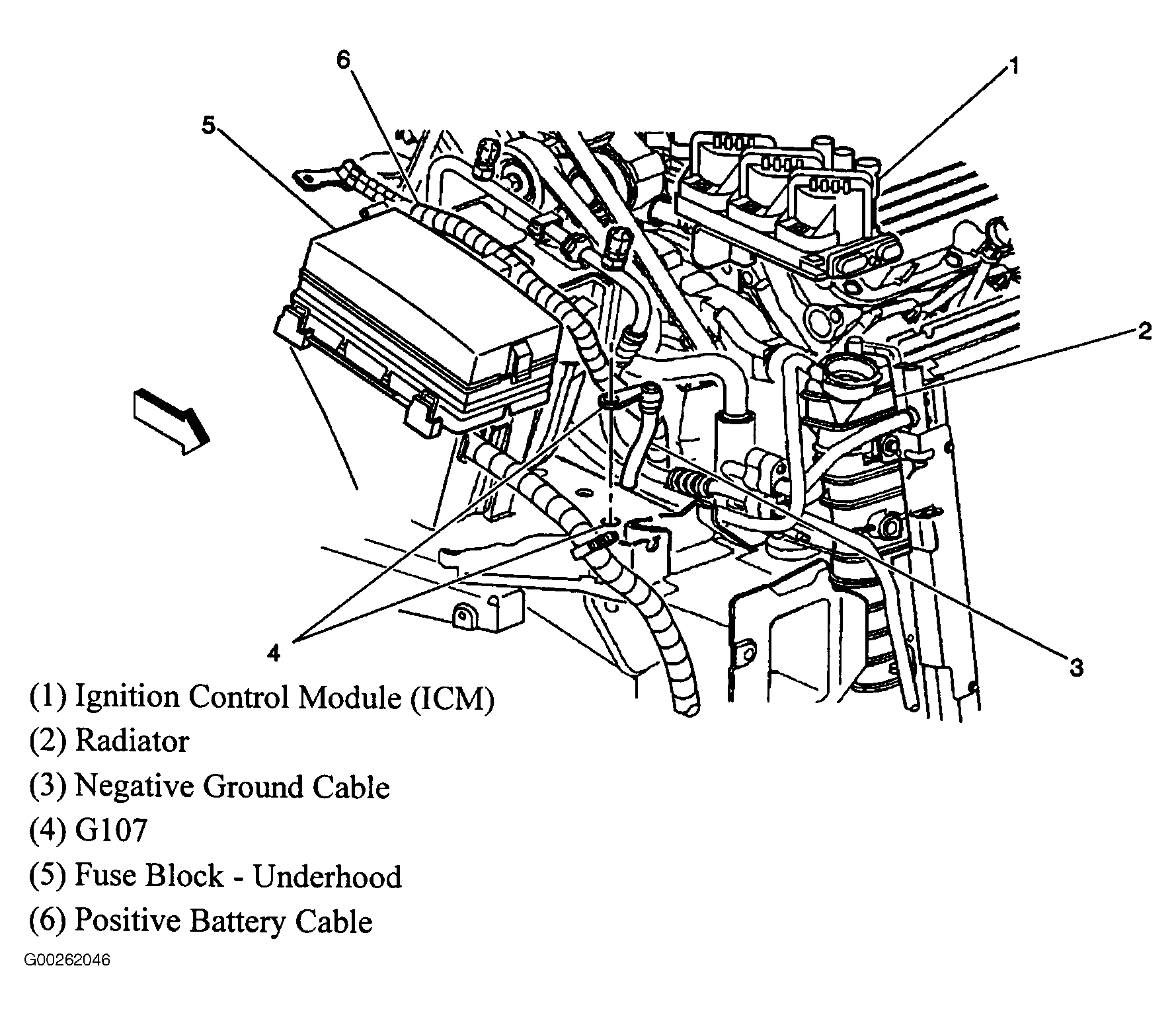

Fig 49: Right Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

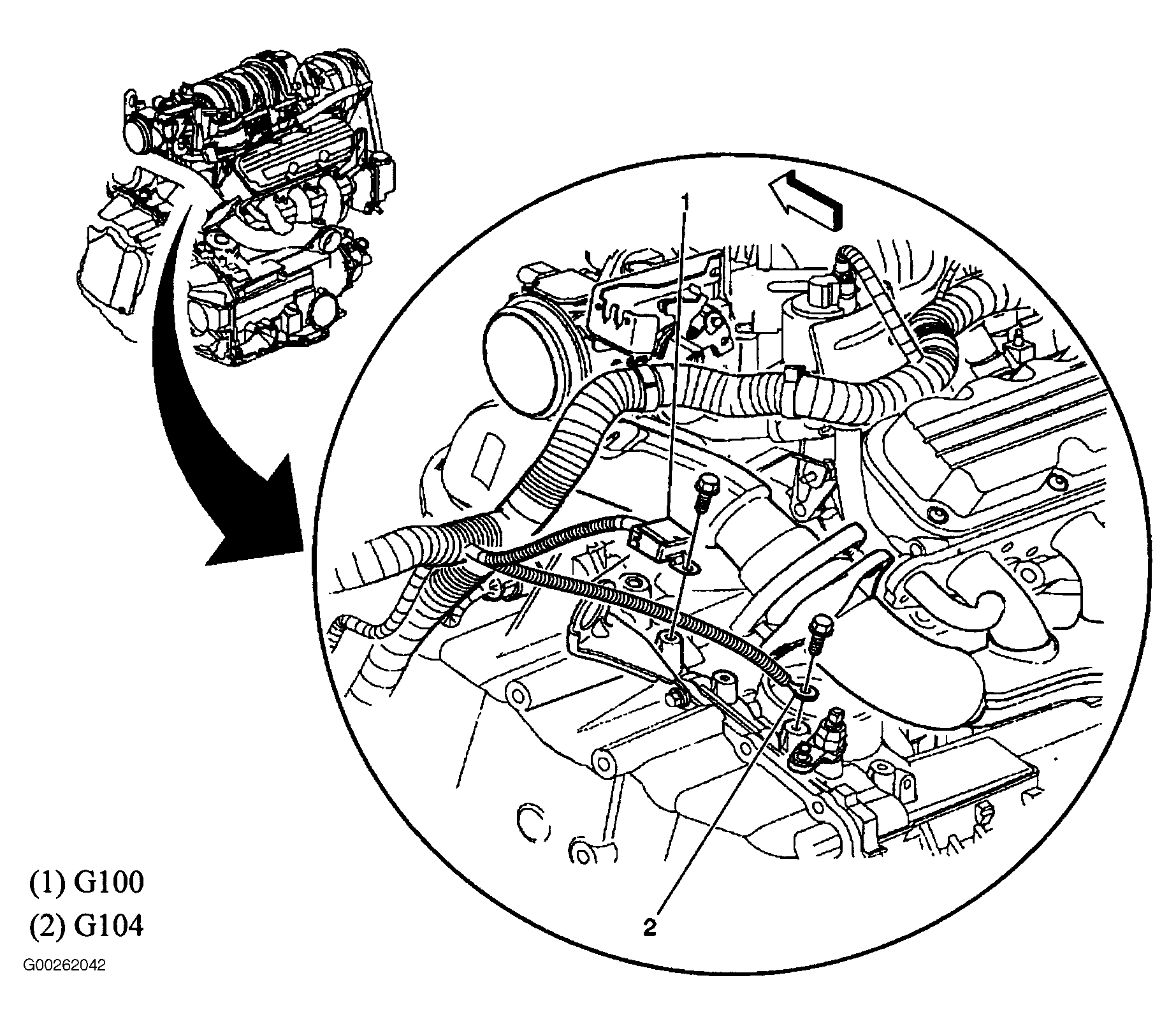

Fig 50: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

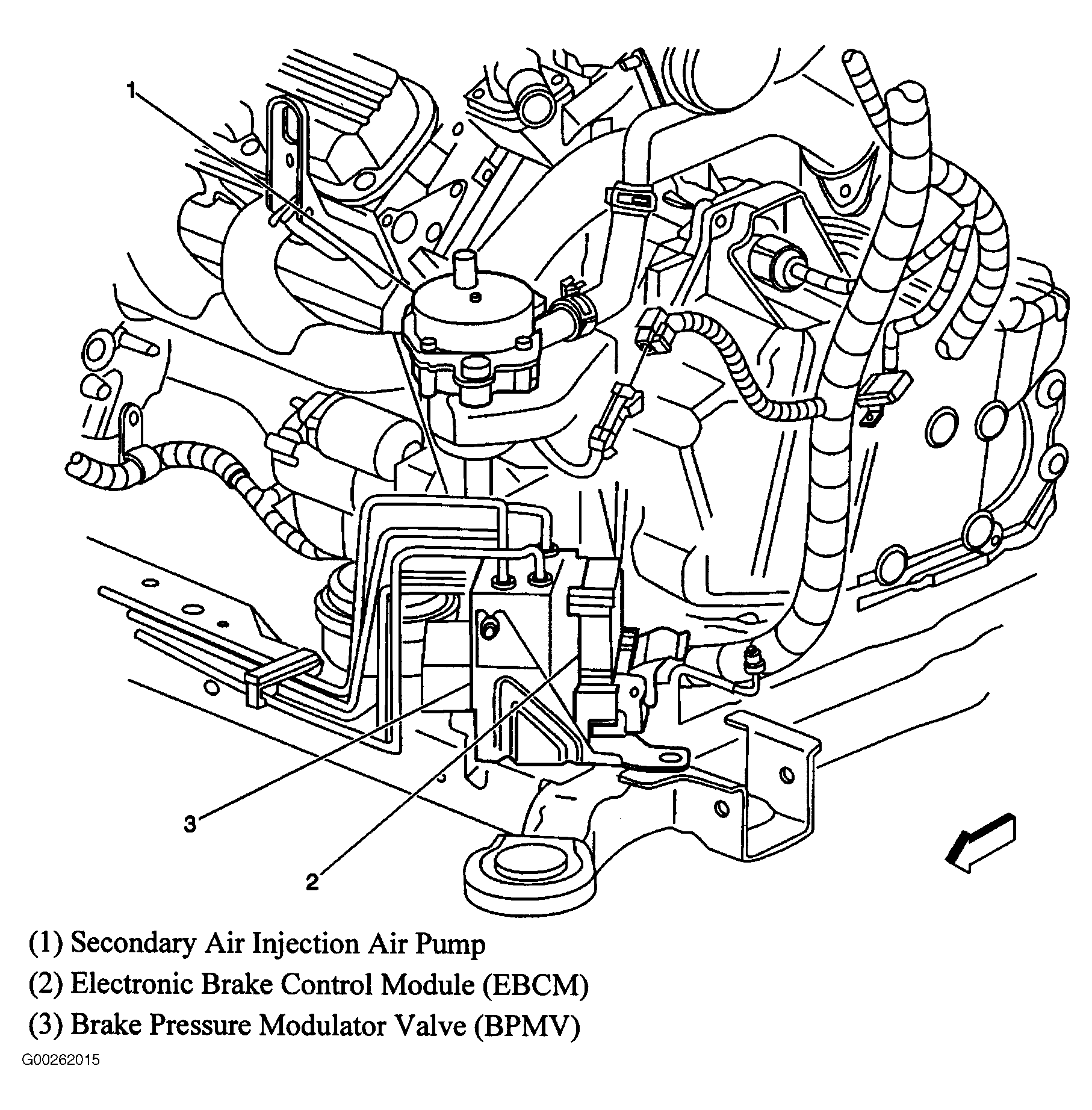

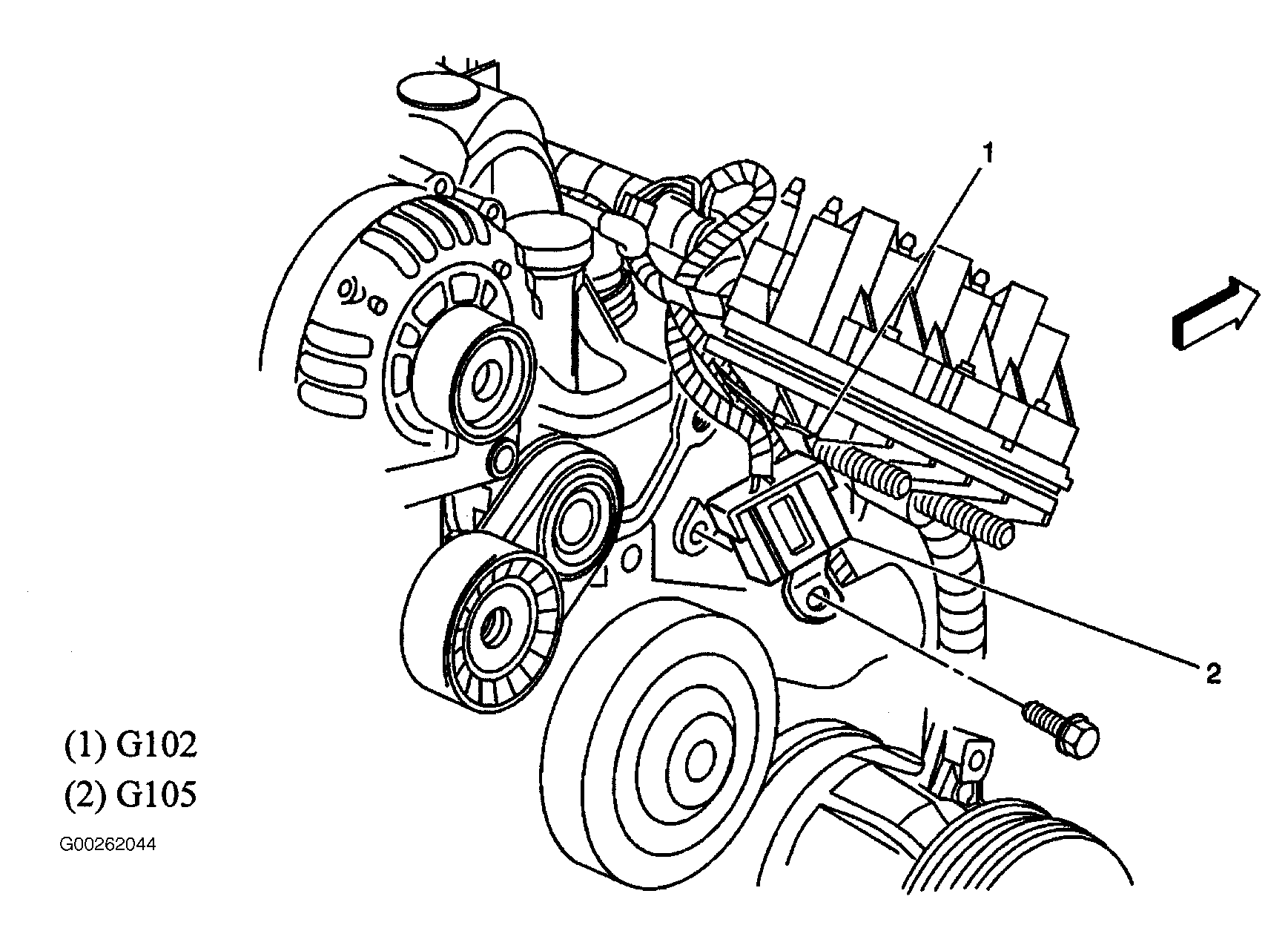

Fig 51: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 52: Engine, Below the Ignition Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 53: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

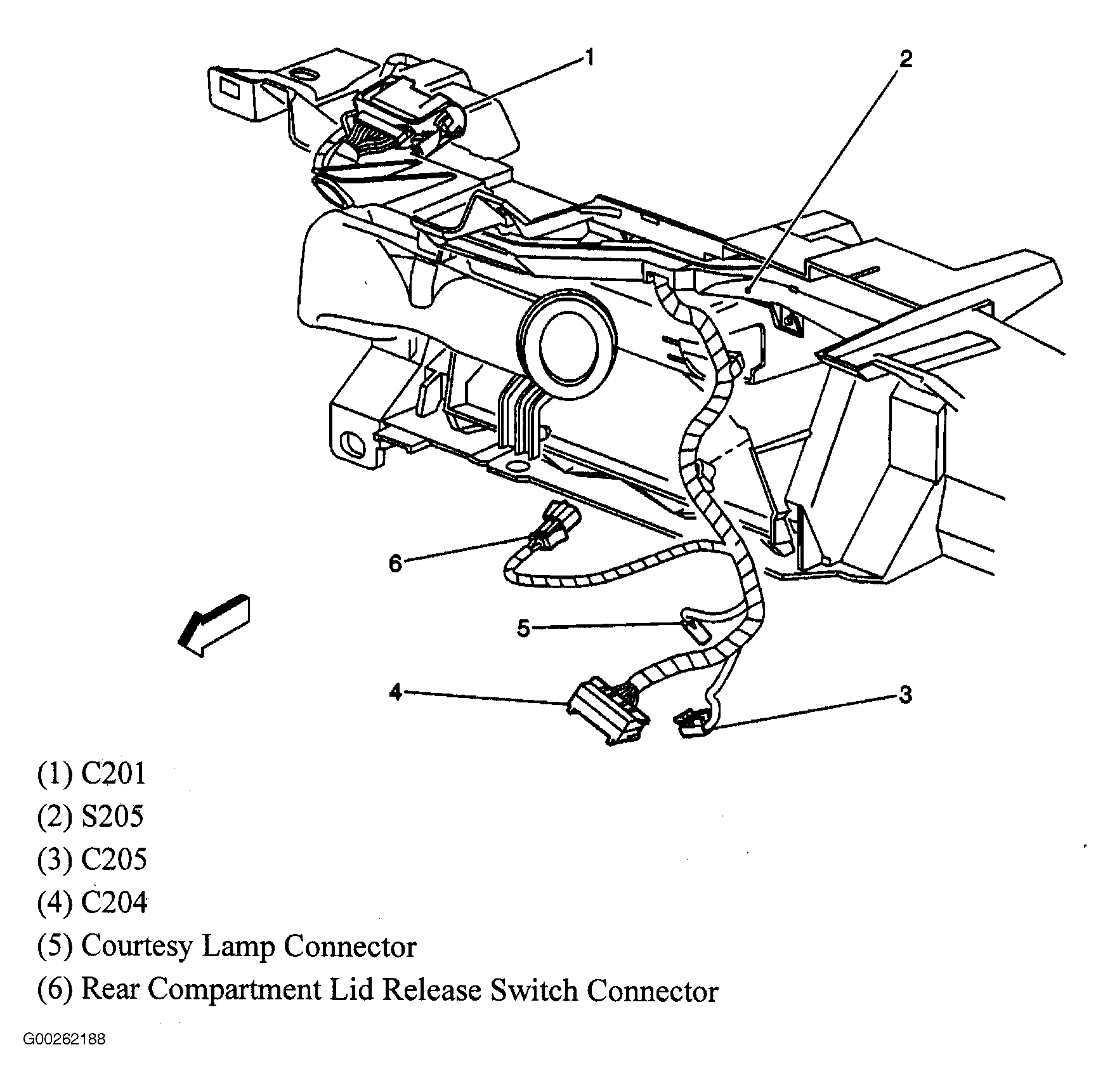

Fig 55: Lower Left Corner Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 56: Lower Right Corner Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 57: Under Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 58: Under Right Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 59: Under Left Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 60: Under Right Side Of Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Rear Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 62: Right Rear Pillar
Courtesy of GENERAL MOTORS CORP.

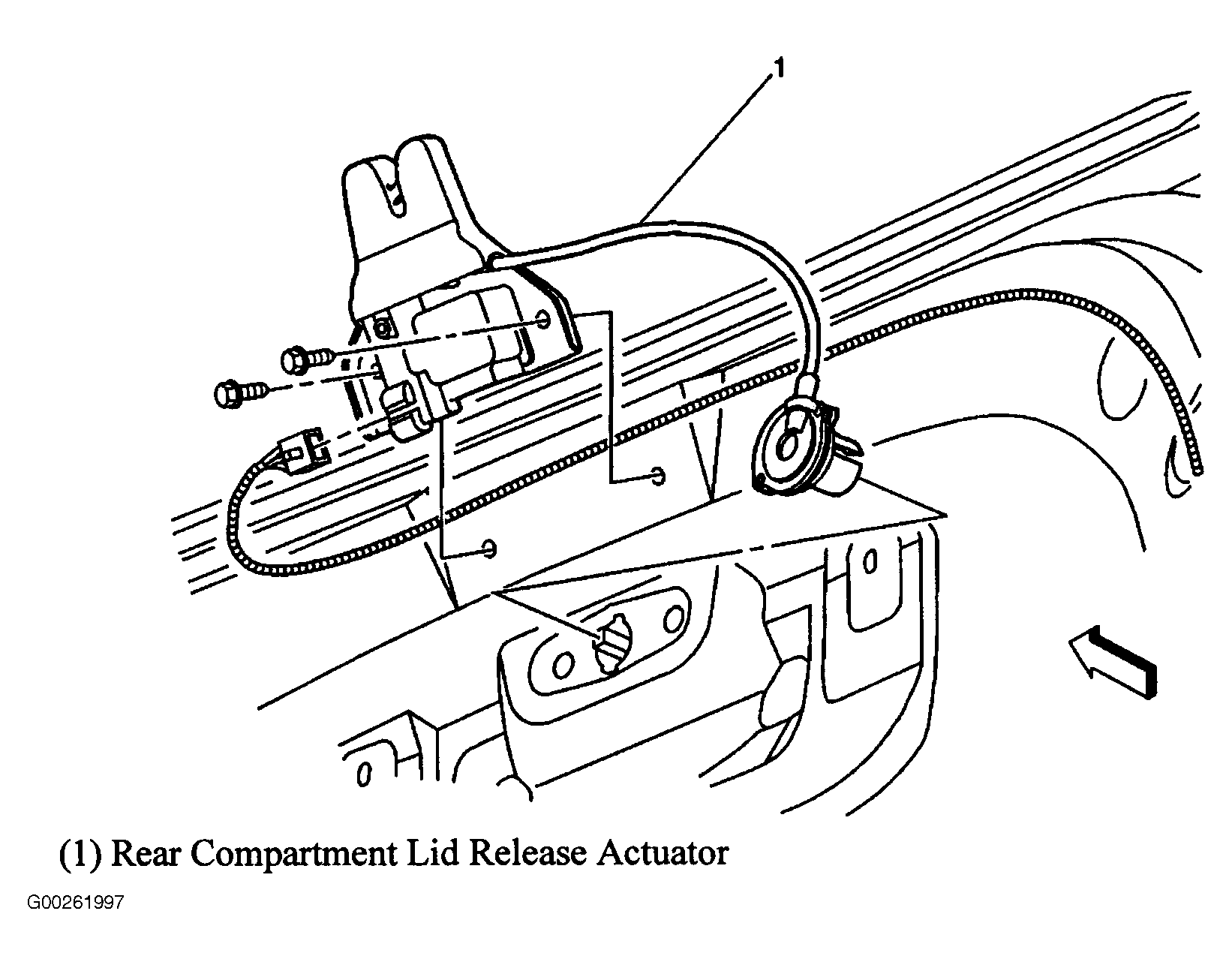

Fig 63: Rear Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

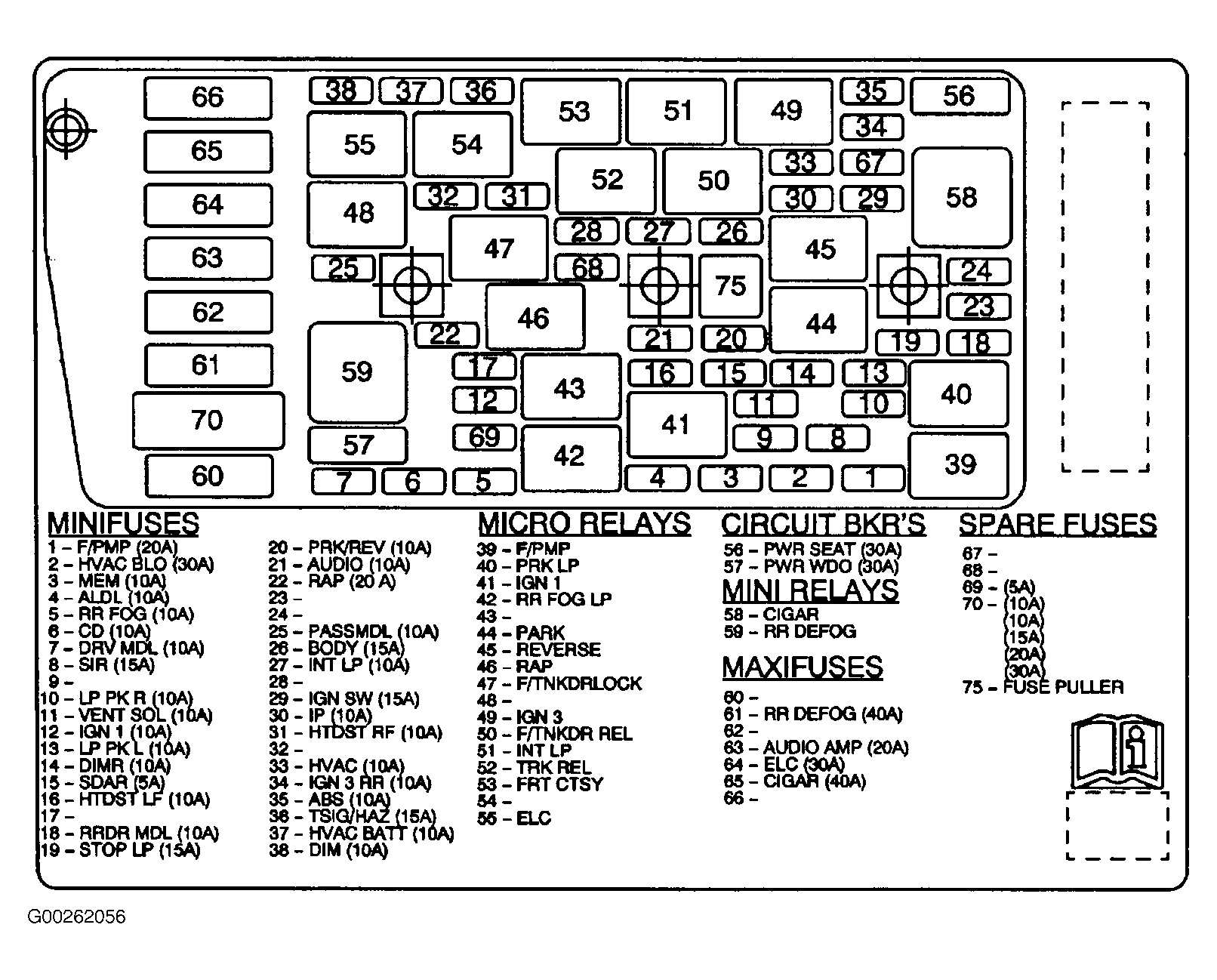

Fig 64: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

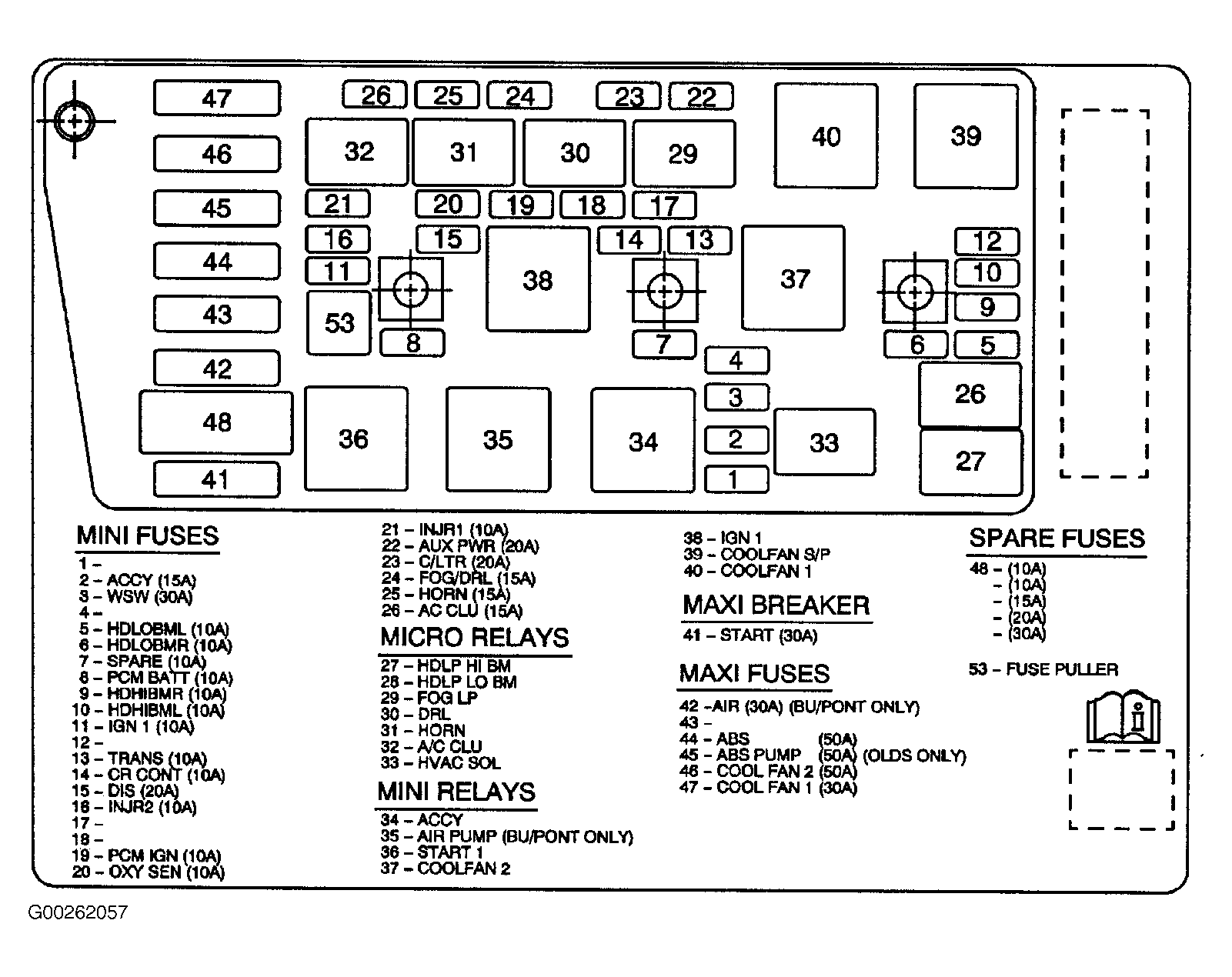

Fig 65: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

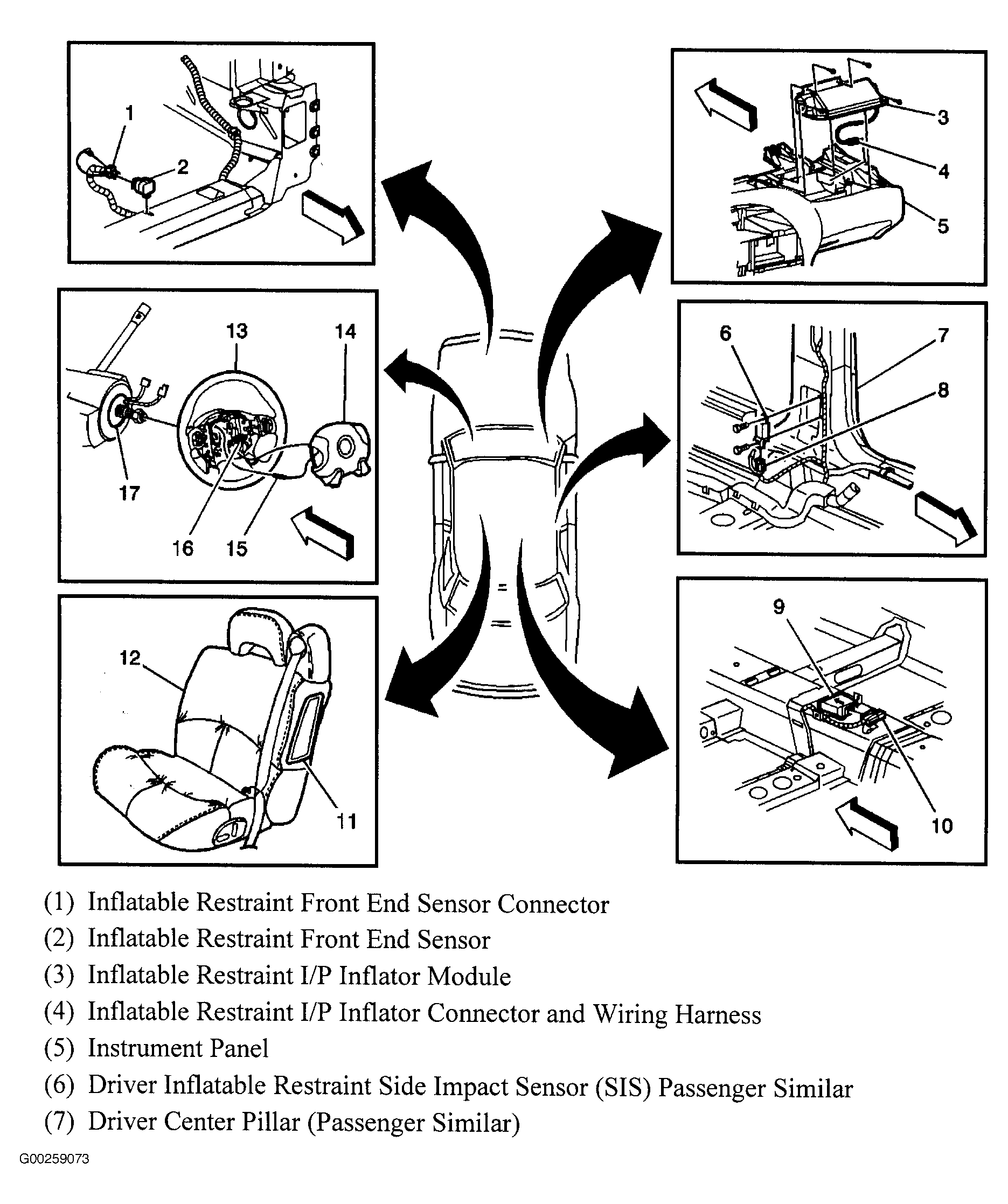

Fig 66: Inflatable Restraint System Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

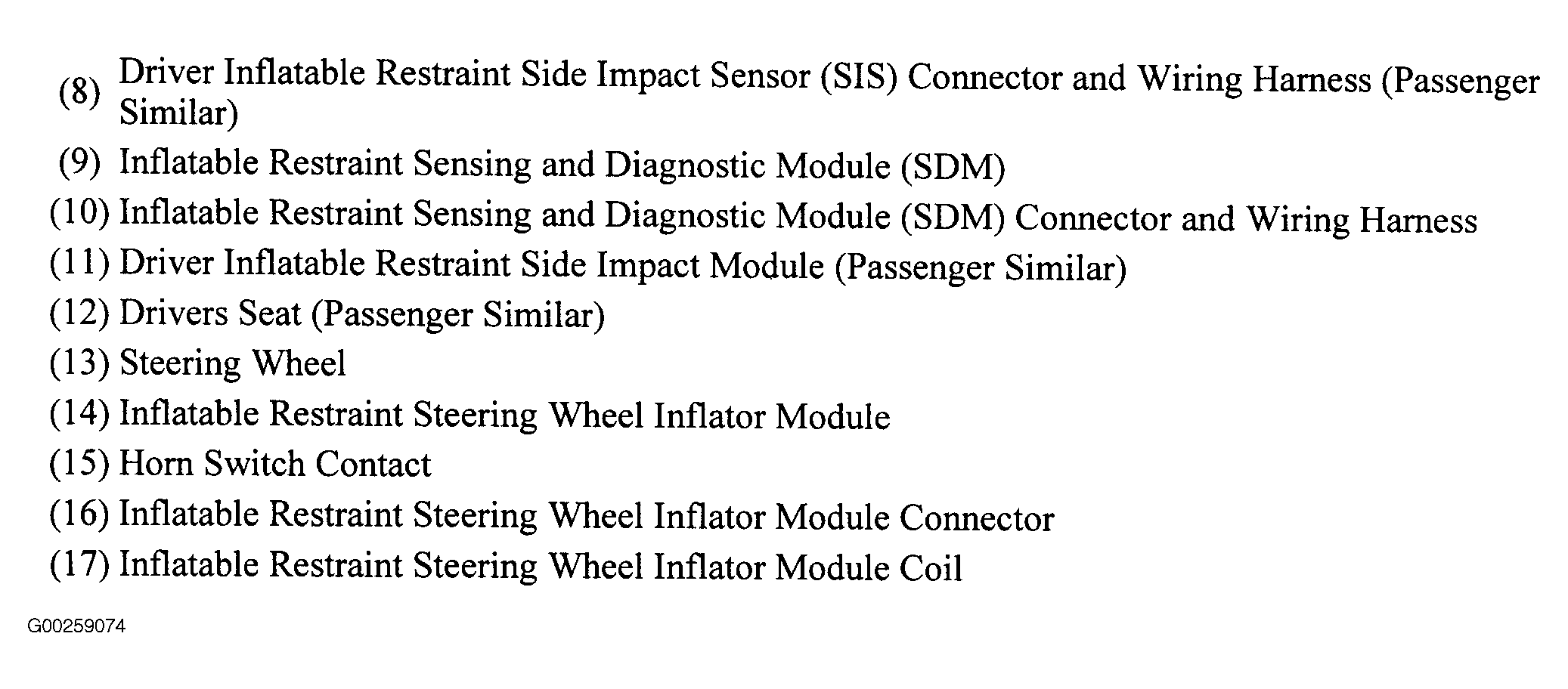

Fig 67: Inflatable Restraint System Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Left Side Of Rear Compartment & Roof
Courtesy of GENERAL MOTORS CORP.
Fig 69: Center Rear Of Headliner
Courtesy of GENERAL MOTORS CORP.

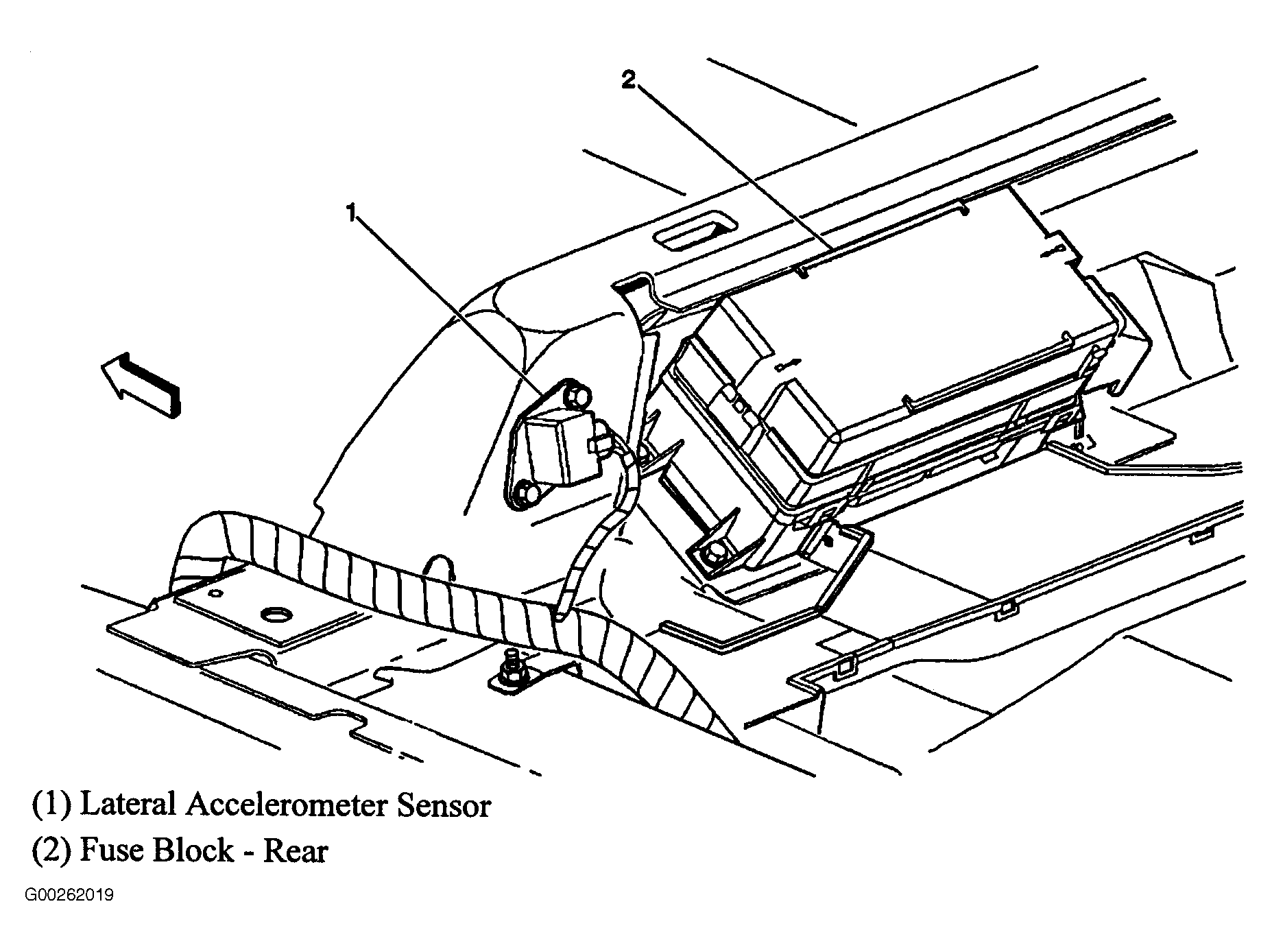

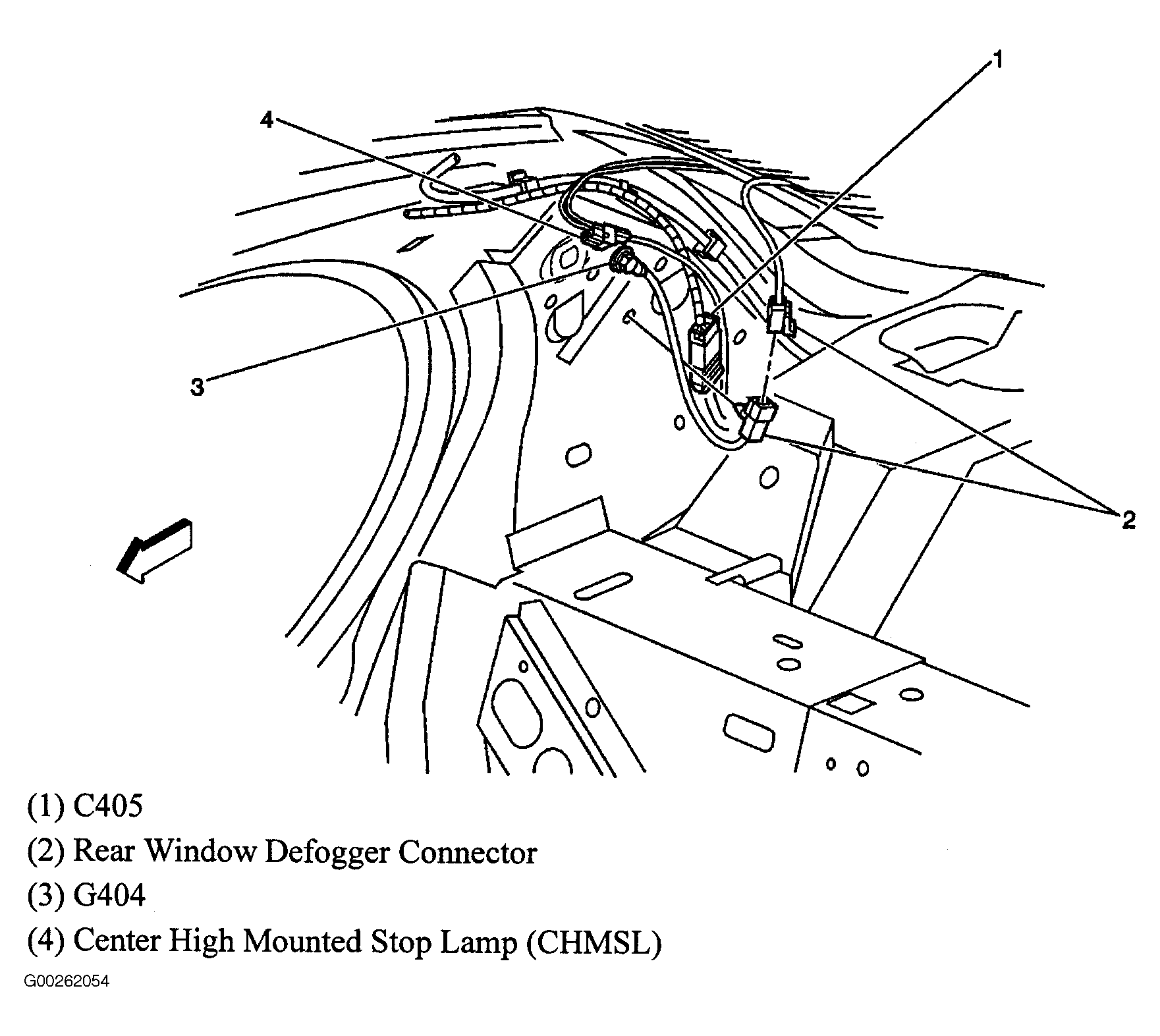

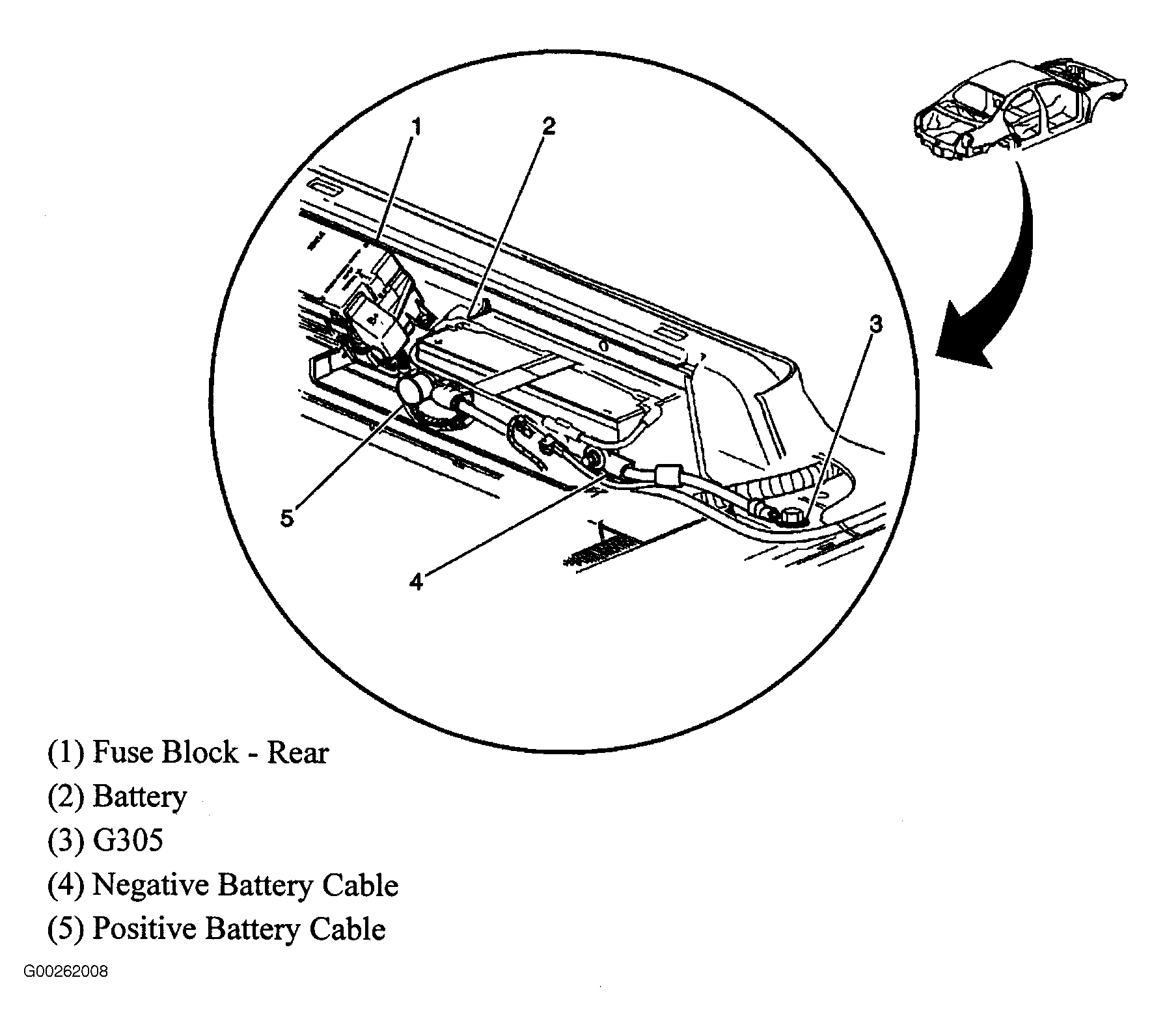

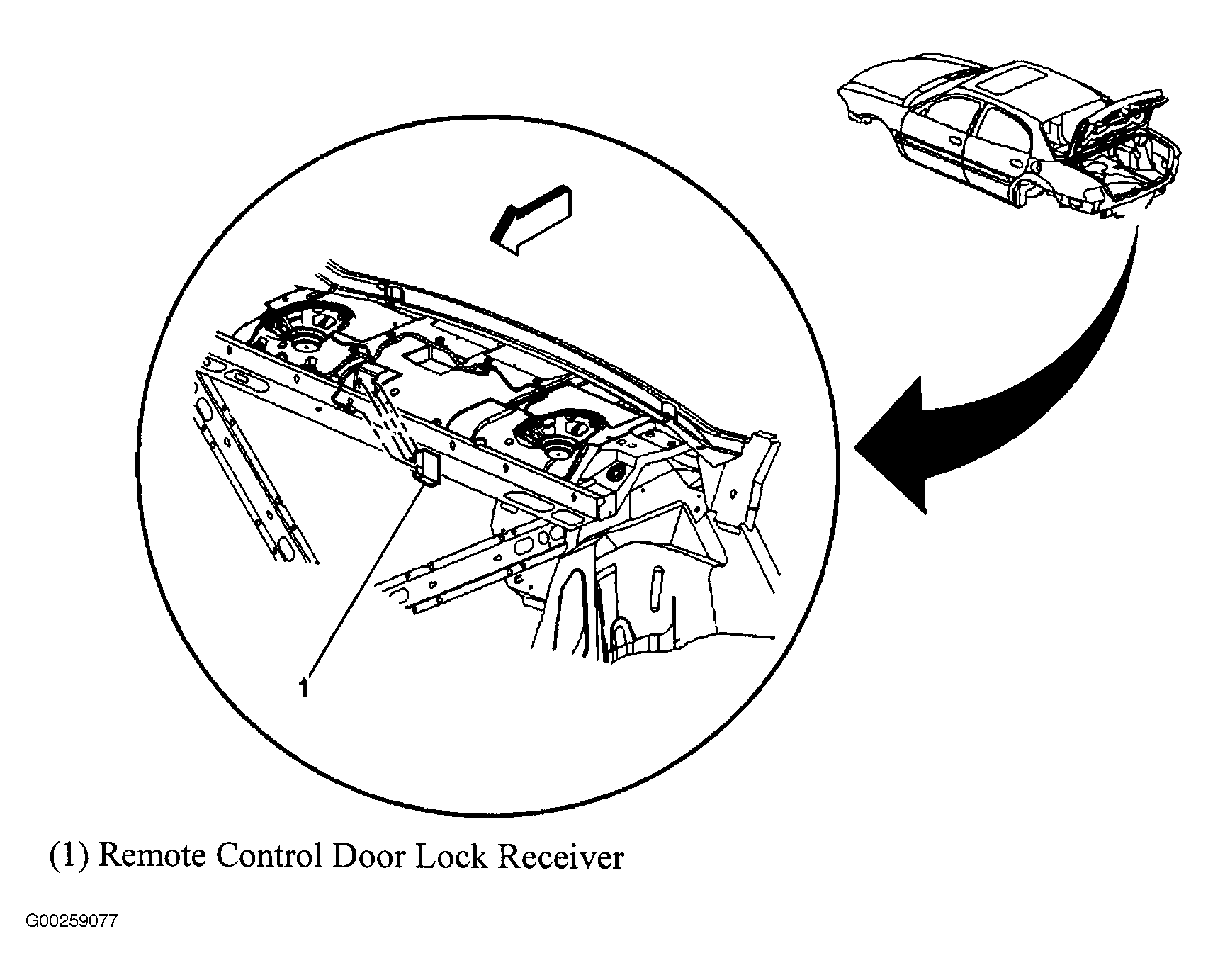

Fig 70: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 71: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Front Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 73: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 74: Lower Right End Of Dash
Courtesy of GENERAL MOTORS CORP.

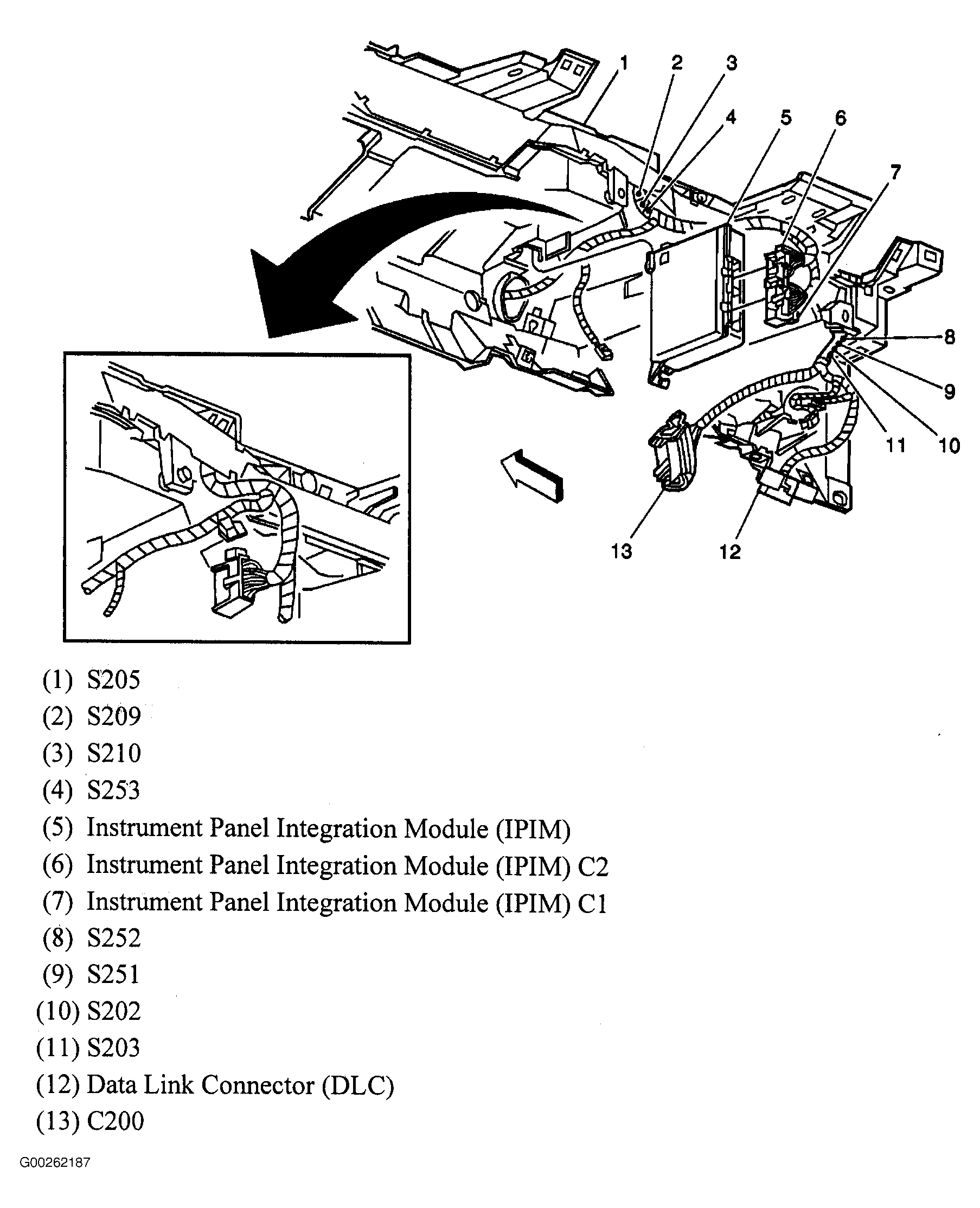

Fig 75: Left Side Rear View Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 76: Right Side Rear View Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 77: Left Side Front View Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 78: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

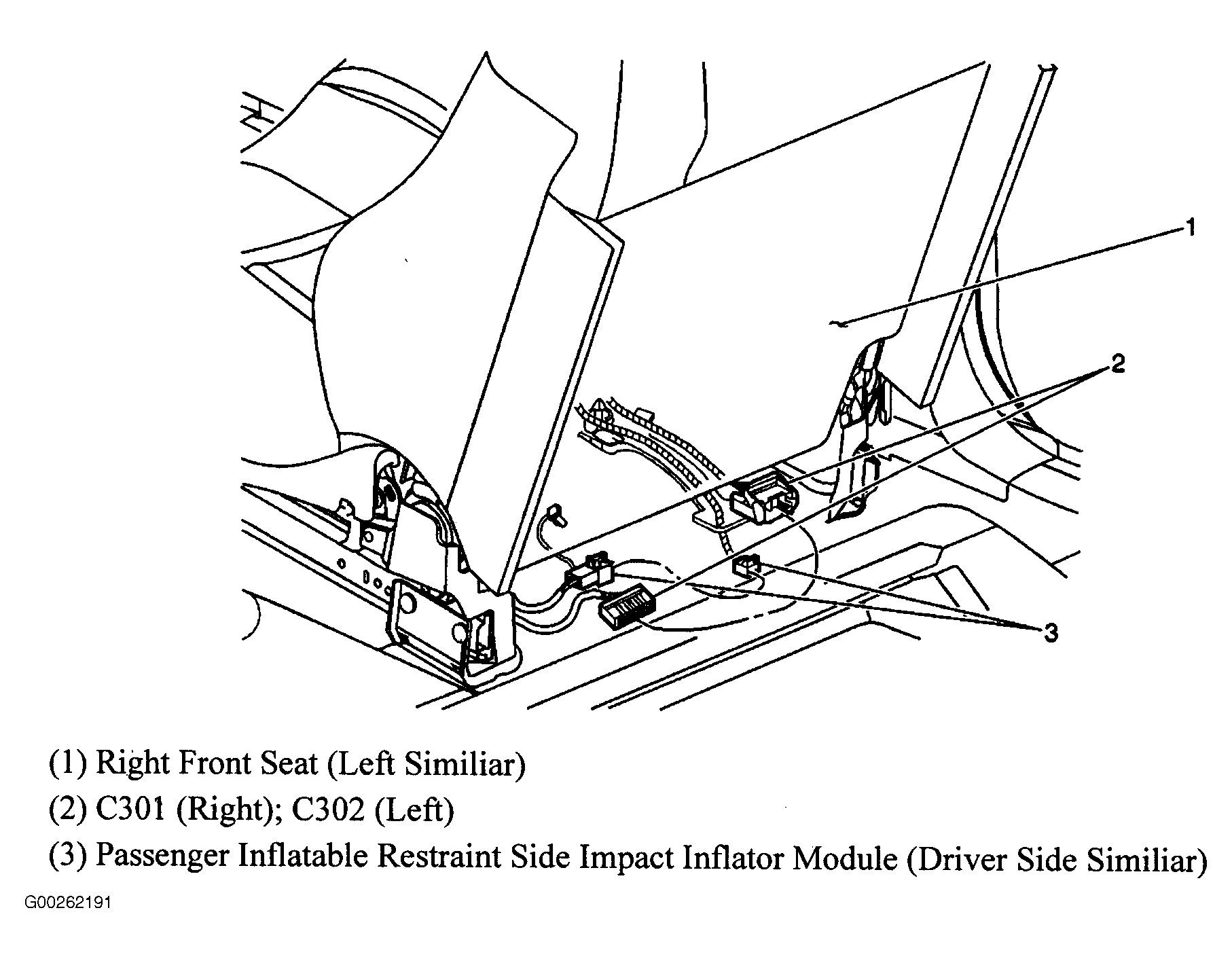

Fig 79: Right Front Seat
Courtesy of GENERAL MOTORS CORP.

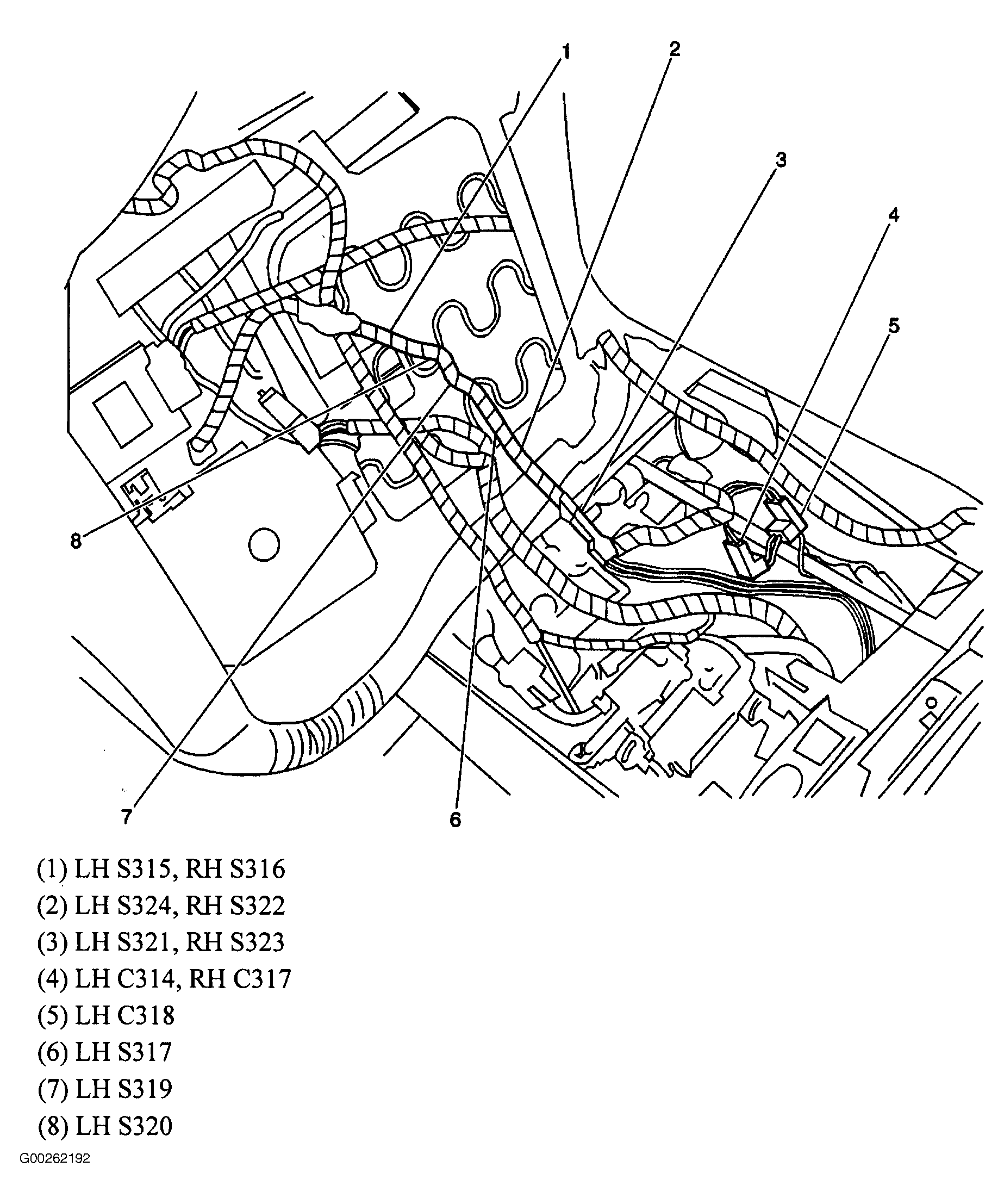

Fig 80: Front Seat Wiring
Courtesy of GENERAL MOTORS CORP.
Fig 81: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

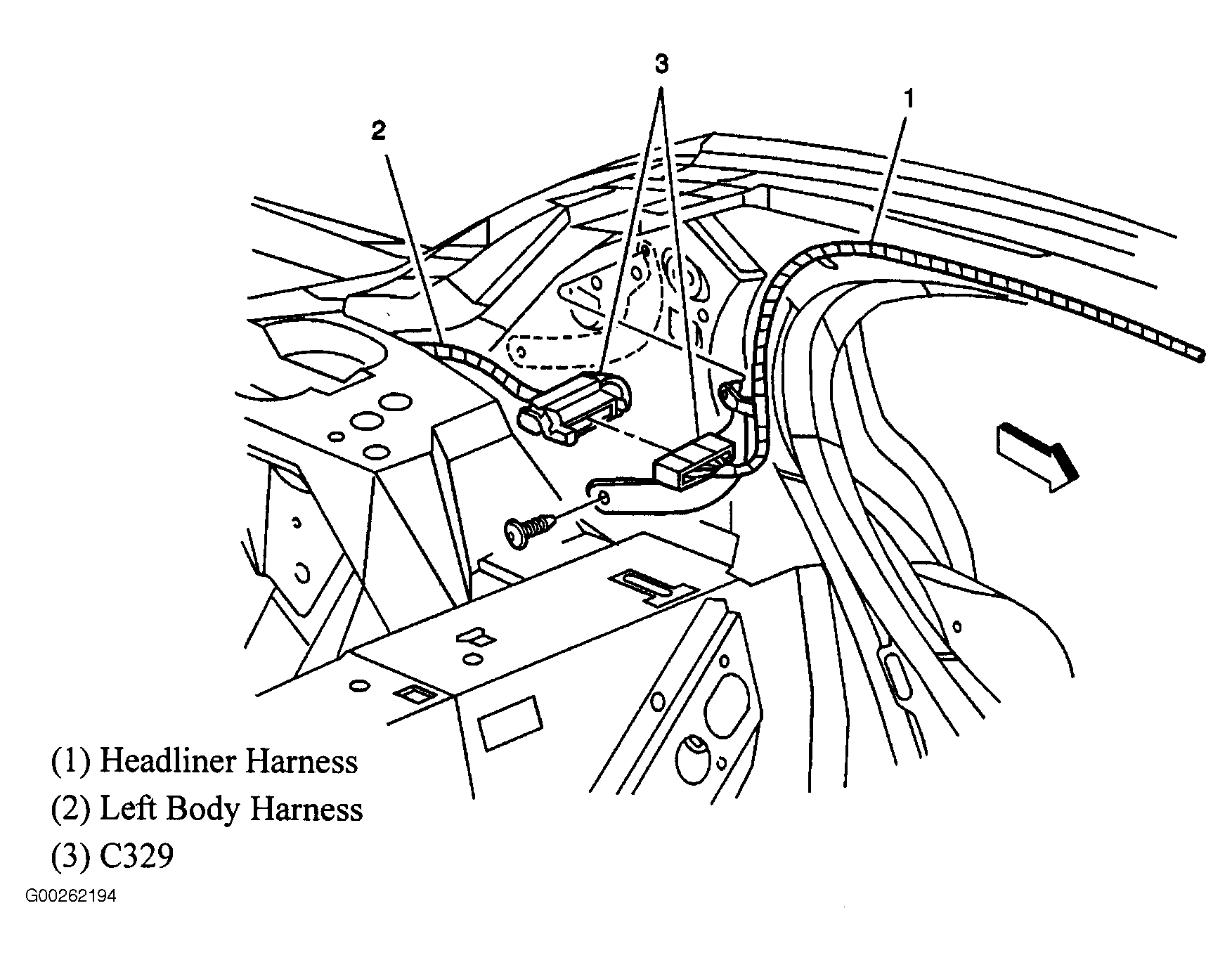

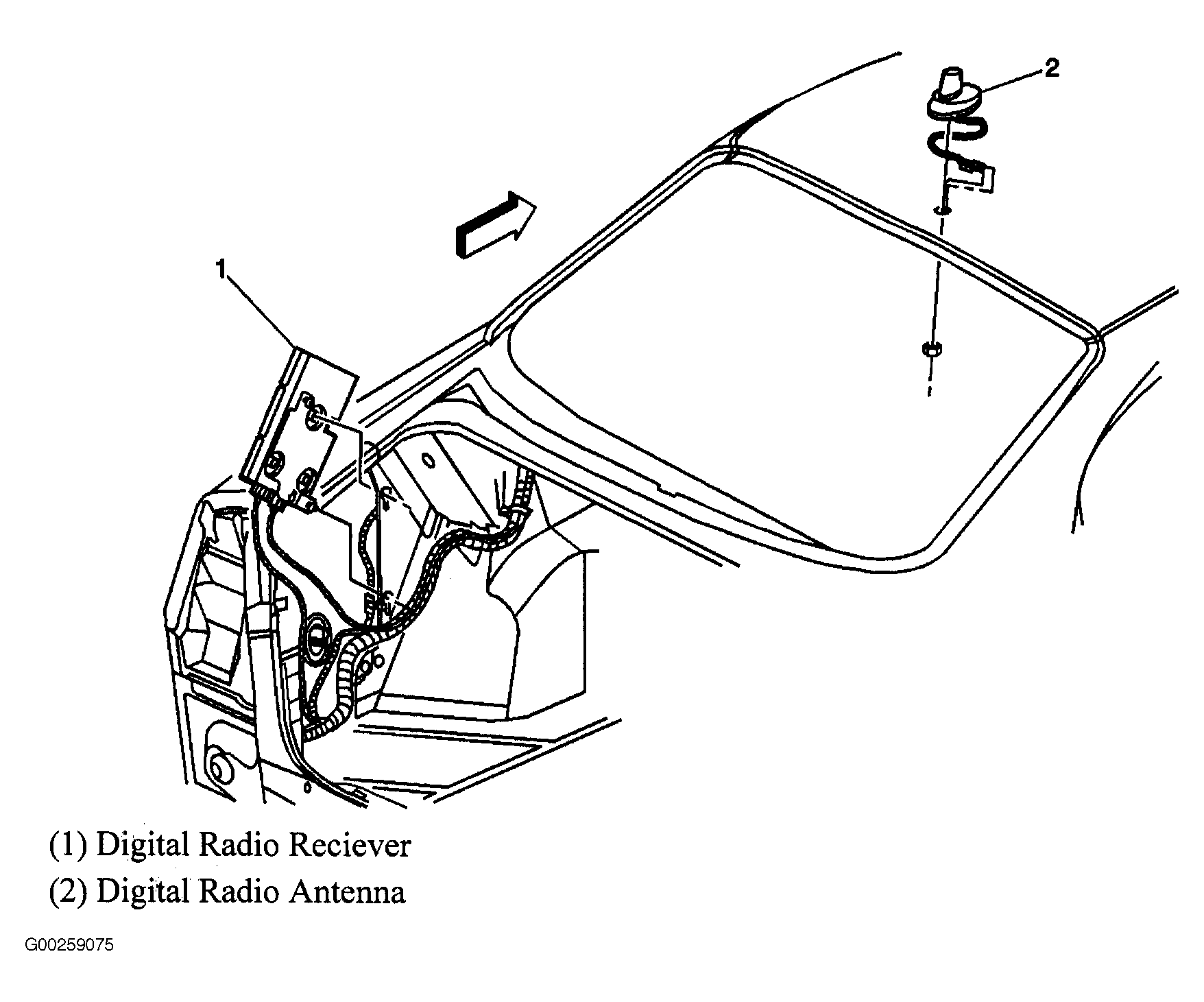

Fig 82: Near Left Rear Pillar
Courtesy of GENERAL MOTORS CORP.

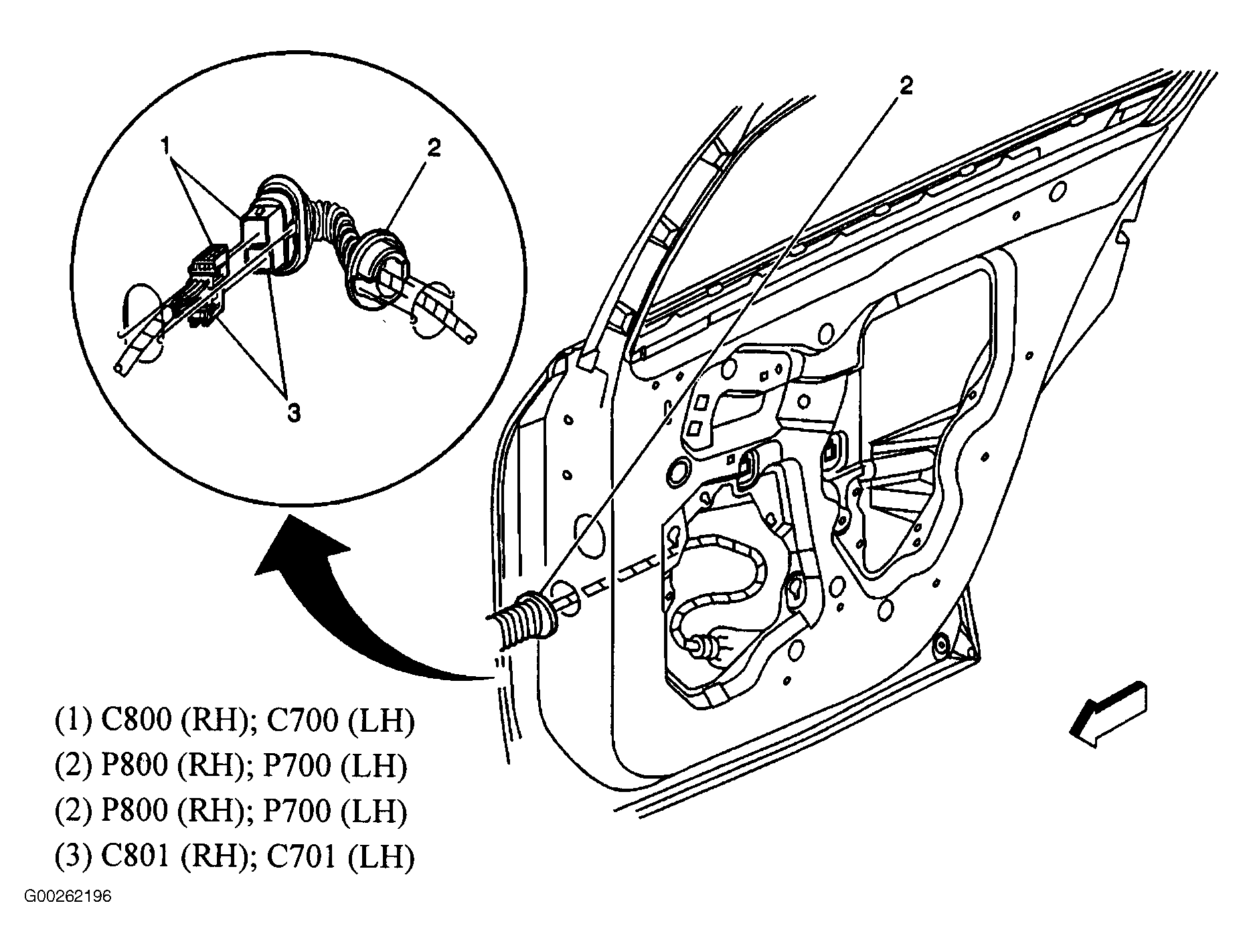

Fig 83: Rear Door Wiring
Courtesy of GENERAL MOTORS CORP.
Fig 84: Rear Door
Courtesy of GENERAL MOTORS CORP.

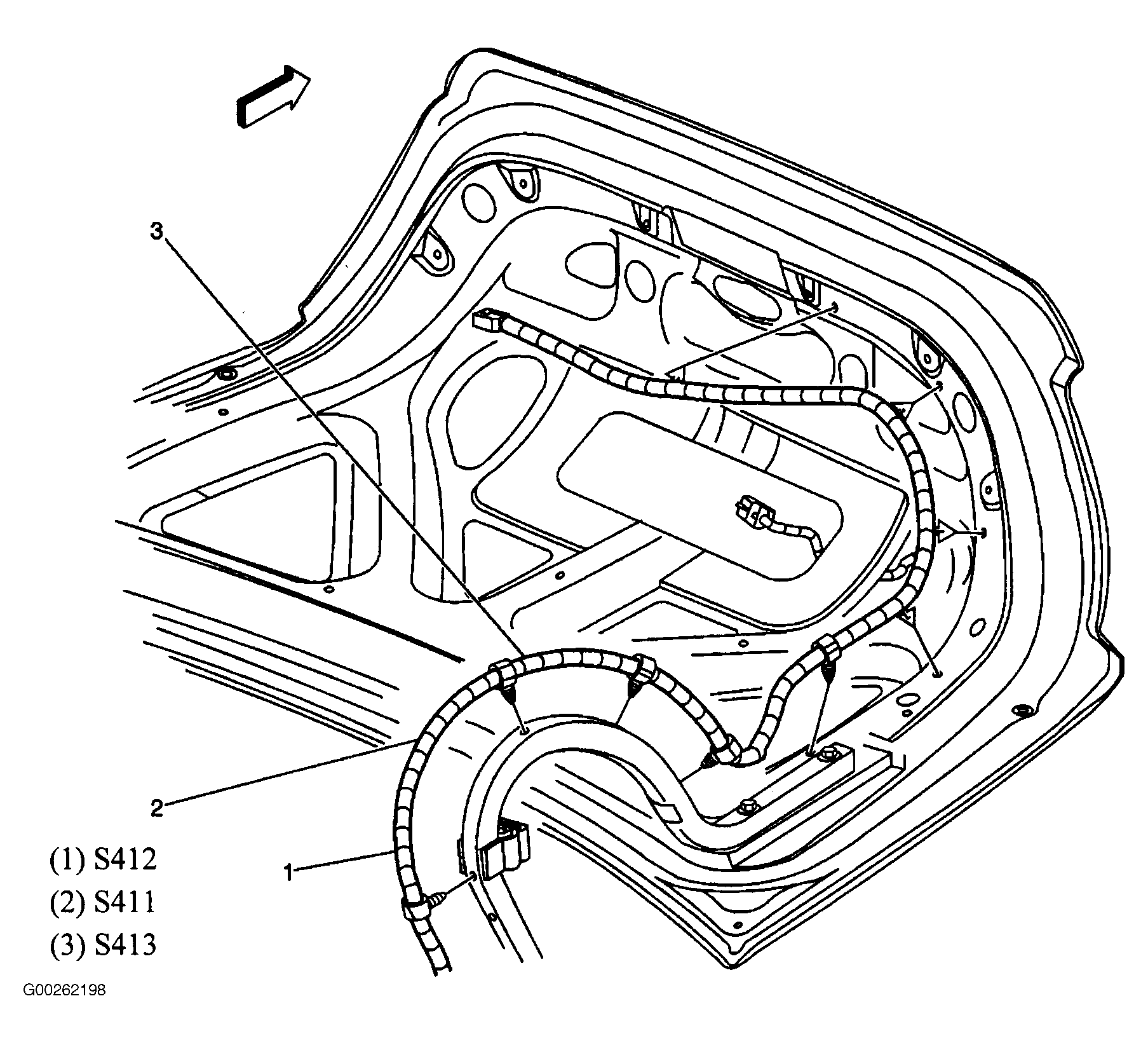

Fig 85: Rear Compartment Lid Wiring
Courtesy of GENERAL MOTORS CORP.
Fig 86: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

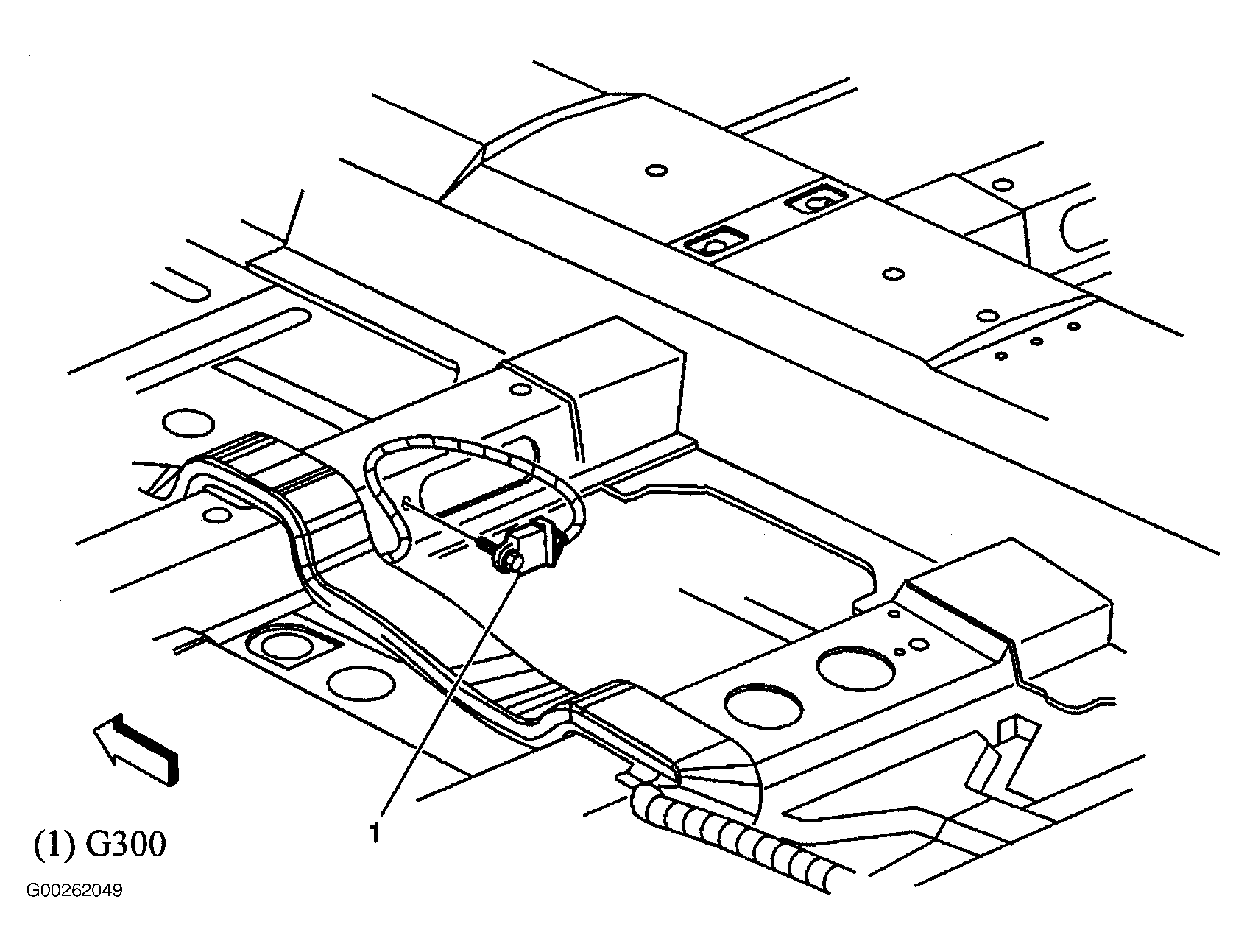

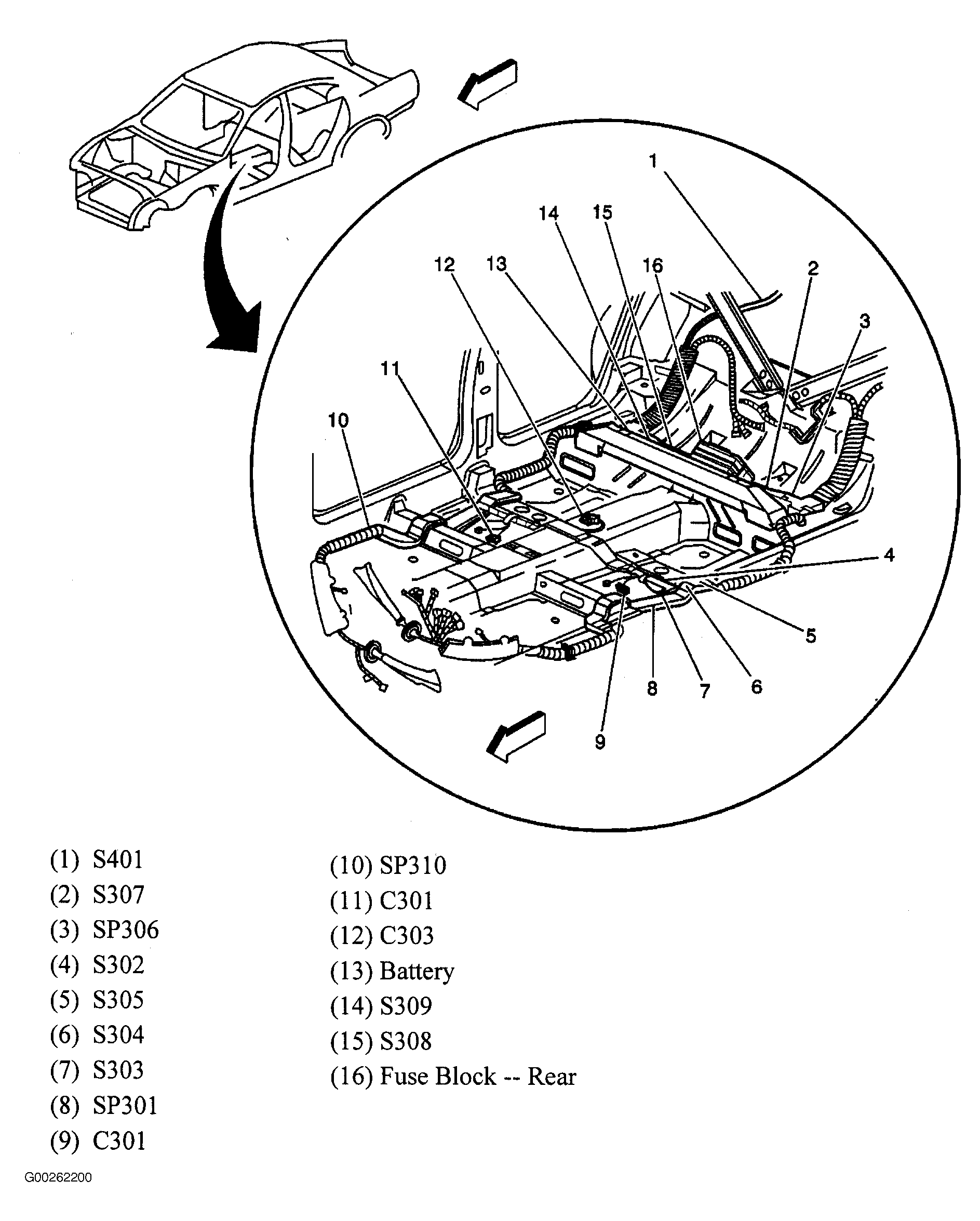

Fig 87: Wiring Harness (Under Carpet)
Courtesy of GENERAL MOTORS CORP.

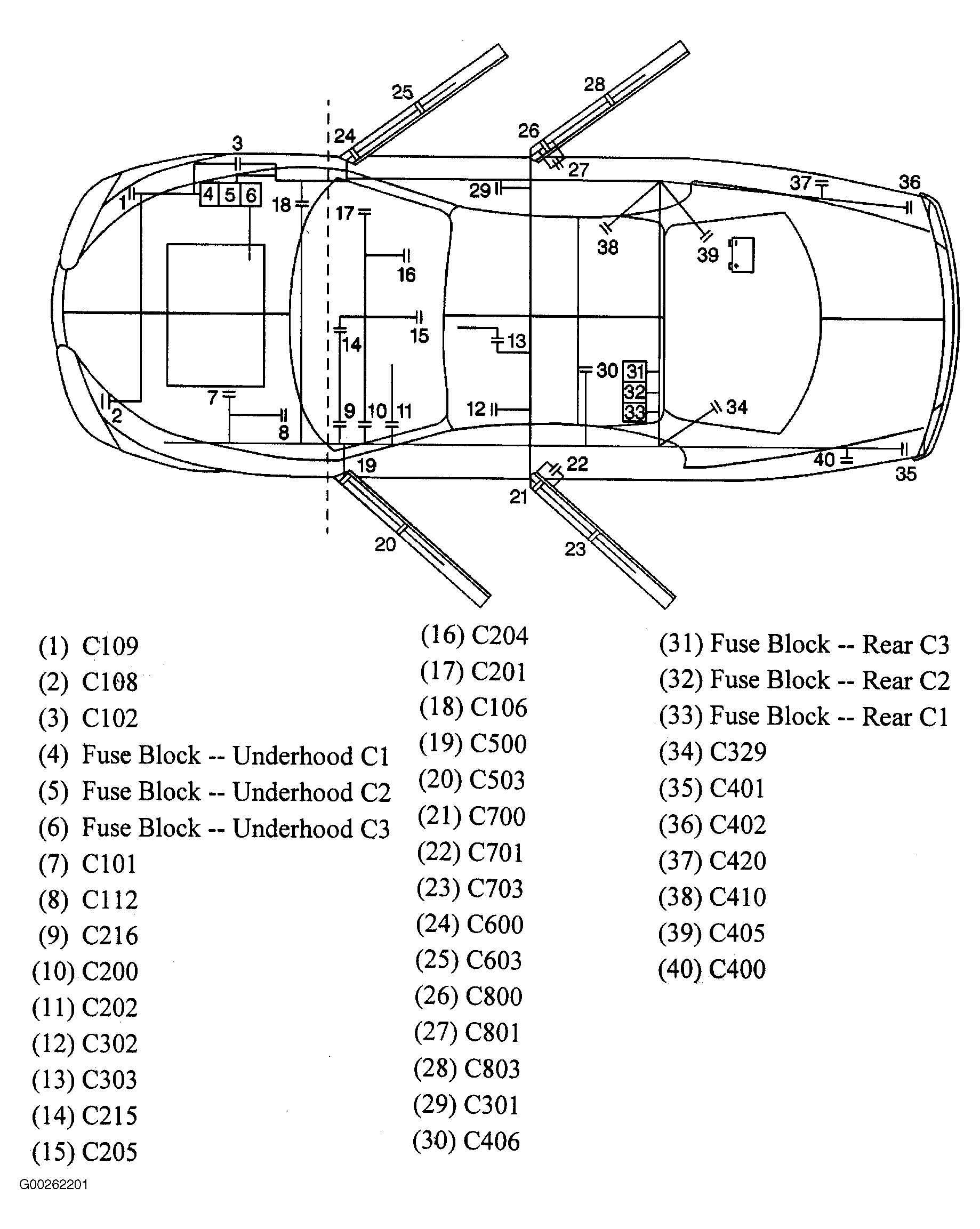

Fig 88: Inline Connectors Overview
Courtesy of GENERAL MOTORS CORP.
