Installation Procedure

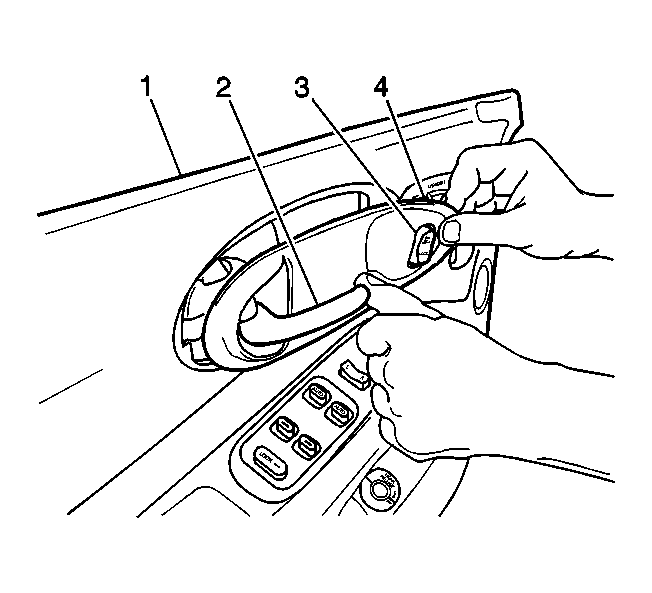

    Fig 1: View of Door Handle Bezel, Door Handle, Flat Bladed Tool, and Bezel
    GM455658Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors, if any, to the inside door handle bezel (4).
  2. Pull the door handle (2) about half way open.
  3. Slide the inside door handle (2) through the opening in the door handle bezel (4).
  4. Insert the tabs at the rear of the bezel behind the door trim panel.
  5. Snap the front of the door handle bezel (4) into place.
