Removal Procedure

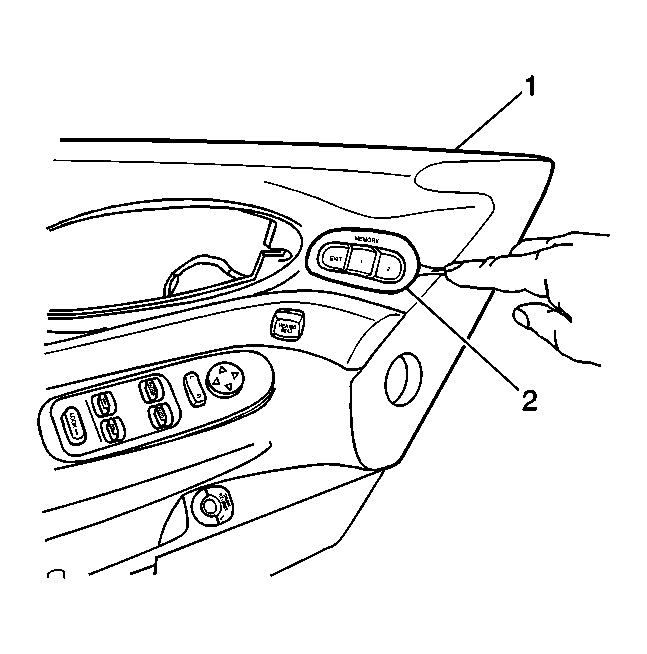

    Fig 1: View of Memory Seat Switch & Door Trim Panel with Small Flat Bladed Tool Disconnecting Electrical Connector
    GM710320Courtesy of GENERAL MOTORS CORP.
  1. Use a small flat bladed tool in order to gently pry the memory seat switch (2) out of the door trim panel (1).
  2. Disconnect the electrical connector.
