Automatic Transmission Shift Lock Control Schematics

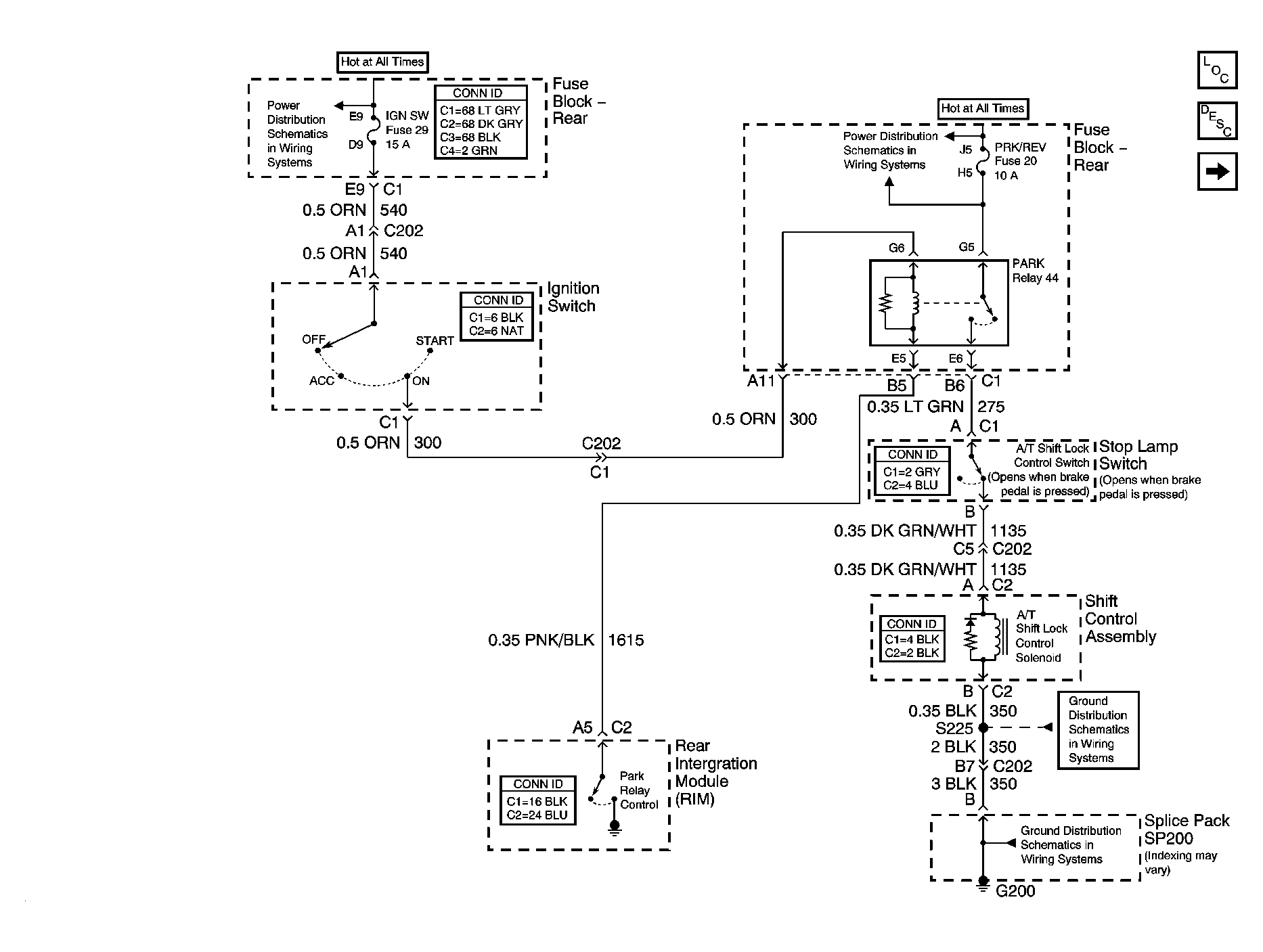

Fig 1: A/T Shift Lock Control Solenoid: Class 2 Schematic
GM886623Courtesy of GENERAL MOTORS CORP.

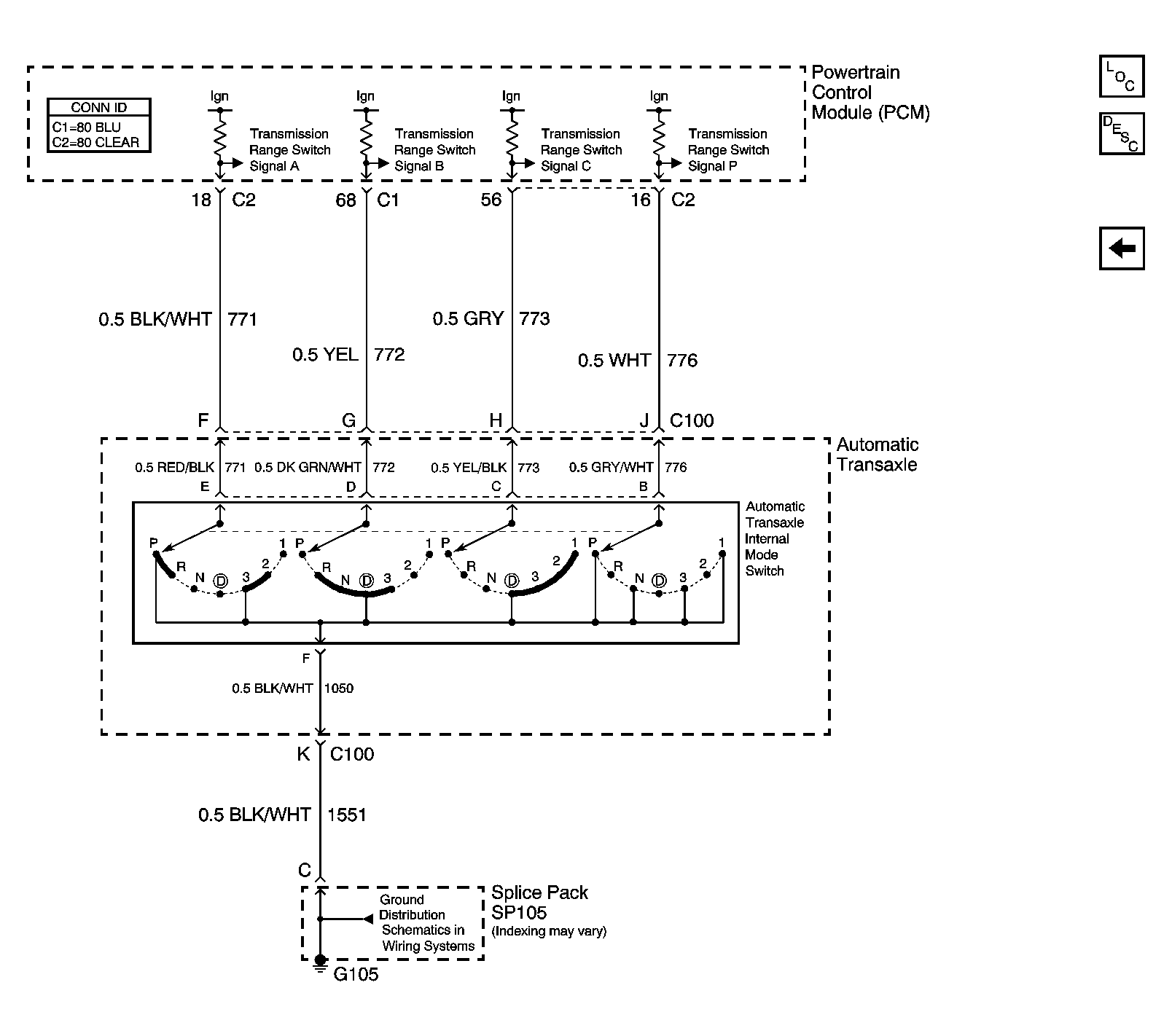

Fig 2: Internal Mode Switch (IMS) Inputs Schematic
GM787401Courtesy of GENERAL MOTORS CORP.
