Installation Procedure

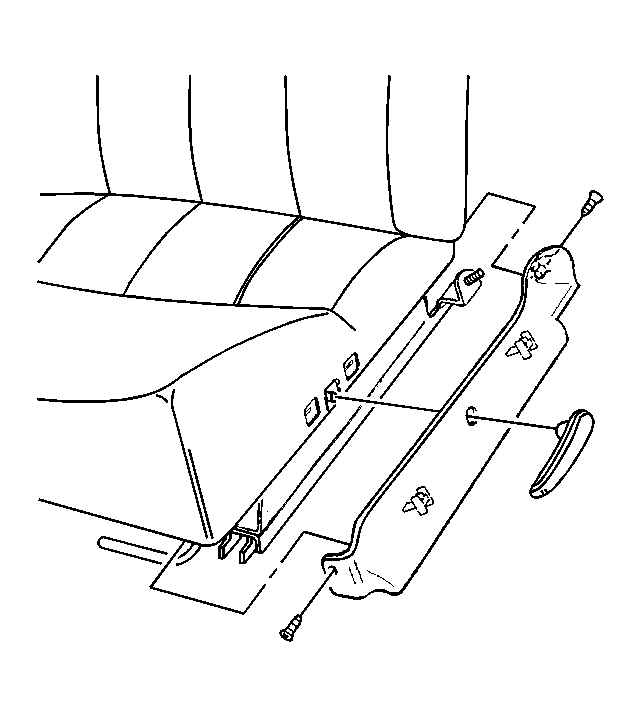

    Fig 1: Front Seat Trim Panel
    GM310416Courtesy of GENERAL MOTORS CORP.
  1. Install the finish panel to the seat.
  2. Connect the power seat switch electrical connector, if equipped.
  3. Use new clips in order to snap the finish panel to the seat cushion frame.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the finish panel screws.

    Tighten:  Tighten the screws to 3 N.m (27 lb in).

  5. Install the retainer to the base of the recliner handle.
  6. Install the recliner handle.
