Installation Procedure
Courtesy of GENERAL MOTORS CORP.

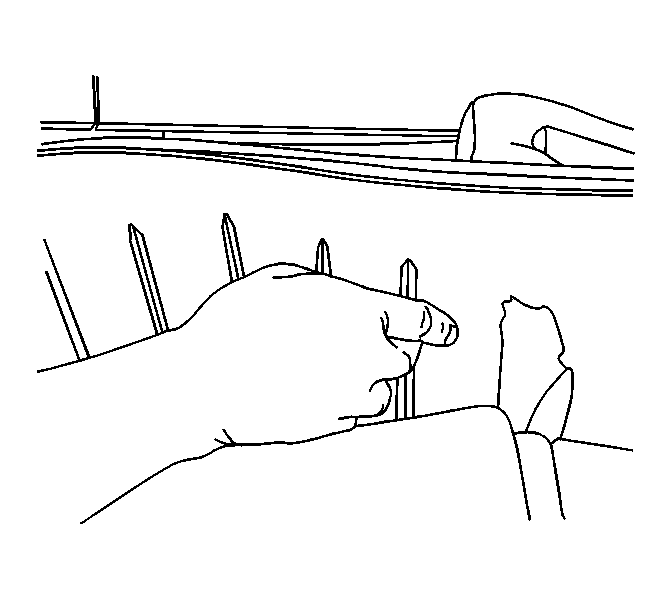

- Position the front seat back cover to the pad.
Courtesy of GENERAL MOTORS CORP.
- Pull the seat back cover over the pad and align the hook and the loop retainers.
Courtesy of GENERAL MOTORS CORP.
- Use firm hand pressure in order to fasten the hook and the loop retainers, securing the front seat back cover to the pad.
- Install the front seat head restraint retainers. Refer to Head Restraint Retainer Replacement - Front Seat .
Courtesy of GENERAL MOTORS CORP.
- Install the seat back cover to the retainer at the side impact airbag, by pressing in and pulling down on the seat back cover.
Courtesy of GENERAL MOTORS CORP.
- Fasten the J-hook retainer at the bottom of the seat back cover.
- Install the electrical harness for the seat back heater through the seat cushion.
- Install the front seat back cover end flaps, 3 flaps on each side.
- Install the rear screw from the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
- Install the front seat head restraint. Refer to Head Restraint Replacement - Front Seat .
- Connect the electrical connector for the heated seat back, if equipped.
- Enable the SIR system if the seat is equipped with an air bag. Refer to SIR Disabling and Enabling Zone 7
in SIR.
