Installation Procedure

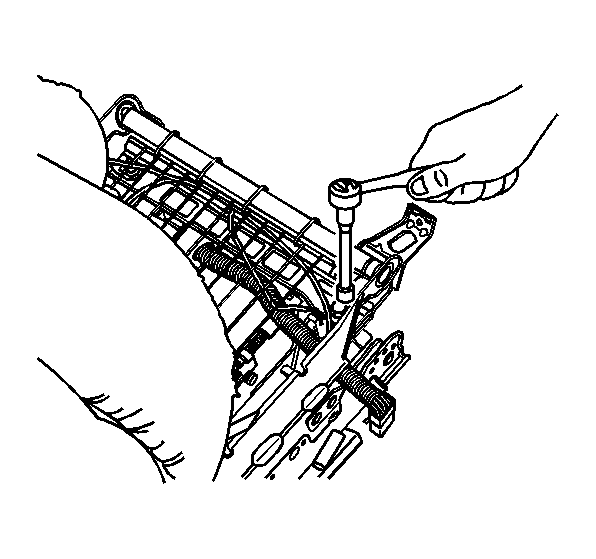

    Fig 1: Tightening Seat Adjuster Bolt
    GM800752Courtesy of GENERAL MOTORS CORP.
  1. Position the adjuster on the seat frame.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the adjuster bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  3. Return the seat pad and the trim to the installed position.
  4. Install the trim cover J-hooks.
    5. Fig 2: Adjuster Bracket Electrical Harness Clip & Harness Retainer
    GM800745Courtesy of GENERAL MOTORS CORP.
  5. Install the electrical harness clip and the retainer on the adjuster bracket.
    6. Fig 3: Power Seat Motor Electrical Harness
    GM800742Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical harness to the seat motor harness.
  7. Install the seat belt buckle. Refer to Seat Belt Buckle Replacement - Left Front in Seat Belts.
    8. Fig 4: Seat Belt Bracket & Bolt
    GM802619Courtesy of GENERAL MOTORS CORP.
  8. Install the seat belt bracket bolt (1).

    Tighten:  Tighten the bolt to 42 N.m (31 lb ft).

  9. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
    10. IMPORTANT: Inspect the drive cables. Make sure they are straight between the motors and the drive screws.
  10. Install the front seat. Refer to Seat Replacement - Front Bucket .
