Installation Procedure

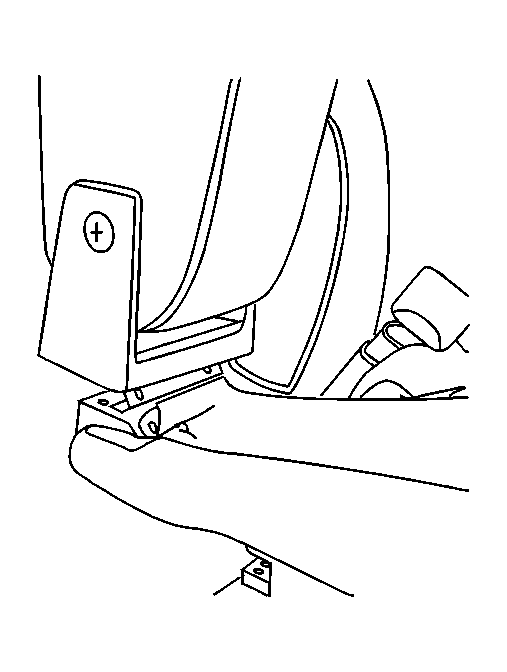

    Fig 1: Armrest & Seat Cushion Frame
    GM526897Courtesy of GENERAL MOTORS CORP.
  1. Position the armrest base on the seat cushion frame.

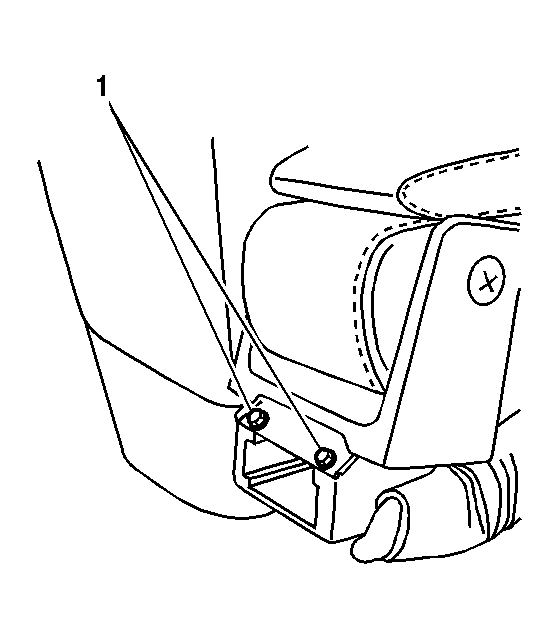

    2. Fig 2: Installing Front Seat Armrest Base Rear Bolts
    GM787092Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install rear bolts (1) the front seat armrest base.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

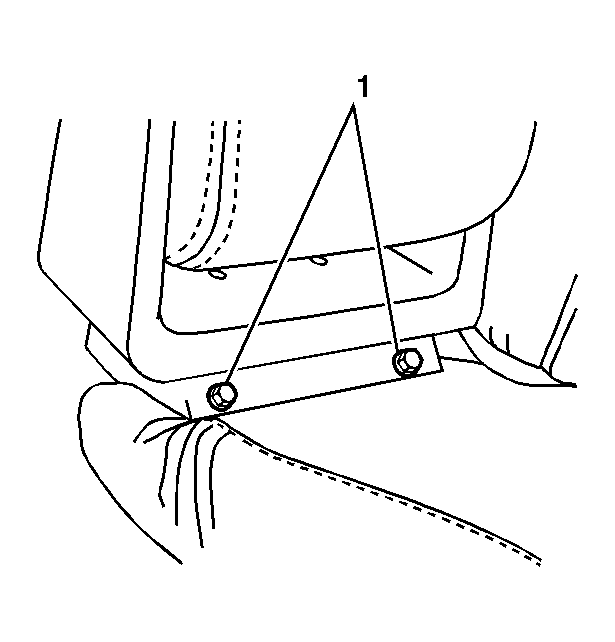

    3. Fig 3: Installing Front Seat Armrest Base Front Bolts
    GM787093Courtesy of GENERAL MOTORS CORP.
  3. Install the front bolts (1) to the armrest base.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

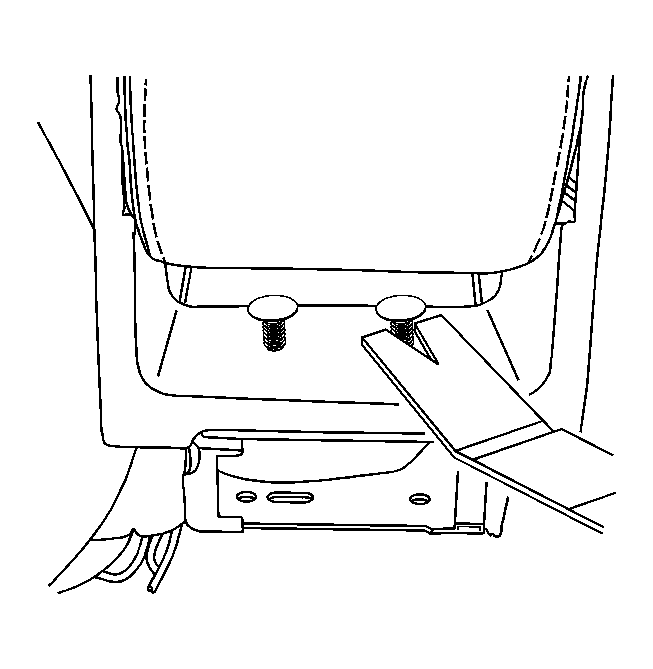

    4. Fig 4: Push-In Retainers, Armrest Bracket Cover & J 38778
    GM925239Courtesy of GENERAL MOTORS CORP.
  4. Install the push-in retainers to the armrest bracket cover.
  5. Center the pivot bolts in the bracket cover opening.
    6. IMPORTANT: The caps will NOT tighten but will continue to turn freely, even after the caps are secure.
  6. Using a large coin, screw in the pivot bolt caps onto the cover.
  7. Press in on the caps to seat them onto the pivot bolt heads.

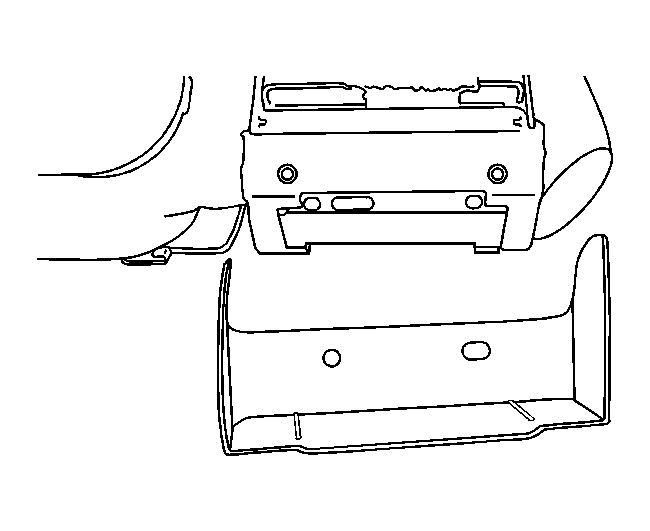

    8. Fig 5: Front Seat Armrest Base Cover & Armrest
    GM925231Courtesy of GENERAL MOTORS CORP.
  8. Position the cover on the armrest base.
  9. Install the push-in retainers.
  10. Inspect the armrest for proper operation.
