Removal Procedure

  1. Lower the front door window to the half way position to gain access to the front door window bolts.
  2. Remove the front door water deflector. Refer to Window Adjustment - Front Door .
  3. Remove the front door inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .

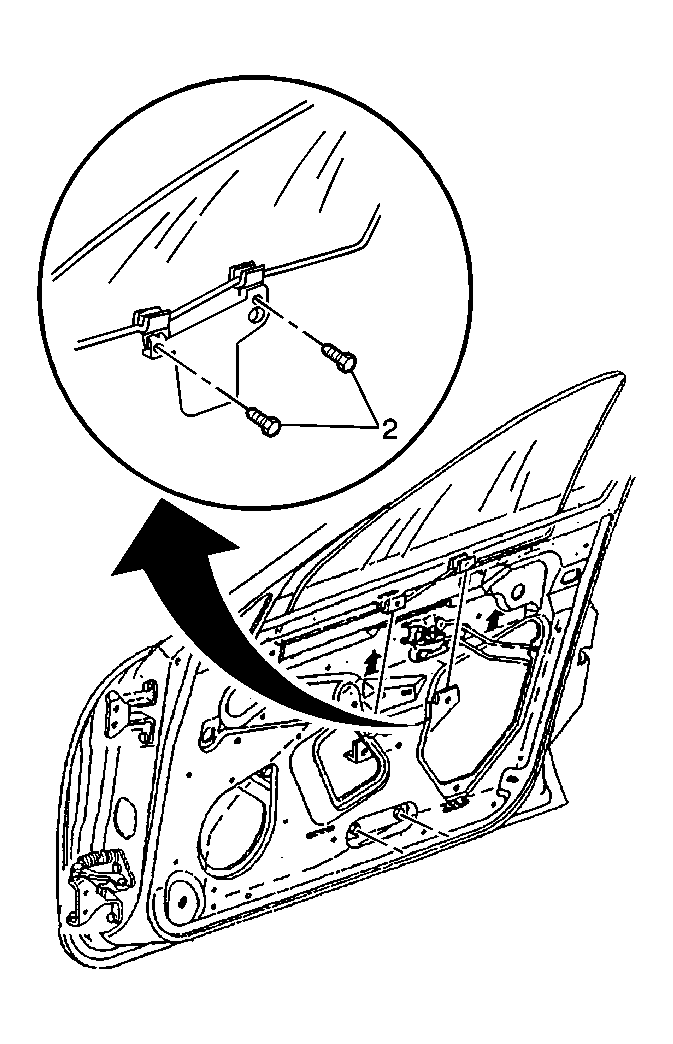

    4. Fig 1: Front Door Window Bolts
    GM315825Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door window bolts (2).
    5. Fig 2: Front Door Window Removed
    GM315823Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door window from the front door.
