Removal Procedure

  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the front door window. Refer to Window Replacement - Front Door .
  3. Remove the arm rest bracket. Refer to Armrest Replacement .

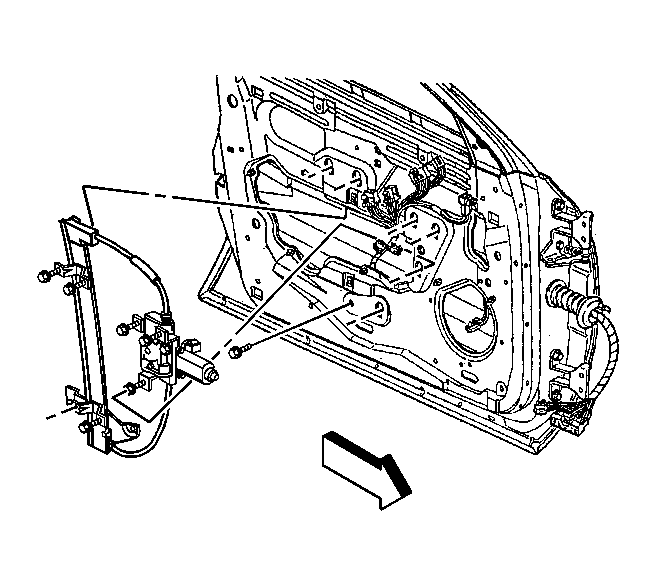

    4. Fig 1: Front Door Window Regulator Components
    GM388503Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The window regulator screws are seated into key slots in the inner door panel and is unnecessary to remove the screws completely from the window regulator.
  4. Loosen the front door window regulator mounting screws.
  5. Remove the front door window regulator rail left lower mounting screw.
  6. Lower the front door window regulator motor into the front door to gain access to the electrical connector.
  7. Disconnect the front door window regulator motor electrical connector.
  8. Remove the front door window regulator from the front door.
