Engine Electrical Component Views

Fig 1: Battery Cable And Grounding Point
GM581299Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Block-Underhood
3 G100
Fig 2: Upper Rear Of The Engine Components (LG8)
GM1219598Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator B+
2 Generator
3 Generator Connector
4 Engine Wiring Harness
5 C102
6 Heated Oxygen Sensor (HO2S) 1
7 Ignition Control Module (ICM), C2
8 Ignition Control Module (ICM), C3

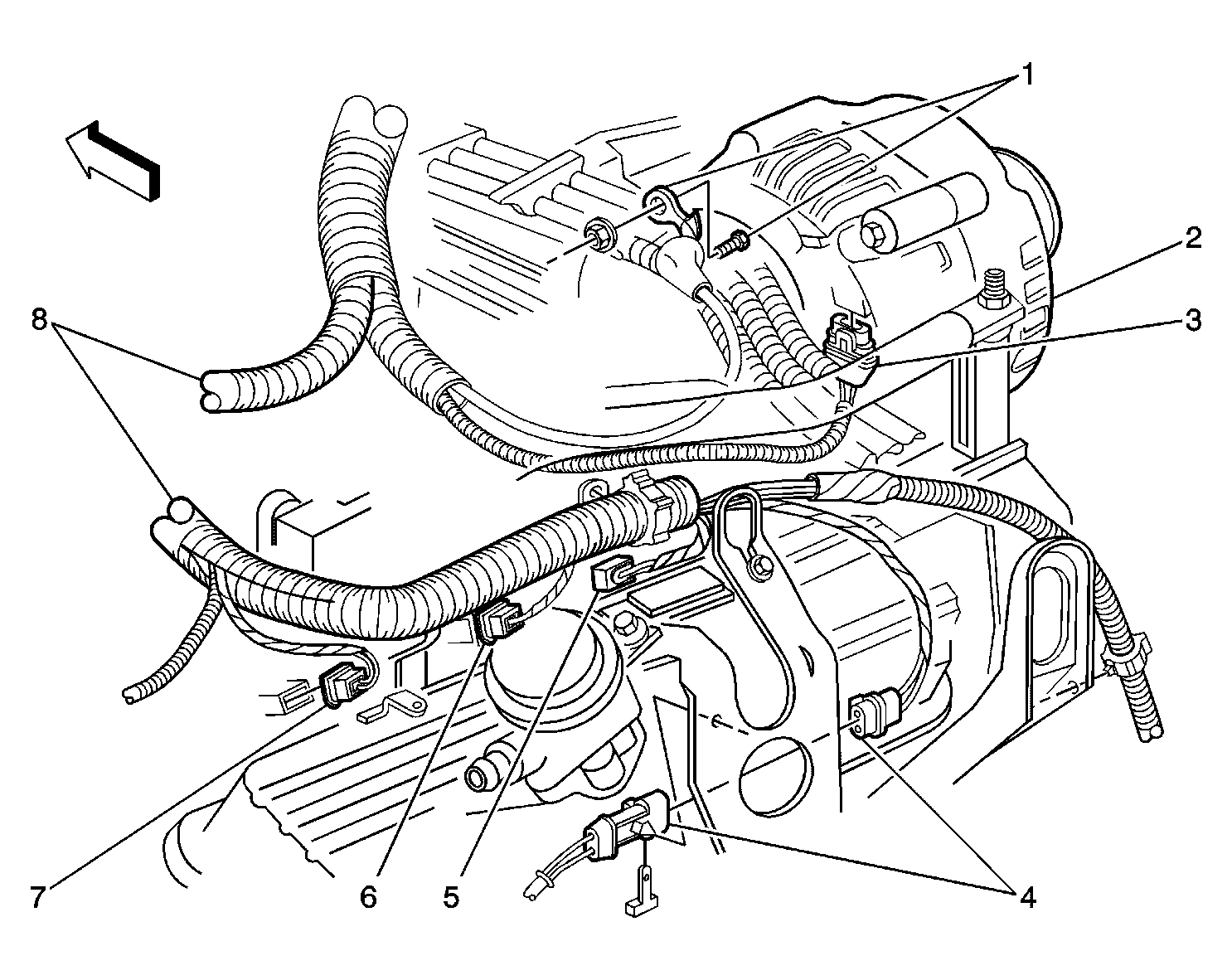

Fig 3: Upper Rear Of The Engine Components (L36)
GM924806Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator BAT Terminal
2 Generator
3 Generator Connector
4 Heated Oxygen Sensor (HO2S) 1
5 Fuel Injector 2
6 Fuel Injector 4
7 Fuel Injector 6
8 Engine Wiring Harness

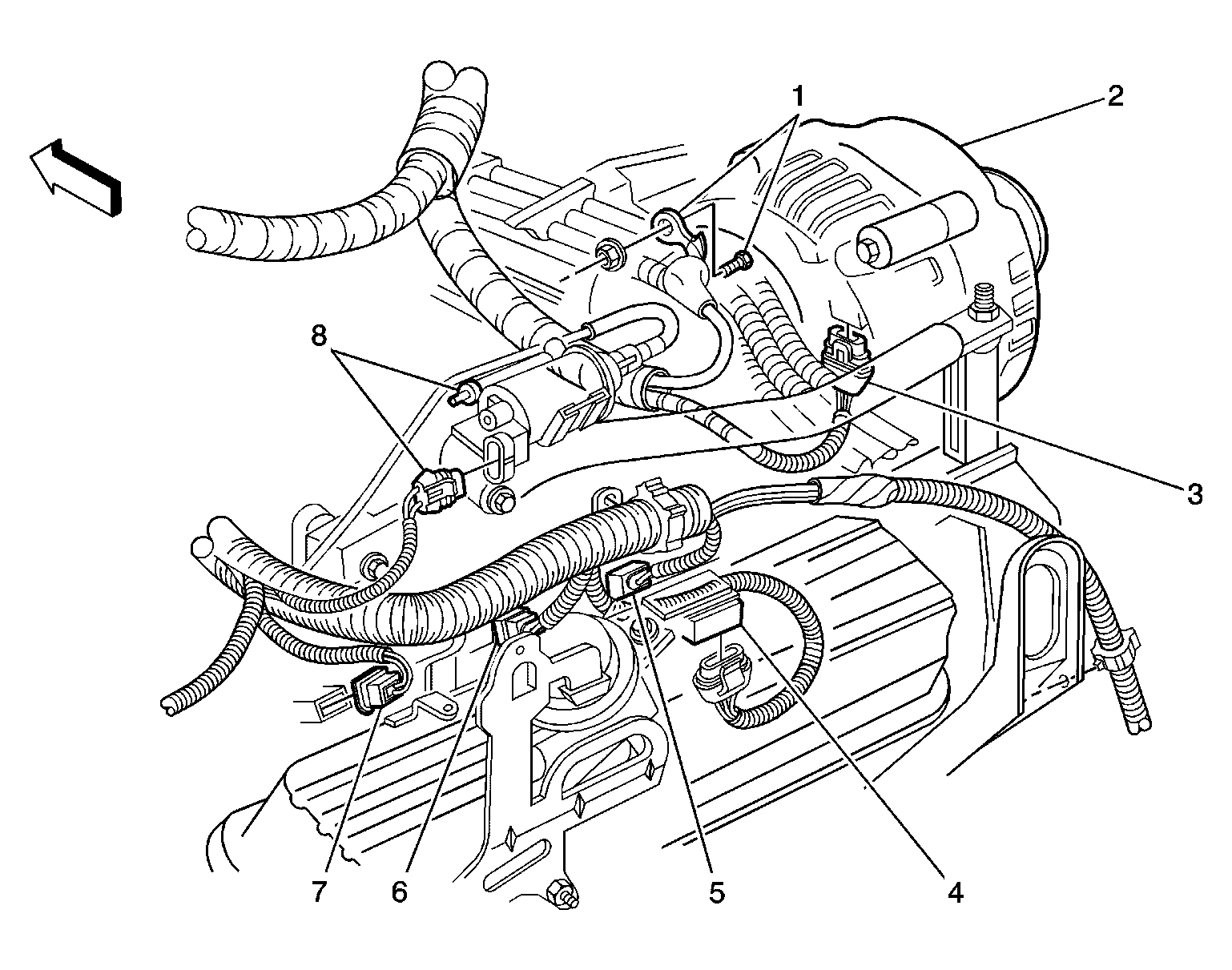

Fig 4: Upper Rear Of The Engine Components (L67)
GM924570Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator BAT Terminal
2 Generator
3 Generator Connector
4 Manifold Absolute Pressure (MAP) Sensor
5 Fuel Injector 2
6 Fuel Injector 4
7 Fuel Injector 6
8 Emission Evaporative (EVAP) Canister Purge Solenoid Valve
Fig 5: Lower Front Of The Engine Components (LG8)
GM1265116Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Crankshaft Position (CKP) Sensor A Connector
2 Knock Sensor (KS) 1
3 Engine Oil Pressure (EOP) Switch
4 Starter
5 Engine Wiring Harness
6 Starter Solenoid S Terminal
7 Fusible Link
8 Starter Solenoid B Terminal
9 Positive Battery Lead
10 A/C Compressor Clutch

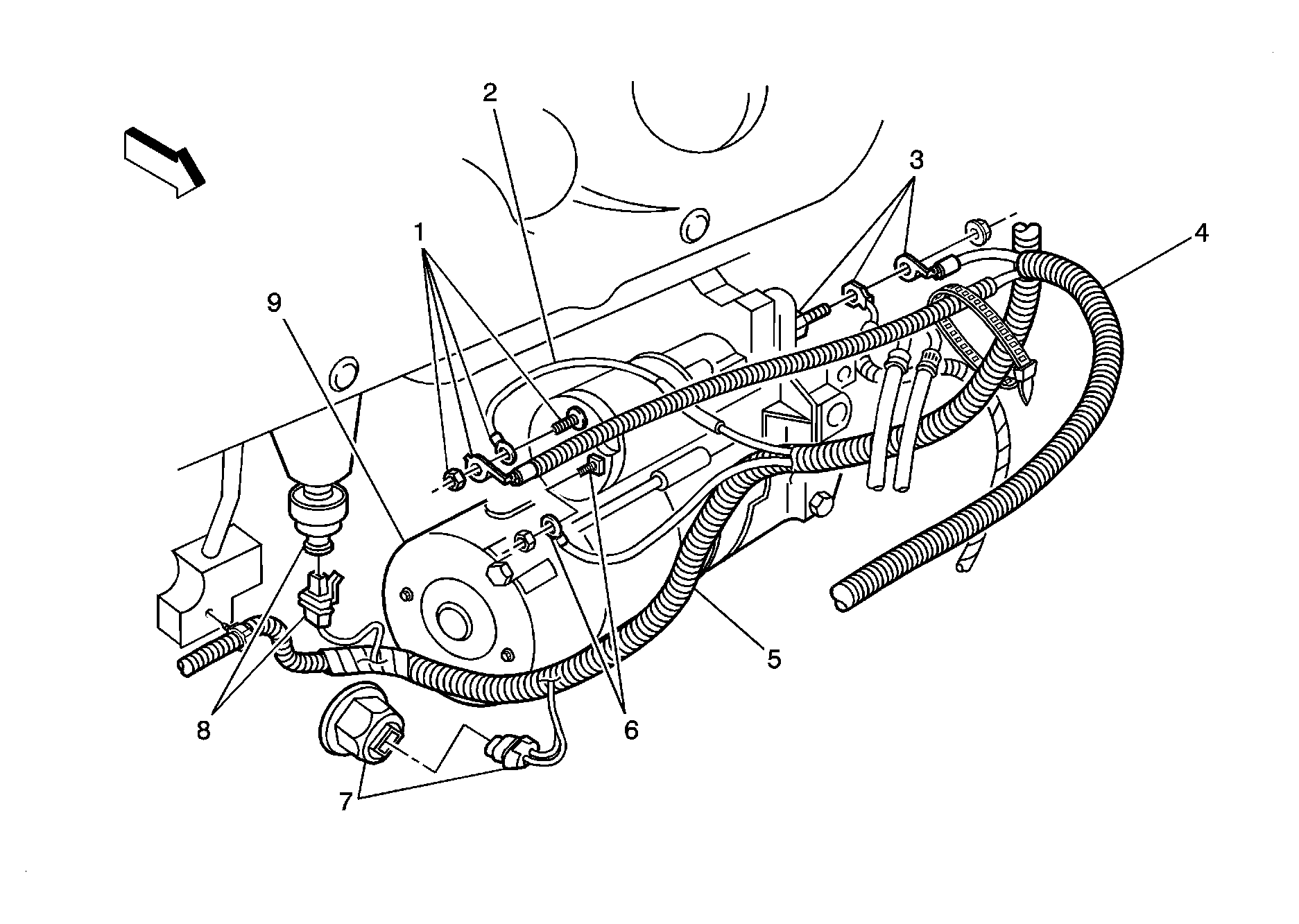

Fig 6: Lower Front Of The Engine Components (L36)
GM1364274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Solenoid B Terminal
2 Fusible Link from Generator
3 G113
4 Battery Cable Wiring Harness
5 Engine Wiring Harness
6 Starter Solenoid S Terminal
7 Engine Oil Level Sensor
8 Knock Sensor (KS) 1
9 Starter

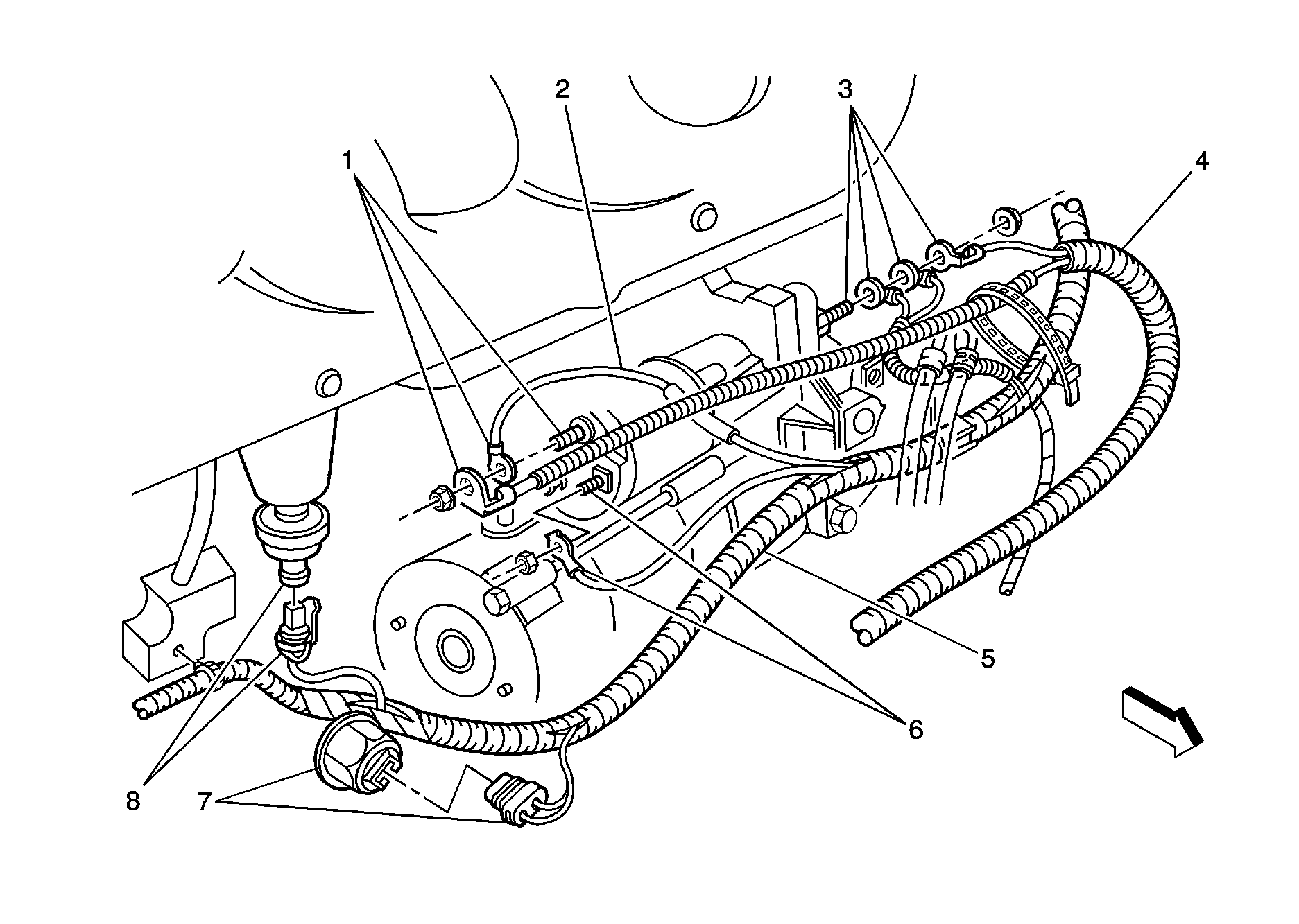

Fig 7: Lower Front Of The Engine Components (L67)
GM1364339Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Solenoid B Terminal
2 Fusible Link from Generator
3 G113
4 Battery Cable Wiring Harness
5 Engine Wiring Harness
6 Starter Solenoid S Terminal
7 Engine Oil Level Sensor
8 Knock Sensor (KS) 1
