Removal Procedure

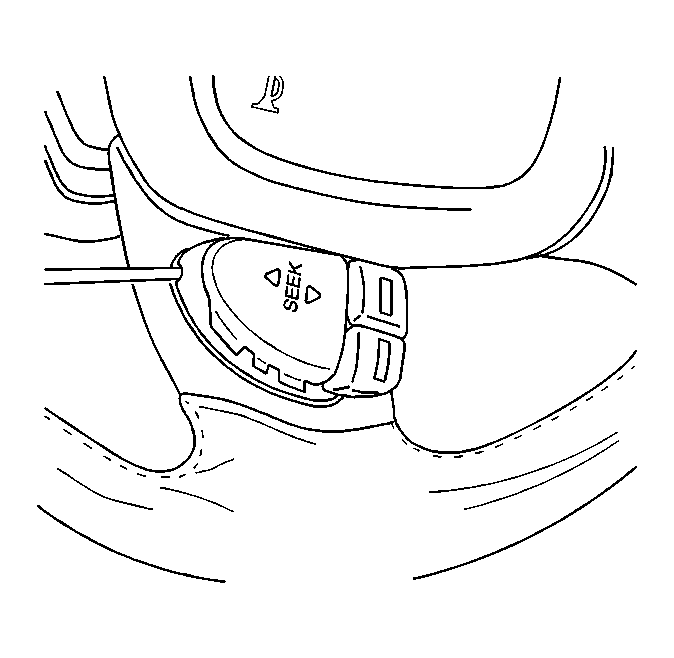

    Fig 1: View Of Steering Wheel Control Switch
    GM655937Courtesy of GENERAL MOTORS CORP.
  1. Remove the steering wheel control switches using a small flat bladed tool.
    2. Fig 2: View Of Electrical Connectors
    GM655939Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors.
