Installation Procedure

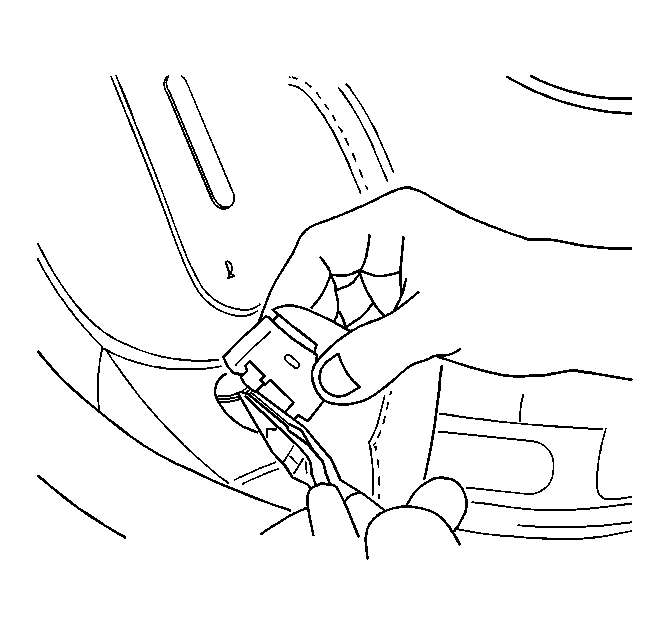

    Fig 1: View Of Electrical Connectors
    GM655939Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors.

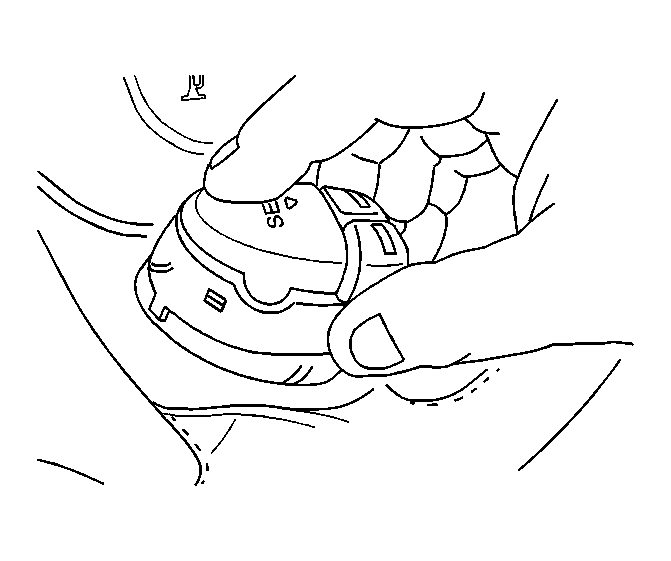

    2. Fig 2: Positioning Steering Wheel Control Switch
    GM655938Courtesy of GENERAL MOTORS CORP.
  2. Position the steering wheel control switches to the steering wheel.

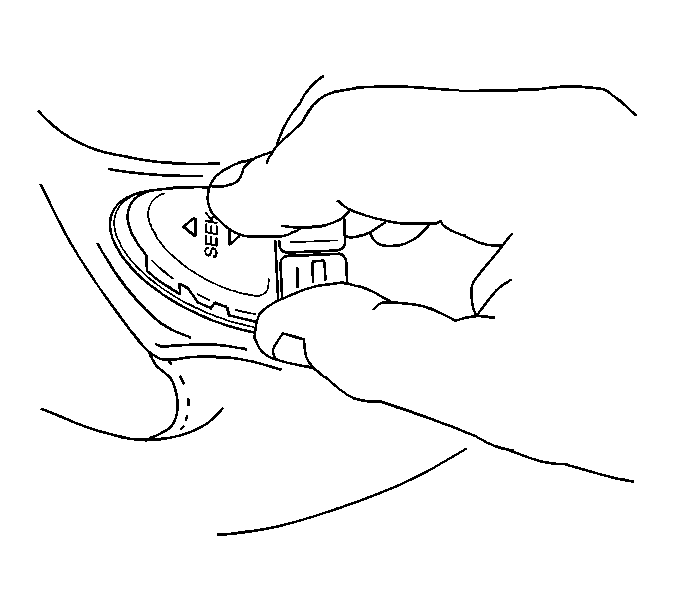

    3. Fig 3: Pressing Steering Wheel Control Switch Into Place
    GM655935Courtesy of GENERAL MOTORS CORP.
  3. Install the steering wheel control switches by pressing into place until fully seated.
