Steering Wheel and Column Component Views

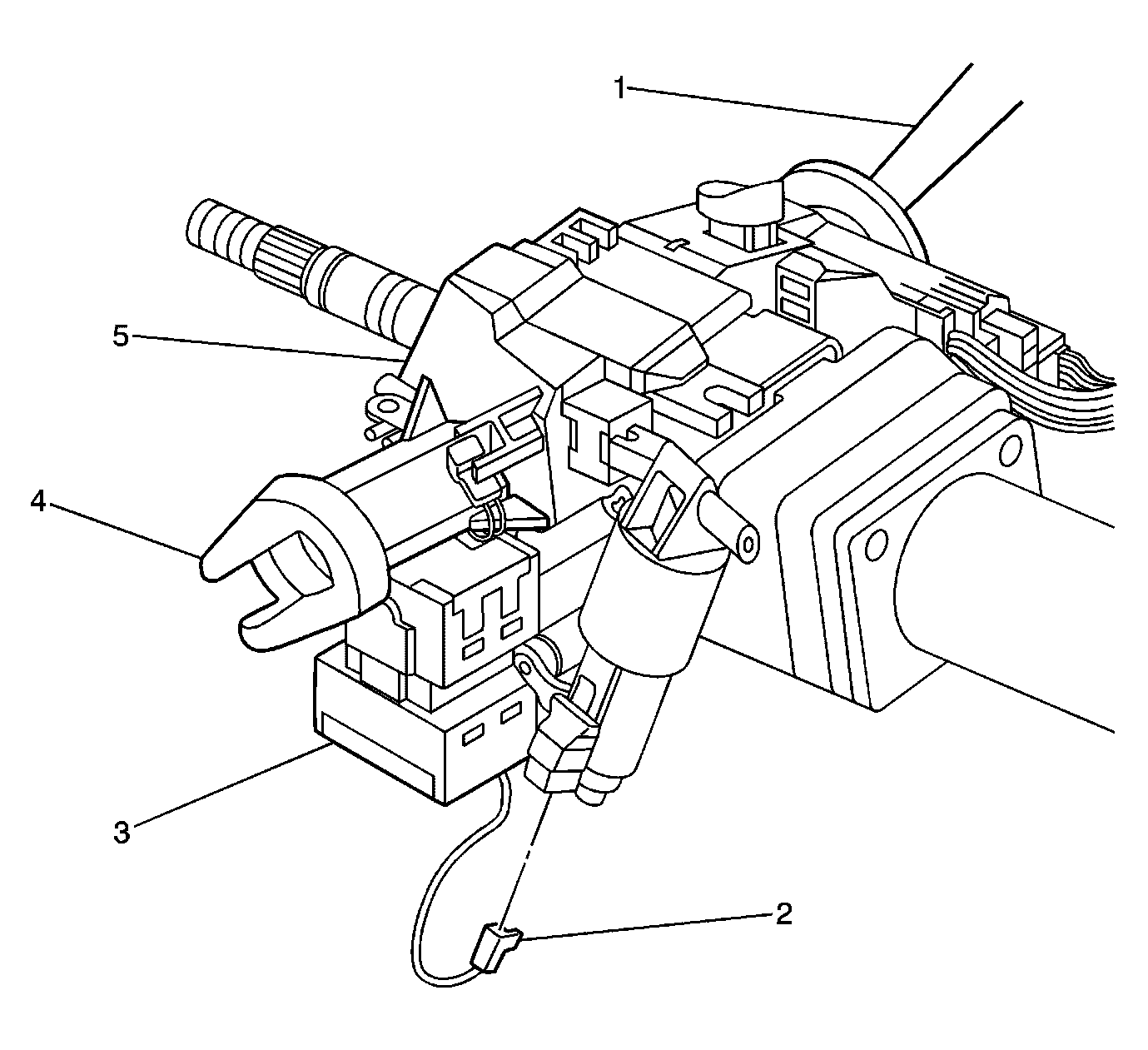

Fig 1: Steering Column Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Ignition Lock Cylinder Control Actuator (Regal)
3	Ignition Switch
4	Ignition Lock Cylinder
5	Steering Column

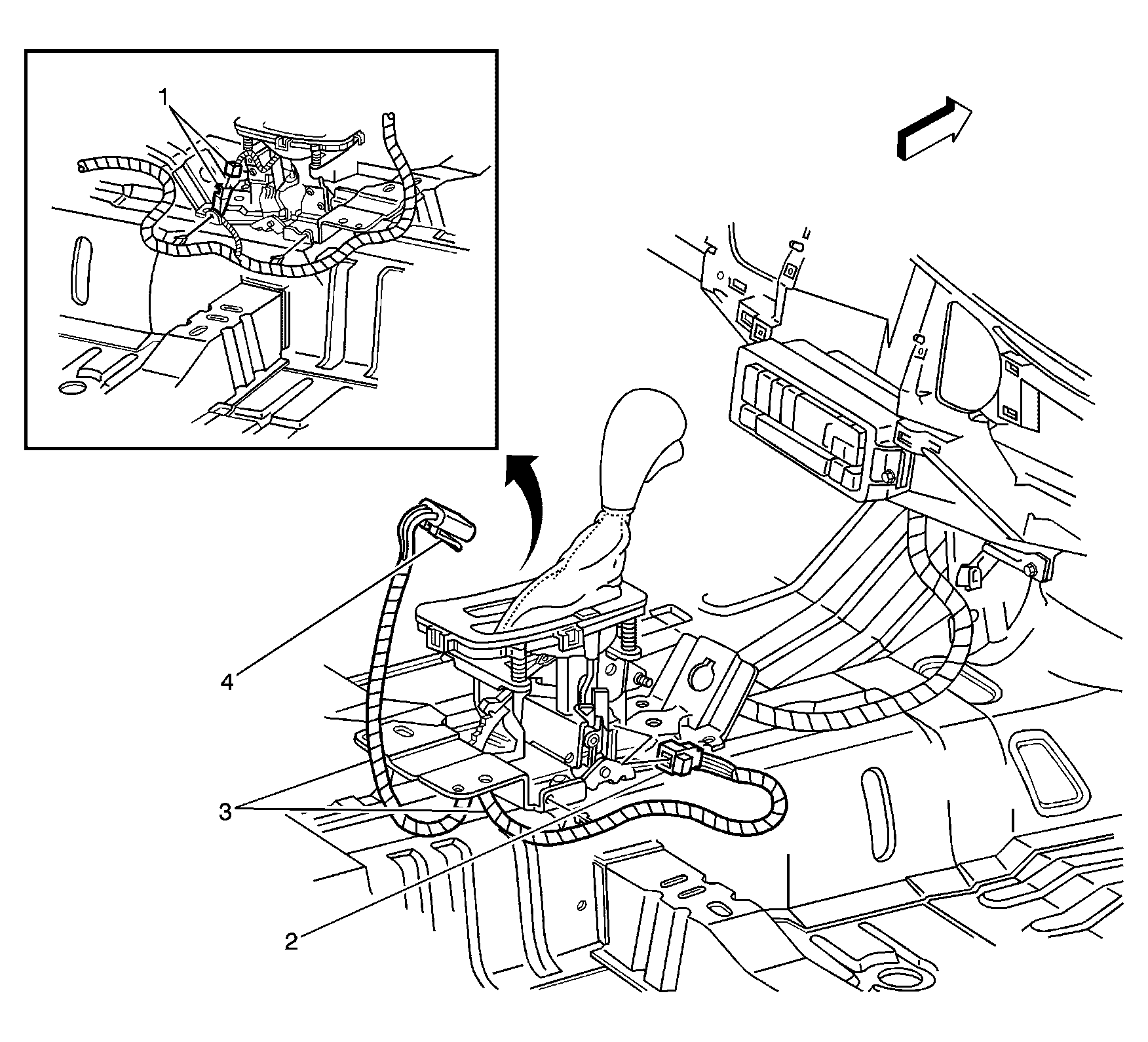

Fig 2: Center of Floor Console Component Views (Regal)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Switch
2	A/T Shift Lock Control Switch Connector
3	I/P Wiring Harness
4	C240
