SIR Component Views

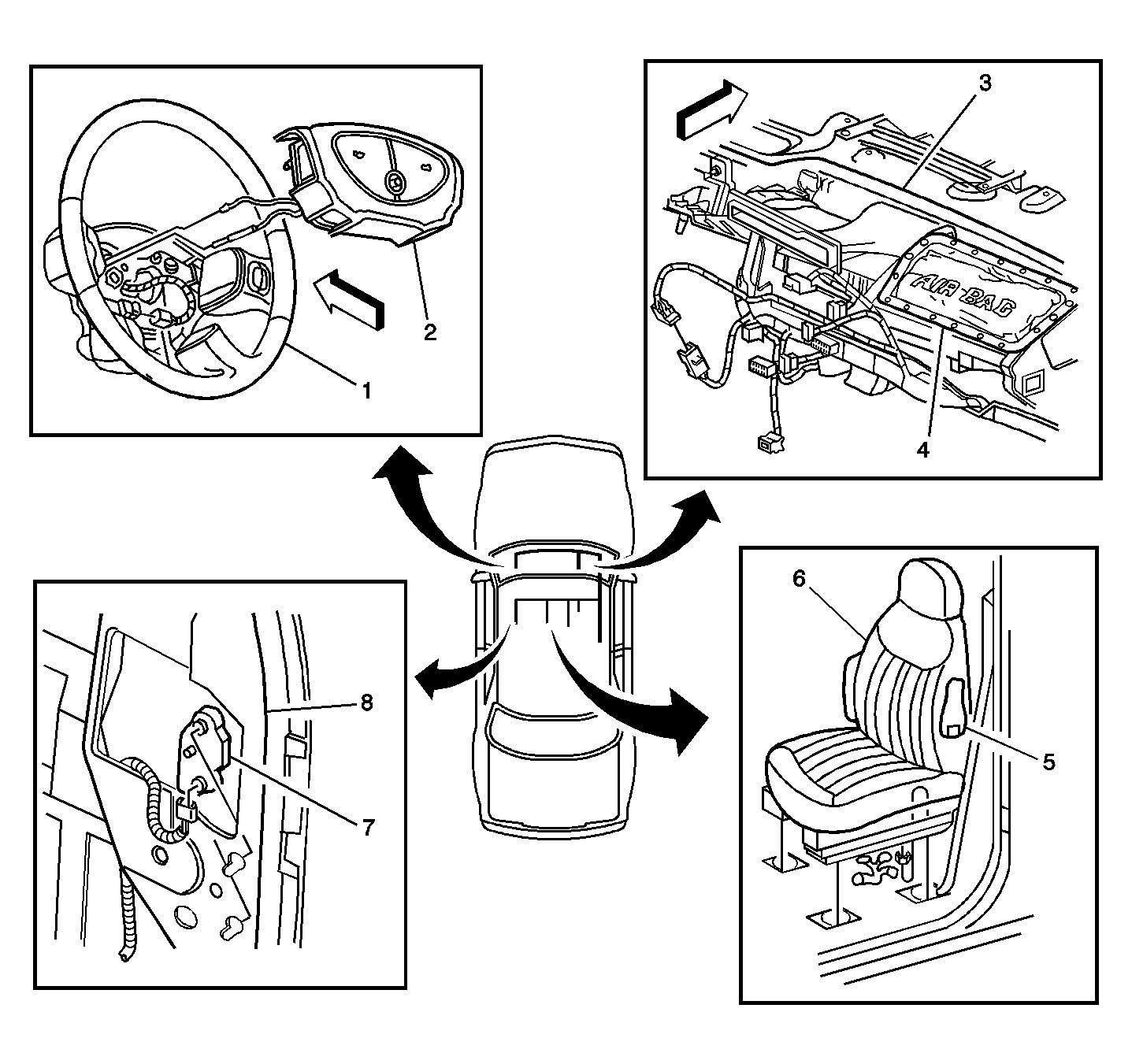

Fig 1: Air Bag Modules and Side Impact Sensor Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Inflatable Restraint Steering Wheel Module
3	Cross-car Beam
4	Inflatable Restraint IP Module
5	Inflatable Restraint Side Impact Module-LH
6	Driver Front Seat
7	Inflatable Restraint Side Impact Sensor-LH
8	B-Pillar-LH

Fig 2: Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Cruise Control On/Off Switch (K34)
3	Turn Signal/Multifunction Switch
4	Inflatable Restraint Steering Wheel Module Coil
5	C203 (UK3)
6	Inflatable Restraint Steering Wheel Module Connector

Fig 3: Steering Wheel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left (UK3)
2	C203 (UK3)
3	Steering Wheel Controls - Right (UK3)
4	Inflatable Restraint Steering Wheel Module Connector
5	Inflatable Restraint Steering Wheel Module
6	Horn Switch B+ Connector
7	C203 (UK3)
8	Horn Switch Ground Connector

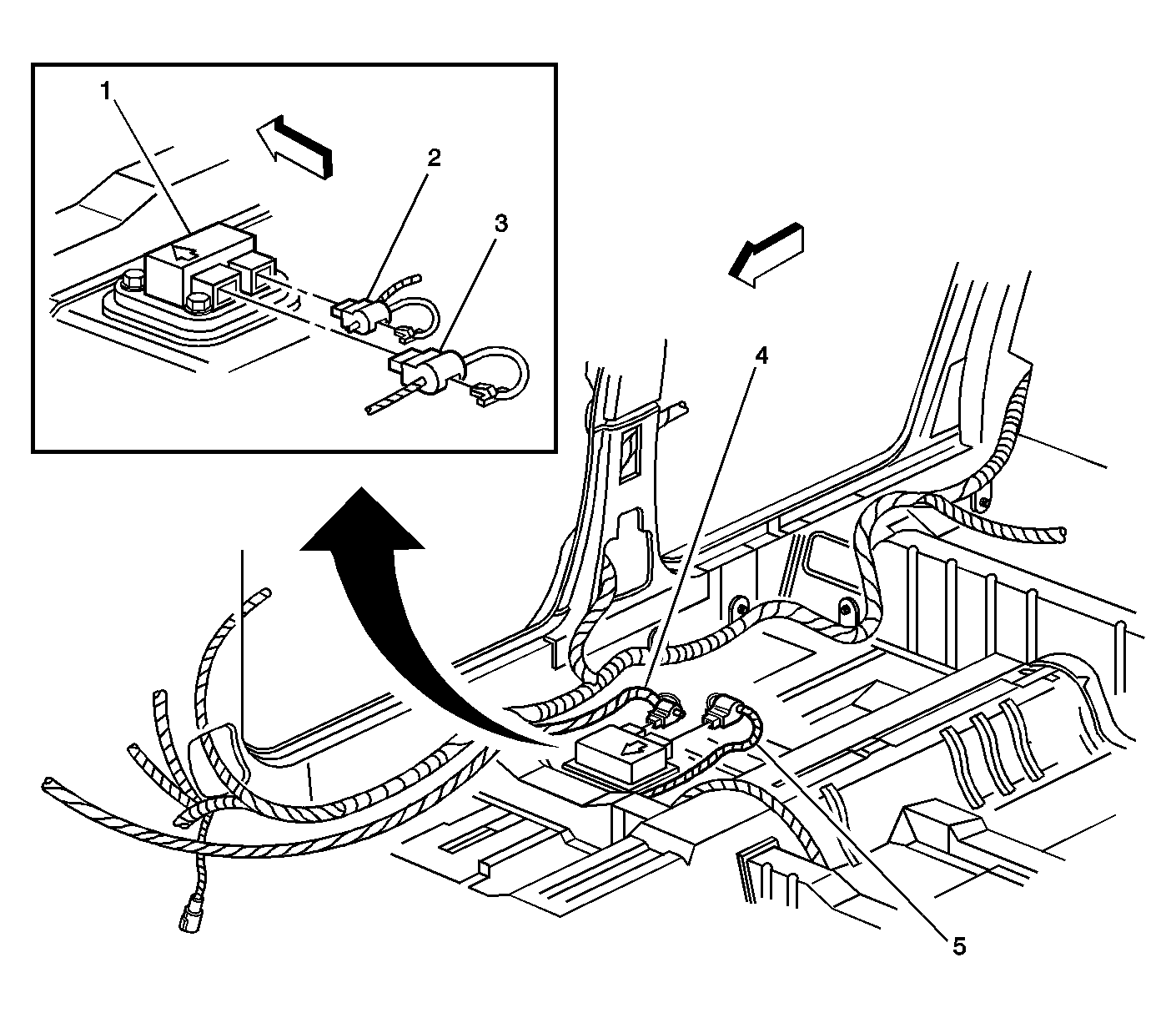

Fig 4: Right Side of Passenger Compartment, Under Passenger Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector C2
3	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector C1
4	Body Wiring Harness
5	Instrument Panel Wiring Harness
