Power Distribution Schematics

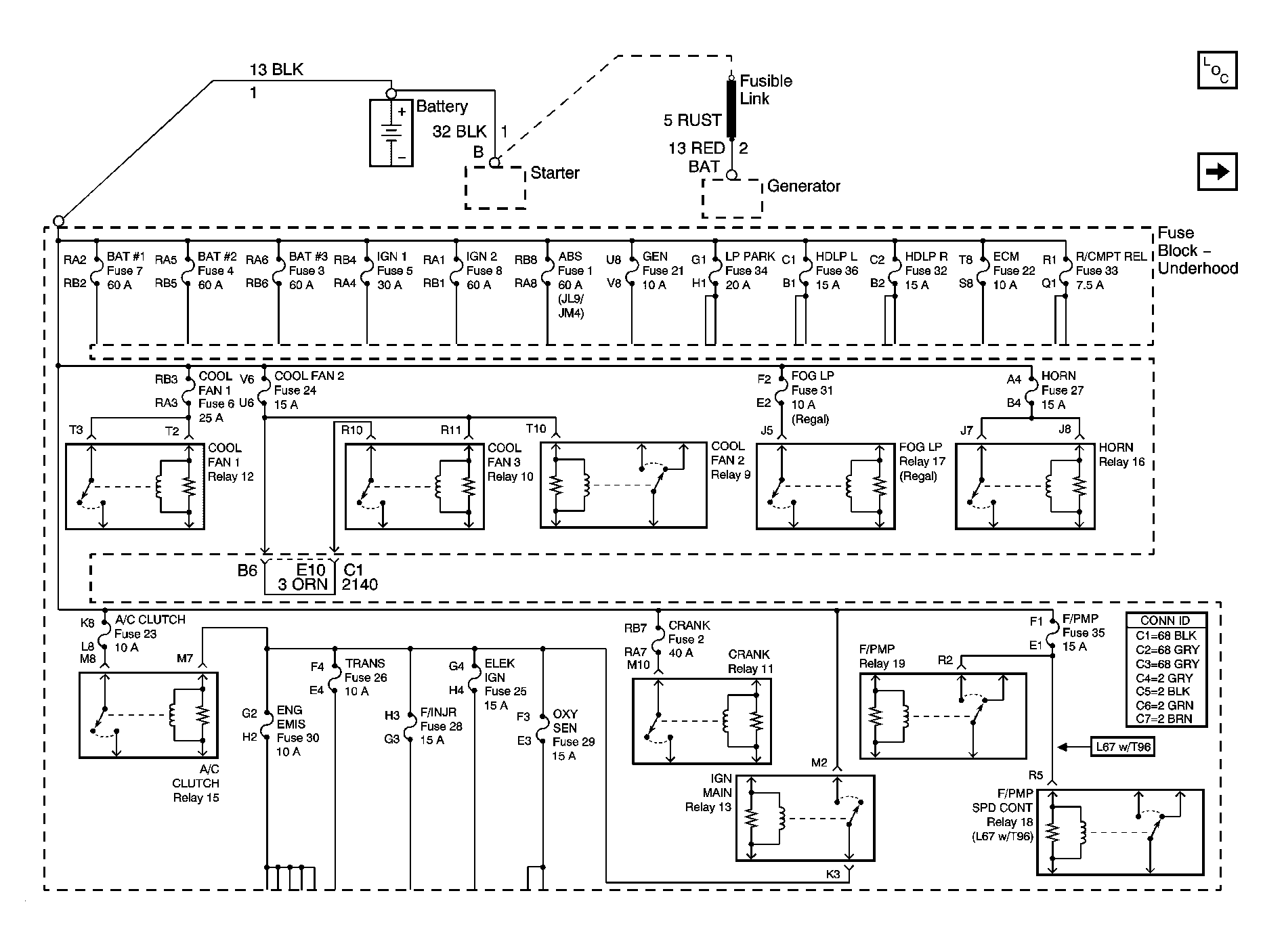

Fig 1: Fuse Block Schematic - Underhood B+ Buss

Courtesy of GENERAL MOTORS CORP.

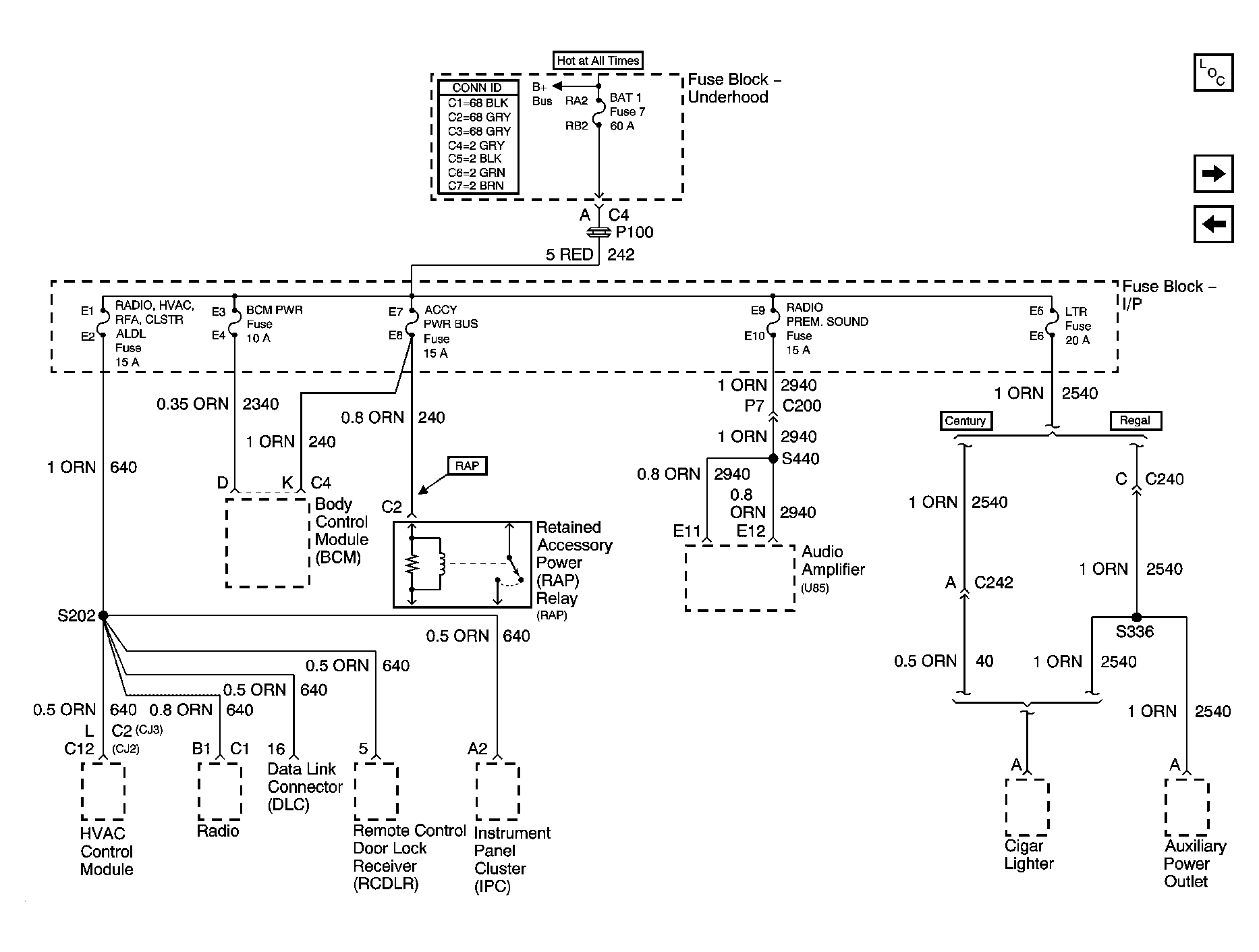

Fig 2: Fuse Block Schematic - Underhood BAT 1 Fuse, Fuse Block: I/P RADIO, HVAC, RFA, CLSTR ALDL, BCM PWR, ACCY PWR BUS, RADIO PREM. SOUND, & LTR Fuses

Courtesy of GENERAL MOTORS CORP.

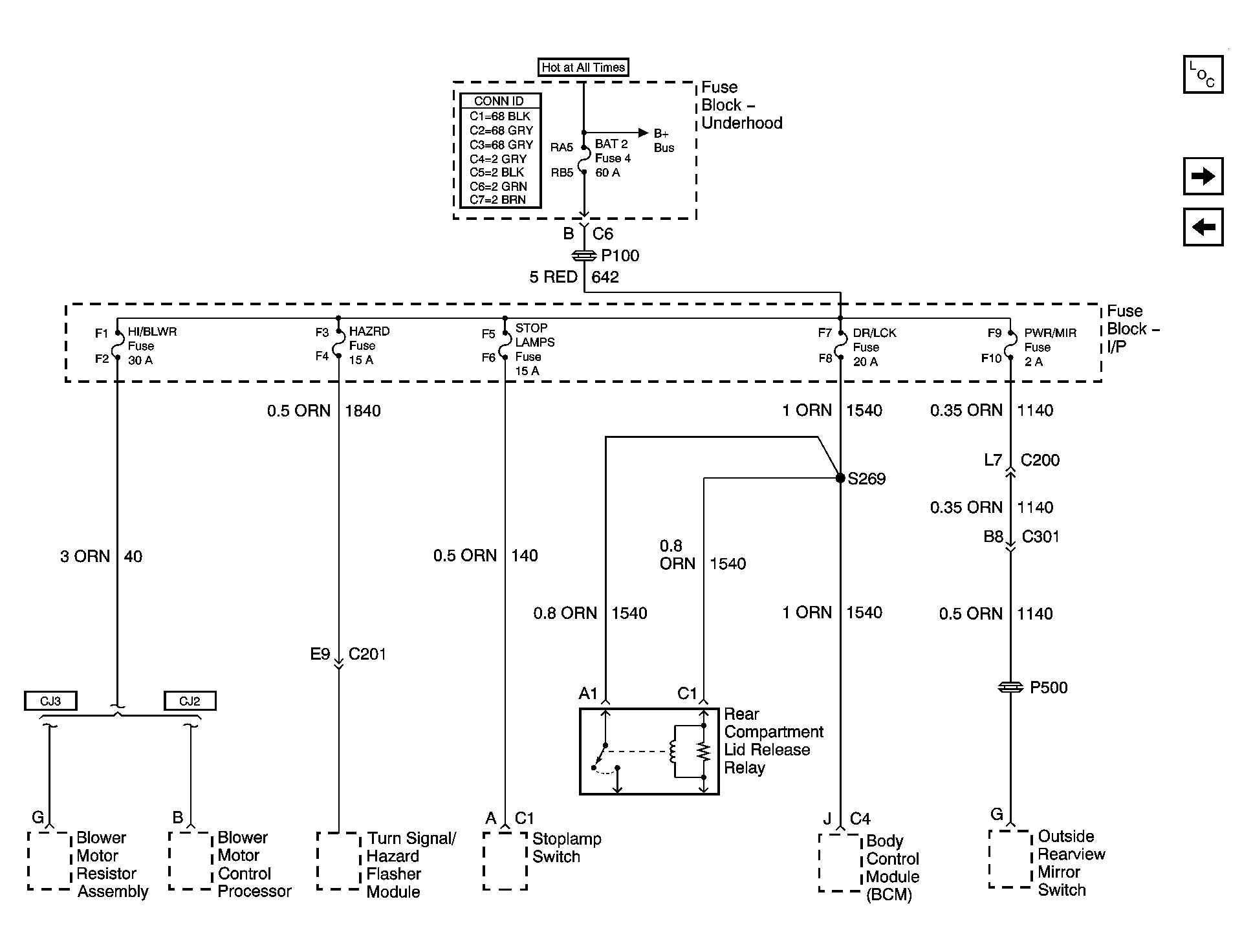

Fig 3: Fuse Block Schematic - Underhood BAT 2 Fuse, Fuse Block: I/P HI/BLWR, HAZRD, STOP LAMPS, DR/LCK, & PWR/MIR Fuses

Courtesy of GENERAL MOTORS CORP.

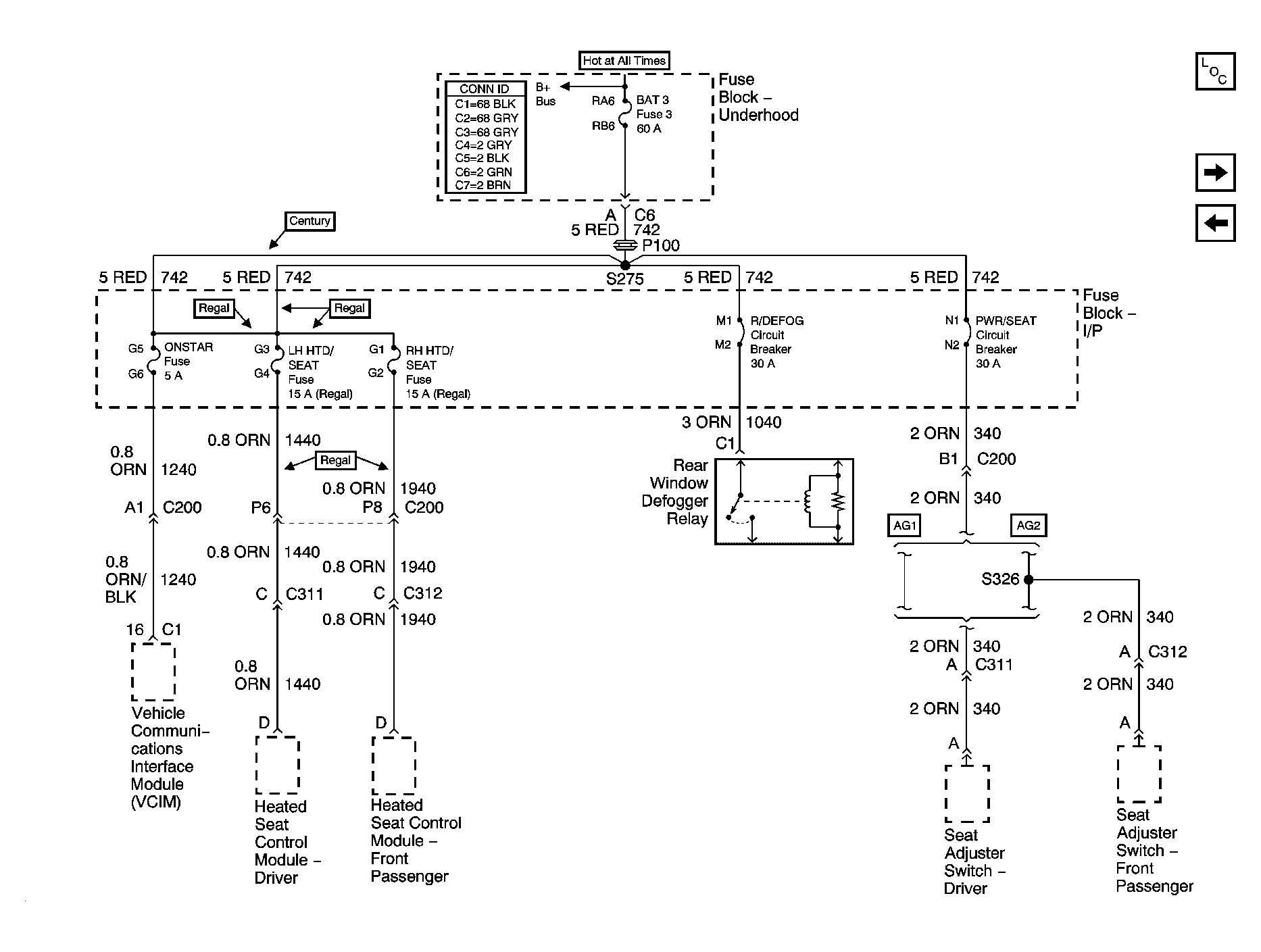

Fig 4: Fuse Block Schematic - Underhood BAT 3 Fuse, Fuse Block: I/P ONSTAR, HTD/SEAT Fuses, R/DEFOG, & PWR/SEAT Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

Fig 5: Fuse Block Schematic - Underhood IGN 1 Fuse

Courtesy of GENERAL MOTORS CORP.

Fig 6: Fuse Block Schematic - Underhood IGN 2 Fuse

Courtesy of GENERAL MOTORS CORP.

Fig 7: Fuse Block Schematic - Underhood F/INJR Fuse

Courtesy of GENERAL MOTORS CORP.

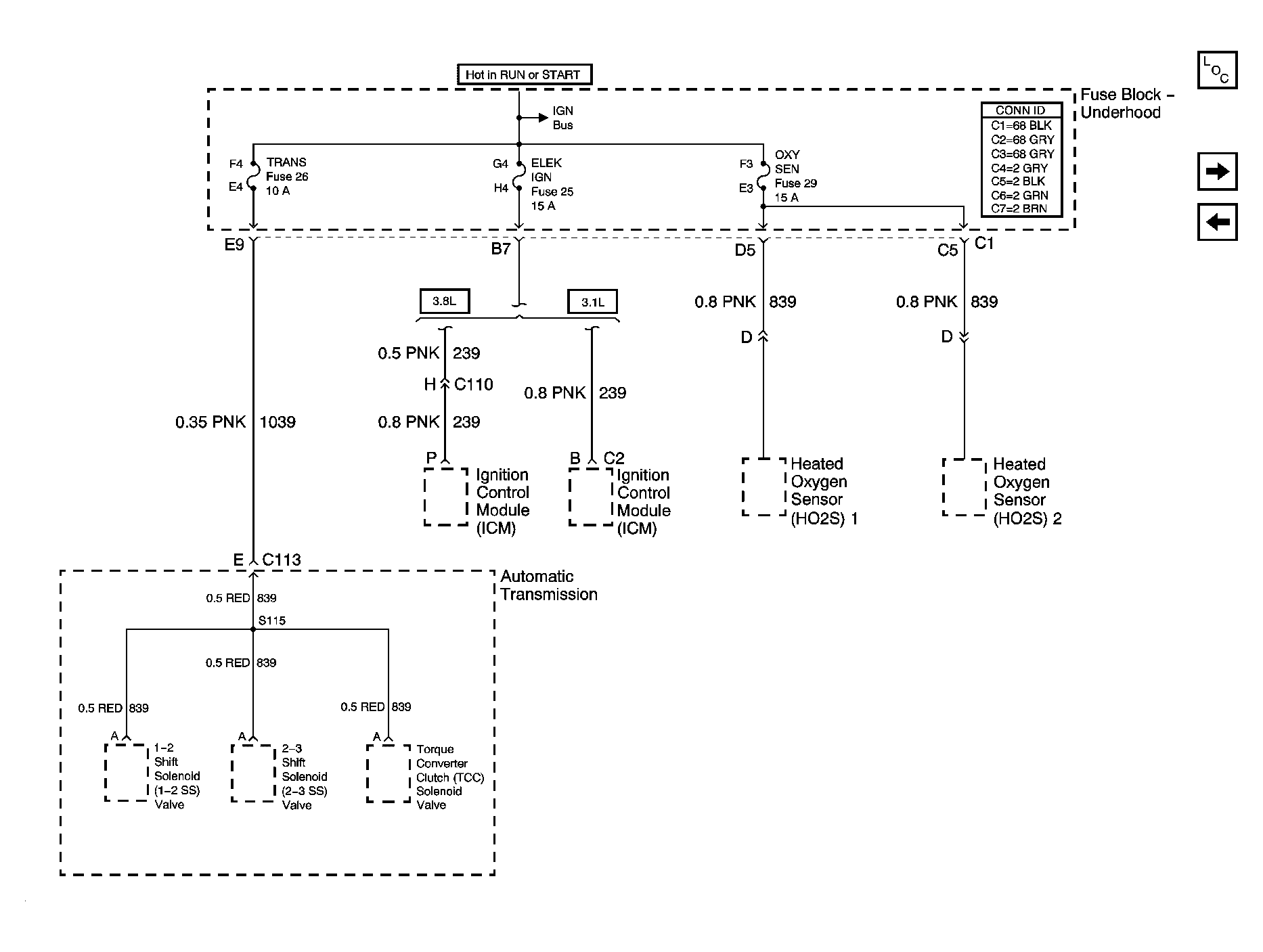

Fig 8: Fuse Block Schematic - Underhood TRANS, ELEK IGN, & OXY SEN Fuses

Courtesy of GENERAL MOTORS CORP.

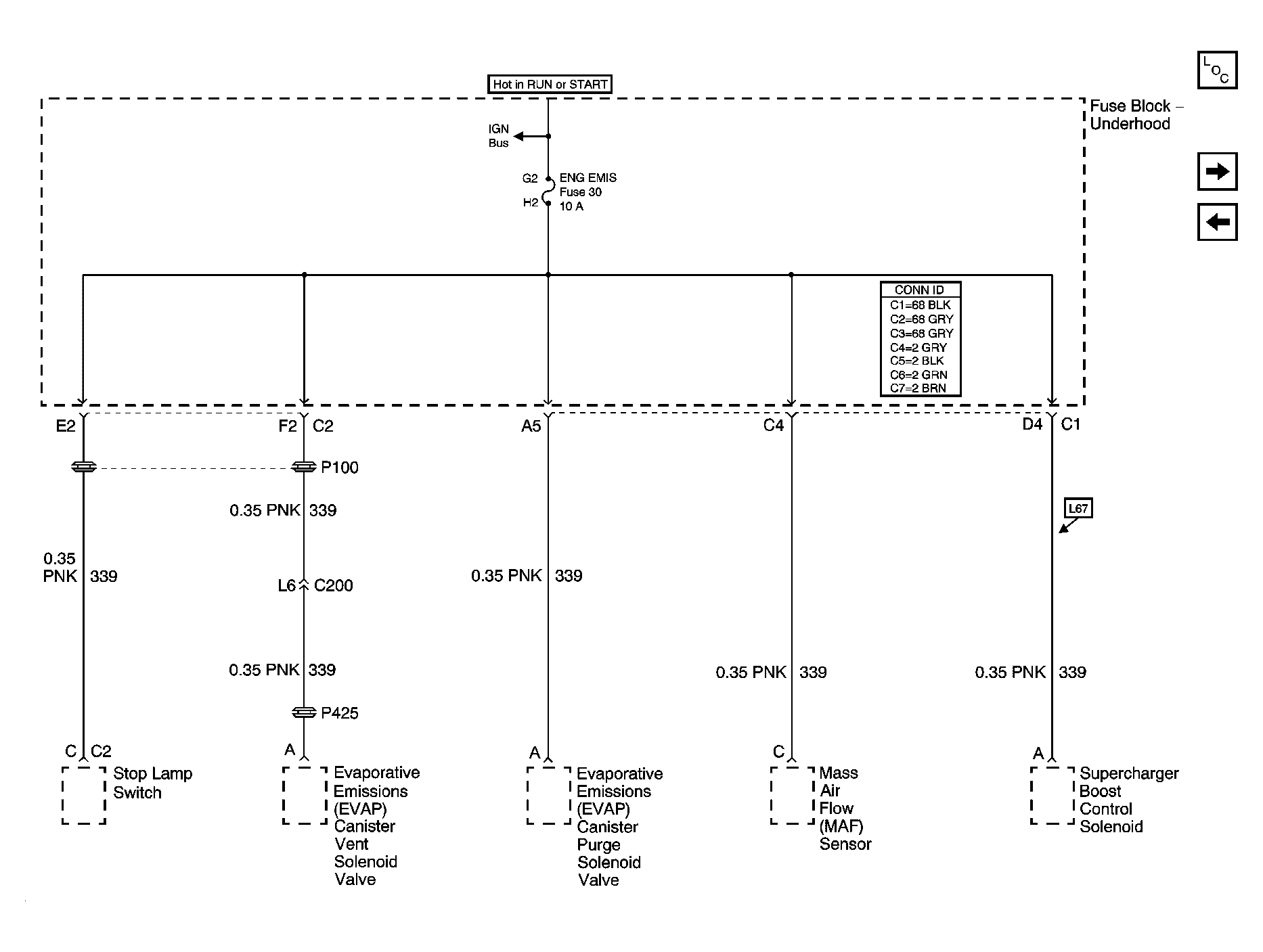

Fig 9: Fuse Block Schematic - Underhood ENG EMIS Fuse

Courtesy of GENERAL MOTORS CORP.

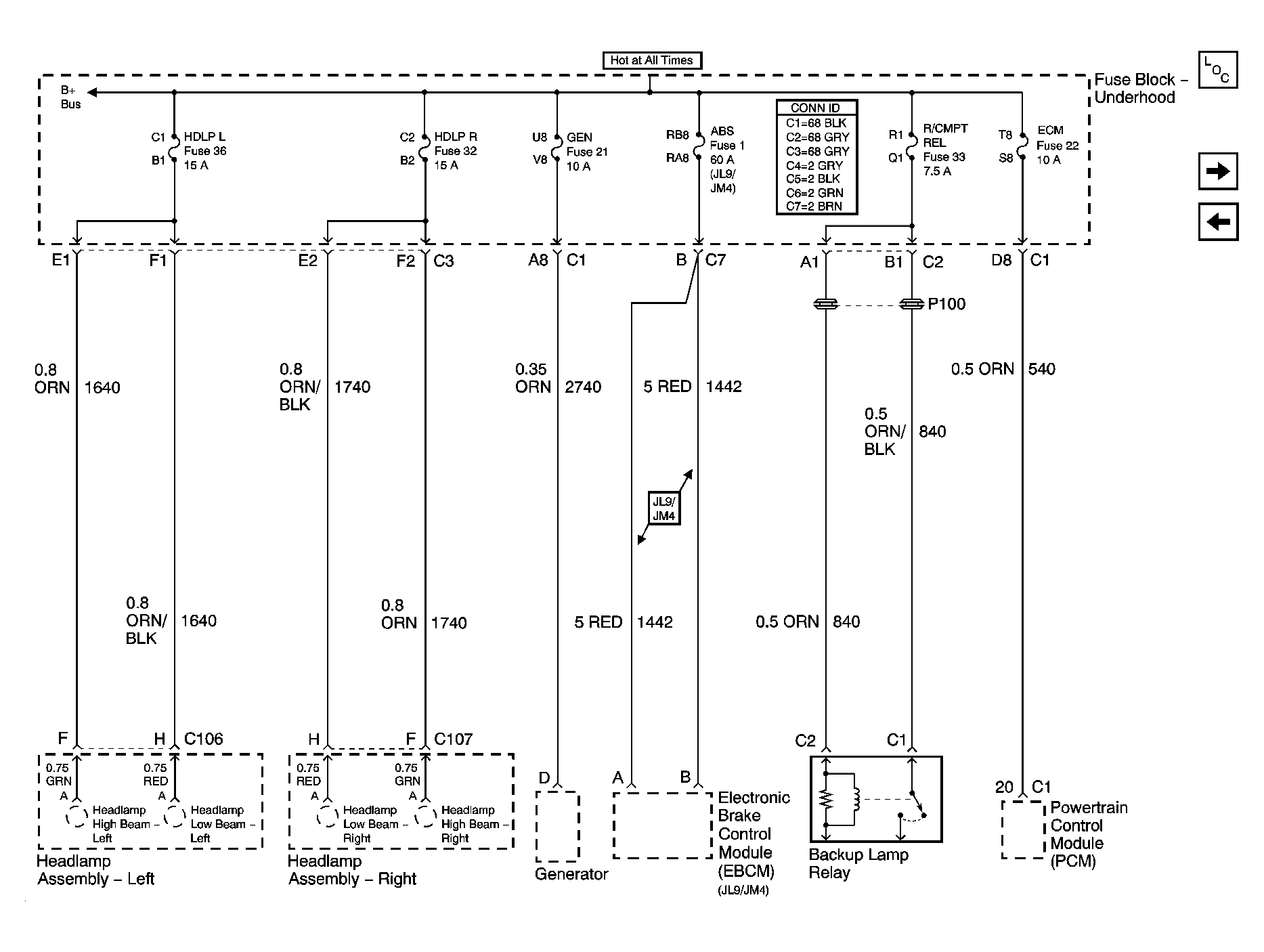

Fig 10: Fuse Block Schematic - Underhood HDLP, GEN, ABS, R/CMPT REL, & ECM Fuses

Courtesy of GENERAL MOTORS CORP.

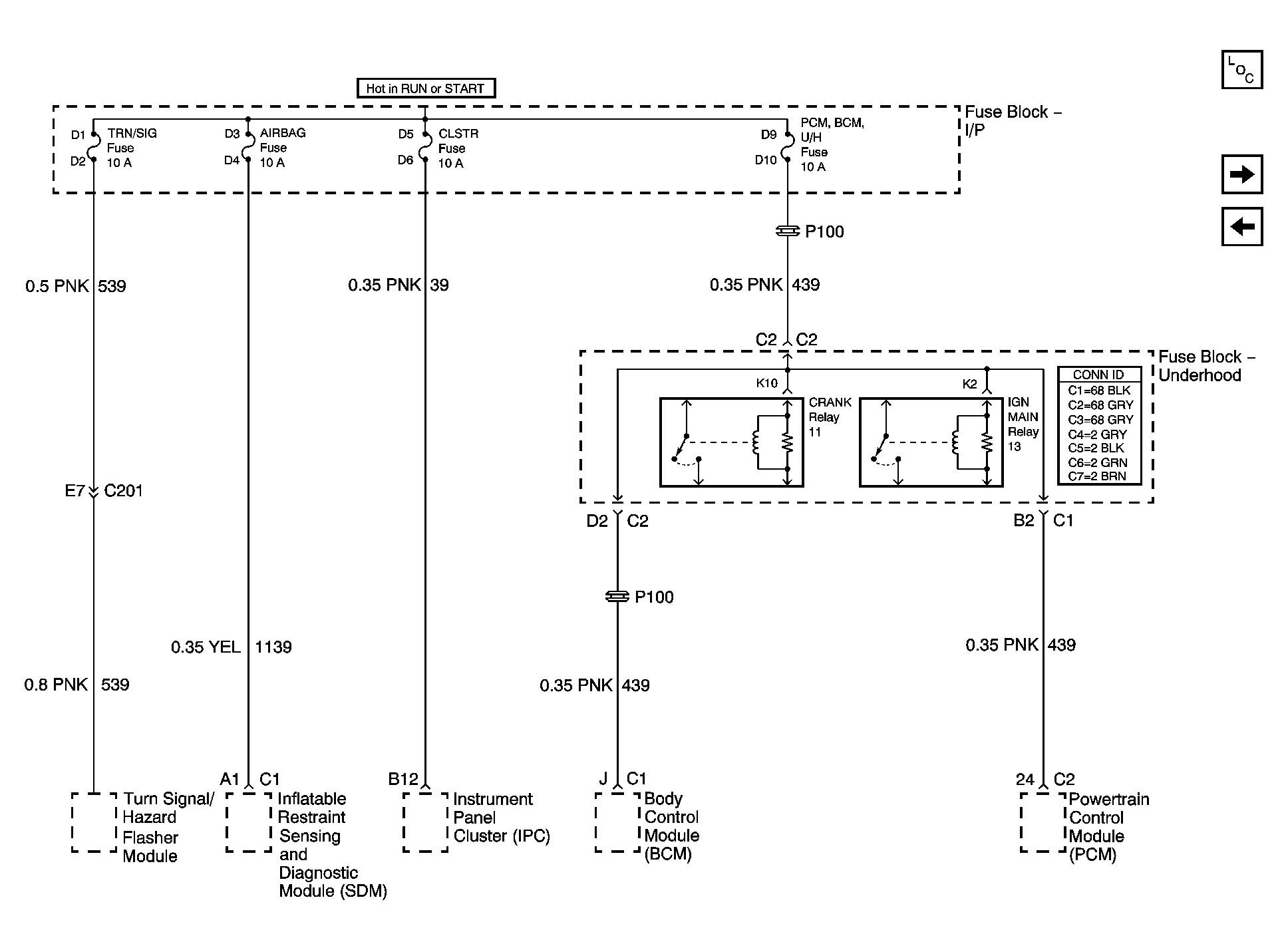

Fig 11: Fuse Block Schematic - I/P TRN/SIG, AIRBAG, CLSTR, and PCM, BCM, U/H Fuses: Fuse Block - Underhood CRANK & IGN MAIN Relays

Courtesy of GENERAL MOTORS CORP.

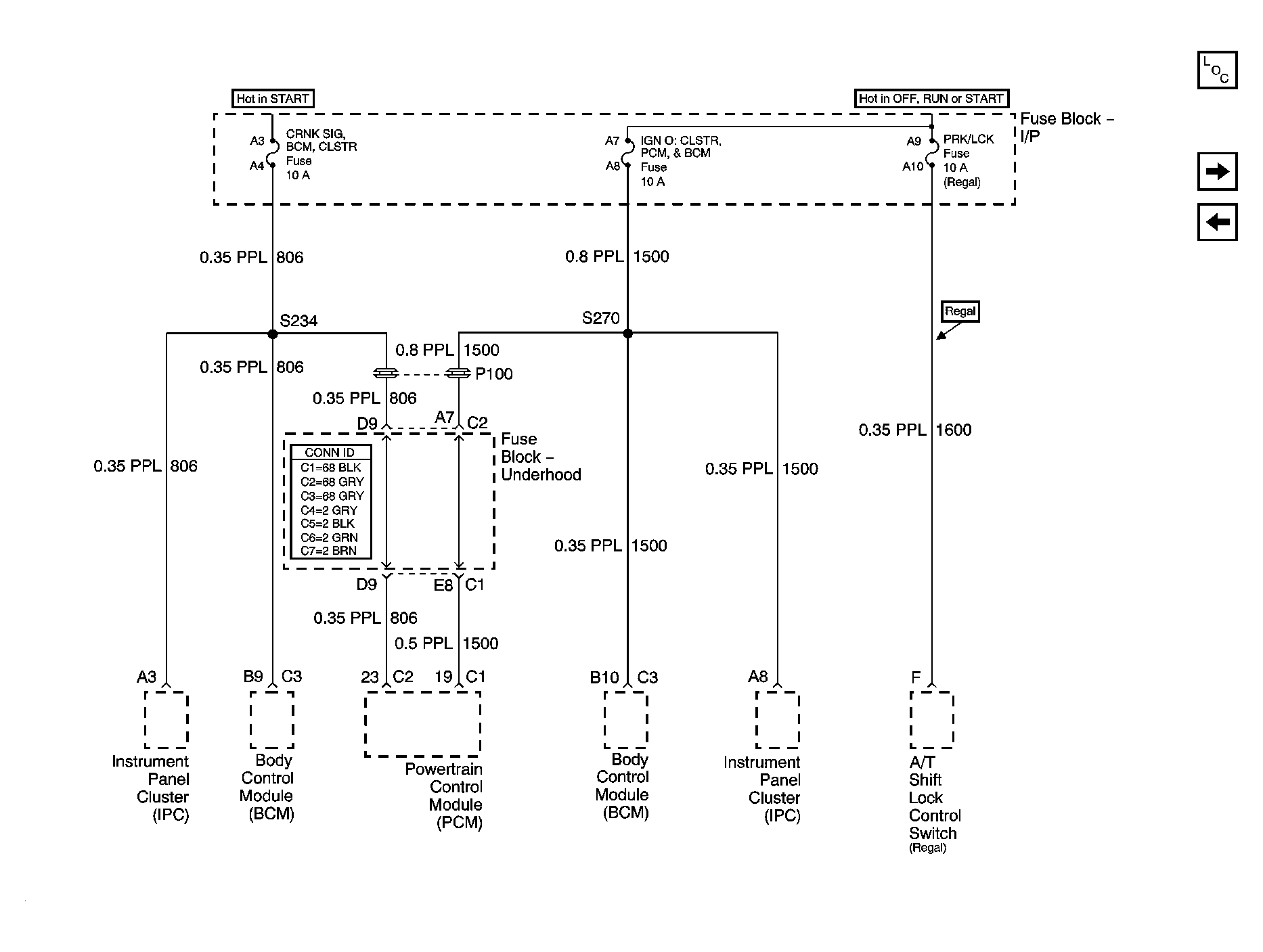

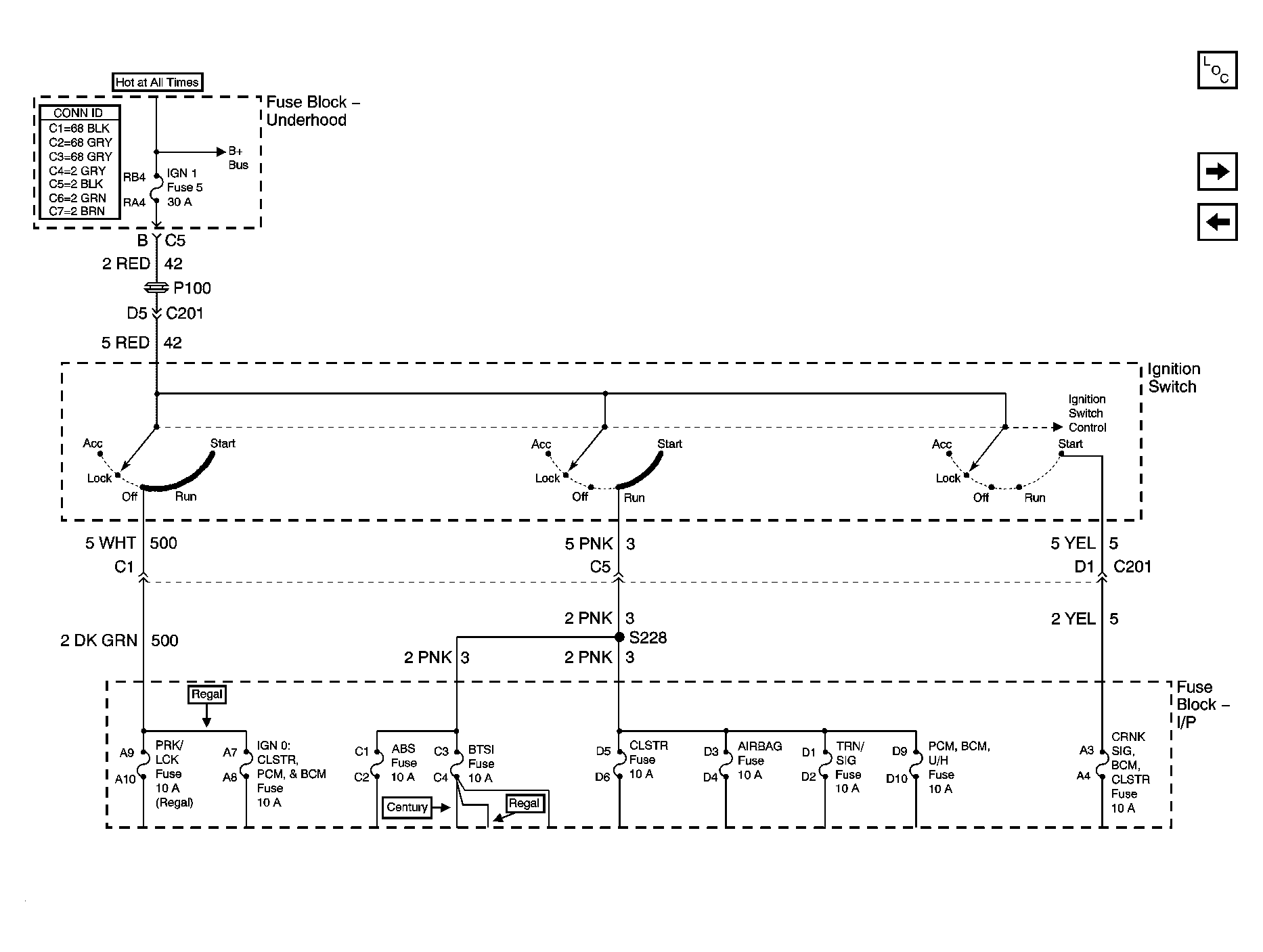

Fig 12: Fuse Block Schematic - I/P CRNK SIG, BCM, CLSTR, IGN 0: CLSTR, PCM, BCM, & PRK/LCK Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 13: Fuse Block Schematic - I/P ABS & BTSI Fuses

Courtesy of GENERAL MOTORS CORP.

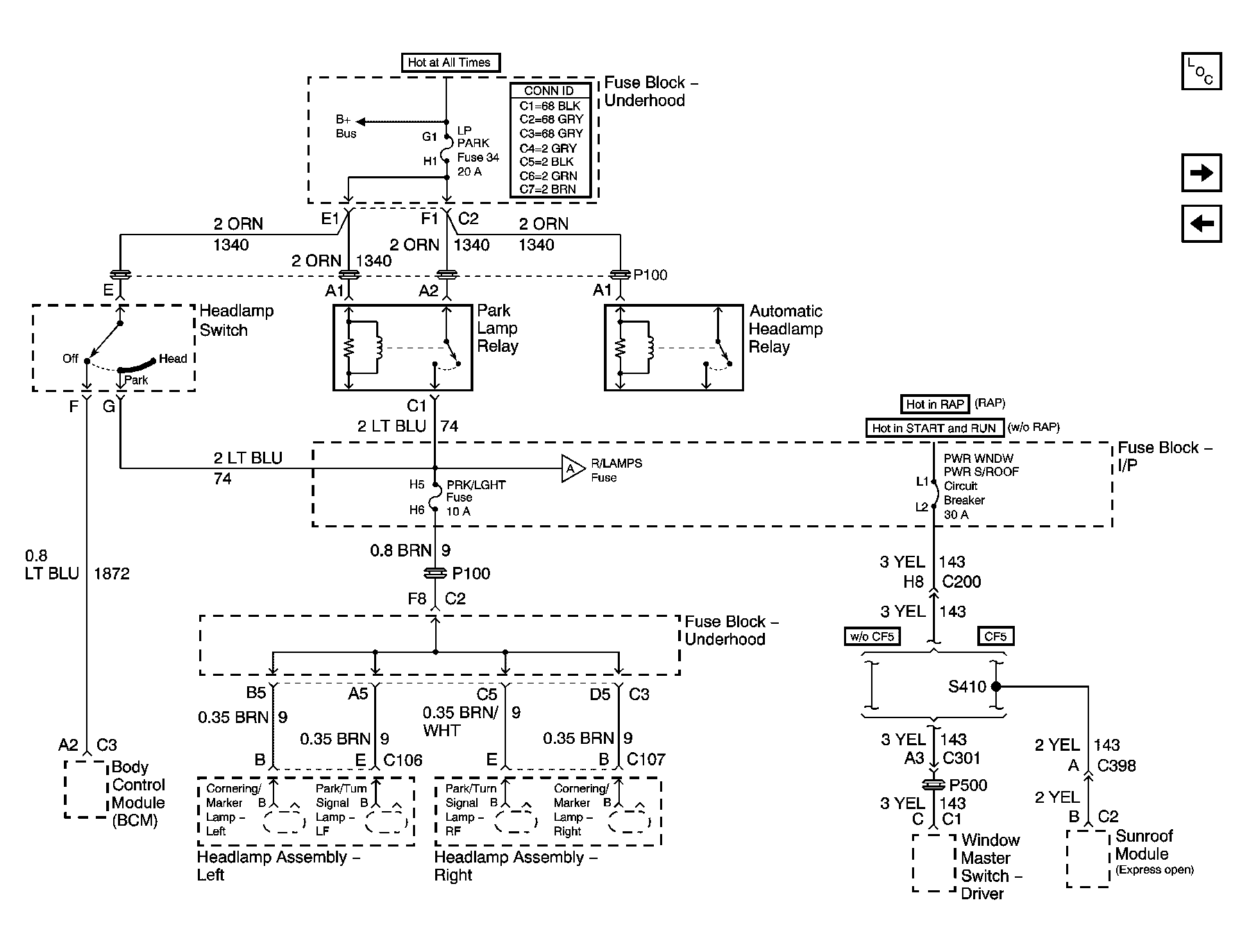

Fig 14: Fuse Block Schematic - Underhood LP PARK Fuse; Fuse Block - I/P PRK/LGHT Fuse & PWR WNDW PWR S/ROOF Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

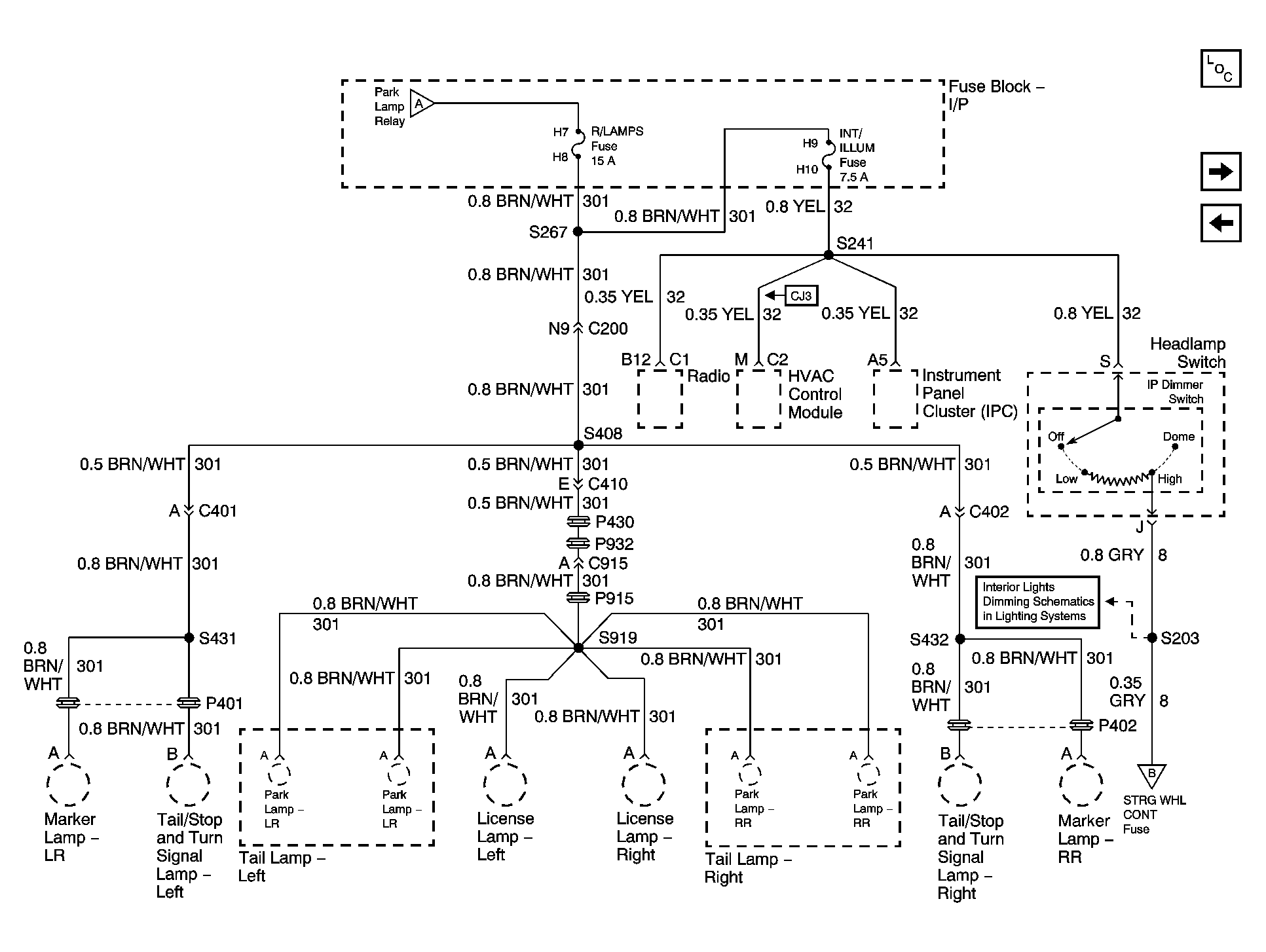

Fig 15: Fuse Block Schematic - I/P R/LAMPS & INT/ILLUM Fuses

Courtesy of GENERAL MOTORS CORP.

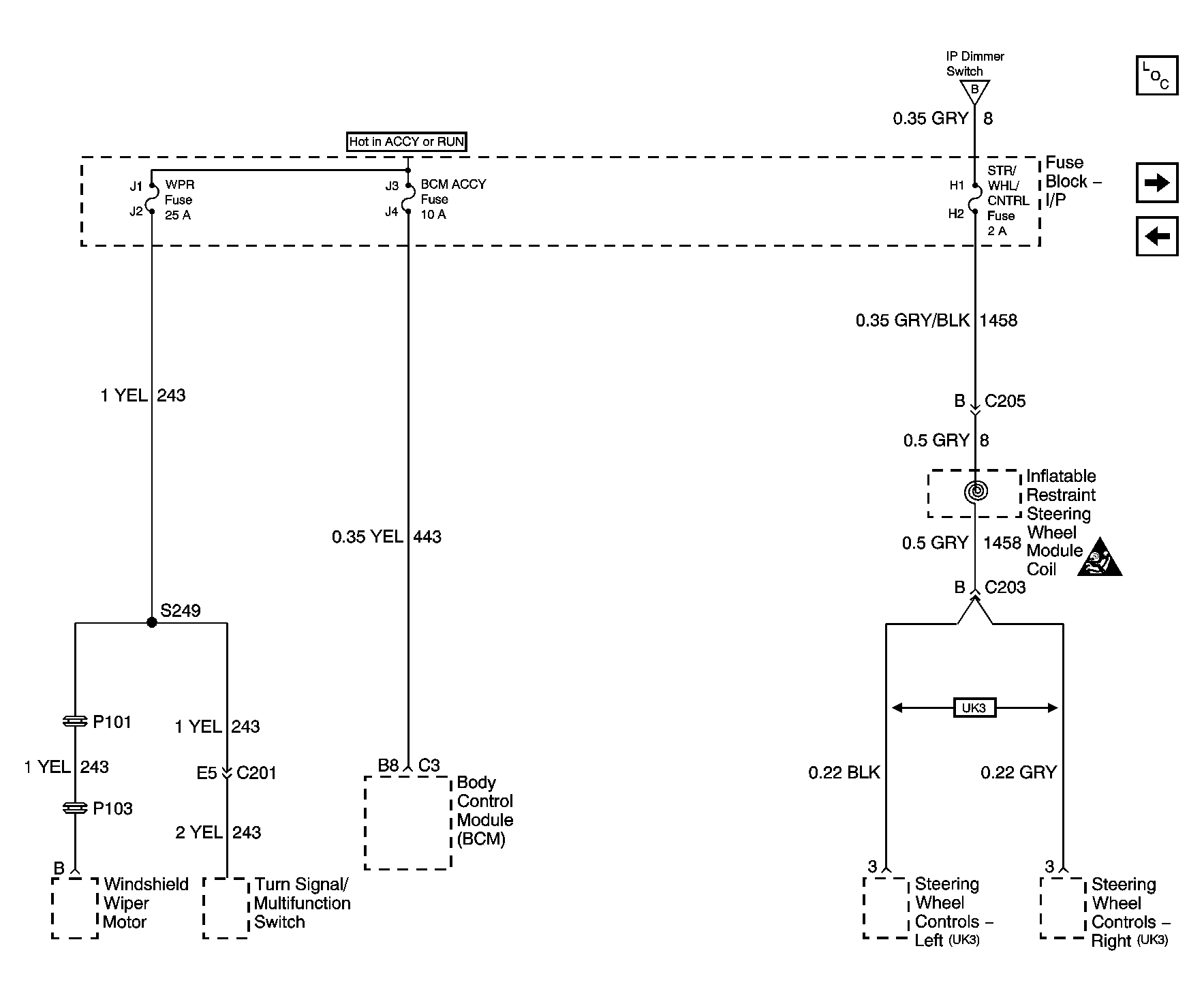

Fig 16: Fuse Block Schematic - I/P WPR, BCM ACCY, & STR/WHL/CNTRL Fuses

Courtesy of GENERAL MOTORS CORP.

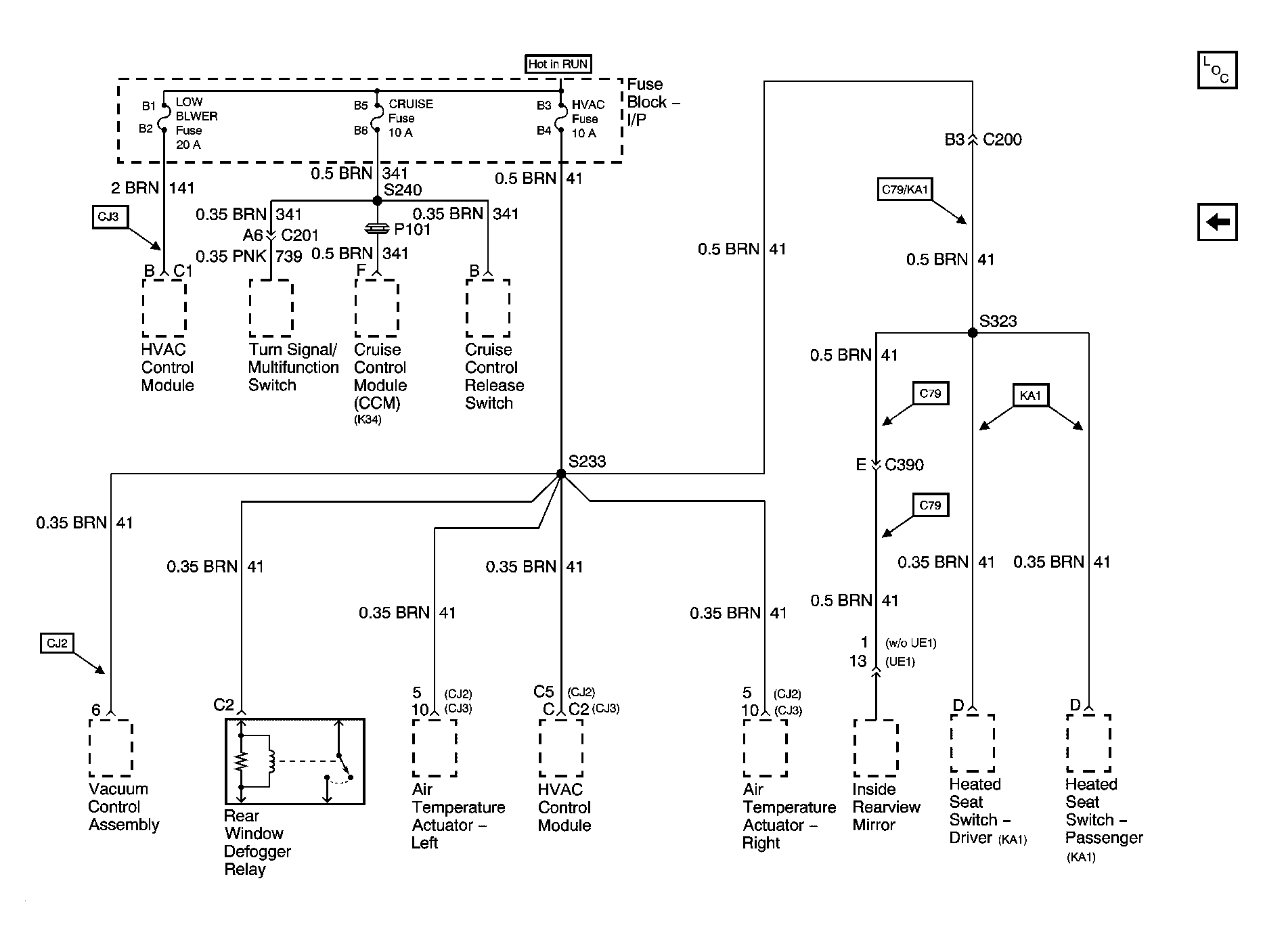

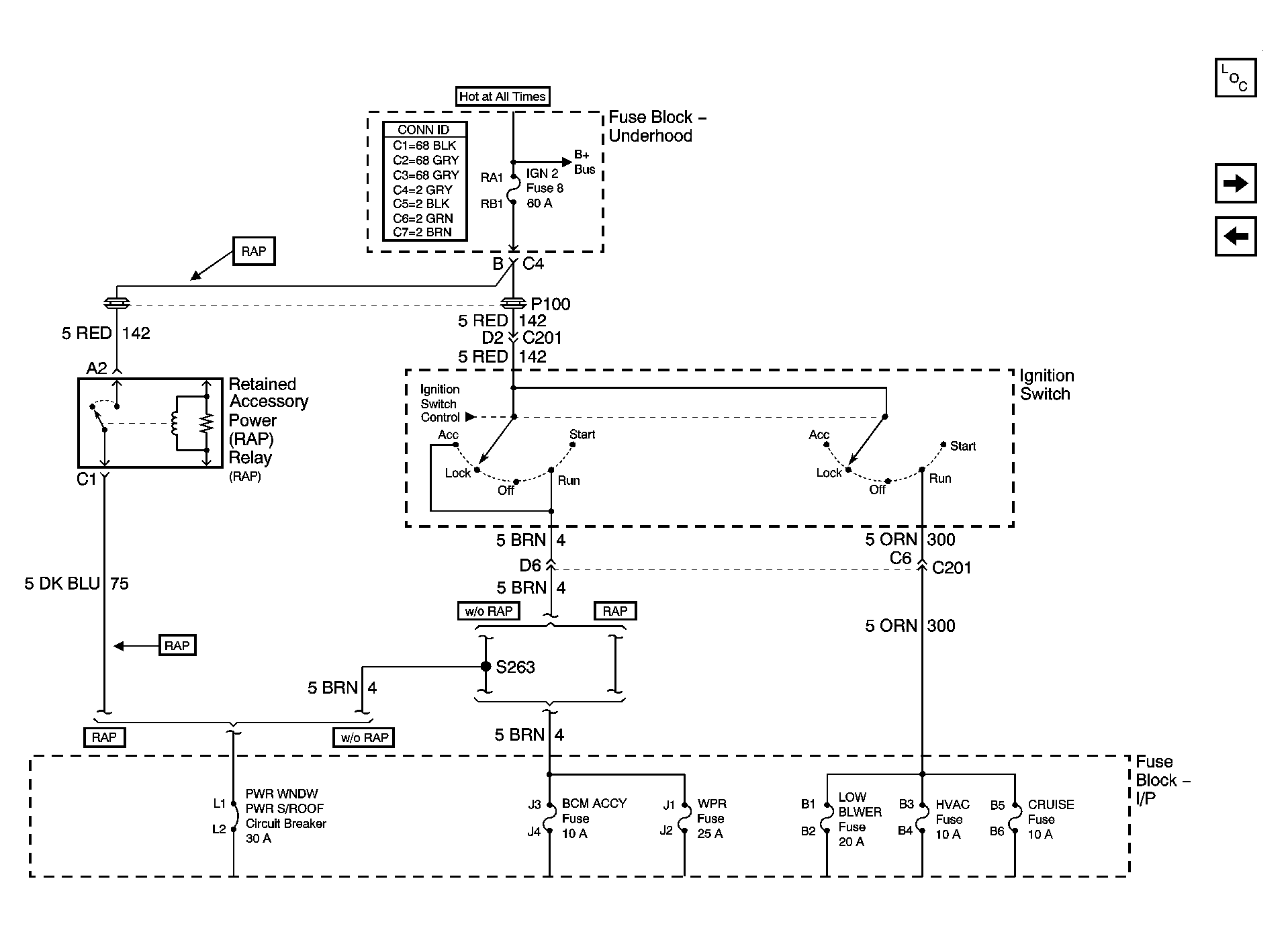

Fig 17: Fuse Block Schematic - I/P LOW BLWER, CRUISE, & HVAC Fuses

Courtesy of GENERAL MOTORS CORP.
