Installation Procedure

    Fig 1: Fuse Block & Wires
    GM820271Courtesy of GENERAL MOTORS CORP.
  1. Install the wires to the fuse block. Refer to Electrical Center Identification Views .
  2. Install the fuses and the relays to the fuse block. Refer to Electrical Center Identification Views .

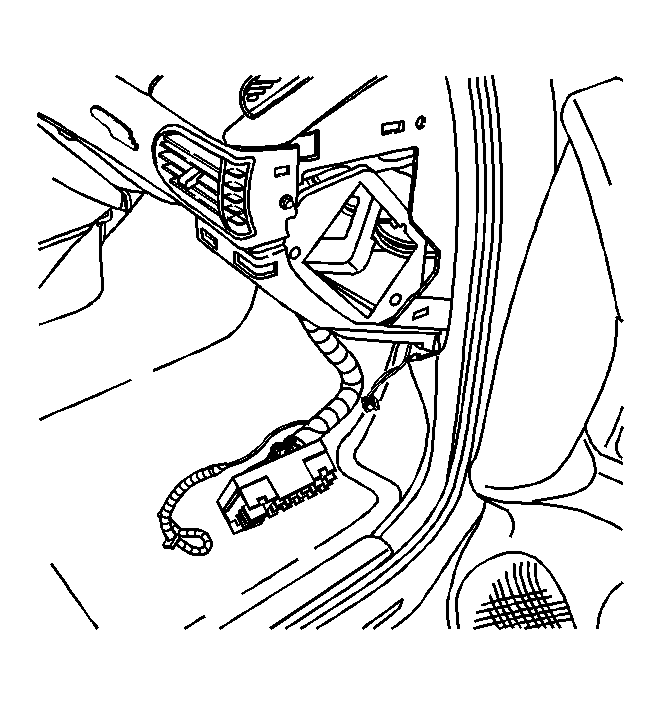

    3. Fig 2: Fuse Block, Fuse Block Bracket & Body Wiring Harness
    GM820273Courtesy of GENERAL MOTORS CORP.
  3. Position the fuse block to the I/P. Install the fuse block to the fuse block bracket on the body wiring harness.
    4. Fig 3: Wiring Harness Retainer & Passenger Knee Bolster Bracket
    GM820270Courtesy of GENERAL MOTORS CORP.
  4. Install the wiring harness retainer (1) to the passenger knee bolster bracket (2).
    5. Fig 4: Lamp Harness Retainer & Passenger Knee Bolster Bracket
    GM820269Courtesy of GENERAL MOTORS CORP.
  5. Install the lamp harness retainer (1) to the passenger knee bolster bracket (2).

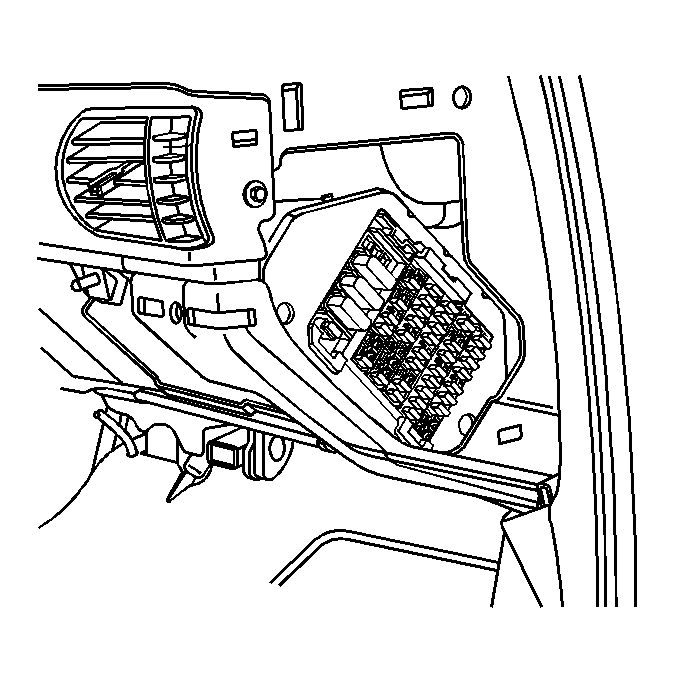

    6. Fig 5: Instrument Panel Fuse Block
    GM820266Courtesy of GENERAL MOTORS CORP.
  6. Install the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages, and Console.
  7. Install the right I/P insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages, and Console.
  8. Install the access hole cover to the I/P fuse block.
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
