Inline Harness Connector End Views

C101 Engine Harness To I/P Connector End View

GM68791Courtesy of GENERAL MOTORS CORP.
GM768083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160280
  • 20-Way F Micro-Pack 100W Series Sealed (GRY)
 Connector Part Information
  • 12160542
  • 20-Way M Micro-Pack 100W Series Sealed (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 85 Cruise Control Engaged Signal A WHT 85 Cruise Control Engaged Signal
B - - Not Used B - - Not Used
C PPL 420 TCC Brake Switch/Cruise Control Release Signal C PPL 420 TCC Brake Switch/Cruise Control Release Signal
D - - Not Used D - - Not Used
E WHT 17 Stop Lamp Switch Signal (JL9/JM4) E WHT 17 Stop Lamp Switch Signal
F DK GRN 83 Cruise Control Inhibit Signal F DK GRN 83 Cruise Control Inhibit Signal
G DK GRN/
WHT		 817 Vehicle Speed Signal G DK GRN/
WHT		 817 Vehicle Speed Signal
H BLK 452 Low Reference H BLK 452 Low Reference
J DK GRN 890 Fuel Tank Pressure Sensor Signal J DK GRN 890 Fuel Tank Pressure Sensor Signal
K GRY 474 5-Volt Reference K GRY 474 5-Volt Reference
L BLK 884 Left Rear Wheel Speed Sensor Signal (JL9/JM4) L BLK 884 Left Rear Wheel Speed Sensor Signal
M RED 885 Left Rear Wheel Speed Sensor Low Reference (JL9/JM4) M RED 885 Left Rear Wheel Speed Sensor Low Reference
N BRN 882 Right Rear Wheel Speed Sensor Signal (JL9/JM4) N BRN 882 Right Rear Wheel Speed Sensor Signal
P WHT 883 Right Rear Wheel Speed Sensor Low Reference (JL9/JM4) P WHT 883 Right Rear Wheel Speed Sensor Low Reference
R LT BLU 1122 ABS/TCS Class 2 Serial Data (JL9/JM4) R LT BLU 1122 ABS/TCS Class 2 Serial Data
S DK GRN 1049 PCM Class 2 Serial Data S DK GRN 1049 PCM Class 2 Serial Data
T - - Not Used T - - Not Used
U DK GRN/
WHT		 762 A/C Request Signal U DK GRN/
WHT		 762 A/C Request Signal (CJ3)
V BRN/WHT 419 MIL Control V BRN/WHT 419 MIL Control
W PPL 1589 Fuel Level Sensor Signal W PPL 1589 Fuel Level Sensor Signal

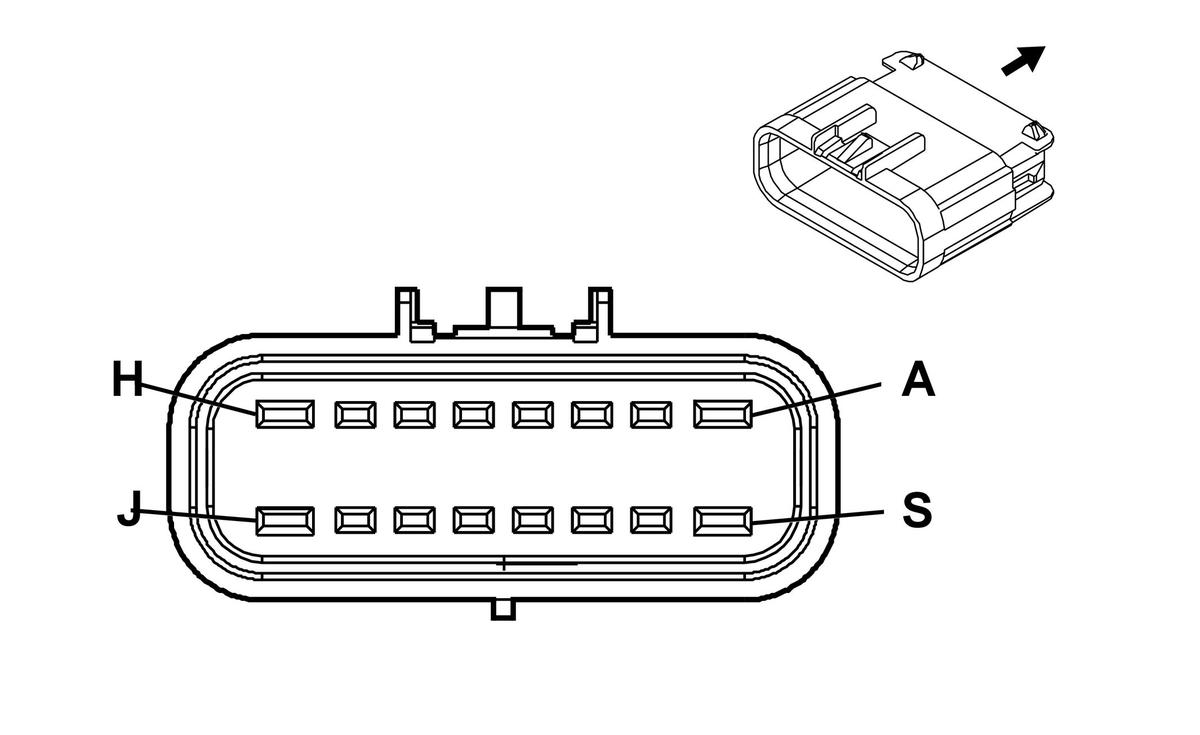

C102 Engine Harness To Fuel Injector Connector End View (LG8)

GM655811Courtesy of GENERAL MOTORS CORP.
GM655813Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326084
  • 16-Way F GT Mixed Series Sealed (BLK)
 Connector Part Information
  • 15326085
  • 16-Way M GT Mixed Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 639 Ignition 1 Voltage A PNK 639 Ignition 1 Voltage
B YEL 410 ECT Sensor Signal B YEL 410 ECT Sensor Signal
C BLK 1744 Fuel Injection 1 Control C BLK 1744 Fuel Injection 1 Control
D LT GRN/BLK 1745 Fuel Injection 2 Control D LT GRN/BLK 1745 Fuel Injection 2 Control
E PNK/BLK 1746 Fuel Injection 3 Control E PNK/BLK 1746 Fuel Injection 3 Control
F LT BLU/
BLK		 844 Fuel Injection 4 Control F LT BLU/
BLK		 844 Fuel Injection 4 Control
G BLK/WHT 845 Fuel Injection 5 Control G BLK/WHT 845 Fuel Injection 5 Control
H YEL/BLK 846 Fuel Injection 6 Control H YEL/BLK 846 Fuel Injection 6 Control
J - - Not Used J - - Not Used
K GRY 2704 5-Volt Reference K GRY 2704 5-Volt Reference
L ORN/BLK 469 Low Reference L ORN/BLK 469 Low Reference
M LT GRN 432 MAP Sensor Signal M LT GRN 432 MAP Sensor Signal
N RED/WHT 812 12-Volt Reference N RED/WHT 812 12-Volt Reference
P BLK 407 Low Reference P BLK 407 Low Reference
R BRN/WHT 633 CMP Sensor Signal R BRN/WHT 633 CMP Sensor Signal
S - - Not Used S - - Not Used
C103 Forward Lamp Harness To Horn Connector End View (Early Production)

GM1273820Courtesy of GENERAL MOTORS CORP.
GM1306954Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355226
  • 2-Way F Metri-Pack 150 Tangless Series Sealed (BLK)
 Connector Part Information
  • 257008 (FIAMM)
  • 2-Way M USCar Sealed Upper Connector Wire Jumper (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1350 Ground 1 BLK - Ground
B DK GRN 29 Horn Control 2 BLK - Horn Control
C103 Forward Lamp Harness To Horn Connector End View (Late Production)

GM1273820Courtesy of GENERAL MOTORS CORP.
GM1243454Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355226
  • 2-Way F Metri-Pack 150 Tangless Series Sealed (BLK)
 Connector Part Information
  • 257154 (FIAMM)
  • 2-Way M Sealed Dual Connector (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1350 Ground A BLK - Ground
B DK GRN 29 Horn Control B BLK - Horn Control
C105 Engine Harness To Engine Cooling Fan Connector End View

GM697053Courtesy of GENERAL MOTORS CORP.
GM655689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129565
  • 4-Way F Metri-Pack 280 Series Sealed (GRY)
 Connector Part Information
  • 12129600
  • 4-Way M Metri-Pack 280 Series Sealed (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GRY 532 Cooling Fan Low Reference A GRY 532 Cooling Fan Low Reference
B LT BLU 409 Cooling Fan Motor Supply Voltage B LT BLU 409 Cooling Fan Motor Supply Voltage
C BLK 1050 Ground C BLK 1050 Ground
D WHT 504 Cooling Fan Motor Supply Voltage D WHT 504 Cooling Fan Motor Supply Voltage
C106 Forward Lamp Harness To Headlamp Connector End View - Left

GM666638Courtesy of GENERAL MOTORS CORP.
GM1232378Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12177081
  • 10-Way F GT 150 Series, Sealed 5.2 (BLK)
 Connector Part Information
  • 54533440 (Automotive Lighting UK LTD)
  • 10-Way M Bulkhead (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1350 Ground A BLK - Ground
B BRN 9 Park Lamp Supply Voltage B WHT - Park Lamp Supply Voltage
C - - Not Used C - - Not Used
D LT BLU 14 Left Turn Signal Lamps Supply Voltage D WHT/BLU - Left Turn Signal Lamps Supply Voltage
E BRN 9 Park Lamp Supply Voltage E PPL - Park Lamp Supply Voltage
F ORN 1640 Battery Positive Voltage F GRN - Battery Positive Voltage
G PNK 1200 Headlamp High Beam Signal G YEL - Headlamp High Beam Signal
H ORN/BLK 1640 Battery Positive Voltage H RED - Battery Positive Voltage
J DK BLU 1201 Headlamp Low Beam Signal J BLU - Headlamp Low Beam Signal
K ORN 57 Left Cornering Lamp Supply Voltage K ORN - Left Cornering Lamp Supply Voltage
C107 Forward Lamp Harness To Headlamp Connector End View - Right

GM666638Courtesy of GENERAL MOTORS CORP.
GM1232378Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12177081
  • 10-Way F GT 150 Series, Sealed 5.2 (BLK)
 Connector Part Information
  • 54533440 (Automotive Lighting UK LTD)
  • 10-Way M Bulkhead (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1350 Ground A BLK - Ground
B BRN 9 Park Lamp Supply Voltage B WHT - Park Lamp Supply Voltage
C - - Not Used C - - Not Used
D DK BLU 15 Right Turn Signal Lamps Supply Voltage D WHT/BLU - Right Turn Signal Lamps Supply Voltage
E BRN/WHT 9 Park Lamp Supply Voltage E PPL - Park Lamp Supply Voltage
F ORN 1740 Battery Positive Voltage F GRN - Battery Positive Voltage
G PNK/BLK 1200 Headlamp High Beam Signal G YEL - Headlamp High Beam Signal
H ORN/BLK 1740 Battery Positive Voltage H RED - Battery Positive Voltage
J DK BLU/WHT 1201 Headlamp Low Beam Signal J BLU - Headlamp Low Beam Signal
K BLK 58 Right Cornering Lamp Supply Voltage K ORN - Right Cornering Lamp Supply Voltage
C110 Engine Harness To ICM Harness Connector End View (L36/L67)

GM524196Courtesy of GENERAL MOTORS CORP.
GM365940Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047937
  • 8-Way F Metri-Pack 150 Series Sealed (BLK)
 Connector Part Information
  • 12047931
  • 8-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 423 IC Timing Control A WHT 423 IC Timing Control
B TAN/BLK 424 IC Timing Signal B TAN/BLK 424 IC Timing Signal
C LT BLU/
BLK		 647 Medium Resolution Engine Speed Signal C LT BLU/
BLK		 647 Medium Resolution Engine Speed Signal
D PPL/WHT 430 Low Resolution Engine Speed Signal D PPL/WHT 430 Low Resolution Engine Speed Signal
E - - Not Used E WHT 121 Engine Speed Signal
F BLK 630 Camshaft Position Signal F BLK 630 Camshaft Position Signal
G RED/BLK 453 Low Reference G RED/BLK 453 Low Reference
H PNK 239 Ignition 1 Voltage H PNK 239 Ignition 1 Voltage
C113 Engine Harness To Transmission Harness Connector End View (Early Production)

GM876793Courtesy of GENERAL MOTORS CORP.
GM1361998Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Asm 15305235

    Connector 12160280

    Cable Seal 15305234

  • 20-Way F Micro-Pack 100W Series (GRY)
 Connector Part Information
  • 15443073
  • 20-Way M Micro-Pack 100W Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN 1222 1-2 Shift Solenoid Valve Control A LT GRN 1222 1-2 Shift Solenoid Valve Control
B YEL/BLK 1223 2-3 Shift Solenoid Valve Control B YEL 1223 2-3 Shift Solenoid Valve Control
C RED/BLK 1228 PC Solenoid Valve High Control C PPL 1228 PC Solenoid Valve High Control
D LT BLU/WHT 1229 PC Solenoid Valve Low Control D LT BLU 1229 PC Solenoid Valve Low Control
E PNK 1039 Ignition 1 Voltage E RED 839 Ignition 1 Voltage
F BLK/WHT 771 Transmission Range Signal A F DK GRN/WHT 771 Transmission Range Signal A
G YEL 772 Transmission Range Signal B G RED/BLK 772 Transmission Range Signal B
H GRY 773 Transmission Range Signal C H YEL/BLK 773 Transmission Range Signal C
J WHT 776 Transmission Range Signal P J WHT 776 Transmission Range Signal P
K BLK/WHT 451 Ground K BLK/WHT 1050 Ground
L YEL/BLK 1227 TFT Sensor Signal L BRN 1227 TFT Sensor Signal
M BLK 2762 Low Reference M GRY 452 Low Reference
N-R - - Not Used N-R - - Not Used
S RED/BLK 1230 A/T ISS High Signal S BLK 1230 A/T ISS High Signal
T BRN 418 TCC PWM Solenoid Valve Control T TAN 418 TCC PWM Solenoid Valve Control
U YEL 657 TCC Release Switch Signal U WHT 1804 TCC Release Switch Signal
V DK BLU/WHT 1231 A/T ISS Low Signal V DK GRN 1231 A/T ISS Low Signal
W - - Not Used W - - Not Used
C113 Engine Harness To Transmission Harness Connector End View (Late Production)

GM1361996Courtesy of GENERAL MOTORS CORP.
GM1363298Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Asm 15444376

    Connector 15443074

    Cable Seal 15305234

  • 20-Way F Micro-Pack 100W Series (BLK)
 Connector Part Information
  • 15409446
  • 20-Way M Micro-Pack 100W Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN 1222 1-2 Shift Solenoid Valve Control A LT GRN 1222 1-2 Shift Solenoid Valve Control
B YEL/BLK 1223 2-3 Shift Solenoid Valve Control B YEL 1223 2-3 Shift Solenoid Valve Control
C RED/BLK 1228 PC Solenoid Valve High Control C PPL 1228 PC Solenoid Valve High Control
D LT BLU/WHT 1229 PC Solenoid Valve Low Control D LT BLU 1229 PC Solenoid Valve Low Control
E PNK 1039 Ignition 1 Voltage E RED 839 Ignition 1 Voltage
F BLK/WHT 771 Transmission Range Signal A F DK GRN/WHT 771 Transmission Range Signal A
G YEL 772 Transmission Range Signal B G RED/BLK 772 Transmission Range Signal B
H GRY 773 Transmission Range Signal C H YEL/BLK 773 Transmission Range Signal C
J WHT 776 Transmission Range Signal P J WHT 776 Transmission Range Signal P
K BLK/WHT 451 Ground K BLK/WHT 1050 Ground
L YEL/BLK 1227 TFT Sensor Signal L BRN 1227 TFT Sensor Signal
M BLK 2762 Low Reference M GRY 452 Low Reference
N-R - - Not Used N-R - - Not Used
S RED/BLK 1230 A/T ISS High Signal S BLK 1230 A/T ISS High Signal
T BRN 418 TCC PWM Solenoid Valve Control T TAN 418 TCC PWM Solenoid Valve Control
U YEL 657 TCC Release Switch Signal U WHT 1804 TCC Release Switch Signal
V DK BLU/WHT 1231 A/T ISS Low Signal V DK GRN 1231 A/T ISS Low Signal
W - - Not Used W ORN 1786 Park/Neutral Signal
C120 I/P Harness To Forward Lamp Harness Connector End View (CJ2)

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series Sealed (GRY)
 Connector Part Information
  • 12162343
  • 2-Way M Metri-Pack 150 Series Sealed (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 61 Low Reference A YEL 61 Low Reference
B LT GRN/
BLK		 735 Ambient Air Temperature Sensor Signal B LT GRN/
BLK		 735 Ambient Air Temperature Sensor Signal

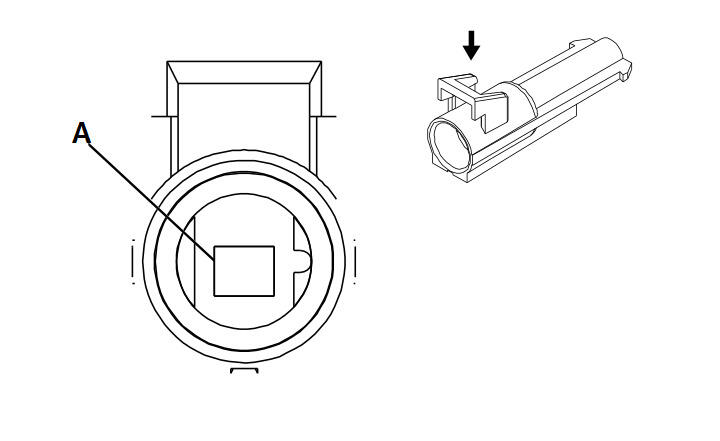

C125 Engine Harness To Knock Sensor 2 Connector End View (L36/L67)

GM696940Courtesy of GENERAL MOTORS CORP.
GM795617Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065172
  • 1-Way F Metri-Pack 280 Series, Sealed (BLK)
 Connector Part Information
  • 12146314
  • 1-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT BLU 1876 Knock Sensor 2 Signal A DK BLU 1876 Knock Sensor 2 Signal
C126 ECT Harness To Engine Harness Connector End View (L36/L67)

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series, Sealed (GRY)
 Connector Part Information
  • 12162343
  • 2-Way M Metri-Pack 150 Series, Sealed (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 470 Low Reference A ORN/BLK 469 Low Reference
B YEL 410 ECT Sensor Signal B YEL 410 ECT Sensor Signal
C200 I/P Harness To Body Harness Connector End View

GM906515Courtesy of GENERAL MOTORS CORP.
GM756105Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324761
  • 56-Way F Metri-Pack Mixed Series (BLK)
 Connector Part Information
  • 12186730
  • 56-Way M Metri-Pack Mixed Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 ORN 1240 Battery Positive Voltage A1 ORN/BLK 1240 Battery Positive Voltage (UE1)
A2 GRY 120 Accessory Voltage A2 GRY 120 Accessory Voltage
A3 PPL 293 Rear Defogger Element Supply Voltage A3 PPL 293 Rear Defogger Element Supply Voltage
A4 GRY 8 Instrument Panel Lamps Dimmer Switch Signal A4 GRY 8 Instrument Panel Lamps Dimmer Switch Signal
GRY 8 Instrument Panel Lamps Dimmer Switch Signal (W/O KA1)
B1 ORN 340 Battery Positive Voltage B1 ORN 340 Battery Positive Voltage
B2 PNK 314 Radio On Signal (Late Production) B2 PNK 314 Radio On Signal (Late Production)
B3 BRN 41 Ignition 3 Voltage B3 BRN 41 Ignition 3 Voltage (C79/KA1)
B4 PPL 1589 Fuel Level Sensor Signal B4 PPL 1589 Fuel Level Sensor Signal
C1 DK BLU 546 Right Rear Low Level Audio Signal (+) (U85, UQ3/UX7 w/UK3) C1 DK BLU 546 Right Rear Low Level Audio Signal (+) (U85)
C1 DK BLU 46 Right Rear Speaker Output (+) (UQ3/UX7 w/o UK3) C1 DK BLU 46 Right Rear Speaker Output (+) (UQ3/UX7)
C2 LT GRN/WHT 1948 Right Front Low Level Audio Signal (-) (U85, UQ3/UX7 w/UK3) C2 LT GRN/WHT 1948 Right Front Low Level Audio Signal (-) (U85)
C2 DK GRN 117 Right Front Speaker Output (-) (UQ3/UX7 w/o UK3) C2 DK GRN 117 Right Front Speaker Output (-) (UQ3/UX7)
C3 BLK 1946 Right Rear Low Level Audio Signal (-) (U85, UQ3/UX7 w/UK3) C3 BLK 1946 Right Rear Low Level Audio Signal (-) (U85)
C3 LT BLU 115 Right Rear Speaker Output (-) (UQ3/UX7 w/o UK3) C3 LT BLU 115 Right Rear Speaker Output (-) (UQ3/UX7)
C4 DK GRN 1947 Left Front Low Level Audio Signal (-) (U85, UQ3/UX7 w/UK3) C4 DK GRN 1947 Left Front Low Level Audio Signal (-) (U85)
C4 GRY 118 Left Front Speaker Output (-) (UQ3/UX7 w/o UK3) C4 GRY 118 Left Front Speaker Output (-) (UQ3/UX7)
D1 PPL 2232 Amplifier Present Signal (U85, UQ3/UX7 w/UK3) D1 PPL 2232 Amplifier Present Signal (U85)
D2 TAN 511 Left Front Low Level Audio Signal (+) (U85, UQ3/UX7 w/UK3) D2 TAN 511 Left Front Low Level Audio Signal (+) (U85)
D2 TAN 201 Left Front Speaker Output (+) (UQ3/UX7 w/o UK3) D2 TAN 201 Left Front Speaker Output (+) (UQ3/UX7)
D3 LT GRN 512 Right Front Low Level Audio Signal (+) (U85, UQ3/UX7 w/UK3) D3 LT GRN 512 Right Front Low Level Audio Signal (+) (U85)
D3 LT GRN 200 Right Front Speaker Output (+) (UQ3/UX7 w/o UK3) D3 LT GRN 200 Right Front Speaker Output (+) (UQ3/UX7)
E1 BRN 882 Right Rear Wheel Speed Sensor Signal E1 BRN 882 Right Rear Wheel Speed Sensor Signal
E2 WHT 883 Right Rear Wheel Speed Sensor Low Reference E2 WHT 883 Right Rear Wheel Speed Sensor Low Reference
E3 BLK 884 Left Rear Wheel Speed Sensor Signal E3 BLK 884 Left Rear Wheel Speed Sensor Signal
E4 RED 885 Left Rear Wheel Speed Sensor Low Reference E4 RED 885 Left Rear Wheel Speed Sensor Low Reference
F1 TAN 694 Driver Door Lock Actuator Unlock Control F1 TAN 694 Driver Door Lock Actuator Unlock Control
F2 - - Not Used F2 - - Not Used
F3 BLK 452 Low Reference F3 BLK 452 Low Reference
F4 DK GRN 890 Fuel Tank Pressure Sensor Signal F4 DK GRN 890 Fuel Tank Pressure Sensor Signal
G1 BLK/WHT 56 Trunk Release Motor Supply Voltage G1 BLK/WHT 56 Trunk Release Motor Supply Voltage
G2 LT GRN/BLK 1098 VCM Class 2 Serial Data G2 LT GRN/BLK 1098 VCM Class 2 Serial Data
G3 DK BLU/
WHT		 727 Secondary Door Latch Switch Signal G3 DK BLU/
WHT		 727 Secondary Door Latch Switch Signal
G4 WHT 156 Courtesy Lamp Switch Signal G4 WHT 156 Courtesy Lamp Switch Signal
G5 ORN/BLK 737 Trunk Ajar Switch Signal G5 ORN/BLK 737 Trunk Ajar Switch Signal
H6 - - Not Used H6 - - Not Used
H7 BLK/WHT 351 Ground H7 BLK/WHT 351 Ground (U77)
BLK/WHT 351 Ground
H8 YEL 143 Accessory Voltage H8 YEL 143 Accessory Voltage
H9 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage H9 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
J6 BLK/WHT 238 Seat Belt Switch - Left J6 BLK/WHT 238 Seat Belt Switch - Left
J7 ORN 1732 Courtesy Lamps Supply Voltage J7 ORN 1732 Courtesy Lamps Supply Voltage
J8 DK BLU 49 Driver Door Open Switch Signal J8 DK BLU 49 Driver Door Open Switch Signal
J9 RED/BLK 780 Driver Door Lock Switch Lock Signal J9 RED/BLK 780 Driver Door Lock Switch Lock Signal
RED/BLK 780 Driver Door Lock Switch Lock Signal
K6 ORN/BLK 781 Driver Door Lock Switch Unlock Signal K6 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
ORN/BLK 781 Driver Door Lock Switch Unlock Signal
K7 BARE 814 Drain Wire K7 BARE 814 Drain Wire (UE1)
K8 BLK/WHT 372 Remote Radio Audio Output (-) K8 BLK/WHT 372 Remote Radio Audio Output (-) (UE1)
K9 WHT 17 Stop Lamp Switch Signal K9 WHT 17 Stop Lamp Switch Signal
L6 PNK 339 Ignition 1 Voltage L6 PNK 339 Ignition 1 Voltage
L7 ORN 1140 Battery Positive Voltage L7 ORN 1140 Battery Positive Voltage
L8 BRN/WHT 367 Remote Radio Left Audio Signal L8 BRN/WHT 367 Remote Radio Left Audio Signal (UE1)
M6 LT GRN 24 Backup Lamp Supply Voltage M6 LT GRN 24 Backup Lamp Supply Voltage
M7 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage M7 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
M8 WHT 1310 EVAP Canister Vent Solenoid Valve Control M8 WHT 1310 EVAP Canister Vent Solenoid Valve Control
M9 BRN 599 Left Rear Low Level Audio Signal (+) (U85, UQ3/UX7 w/UK3) M9 BRN 599 Left Rear Low Level Audio Signal (+) (U85)
M9 BRN 199 Left Rear Speaker Output (+) (UQ3/UX7 w/o UK3) M9 BRN 199 Left Rear Speaker Output (+) (UQ3/UX7)
N6 TAN 294 Door Lock Actuator Unlock Control N6 TAN 294 Door Lock Actuator Unlock Control
N7 GRY 295 Door Lock Actuator Lock Control N7 GRY 295 Door Lock Actuator Lock Control
N8 BRN/WHT 1999 Left Rear Low Level Audio Signal (-) (U85,UQ3/UX7 w/UK3) N8 BRN/WHT 1999 Left Rear Low Level Audio Signal (-) (U85)
N8 YEL 116 Left Rear Speaker Output (-) (UQ3/UX7 w/o UK3) N8 YEL 116 Left Rear Speaker Output (-) (UQ3/UX7)
N9 BRN/WHT 301 Park Lamp Switch ON Signal N9 BRN/WHT 301 Park Lamp Switch ON Signal
P6 ORN 1440 Battery Positive Voltage (Regal) P6 ORN 1440 Battery Positive Voltage (KA1)
P7 ORN 2940 Battery Positive Voltage (U85) P7 ORN 2940 Battery Positive Voltage (U85)
P8 ORN 1940 Battery Positive Voltage (Regal) P8 ORN 1940 Battery Positive Voltage (KA1)
P9 GRY 474 5-Volt Reference P9 GRY 474 5-Volt Reference
P10 DK GRN 145 Antenna Relay Coil Supply Voltage P10 DK GRN 145 Antenna Relay Coil Supply Voltage (U77)

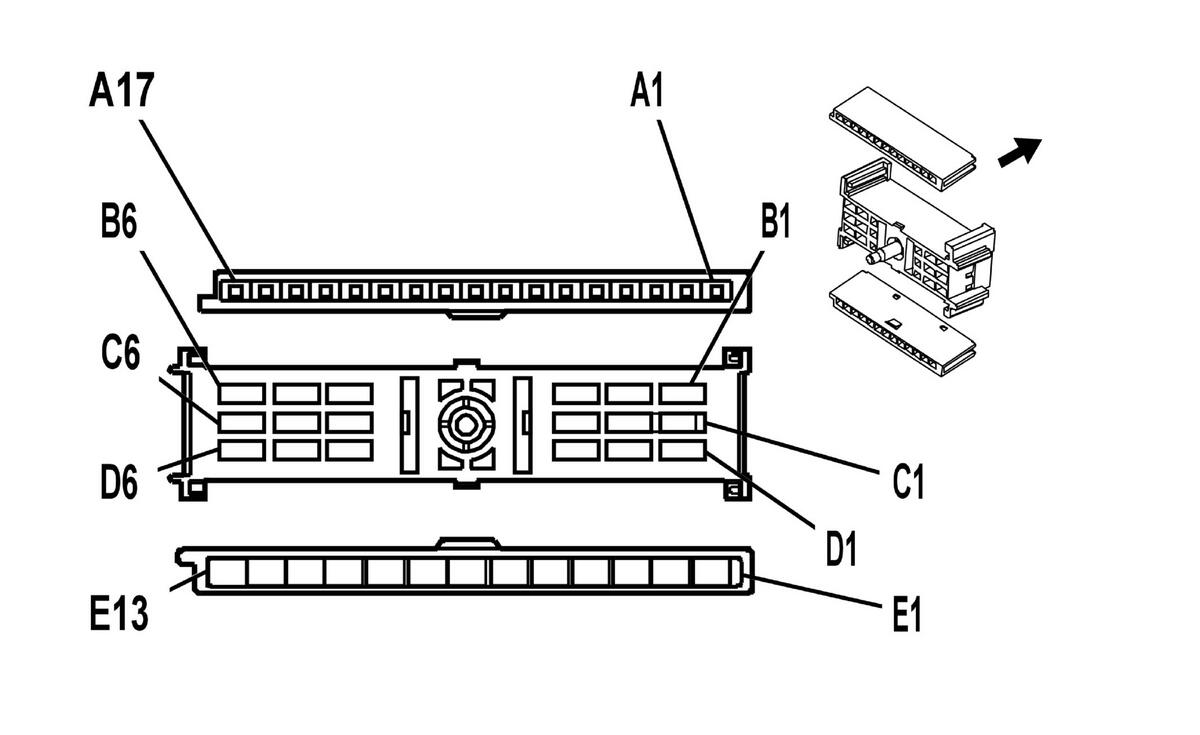

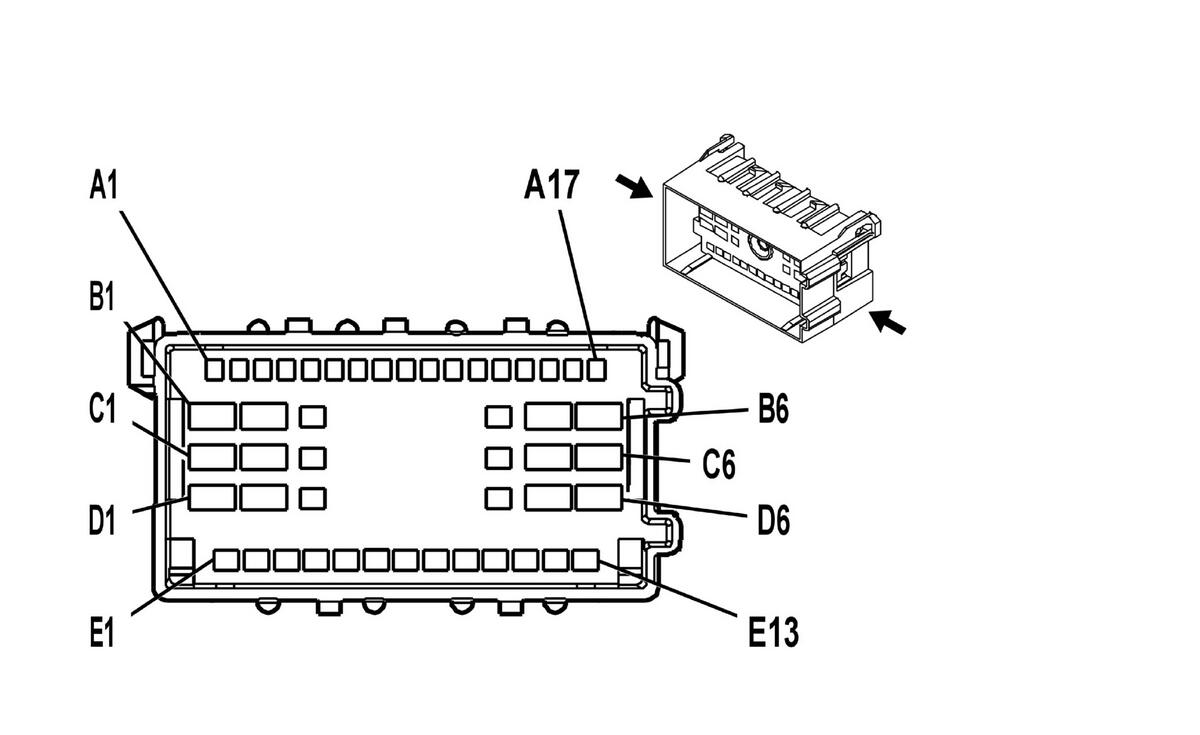

C201 Steering Column Harness To I/P Connector End View

GM794237Courtesy of GENERAL MOTORS CORP.
GM510556Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047840
  • 13-Way F Metri-Pack 280 Series (GRY)
  • 12084183
  • 18-Way F Metri-Pack Mixed Series (BLK)
  • 12047842
  • 17-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12077822
  • 48-Way M Metri-Pack Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PNK 1200 Headlamp High Beam Signal A1 PNK 1200 Headlamp High Beam Signal
A2 DK BLU 1201 Headlamp Low Beam Signal A2 DK BLU 1201 Headlamp Low Beam Signal
A3 YEL 10 Headlamp Switch Signal A3 YEL 10 Headlamp Switch Signal
A4 BLK 1450 Ground A4 BLK 1750 Ground
A5 - - Not Used A5 - - Not Used
A6 PNK 739 Ignition 1 Voltage A6 BRN 341 Ignition 3 Voltage
A7 GRY/BLK 87 Cruise Resume/Accel Switch Signal A7 GRY/BLK 87 Cruise Resume/Accel Switch Signal
A8 DK BLU 84 Cruise Control SET/COAST Switch Signal A8 DK BLU 84 Cruise Control SET/COAST Switch Signal
A9 GRY 397 Cruise Control ON Switch Signal A9 GRY 397 Cruise Control ON Switch Signal
A10 BLK 150 Ground A10 ORN/BLK 434 Neutral Safety Switch Signal (Century)
A11 DK GRN/
WHT		 1135 AT Shift Lock Control Solenoid Supply Voltage A11 DK GRN/
WHT		 1135 AT Shift Lock Control Solenoid Supply Voltage (Century)
A12 DK BLU 1415 Right Turn Signal Switch Signal A12 DK BLU/
WHT		 1415 Right Turn Signal Switch Signal
A13 LT BLU 1414 Left Turn Signal Switch Signal A13 LT BLU/
WHT		 1414 Left Turn Signal Switch Signal
A14 ORN 57 Left Cornering Lamp Supply Voltage A14 ORN 57 Left Cornering Lamp Supply Voltage
A15 BLK 58 Right Cornering Lamp Supply Voltage A15 BLK 58 Right Cornering Lamp Supply Voltage
A16 - - Not Used A16 - - Not Used
A17 BLK 28 Horn Relay Control A17 BLK 28 Horn Relay Control
B1 - - Not Used B1-B2 - - Not Used
B2 BLK 150 Ground
B3 LT GRN 80 Key In Ignition Switch Signal B3 LT GRN 80 Key In Ignition Switch Signal
B4 TAN 159 Ground B4 BLK 1550 Ground
B5 TAN/WHT 33 Brake Warning Indicator Control B5-B6 - - Not Used
B6 - - Not Used
C1 WHT 1390 Ignition 0 Voltage C1 DK GRN 500 Ignition 0 Voltage
C2 BLK 150 Ground C2 BLK 1550 Ground
C3-C4 - - Not Used C3-C4 - - Not Used
C5 PNK 3 Ignition 1 Voltage C5 PNK 3 Ignition 1 Voltage
C6 ORN 300 Ignition 3 Voltage C6 ORN 300 Ignition 3 Voltage
D1 YEL 5 Crank Voltage D1 YEL 5 Crank Voltage
D2 RED 1342 Battery Positive Voltage D2 RED 142 Battery Positive Voltage
D3 WHT/BLK 987 Ignition Lock Cylinder Control Actuator Signal (Regal) D3 LT BLU 1134 Ignition Lock Cylinder Control Actuator Signal (Regal)
D4 BLK 150 Ground (Regal) D4 BLK 1450 Ground (Regal)
D5 RED/WHT 1442 Battery Positive Voltage D5 RED 42 Battery Positive Voltage
D6 BRN 4 Accessory Voltage D6 BRN 4 Accessory Voltage
E1 PPL 92 Windshield Wiper Motor High Speed E1 PPL 92 Windshield Wiper Motor High Speed
E2 GRY 112 Windshield Wiper Switch Signal 2 E2 GRY 112 Windshield Wiper Switch Signal 2
E3 DK GRN 113 Windshield Wiper Switch Signal 1 E3 DK GRN 113 Windshield Wiper Switch Signal 1
E4 RED 228 Windshield Washer Pump Control E4 RED 228 Windshield Washer Pump Control
E5 YEL 243 Accessory Voltage E5 YEL 243 Accessory Voltage
E6 ORN 1508 Turn/Hazard Module Supply Voltage E6 LT BLU 1508 Turn/Hazard Module Supply Voltage
E7 PNK 539 Ignition 1 Voltage E7 PNK 539 Ignition 1 Voltage
E8 LT BLU 1508 Turn/Hazard Module Supply Voltage E8 LT BLU 1508 Turn/Hazard Module Supply Voltage
E9 ORN 1840 Battery Positive Voltage E9 ORN 1840 Battery Positive Voltage
E10 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage E10 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
E11 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage E11 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
E12 WHT 17 Stop Lamp Switch Signal E12 WHT 17 Stop Lamp Switch Signal
E13 PPL 16 Turn Signal Flasher Signal E13 PPL 16 Turn Signal Flasher Signal
C203 Inflatable Restraint Steering Wheel Module Coil Harness To Steering Wheel Radio Control Connector End View (UK3)

GM287981Courtesy of GENERAL MOTORS CORP.
GM795620Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092162
  • 4-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12092163
  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 43 Accessory Voltage A GRY - Accessory Voltage
B GRY 8 Instrument Panel Lamps Dimmer Switch Signal B DK BLU - Instrument Panel Lamps Dimmer Switch Signal
DK BLU - Instrument Panel Lamps Dimmer Switch Signal
C LT GRN 1011 Remote Radio Control Signal C WHT - Remote Radio Control Signal
WHT - Remote Radio Control Signal
D BLK/WHT 152 Ground D RED - Ground
RED - Ground
C205 Redundant Radio Control Harness To I/P Connector End View (UK3)

GM287981Courtesy of GENERAL MOTORS CORP.
GM795620Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092162
  • 4-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • Assembly 12162471

    Connector 12092163

    Clip 12040678

  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 43 Accessory Voltage A PPL 2335 Steering Wheel Control Supply Voltage
B GRY 8 Instrument Panel Lamps Dimmer Switch Signal B GRY/BLK 1458 Instrument Panel Lamp Supply Voltage-4
C LT GRN 1011 Steering Wheel Controls Signal C DK BLU 1796 Steering Wheel Controls Signal
D BLK 152 Ground D BLK 1450 Ground
C207 Ignition Lock Cylinder To I/P Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 1073 Ignition Key Resistor Signal A WHT/BLK 1073 Ignition Key Resistor Signal
B WHT 1074 Ignition Key Resistor Low Reference B PPL/WHT 1074 Ignition Key Resistor Low Reference
C215 Driver SIR Coil Harness To I/P Connector End View

GM830927Courtesy of GENERAL MOTORS CORP.
GM130675Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077928
  • 2-Way F Metri-Pack 280.1 Series Pull To Seat (YEL)
 Connector Part Information
  • 12092851
  • 2-Way M Metri-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 347 Steering Wheel Module - High Control A WHT 347 Steering Wheel Module - High Control
B DK GRN 348 Steering Wheel Module - Low Control B DK GRN 348 Steering Wheel Module - Low Control
C216 Passenger SIR Coil Harness To I/P Connector End View

GM295469Courtesy of GENERAL MOTORS CORP.
GM827070Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110505
  • 2-Way F Metri-Pack 150 Series (YEL)
 Connector Part Information
  • 12110500
  • 2-Way M Metri-Pack 150 Series (YEL)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT/BLK 1403 I/P Module - High Control A WHT 1403 I/P Module - High Control
B DK GRN/
WHT		 1404 I/P Module - Low Control B DK GRN 1404 I/P Module - Low Control
C240 I/P Harness To Console Harness Connector End View (Regal)

GM62464Courtesy of GENERAL MOTORS CORP.
GM808703Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NAT)
 Connector Part Information
  • 12064770
  • 10-Way M Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamps Dimmer Switch Signal A GRY 8 Instrument Panel Lamps Dimmer Switch Signal
B - - Not Used B - - Not Used
C ORN 2540 Battery Positive Voltage C ORN 2540 Battery Positive Voltage
D-E - - Not Used D-E - - Not Used
F BRN/WHT 1571 Traction Control Switch Signal F BRN/WHT 1571 Traction Control Switch Signal
G - - Not Used G - - Not Used
H BLK 1550 Ground H BLK 1550 Ground
J BLK 1450 Ground J BLK 1450 Ground
K - - Not Used K - - Not Used
C242 I/P Harness To C/LTR Connector End View (Century)

GM333035Courtesy of GENERAL MOTORS CORP.
GM287973Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12124625 Connector Assembly

    Connector 12047782

    Clip 12041482

  • 3-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 2540 Battery Positive Voltage A ORN 40 Battery Positive Voltage
B BLK 1450 Ground B BLK 150 Ground
C GRY 8 Instrument Panel Lamps Dimmer Switch Signal (Early Production) C - - Not Used
C301 Left Front Door Harness To Body Connector End View

GM768086Courtesy of GENERAL MOTORS CORP.
GM768088Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15359287
  • 40-Way F GT 150, 280 Series (BLK)
 Connector Part Information
  • 15359284
  • 40-Way M GT 150, 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - Not Used A1 - - Not Used
A2 BLK 750 Ground A2 BLK/WHT 750 Ground
A3 YEL 143 Accessory Voltage A3 YEL 143 Accessory Voltage
A4 DK BLU 1307 Power Window Master Switch Lockout Signal A4 DK BLU 1307 Power Window Master Switch Lockout Signal
A5 PPL 169 Power Window Master Switch Left Rear Down Signal A5 PPL 169 Power Window Master Switch Left Rear Down Signal
A6 DK GRN 168 Power Window Master Switch Left Rear Up Signal A6 DK GRN 168 Power Window Master Switch Left Rear Up Signal
A7-A8 - - Not Used A7-A8 - - Not Used
B1 BLK 1856 Left Front Tweeter Speaker Output (+) B1 BLK 1856 Left Front Tweeter Speaker Output (+) (U85)
B2 GRY 118 Left Front Speaker Output (-) B2 GRY 118 Left Front Speaker Output (-)
B3 RED/BLK 780 Driver Door Lock Switch Lock Signal B3 RED/BLK 780 Driver Door Lock Switch Lock Signal
B4 DK BLU 727 Secondary Door Latch Switch Signal B4 DK BLU/
WHT		 727 Secondary Door Latch Switch Signal
B5-B7 - - Not Used B5-B7 - - Not Used
B8 ORN 1140 Battery Positive Voltage B8 ORN 1140 Battery Positive Voltage
B9 RED/WHT 881 Right Mirror Motor Right Control B9 RED/WHT 881 Right Mirror Motor Right Control
B10 GRY 8 Instrument Panel Lamp Supply Voltage-1 B10 GRY 8 Instrument Panel Lamp Supply Voltage-1
B11 TAN 694 Driver Door Lock Actuator Unlock Control B11 TAN 694 Driver Door Lock Actuator Unlock Control
B12 - - Not Used B12 - - Not Used
C1 YEL 1956 Left Front Tweeter Speaker Output (-) (U85) C1 YEL 1956 Left Front Tweeter Speaker Output (-) (U85)
C2 TAN 201 Left Front Speaker Output (+) C2 TAN 201 Left Front Speaker Output (+)
C3 ORN/BLK 781 Driver Door Lock Switch Unlock Signal C3 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
C4 DK BLU/
WHT		 49 Door Open Switch Signal C4 DK BLU 49 Door Open Switch Signal
C5-C7 - - Not Used C5-C7 - - Not Used
C8 BLK 750 Ground C8 BLK 750 Ground
C9 GRY/BLK 90 Right Mirror Motor Left Control C9 GRY 90 Right Mirror Motor Left Control
C10 PPL/WHT 889 Right Mirror Motor Down Control C10 PPL/WHT 889 Right Mirror Motor Down Control
C11 GRY 295 Door Lock Actuator Lock Control C11 GRY 295 Door Lock Actuator Lock Control
C12 - - Not Used C12 - - Not Used
D1-D2 - - Not Used D1-D2 - - Not Used
D3 LT GRN 170 Power Window Master Switch Right Rear Up Signal D3 LT GRN 170 Power Window Master Switch Right Rear Up Signal
D4 PPL 171 Power Window Master Switch Right Rear Down Signal D4 PPL 171 Power Window Master Switch Right Rear Down Signal
D5 LT BLU 166 Power Window Master Switch Right Front Up Signal D5 LT BLU 156 Power Window Master Switch Right Front Up Signal
D6 TAN 167 Power Window Master Switch Right Front Down Signal D6 TAN 167 Power Window Master Switch Right Front Down Signal
D7-D8 - - Not Used D7-D8 - - Not Used
C302 Right Front Door Harness To Body Connector End View

GM768086Courtesy of GENERAL MOTORS CORP.
GM768088Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15359287
  • 40-Way F GT 150, 280 Series (BLK)
 Connector Part Information
  • 15359284
  • 40-Way M GT 150, 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1-A3 - - Not Used A1-A3 - - Not Used
A4 DK BLU 1307 Power Window Master Switch Lockout Signal A4 DK BLU 1307 Power Window Master Switch Lockout Signal
A5-A8 - - Not Used A5-A8 - - Not Used
B1 LT GRN 1852 Right Front Tweeter Speaker Output (+) B1 LT GRN 1852 Right Front Tweeter Speaker Output (+) (U85)
B2 DK GRN 117 Right Front Speaker Output (-) B2 DK GRN 117 Right Front Speaker Output (-)
B3 RED/BLK 780 Driver Door Lock Switch Lock Signal B3 RED/BLK 780 Driver Door Lock Switch Lock Signal
B4 DK BLU/
WHT		 727 Secondary Door Latch Switch Signal B4 DK BLU/
WHT		 727 Secondary Door Latch Switch Signal
B5 - B8 - - Not Used B5 - B8 - - Not Used
B9 RED/WHT 881 Right Mirror Motor Right
Control		 B9 RED/WHT 881 Right Mirror Motor Right
Control
B10 GRY 8 Instrument Panel Lamp Supply Voltage-1 B10 GRY 8 Instrument Panel Lamp Supply Voltage-1
B11 TAN 294 Door Lock Actuator Unlock Control B11 TAN 294 Door Lock Actuator Unlock Control
B12 GRY 1690 Automatic Day/Night Mirror Signal (Early Production) B12 - - Not Used
C1 PPL 1952 Right Front Tweeter Speaker Output (-) C1 PPL 1952 Right Front Tweeter Speaker Output (-) (U85)
C2 LT GRN 200 Right Front Speaker Output (+) C2 LT GRN 200 Right Front Speaker Output (+)
C3 ORN/BLK 781 Driver Door Lock Switch Unlock Signal C3 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
C4-C7 - - Not Used C4-C7 - - Not Used
C8 BLK 750 Ground C8 BLK 750 Ground
C9 GRY 90 Right Mirror Motor Left Control C9 GRY 90 Right Mirror Motor Left Control
C10 PPL/WHT 889 Right Mirror Motor Down Control C10 PPL/WHT 889 Right Mirror Motor Down Control
C11 GRY 295 Door Lock Actuator Lock Control C11 GRY 295 Door Lock Actuator Lock Control
C12 PNK 1691 Automatic Day/Night Mirror Low Reference (Early Production) C12 - - Not Used
D1-D4 - - Not Used D1-D4 - - Not Used
D5 LT BLU 166 Power Window Master Switch Right Front Up Signal D5 LT BLU 166 Power Window Master Switch Right Front Up Signal
D6 TAN 167 Power Window Master Switch Right Front Down Signal D6 TAN 167 Power Window Master Switch Right Front Down Signal
D7-D8 - - Not Used D7-D8 - - Not Used
C311 Body Harness To Driver Power Seat Connector End View (AG1)

GM62456Courtesy of GENERAL MOTORS CORP.
GM39689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12064754
  • 6-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 340 Battery Positive Voltage A ORN 340 Battery Positive Voltage
B BLK 750 Ground B BLK 750 Ground
C ORN 1440 Battery Positive Voltage (KA1) C ORN 2040 Battery Positive Voltage (KA1)
D BLK/WHT 238 Seat Belt Switch-Left D BLK/WHT 238 Seat Belt Switch-Left
E LT BLU 1462 Heated Seat Switch Signal (KA1) E LT BLU 1462 Heated Seat Switch Signal (KA1)
F PNK 1501 Driver Heated Seat High/Low Signal (KA1) F PNK 1501 Driver Heated Seat High/Low Signal (KA1)
C312 Body Harness To Passenger Power Seat Connector End View (AG2)

GM62456Courtesy of GENERAL MOTORS CORP.
GM39689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12064754
  • 6-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 340 Battery Positive Voltage A ORN 340 Battery Positive Voltage
B BLK 750 Ground B BLK 750 Ground
C ORN 1940 Battery Positive Voltage (KA1) C ORN 2040 Battery Positive Voltage (KA1)
D - - Not Used D - - Not Used
E LT BLU/
BLK		 1505 Passenger Heated Seat Switch Signal (KA1) E LT BLU 1462 Passenger Heated Seat Switch Signal (KA1)
F PNK/BLK 1503 Passenger Heated Seat High/Low Signal (KA1) F PNK 1501 Passenger Heated Seat High/Low Signal (KA1)
C351 Body Harness To Left Rear Door Connector End View

GM866168Courtesy of GENERAL MOTORS CORP.
GM646210Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191371
  • 6-Way F Metri-Pack 280 Series (BLK)
  • 12191370
  • 4-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12191369
  • 6-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PPL 169 Power Window Master Switch Left A PPL 159 Power Window Master Switch Left
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C - - Not Used C - - Not Used
D DK BLU 1307 Power Window Master Switch Lockout Signal D DK BLU 1307 Power Window Master Switch Lockout Signal
E TAN 294 Door Lock Actuator Unlock Control E TAN 294 Door Lock Actuator Unlock Control
F DK GRN 168 Power Window Master Switch Left Rear Up Signal F DK GRN 168 Power Window Master Switch Left Rear Up Signal
G - - Not used G - - Not Used
H BLK 750 Ground H BLK 750 Ground
J DK BLU/
WHT		 727 Secondary Door Latch Signal J DK BLU/
WHT		 727 Secondary Door Latch Signal
K - - Not Used K - - Not Used
C352 Body Harness To Right Rear Door Connector End View

GM866168Courtesy of GENERAL MOTORS CORP.
GM646210Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191371
  • 6-Way F Metri-Pack 280 Series (BLK)
  • 12191370
  • 4-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12191369
  • 6-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PPL 171 Power Window Master Switch Right Rear Down Signal A PPL 171 Power Window Master Switch Right Rear Down Signal
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C - - Not Used C - - Not Used
D DK BLU 1307 Power Window Master Switch Lockout Signal D DK BLU 1307 Power Window Master Switch Lockout Signal
E TAN 294 Door Lock Actuator Unlock Control E TAN 294 Door Lock Actuator Unlock Control
F LT GRN 170 Power Window Master Switch Right Rear Up Signal F LT GRN 170 Power Window Master Switch Right Rear Up Signal
G - - Not Used G - - Not Used
H BLK 750 Ground H BLK 750 Ground
J DK BLU/
WHT		 727 Secondary Door Latch Signal J DK BLU/
WHT		 727 Secondary Door Latch Signal
K - - Not Used K - - Not Used

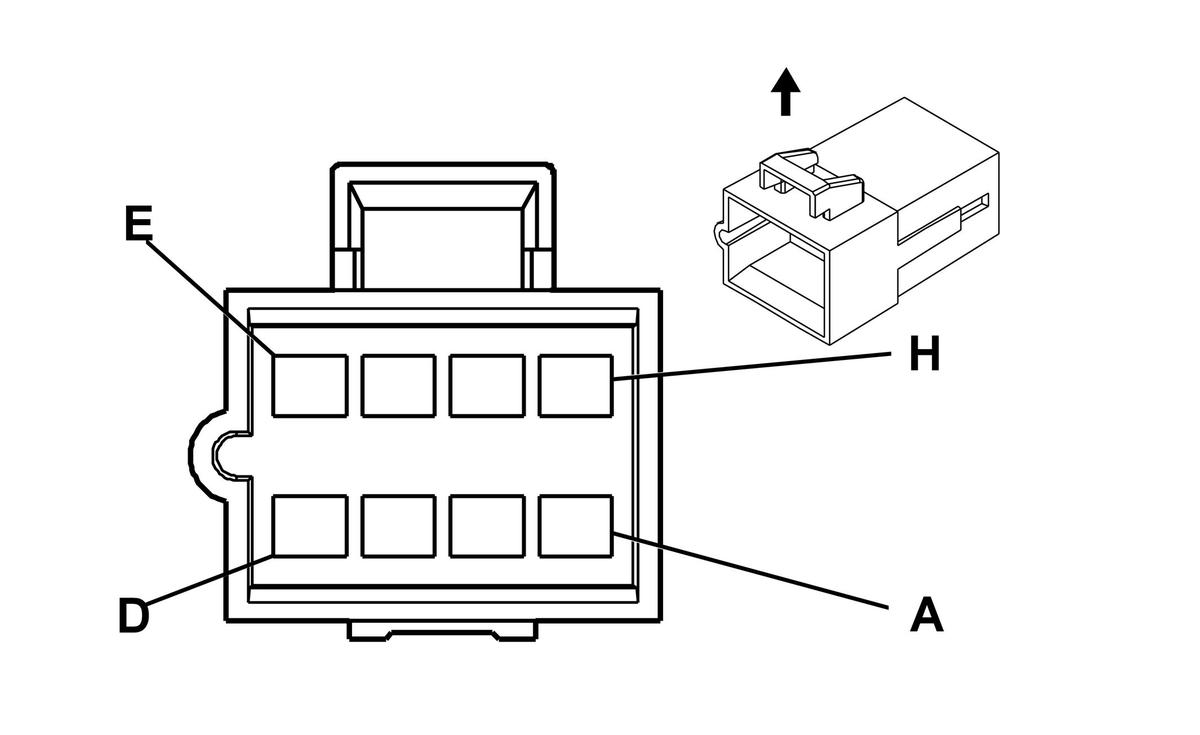

C390 Headliner Harness To Body Connector End View

GM62469Courtesy of GENERAL MOTORS CORP.
GM655684Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • Asm 12066351

    Connector 12066195

    Clip 08905563

  • 8-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage A ORN 1732 Courtesy Lamps Supply Voltage
B WHT 156 Courtesy Lamp Low Control B WHT 156 Courtesy Lamp Low Control
C BLK 850 Ground C BLK 850 Ground
D - - Not Used D - - Not Used
E BRN 41 Ignition 3 Voltage (C79) E BRN 41 Ignition 3 Voltage (C79)
F LT GRN 24 Backup Lamp Supply Voltage (C79/DH6) F LT GRN 24 Backup Lamp Supply Voltage (C79/DH6)
G-H - - Not Used G-H - - Not Used
C395 Radio Antenna Module To Body Connector End View (U77)

GM280768Courtesy of GENERAL MOTORS CORP.
GM766913Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12052833
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A DK GRN 145 Antenna Relay Coil Supply Voltage A DK GRN 145 Antenna Relay Coil Supply Voltage
B BLK/WHT 351 Ground B BLK/WHT 351 Ground
C398 Body Harness To Sunroof Connector End View (CF5)

GM808704Courtesy of GENERAL MOTORS CORP.
GM808705Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020397
  • 3-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12020398
  • 3-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 143 Accessory Voltage A YEL 143 Accessory Voltage
B - - Not Used B - - Not Used
C BLK 850 Ground C BLK 850 Ground
C401 Left Tail Lamp Harness To Body Connector End View

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GRY)
 Connector Part Information
  • 12065781 Asm

    Connector 12064763

    Clip 08905563

  • 6-Way M Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN/WHT 301 Rear Park Lamps Supply Voltage A BRN/WHT 301 Rear Park Lamps Supply Voltage
B DK GRN 18 Left Rear Stop/Turn Lamp Supply Voltage B YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
C - - Not Used C - - Not Used
D BLK 250 Ground D BLK 250 Ground
E-F - - Not Used E-F - - Not Used
C402 Right Tail Lamp Harness To Body Connector End View

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GRY)
 Connector Part Information
  • Asm 12065781

    Connector 12064763

    Clip 08905563

  • 6-Way M Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN/WHT 301 Rear Park Lamps Supply Voltage A BRN/WHT 301 Rear Park Lamps Supply Voltage
B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage B DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
C - - Not Used C - - Not Used
D BLK 350 Ground D BLK 350 Ground
E-F - - Not Used E-F - - Not Used

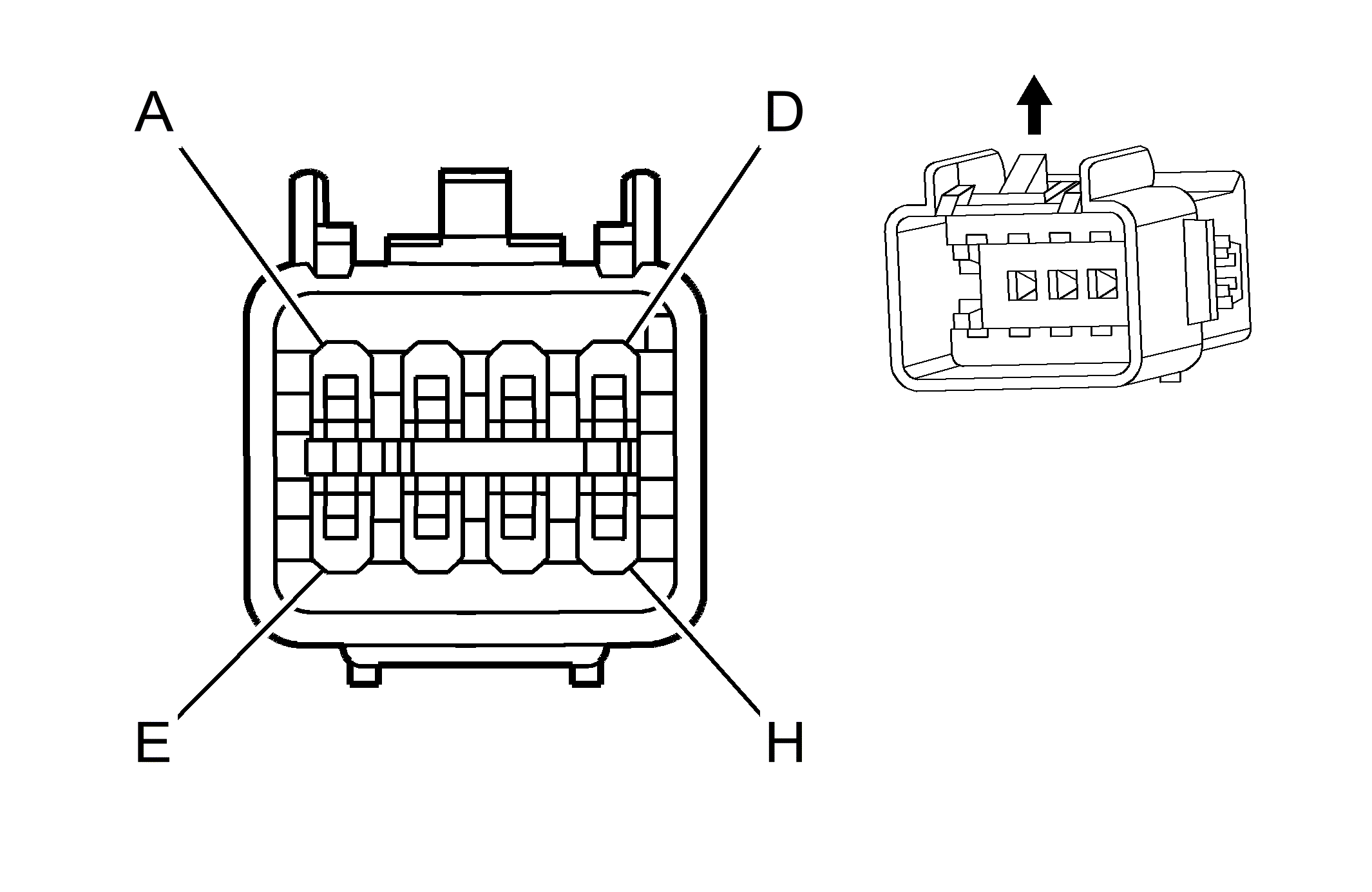

C403 Headliner Harness To Body Connector End View (UE1)

GM646374Courtesy of GENERAL MOTORS CORP.
GM715111Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332145
  • 8-Way F GT 150 Series (BLK)
 Connector Part Information
  • 15332150
  • 8-Way M GT 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 2516 Keypad Green LED Signal A YEL/BLK 2516 Keypad Green LED Signal
B - - Not Used B - - Not Used
C BRN 2517 Keypad Red LED Signal C BRN/WHT 2517 Keypad Red LED Signal
D LT GRN 2515 Keypad Supply Voltage D LT GRN/BLK 2515 Keypad Supply Voltage
E DK GRN 2514 Keypad Signal E DK GRN/WHT 2514 Keypad Signal
F BARE 1705 Drain Wire F BARE 1705 Drain Wire
G GRY 655 Cellular Microphone Signal G GRY 655 Cellular Microphone Signal
H - - Not Used H - - Not Used

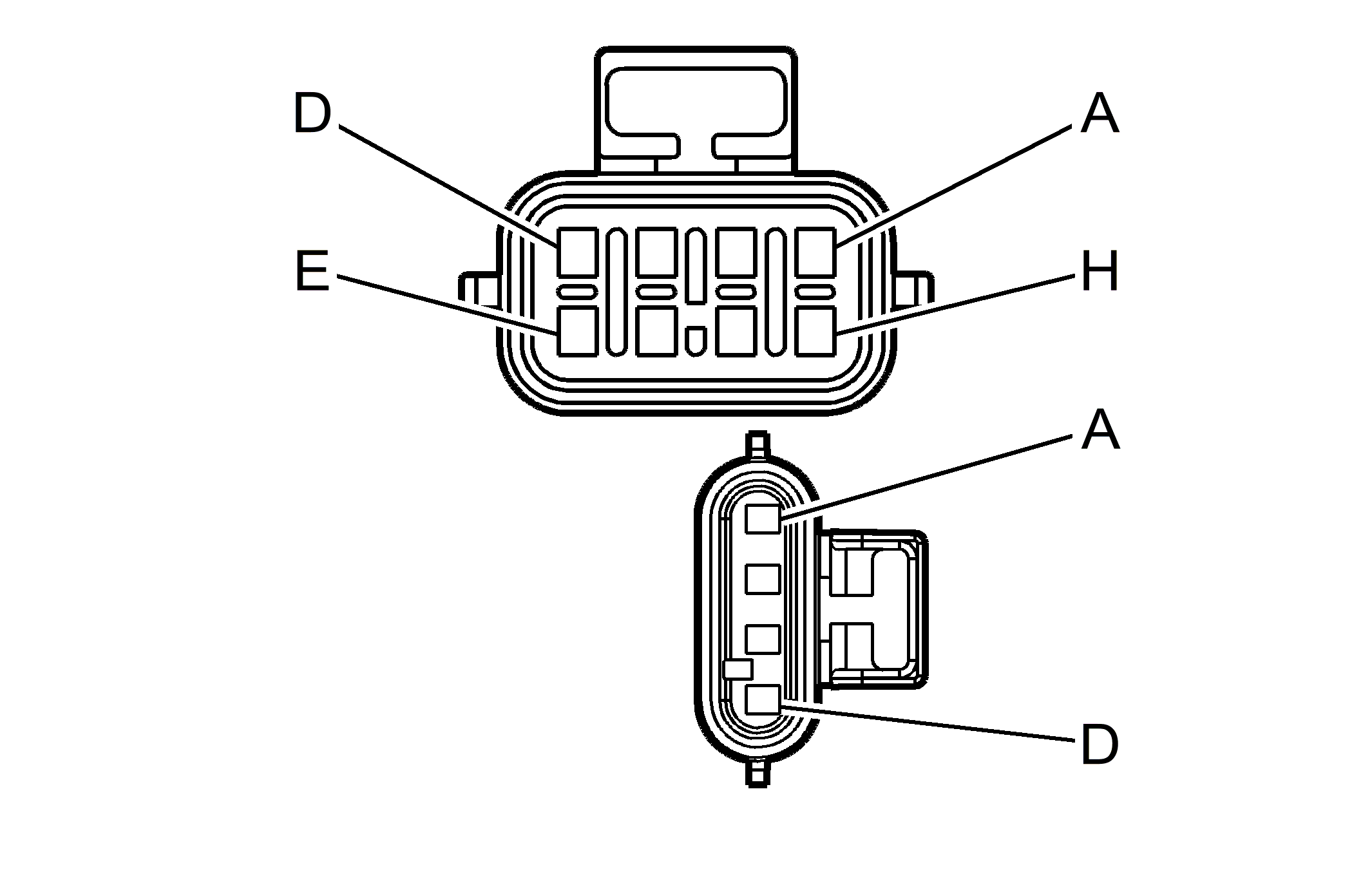

C405 Fuel Tank Harness To Body Connector End View

GM1219453Courtesy of GENERAL MOTORS CORP.
GM623045Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146439
  • 4-Way F Metri-Pack 150 Series Sealed (GRY)
  • 12176335
  • 8-Way F Metri-Pack 280 Series Sealed (NAT)
 Connector Part Information
  • 15326714
  • 12-Way M Metri-Pack Mixed Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 882 Right Rear Wheel Speed Sensor Signal (JL9/JM4) 1A BRN 882 Right Rear Wheel Speed Sensor Signal
B WHT 883 Right Rear Wheel Speed Sensor Low Reference (JL9/JM4) 1B WHT 883 Right Rear Wheel Speed Sensor Low Reference
C BLK 884 Left Rear Wheel Speed Sensor Signal (JL9/JM4) 1C BLK 884 Left Rear Wheel Speed Sensor Signal
D RED 885 Left Rear Wheel Speed Sensor Low Reference (JL9/JM4) 1D RED 885 Left Rear Wheel Speed Sensor Low Reference
A BLK 150 Ground 3A BLK 650 Ground
B BLK/WHT 651 Ground 3B BLK 452 Low Reference
C GRY 120 Accessory Voltage 3C GRY 120 Accessory Voltage
D PPL 30 Fuel Level Sensor Signal 3D PPL 1589 Fuel Level Sensor Signal
E - - Not Used 3E - - Not Used
F GRY/BLK 416 5-Volt Reference 3F GRY 474 5-Volt Reference
G DK GRN 890 Fuel Tank Pressure Sensor Signal 3G DK GRN 890 Fuel Tank Pressure Sensor Signal
H ORN/BLK 469 Low Reference 3H BLK 452 Low Reference
C410 Rear Decklid Harness To Body Connector End View

GM62439Courtesy of GENERAL MOTORS CORP.
GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 350 Ground A BLK 350 Ground
B ORN/BLK 737 Trunk Ajar Switch Signal B ORN/BLK 737 Trunk Ajar Switch Signal
C BLK/WHT 56 Trunk Release Motor Supply Voltage C BLK/WHT 56 Trunk Release Motor Supply Voltage
D LT GRN 24 Backup Lamp Supply Voltage D LT GRN 24 Backup Lamp Supply Voltage
E BRN/WHT 301 Park Lamp Switch ON Signal E BRN/WHT 301 Park Lamp Switch ON Signal
F-H - - Not Used F-H - - Not Used
C420 Body Harness To Center High Mount Stop Lamp Connector End View

GM130724Courtesy of GENERAL MOTORS CORP.
GM309396Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064869
  • 2-Way F Metri-Pack 150 Series (BLU)
 Connector Part Information
  • 12064870
  • 2-Way M Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 17 Stop Lamp Switch Signal A RED - Stop Lamp Switch Signal
B BLK 350 Ground B YEL - Ground
C915 Rear Decklid Harness To Back Up Lamp Connector End View

GM39660Courtesy of GENERAL MOTORS CORP.
GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN/WHT 301 Rear Park Lamps Supply Voltage A BRN/WHT 301 Rear Park Lamps Supply Voltage
B LT GRN 24 Backup Lamp Supply Voltage B LT GRN 24 Backup Lamp Supply Voltage
C BLK 350 Ground C BLK 350 Ground
D - - Not Used D - - Not Used
scientia non olet · About LEMON Manuals
