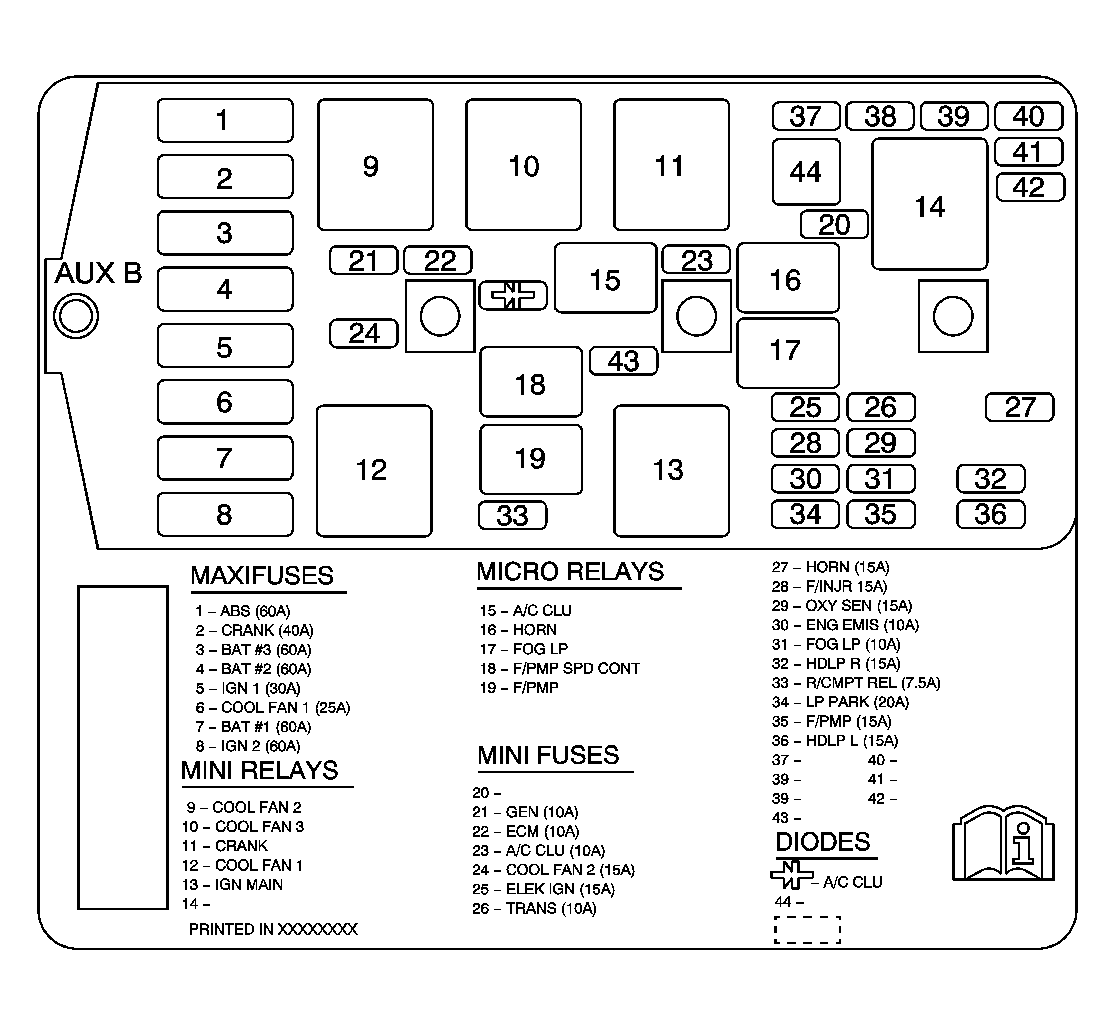

Fuse Block - Underhood, Label
Fuse Block - Underhood Application Table
| No. | Fuse/Circuit Breaker | Rating | Description |
|---|---|---|---|
| 1 | ABS Fuse (JL9/JM4) | 60A | ABS Module |
| 2 | CRANK Fuse | 40A | CRANK Relay, Starter, BCM, PCM |
| 3 | BAT #3 Fuse | 60A | ONSTAR, LH HTD/SEAT, RH HTD/SEAT Fuses, R/DEFOG and PWR/SEAT Circuit Breakers |
| 4 | BAT #2 Fuse | 60A | HI/BLWR, HAZRD, STOP LAMPS, DR/LCK, and PWR/MIR Fuses |
| 5 | IGN 1 Fuse | 30A | Ignition Switch, IGN0:CLSTR, PCM, & BCM, PRK/LCK, ABS, BTSI, TRN/SIG, AIRBAG, CLSTR, PCM, BCM, U/H, and CRNK SIG, BCM, CLSTR Fuses |
| 6 | COOL FAN 1 Fuse | 25A | COOL FAN 1 Relay, RH Cooling Fan |
| 7 | BAT #1 Fuse | 60A | RADIO, HVAC, RFA, CLSTR ALDL, ABS, BCM PWR, ACCY PWR BUS, RADIO PREM. SOUND, and LTR Fuses |
| 8 | IGN 2 Fuse | 60A | RAP Relay, Ignition Switch, WPR, BCM ACCY, LOW BLWER, HVAC, and CRUISE Fuses, and PWR WNDW PWR S/ROOF Circuit Breaker |
| 9 | COOL FAN 2 RLY | - | Cooling Fan - Right (during high fan speed operation), Cooling Fan - Left (during low fan speed operation |
| 10 | COOL FAN 3 RLY | - | Cooling Fan - Right |
| 11 | CRANK RLY | - | Powertrain Control Module (PCM) and Starter |
| 12 | COOL FAN 1 RLY | - | Cooling Fan - Left |
| 13 | IGN MAIN RLY | - | OXY SEN, ELEK IGN, F/INJR, TRANS, ENG EMIS Fuses, and A/C CLUTH Relay |
| 14 | Empty | - | - |
| 15 | A/C CLU RLY | - | A/C Compressor Clutch Coil and A/C CLU Diode |
| 16 | HORN RLY | - | Horns and Horn Switch |
| 17 | FOG LP RLY (Regal) | - | Fog Lamp - LF, Fog Lamp - RF, and Fog Lamp Switch |
| 18 | F/PMP SPD CONT RLY (L67 wT96) | - | Fuel Pump and Sender Assembly |
| 19 | F/PMP RLY | - | Fuel Pump and Sender Assembly |
| 20 | Empty | - | - |
| 21 | GEN Fuse | 10A | Generator |
| 22 | ECM Fuse | 10A | Powertrain Control Module (PCM) |
| 23 | A/C CLU Fuse | 10A | A/C CLUTCH Relay, A/C CLU Diode, A/C Compressor Clutch |
| 24 | COOL FAN 2 Fuse | 15A | COOL FAN 2 Relay, and COOL FAN 3 Relay |
| 25 | ELEK IGN Fuse | 15A | Ignition Control Module (ICM) |
| 26 | TRANS Fuse | 10A | 1-2 Shift Solenoid (1-2 SS) Valve, 2-3 Shift Solenoid (2-3 SS) Valve, and Torque Converter Clutch (TCC) Solenoid Valve |
| 27 | HORN Fuse | 15A | Horn Relay |
| 28 | F/INJR Fuse | 15A | Fuel Injectors (1 - 6) |
| 29 | OXY SEN Fuse | 15A | Heated Oxygen Sensor (HO2S) 1 and Heated Oxygen Sensor (HO2S) 2 |
| 30 | ENG EMIS Fuse | 10A | Stop Lamp Switch, Evaporative Emissions (EVAP) Canister Vent Solenoid Valve, Evaporative Emissions (EVAP) Canister Purge Solenoid Valve, Mass Air Flow (MAF) Sensor, and Supercharger Boost Control Solenoid (L67) |
| 31 | FOG LP Fuse (Regal) | 10A | FOG LP Relay |
| 32 | HDLP R Fuse | 15A | Headlamp Assembly - Right |
| 33 | R/CMPT REL Fuse | 7.5A | Backup Lamp Relay |
| 34 | LP PARK Fuse | 20A | Headlamp Switch, Park Lamp Relay, and Headlamp Relay |
| 35 | F/PMP Fuse | 15A | F/PMP Relay and F/PMP SPD CONT Relay (L67) |
| 36 | HDLP L Fuse | 15A | Headlamp Assembly - Left |
| 37- 44 | Empty | - | - |
