ABS Schematics

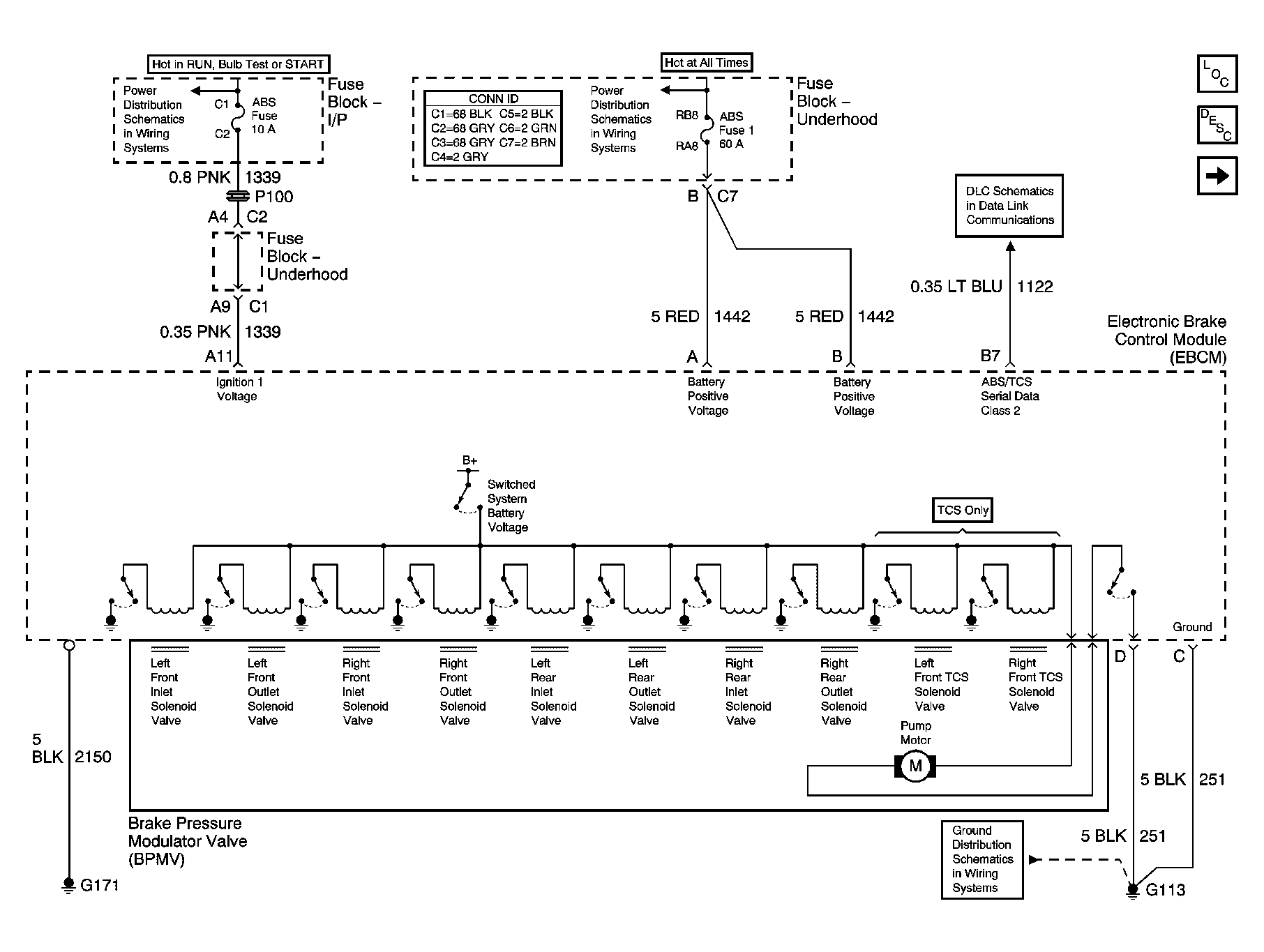

Fig 1: Power, Ground, And Serial Data Schematic
GM1199504Courtesy of GENERAL MOTORS CORP.

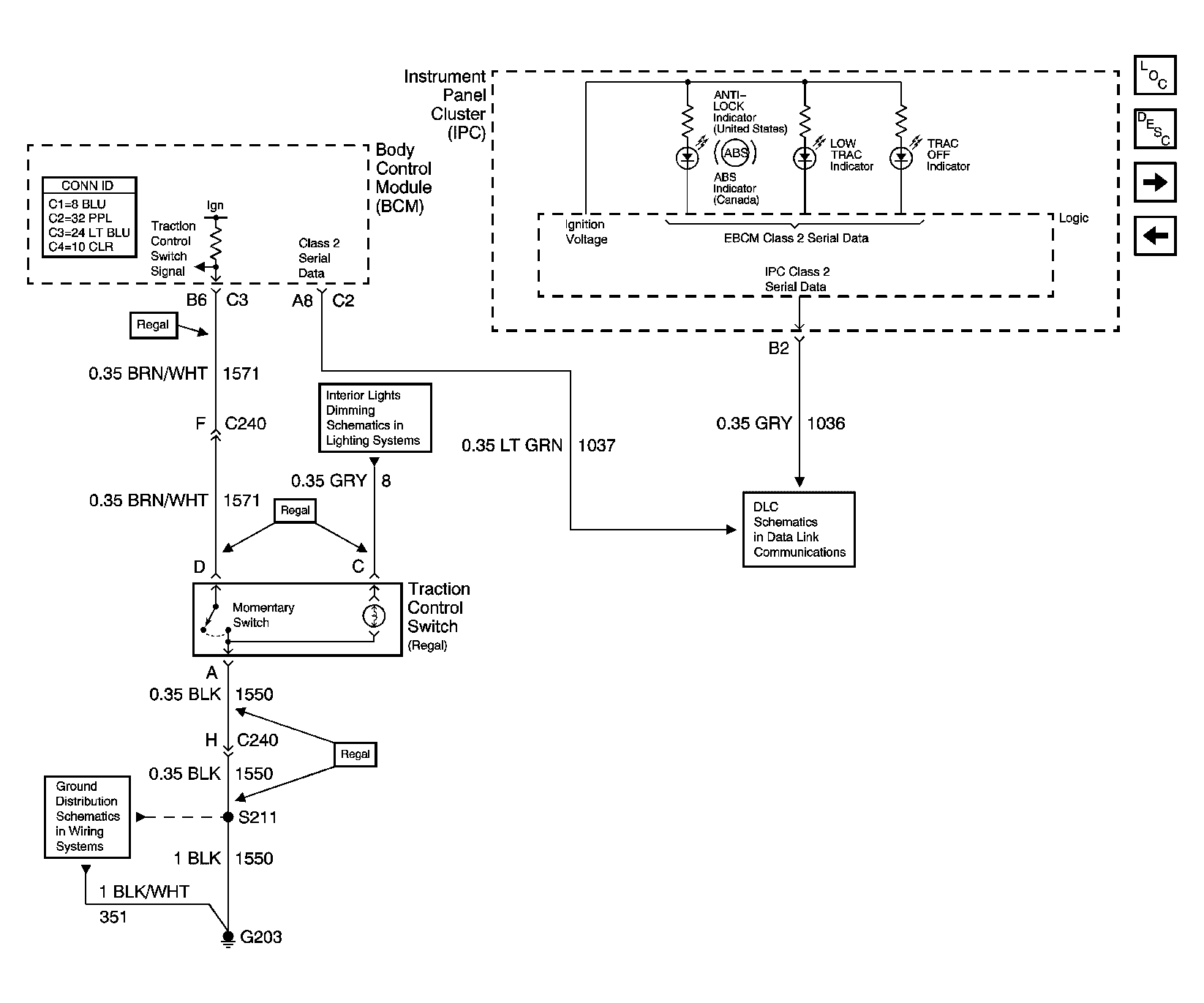

Fig 2: Indicators And Traction Control Schematic
GM1215952Courtesy of GENERAL MOTORS CORP.

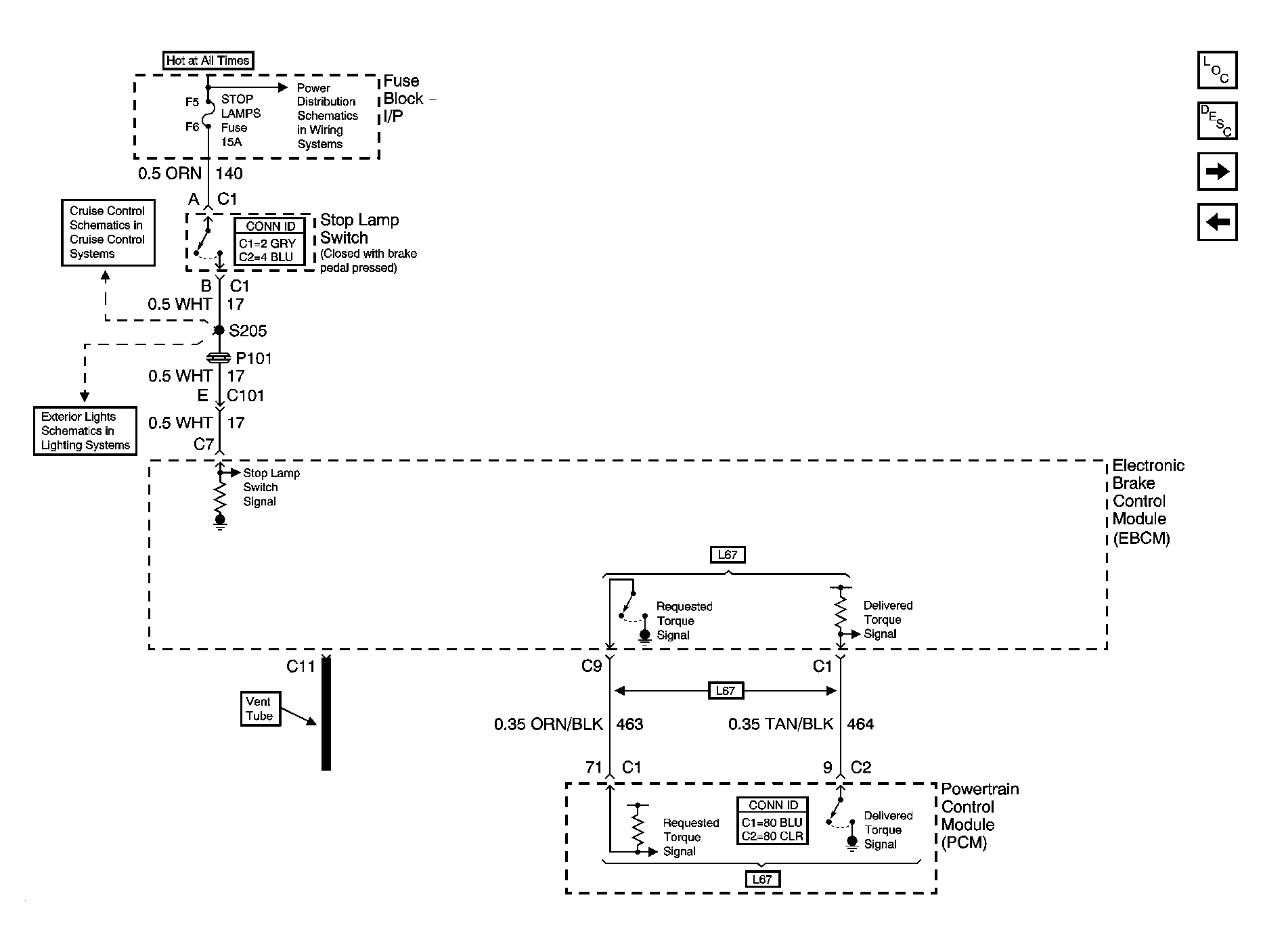

Fig 3: Stop Lamp And Torque Signals Schematic
GM1203432Courtesy of GENERAL MOTORS CORP.

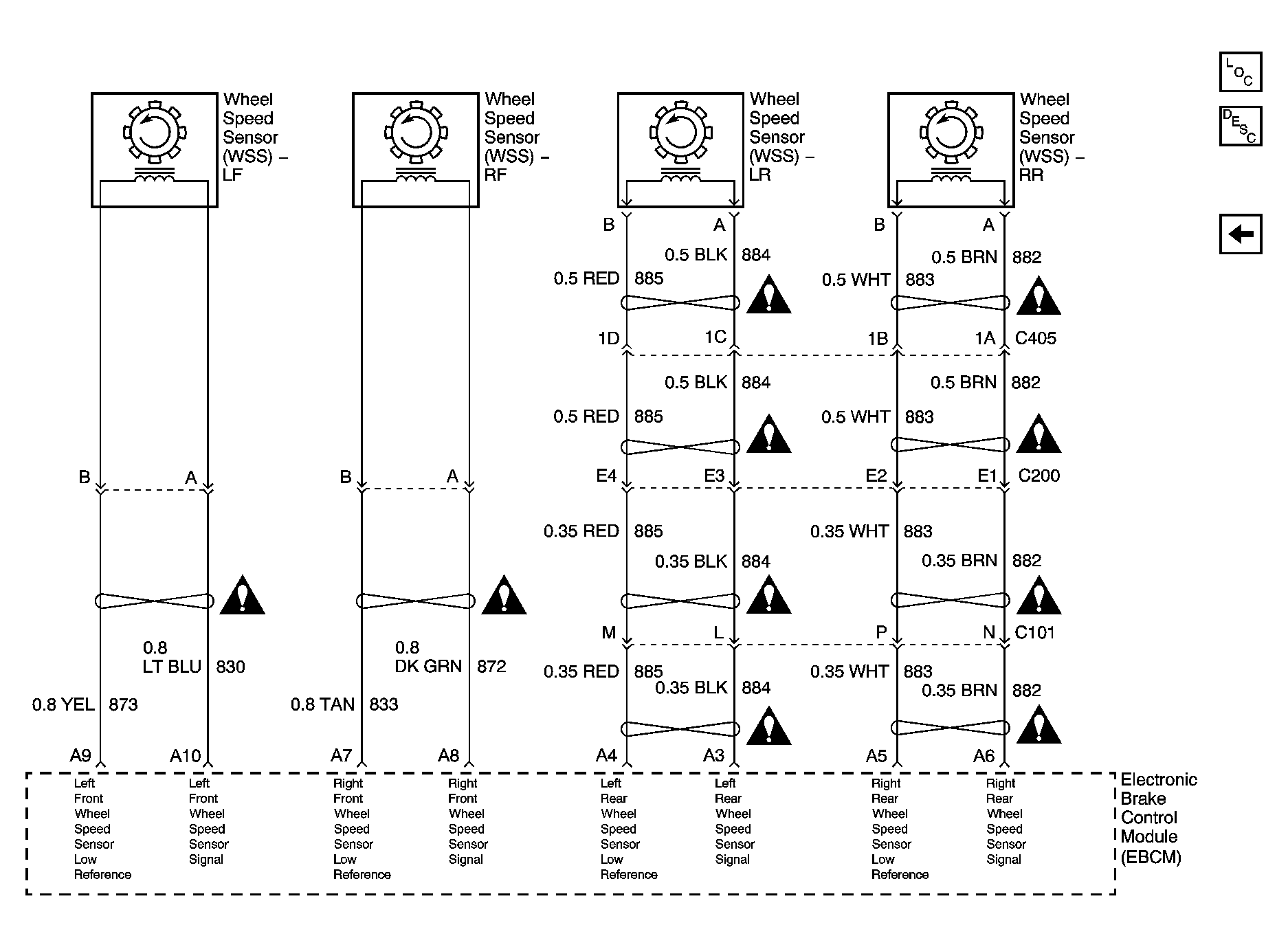

Fig 4: Wheel Speed Sensors Schematic
GM1353605Courtesy of GENERAL MOTORS CORP.
