Power Door Systems Connector End Views

Door Lock Terminal Identification - Driver, C1

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162189
  • 4-Way F Metri-Pack 150.2 Series, Pull to Seat, (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B DK BLU 727 Door Ajar Switch Signal
C DK BLU/WHT 49 Door Unlatch Switch Signal
D BLK 750 Ground
Door Lock Terminal Identification - Driver, C2

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 150.2 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN 694 Driver Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Terminal Identification - Front Passenger, C1

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162189
  • 4-Way F Metri-Pack 150.2 Series, Pull to Seat, (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground
B - - Not Used
C DK BLU/
WHT		 727 Door Ajar Switch Signal
D - - Not Used
Door Lock Terminal Identification - Front Passenger, C2

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 150.2 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Terminal Identification - LR, C1

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162189
  • 4-Way F Metri-Pack 150.2 Series, Pull to Seat, (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B DK BLU/
WHT		 727 Door Ajar Switch Signal
C - - Not Used
D BLK 750 Ground
Door Lock Terminal Identification - LR, C2

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 150.2 Series Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Terminal Identification - RR, C1

GM38608Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162189
  • 4-Way F Metri-Pack 150.2 Series, Pull to Seat, (BLK)
Pin Wire Color Circuit No. Function
A BLK 750 Ground
B - - Not Used
C DK BLU/
WHT		 727 Door Ajar Switch Signal
D - - Not Used
Door Lock Terminal Identification - RR, C2

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 150.2 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control

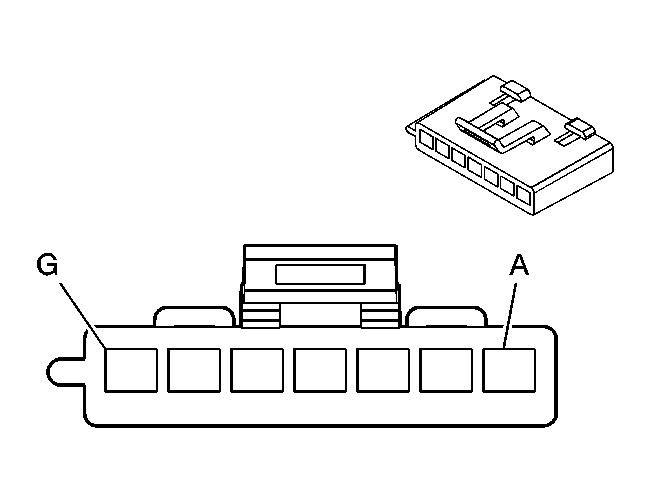

Door Lock Switch Terminal Identification - Driver

GM795979Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186423
  • 7-Way F Metri-Pack 280 Series (NAT)
Pin Wire Color Circuit No. Function
A - - Not Available
B ORN/BLK 781 Driver Door Lock Switch Unlock Signal
C RED/BLK 780 Driver Door Lock Switch Lock Signal
D BLK 750 Ground
E GRY 8 Instrument Panel Lamp Supply Voltage-1
F BLK 750 Ground
G - - Not Available
Door Lock Switch Terminal Identification - Front Passenger

GM795979Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186423
  • 5-Way F Metri-Pack 280 Series (NAT)
Pin Wire Color Circuit No. Function
A - - Not Available
B RED/BLK 780 Driver Door Lock Switch Lock Signal
C ORN/BLK 781 Driver Door Lock Switch Unlock Signal
D BLK 750 Ground
E GRY 8 Instrument Panel Lamp Supply Voltage-1
F BLK 750 Ground
G - - Not Available
Outside Rearview Mirror Terminal Identification - Driver

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084256
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A WHT 81 Left Mirror Motor Right Control
B LT BLU 82 Left Mirror Motor Left Control
C LT GRN 89 Left Mirror Motor Down Control
D - H - - Not Used
Outside Rearview Mirror Terminal Identification - Passenger

GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084256
  • 8-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A RED/WHT 881 Right Mirror Motor Right Control
B GRY 90 Right Mirror Motor Left Control
C PPL/WHT 889 Right Mirror Motor Down Control
D - E - - Not Used
F GRY 1690 Automatic Day/Night Mirror Signal (Early Production)
G PNK 1691 Automatic Day/Night Mirror Low Reference (Early Production)
H - - Not Used
Outside Rearview Mirror Switch Terminal Identification

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamp Supply Voltage-1
B BLK 750 Ground
C PPL/WHT 889 Right Mirror Motor Down Control
D GRY/BLK 90 Right Mirror Motor Left Control
E LT BLU 82 Left Mirror Motor Left Control
F RED/WHT 881 Right Mirror Motor Right Control
G ORN 1140 Battery Positive Voltage
H - - Not Used
J WHT 81 Left Mirror Motor Right Control
K LT GRN 89 Left Mirror Motor Down Control
Window Master Switch Terminal Identification - Driver, C1

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052854
  • 7-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 8 Instrument Panel Lamp Supply Voltage-1
B BLK 750 Ground
C TAN 167 Power Window Master Switch Right Front Down Signal
D BRN 165 Power Window Motor Left Front Down Control
E DK BLU 164 Power Window Motor Left Front Up Control
F LT BLU 166 Power Window Master Switch Right Front Up Signal
G YEL 143 Accessory Voltage
Window Master Switch Terminal Identification - Driver, C2

GM62432Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041429
  • 5-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 1307 Power Window Master Switch Lockout Signal
B PPL 171 Power Window Master Switch Right Rear Down Signal
C PPL 169 Power Window Master Switch Left Rear Down Signal
D DK GRN 168 Power Window Master Switch Left Rear Up Signal
E LT GRN 170 Power Window Master Switch Right Rear Up Signal
Window Motor Terminal Identification - Driver

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GRY)
Pin Wire Color Circuit No. Function
A BRN 165 Power Window Motor Left Front Down Control
B DK BLU 164 Power Window Motor Left Front Up Control
Window Motor Terminal Identification - Front Passenger

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GRY)
Pin Wire Color Circuit No. Function
A BRN 667 Power Window Motor Right Front Down Control
B DK BLU 666 Power Window Motor Right Front Up Control
Window Motor Terminal Identification - LR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GRY)
Pin Wire Color Circuit No. Function
A BRN 669 Power Window Motor Left Rear Down Control
B DK BLU 668 Power Window Motor Left Rear Up Control
Window Motor Terminal Identification - RR

GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129487
  • 2-Way F Metri-Pack 280 Series Flexlock Sealed (GRY)
Pin Wire Color Circuit No. Function
A BRN 671 Power Window Motor Right Rear Down Control
B DK BLU 670 Power Window Motor Right Rear Up Control
Window Switch Terminal Identification - Front Passenger

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 166 Power Window Master Switch Right Front Up Signal
B DK BLU 1307 Power Window Master Switch Lockout Signal
C BLK 750 Ground
D DK BLU 666 Power Window Motor Right Front Up Control
E TAN 167 Power Window Master Switch Right Front Down Signal
F - - Not Used
G GRY 8 Instrument Panel Lamp Supply Voltage-1
H BRN 667 Power Window Motor Right Front Down Control
Window Switch Terminal Identification - LR

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089287
  • 8-Way F Metri-Pack 280 Series (NAT)
Pin Wire Color Circuit No. Function
A DK GRN 168 Power Window Master Switch Left Rear Up Signal
B DK BLU 1307 Power Window Master Switch Lockout Signal
C - - Not Used
D DK BLU 668 Power Window Motor Left Rear Up Control
E PPL 169 Power Window Master Switch Left Rear Down Signal
F-G - - Not Used
H BRN 669 Power Window Motor Left Rear Down Control
Window Switch Terminal Identification - RR

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089287
  • 8-Way F Metri-Pack 280 Series (NAT)
Pin Wire Color Circuit No. Function
A LT GRN 170 Power Window Master Switch Right Rear Up Signal
B DK BLU 1307 Power Window Master Switch Lockout Signal
C - - Not Used
D DK BLU 670 Power Window Motor Right Rear Up Control
E PPL 171 Power Window Master Switch Right Rear Down Signal
F-G - - Not Used
H BRN 671 Power Window Motor Right Rear Down Control
