Power Roof Systems Component Views

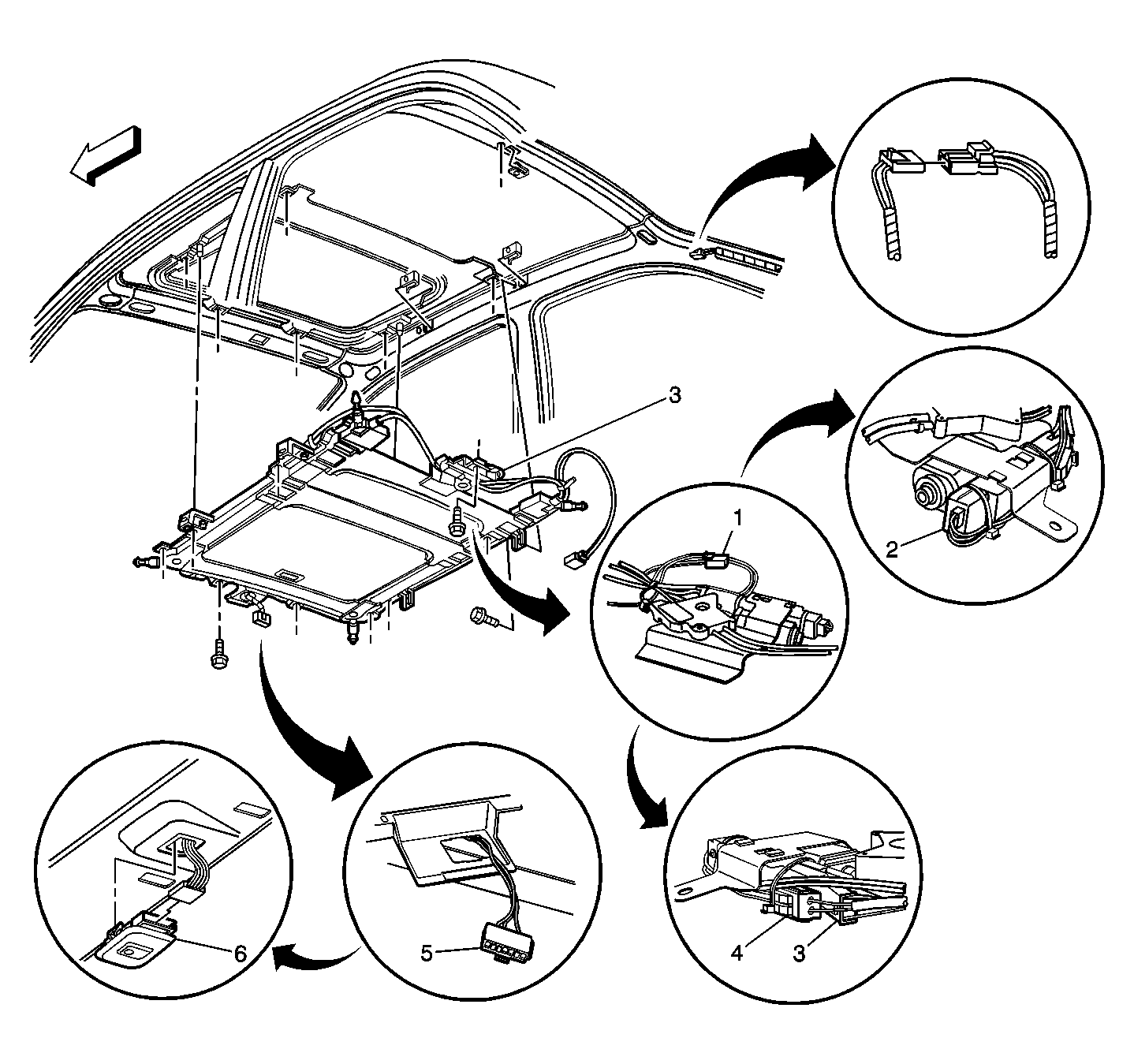

Fig 1: Sunroof Component View (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Motor Connector
2	Sunroof Module (Express Open)
3	Express Open Connector
4	Sunroof Opening Position Switch (SOPS) Connector
5	Sunroof Switch Connector
6	Sunroof Switch
