Installation Procedure

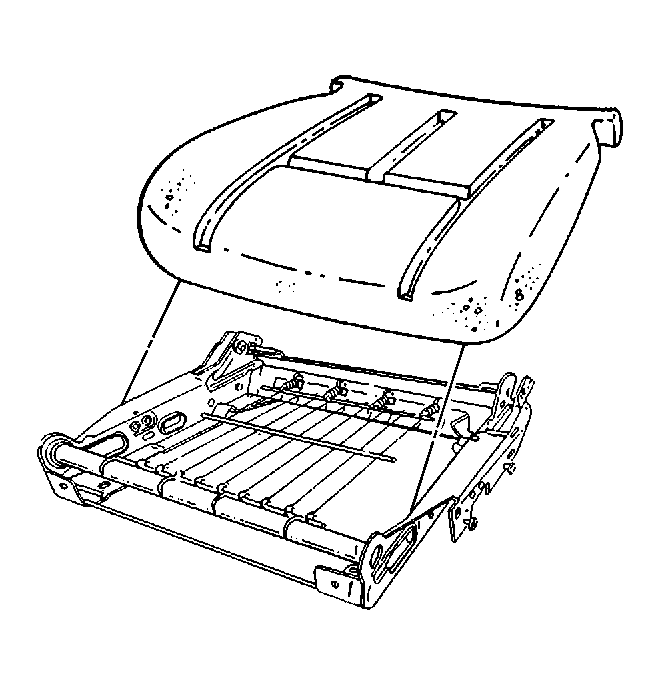

    Fig 1: Front Seat Cushion & Seat Frame
    GM176211Courtesy of GENERAL MOTORS CORP.
  1. Install the front seat cushion to the seat frame.
  2. Install the cushion cover to the seat cushion. Refer to Seat Cushion Cover Replacement - Front (Split Bench)  or Seat Cushion Cover Replacement - Front (Bucket Seat) .
  3. Install the seat. Refer to the following procedures:
