Lighting Systems Component Views

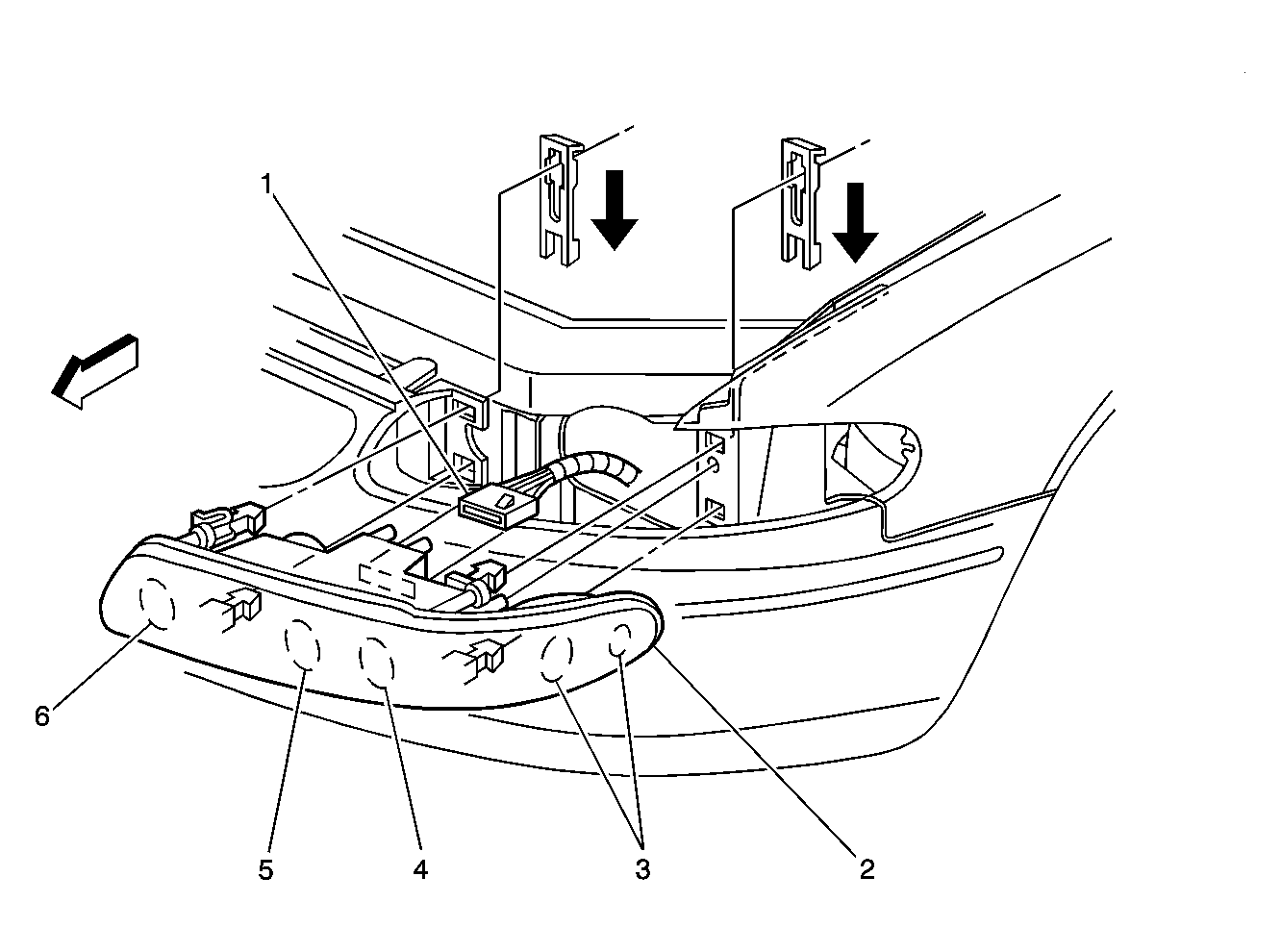

Fig 1: LF Of The Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C106 Shown, C107 Similar
2	Headlamp Assembly - Left Shown, Right Similar
3	Cornering/Marker Lamp - Left Shown, Right Similar
4	Headlamp Low Beam - Left Shown, Right Similar
5	Headlamp High Beam - Left Shown, Right Similar
6	Park/Turn Signal Lamp - LF Shown, RF Similar

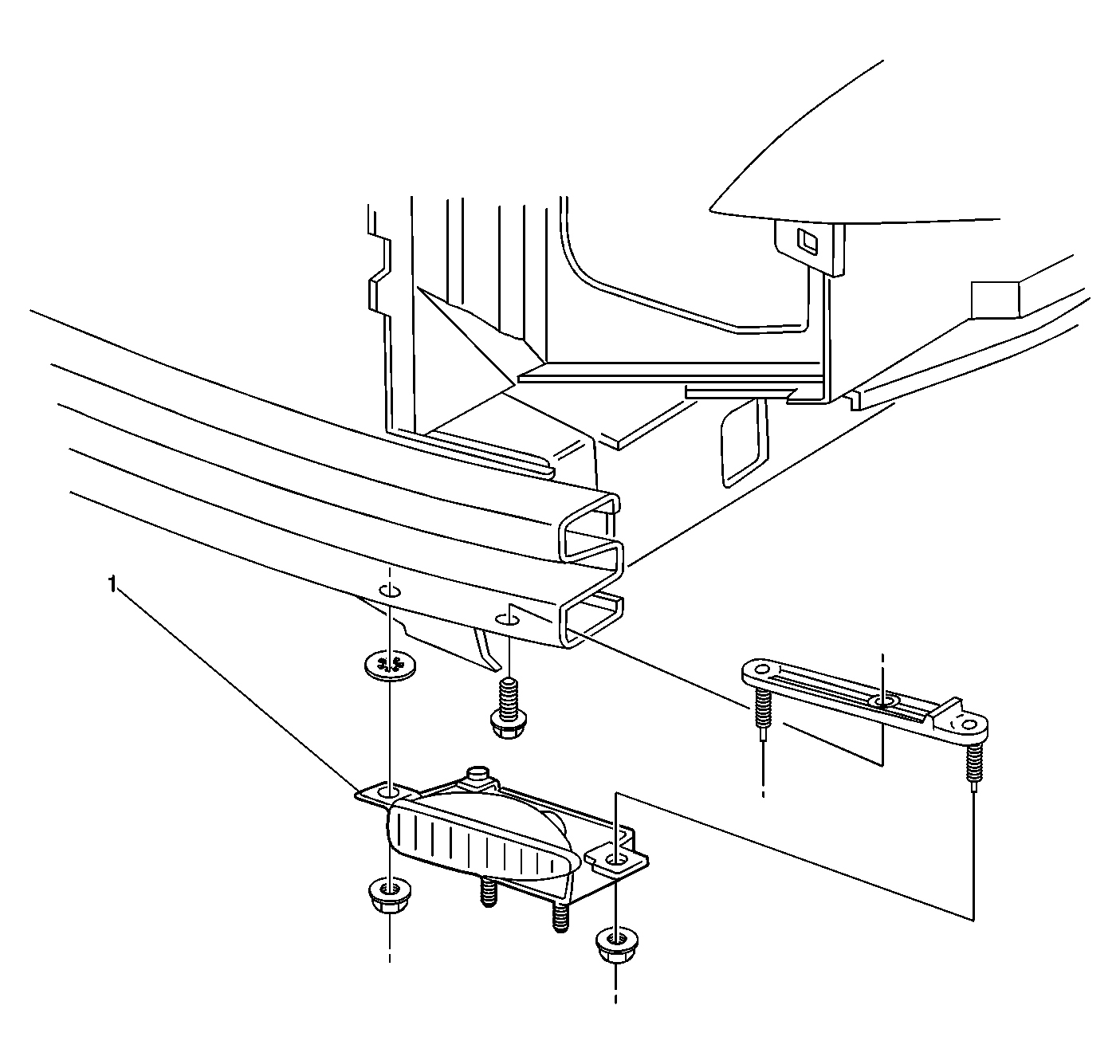

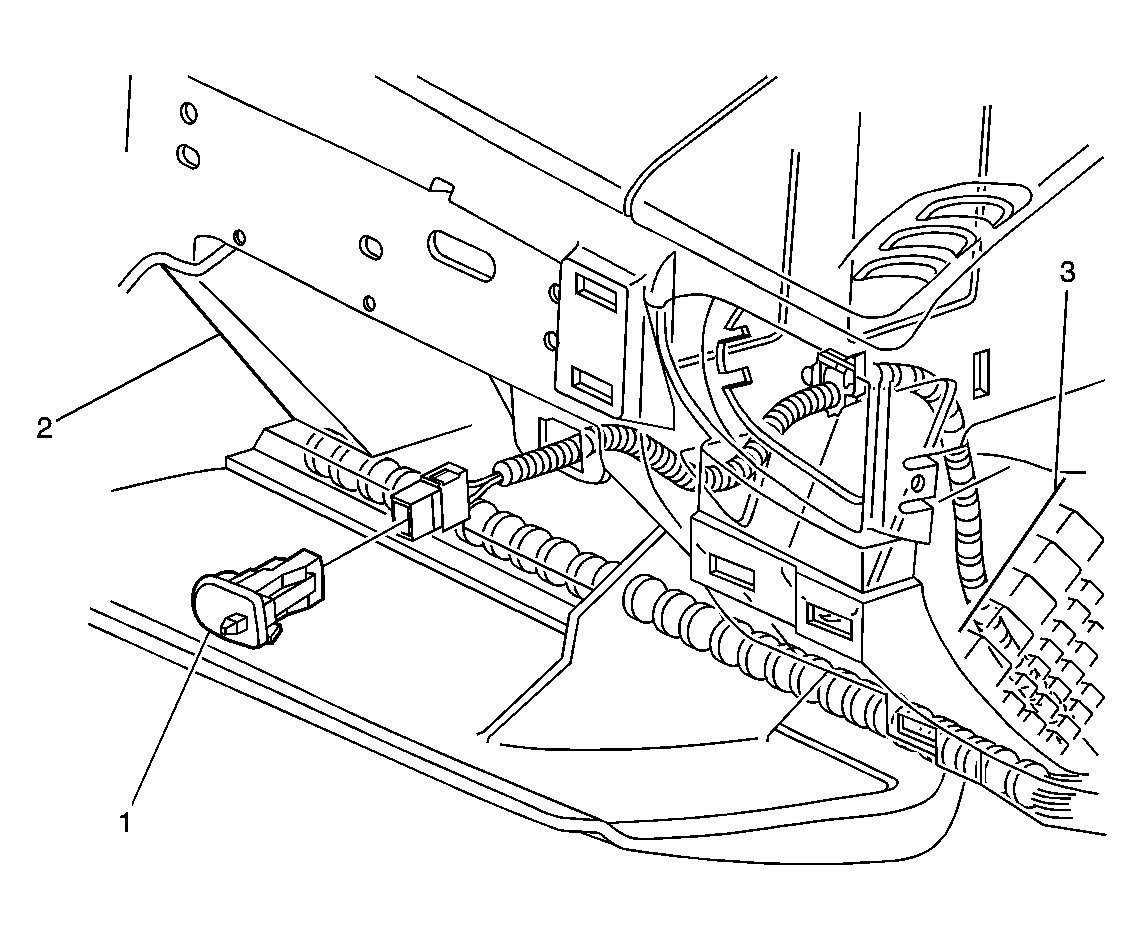

Fig 2: Lower Left Front of Vehicle Component View (Regal)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp - LF Shown, RF Similar

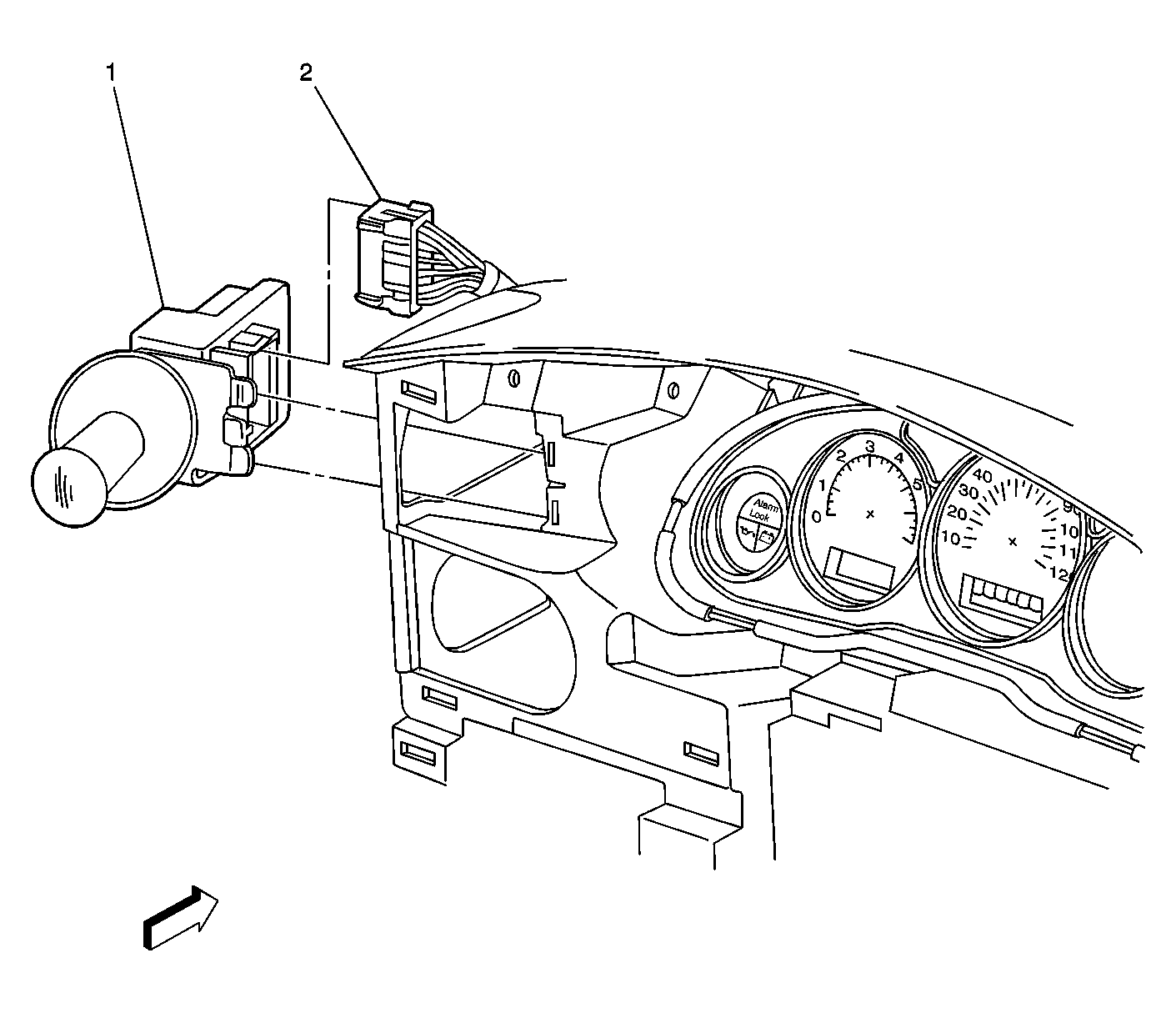

Fig 3: Upper Left Side Of Instrument Cluster Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Headlamp Switch Connector

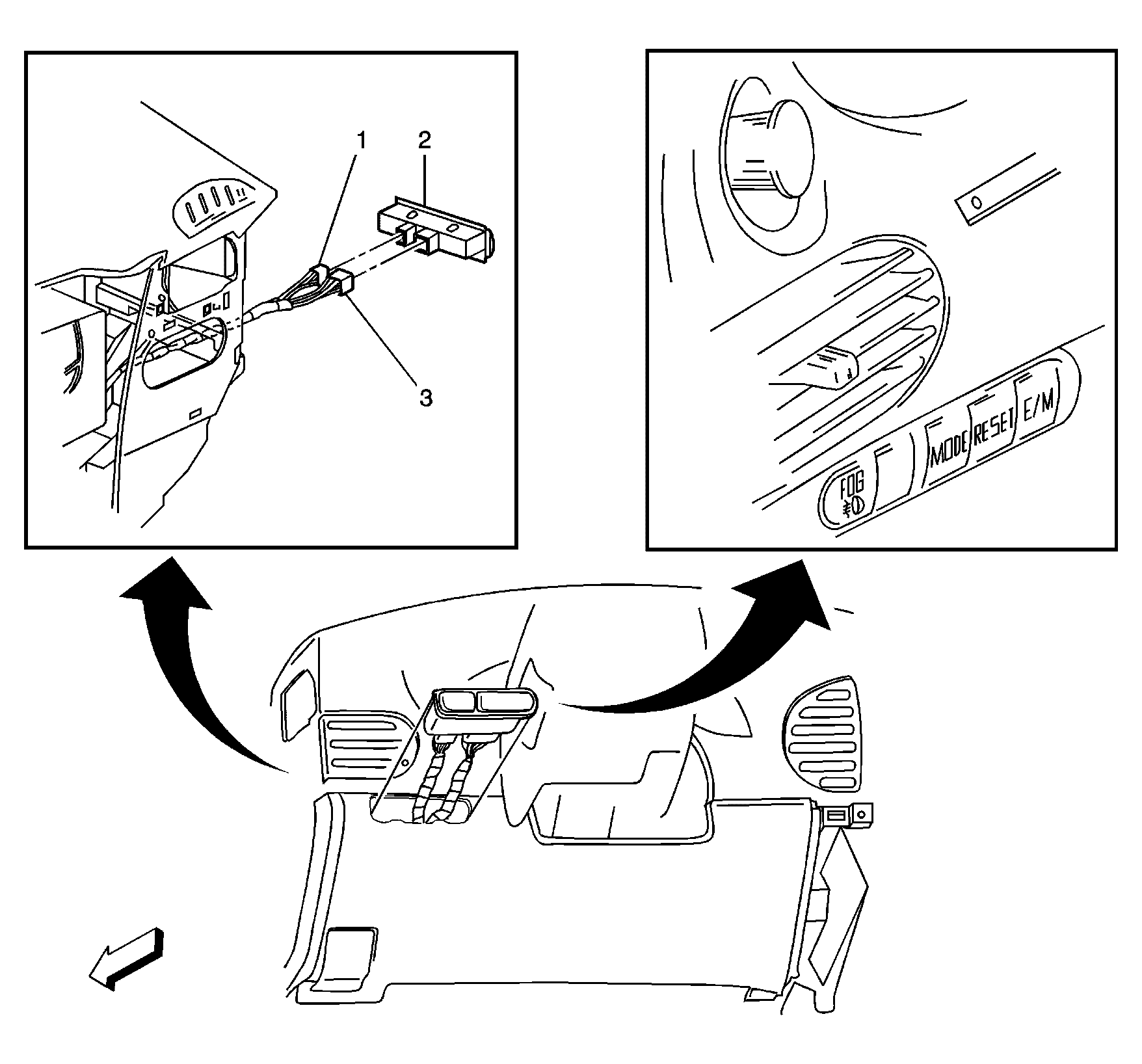

Fig 4: Lower Left Of Instrument Panel Component View (Regal)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information Display Switch Connector
2	Driver Information Display/Fog Lamp Switch
3	Fog Lamp Switch Connector

Fig 5: Below Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Body Control Module (BCM) Connector, C4
3	Body Control Module (BCM) Connector, C3
4	Body Control Module (BCM) Connector, C2
5	Body Control Module (BCM) Connector, C1
6	Fog Lamp Switch Connector
7	I/P Courtesy Lamp - Left
8	Turn Signal/Hazard Flasher Module
9	Backup Lamp Relay

Fig 6: Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Cruise Control On/Off Switch (K34)
3	Turn Signal/Multifunction Switch
4	Inflatable Restraint Steering Wheel Module Coil
5	C203 (UK3)
6	Inflatable Restraint Steering Wheel Module Connector

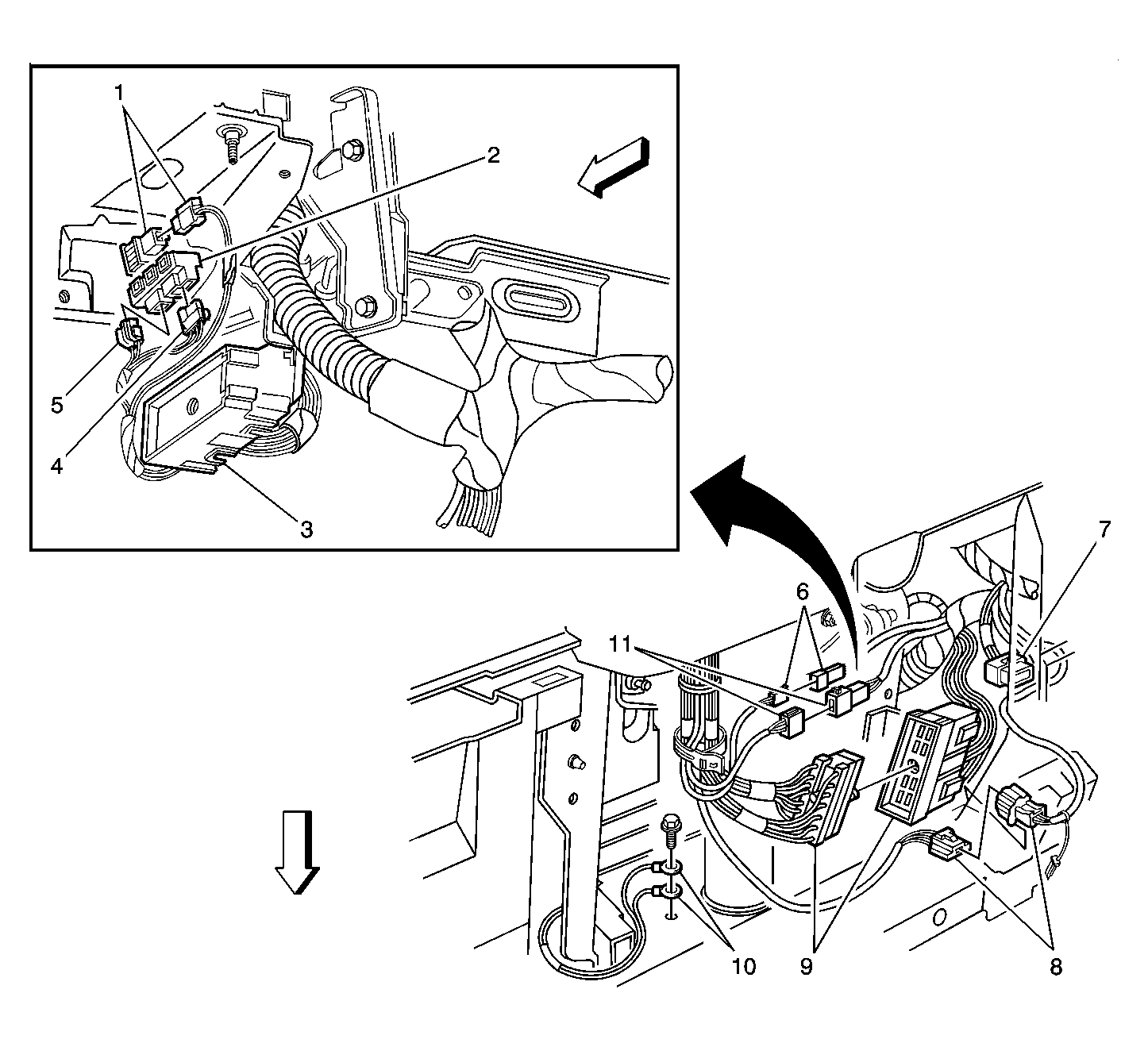

Fig 7: Lower Left Of The I/P Component Views (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Release Switch
2	Stop Lamp Switch
3	C201
4	Stop Lamp Switch Connector C2
5	Stop Lamp Switch Connector C1
6	C207
7	C216
8	C215
9	C201
10	G201
11	C205 (UK3)

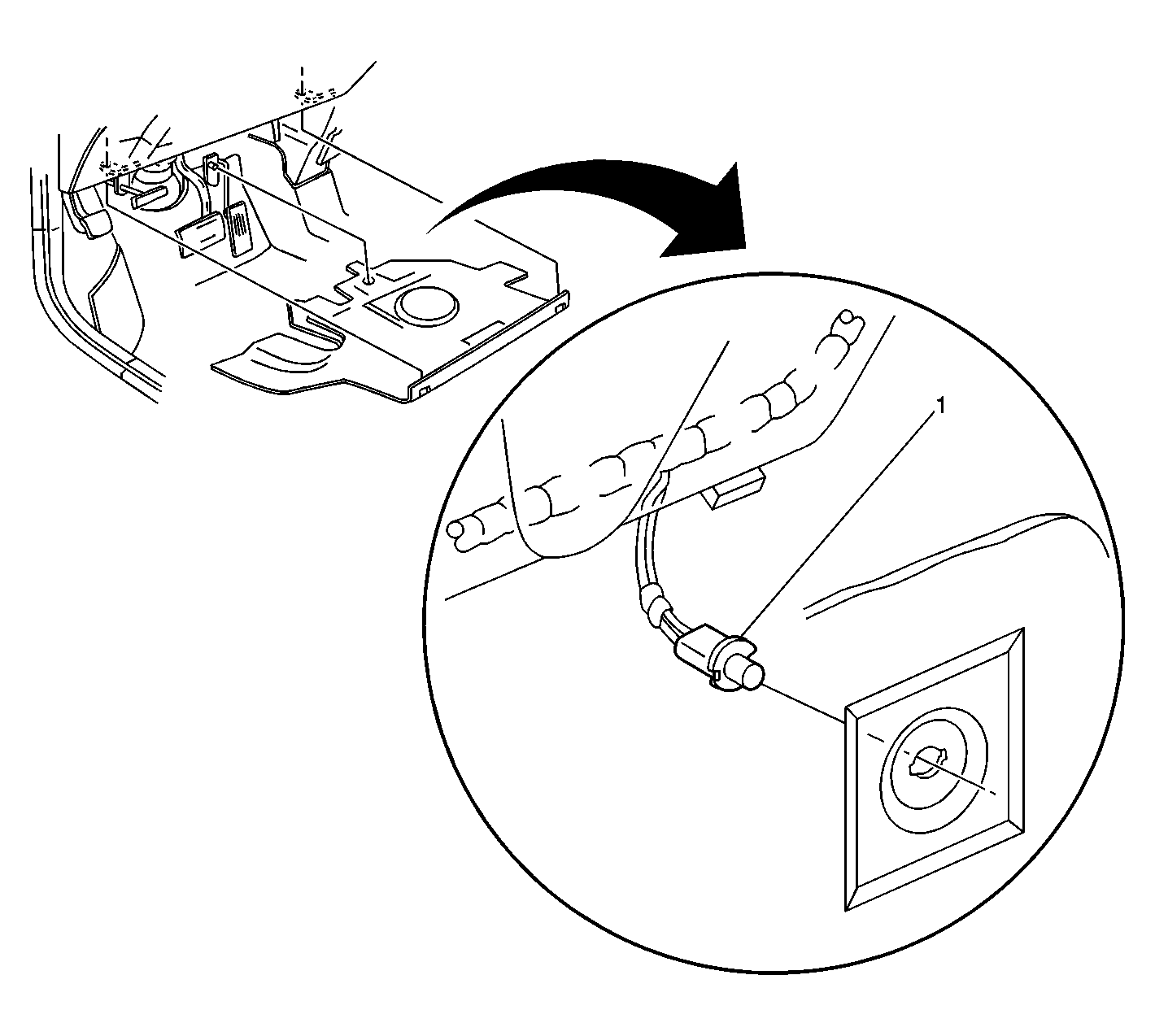

Fig 8: Lower Left Of The I/P Component Views, Page 2 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Courtesy Lamp - Left

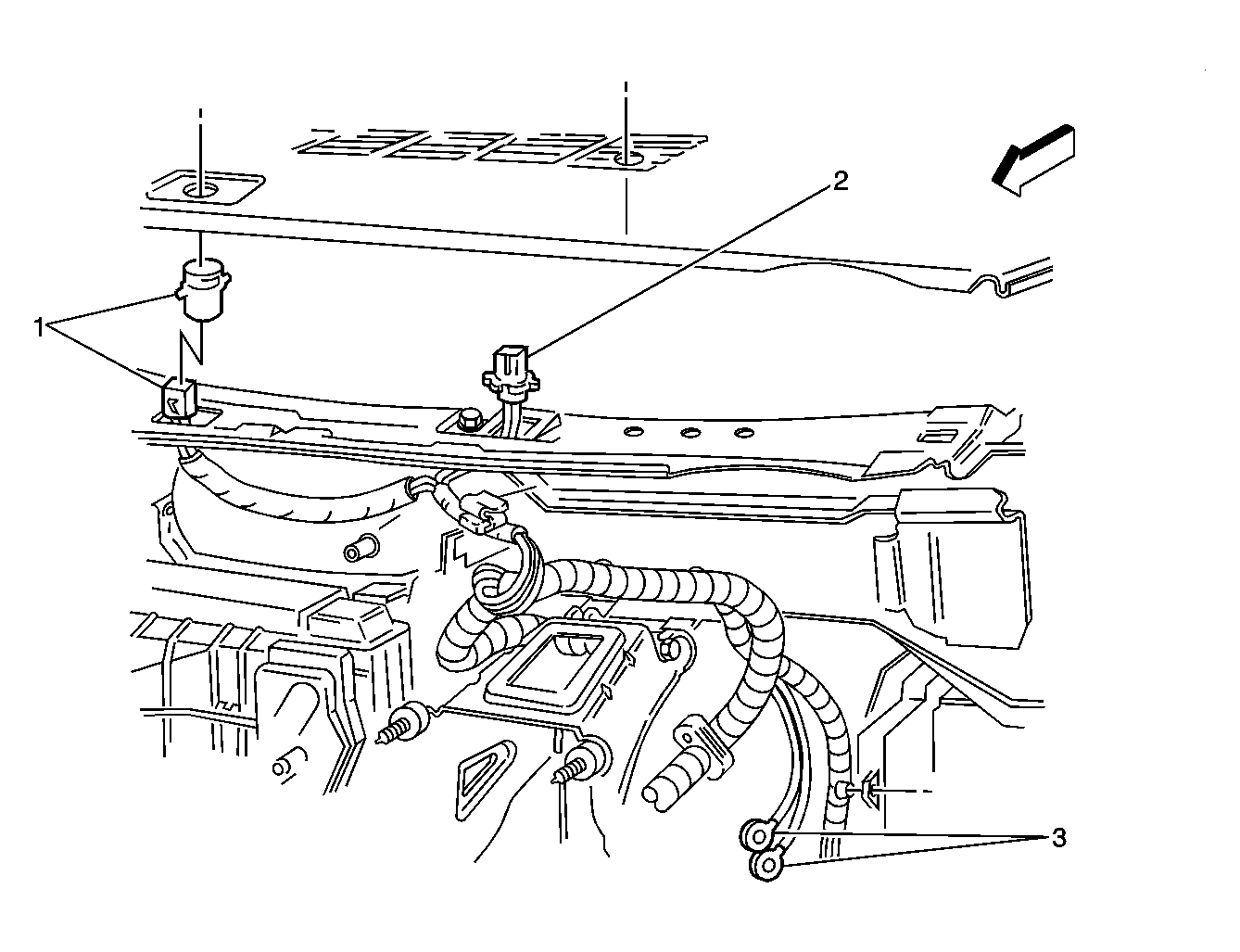

Fig 9: Upper Left Of Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Sun Load Sensor (CJ2)
3	G203

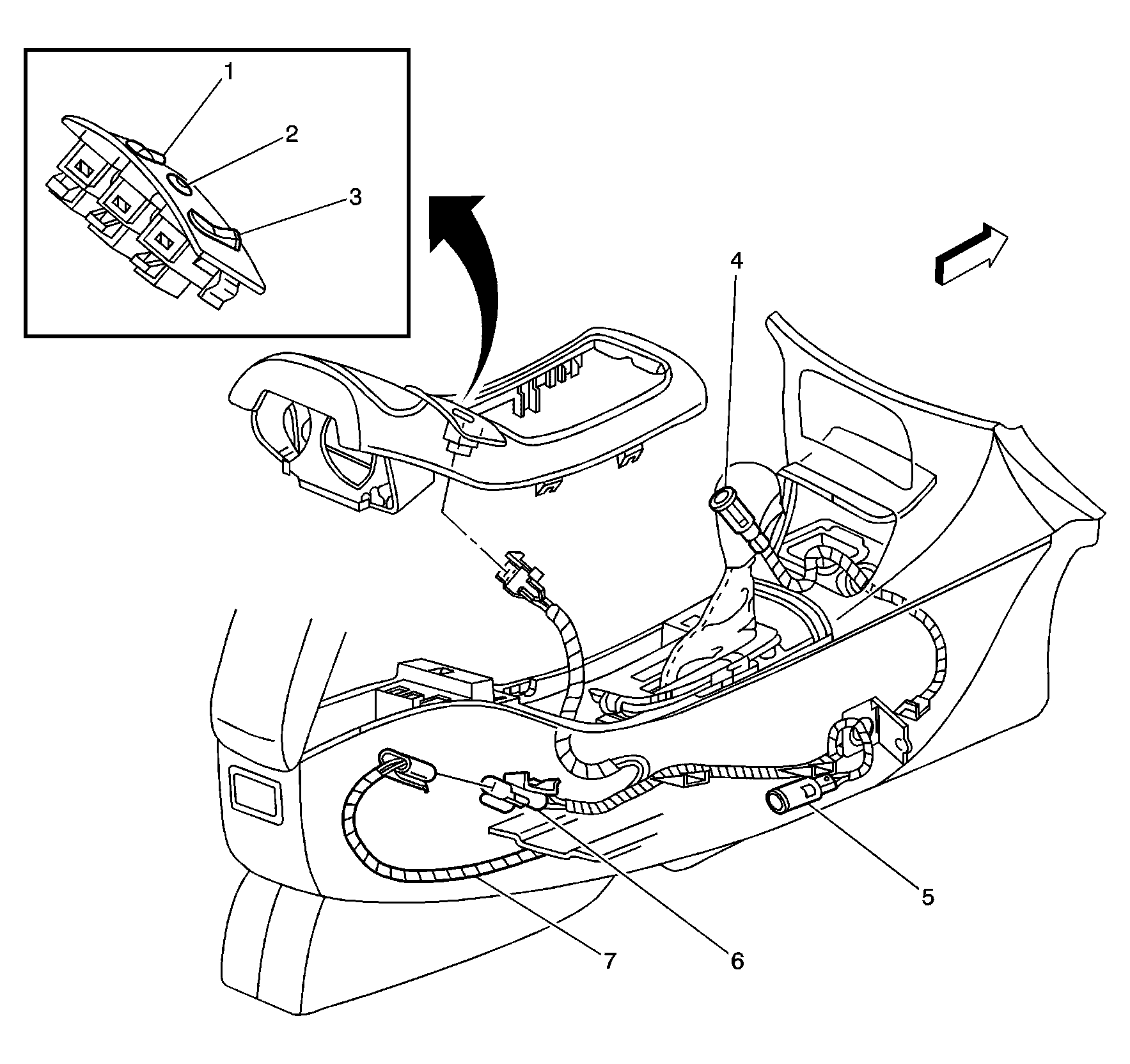

Fig 10: Center Console Component Views (D06)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Switch - Driver (KA1)
2	Traction Control Switch (Regal)
3	Heated Seat Switch - Passenger (KA1)
4	Cigar Lighter
5	Auxiliary Power Outlet (Regal)
6	C240 (Regal)
7	I/P Wiring Harness

Fig 11: Glove Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp/Switch
2	Glove Compartment
3	Fuse Block - I/P

Fig 12: Right Side of Instrument Panel Component Views - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Lamp Relay
2	Brake to Shift Relay
3	P100
4	Fuse Block-I/P

Fig 13: Behind the Right Side Of The I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Reservoir
2	G200
3	Fuse Block - I/P
4	C200
5	Blower Motor
6	Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7	P100
8	Vacuum Reservoir
9	Black Vacuum Hose
10	Air Temperature Actuator - Right
11	Automatic Headlamp Relay
12	Rear Compartment Lid Release Relay
13	Rear Window Defogger Relay
14	Retained Accessory Power (RAP) Relay
15	I/P Wiring Harness
16	Air Temperature Actuator - Left

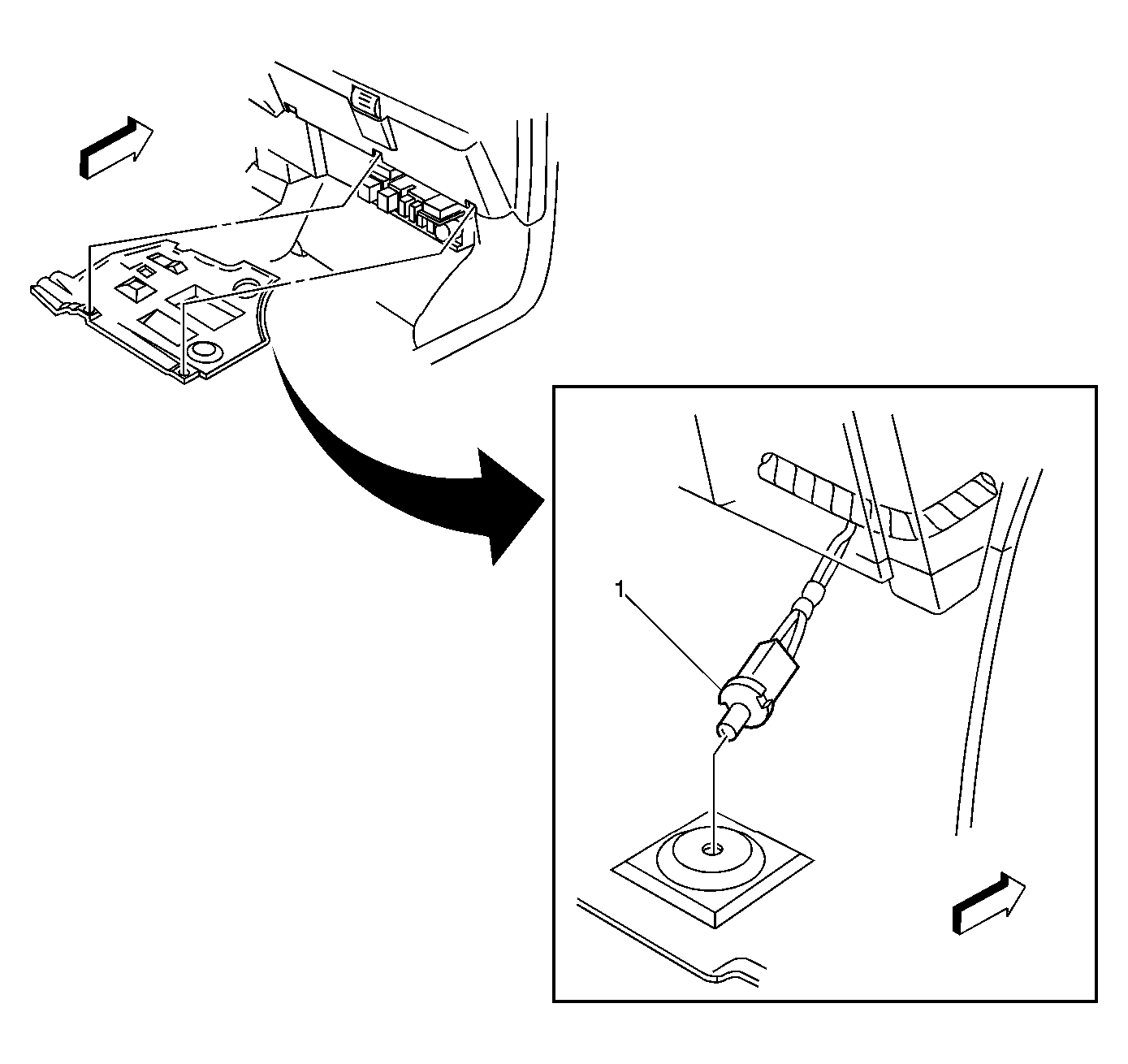

Fig 14: Lower Right Of The I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Courtesy Lamp - Right

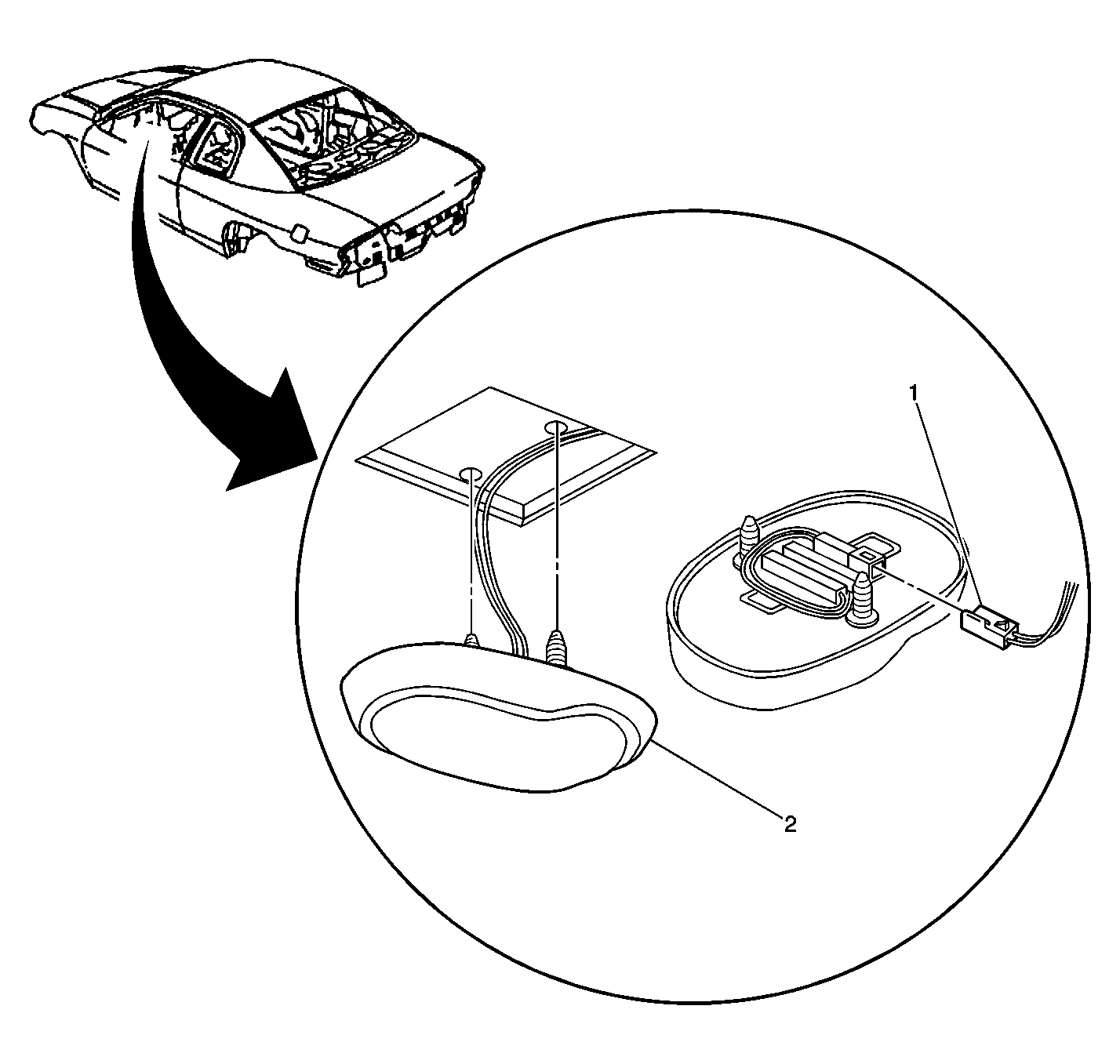

Fig 15: Roof/Headliner Component Views (W/O CF5, W/O C79)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp Connector
2	Dome Lamp

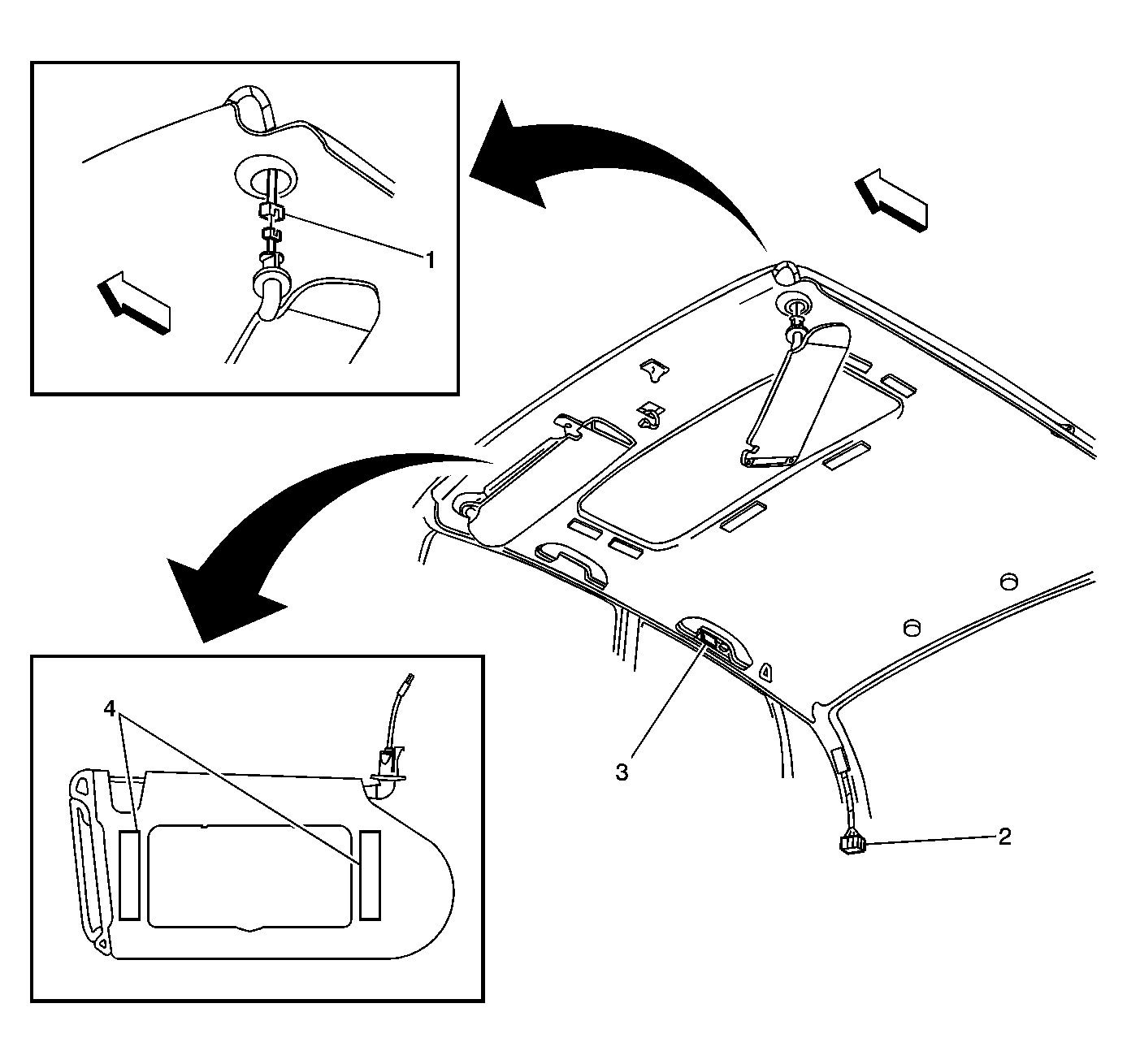

Fig 16: Roof/Headliner Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Left Connector Shown (DH6), Right Similar (DH6)
2	C390
3	Roof Rail Courtesy/Reading Lamp - Right Shown (C79), Left Similar (C79)
4	Vanity Mirror Lamp - Right Shown (DH6), Left Similar (DH6)

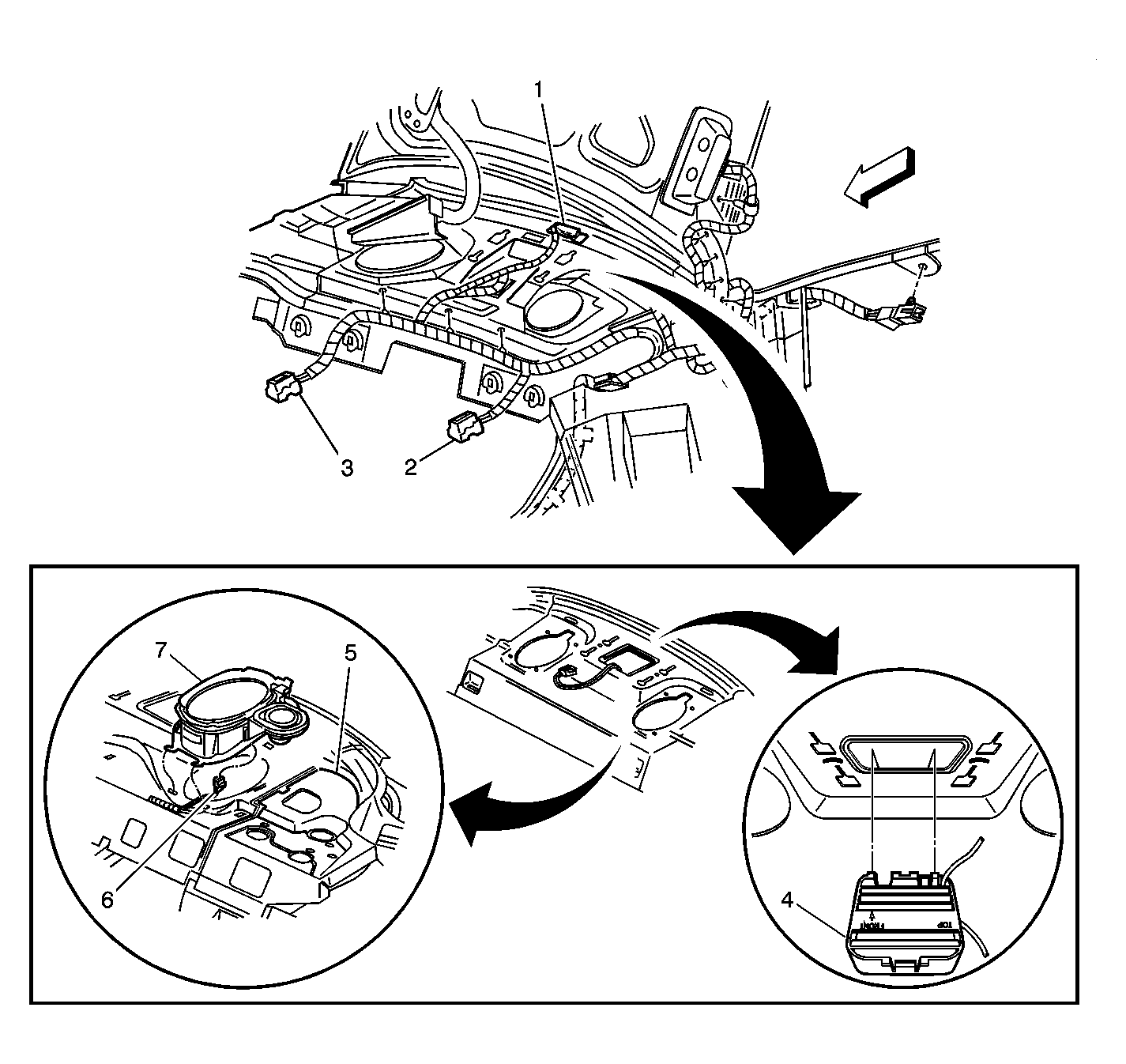

Fig 17: Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp
2	Speaker - RR Connector
3	Speaker - LR Connector
4	Center High Mounted Stop Lamp (CHMSL)
5	Rear Package Shelf
6	Speaker - LR Connector Shown, RR Similar
7	Speaker - LR Shown, RR Similar

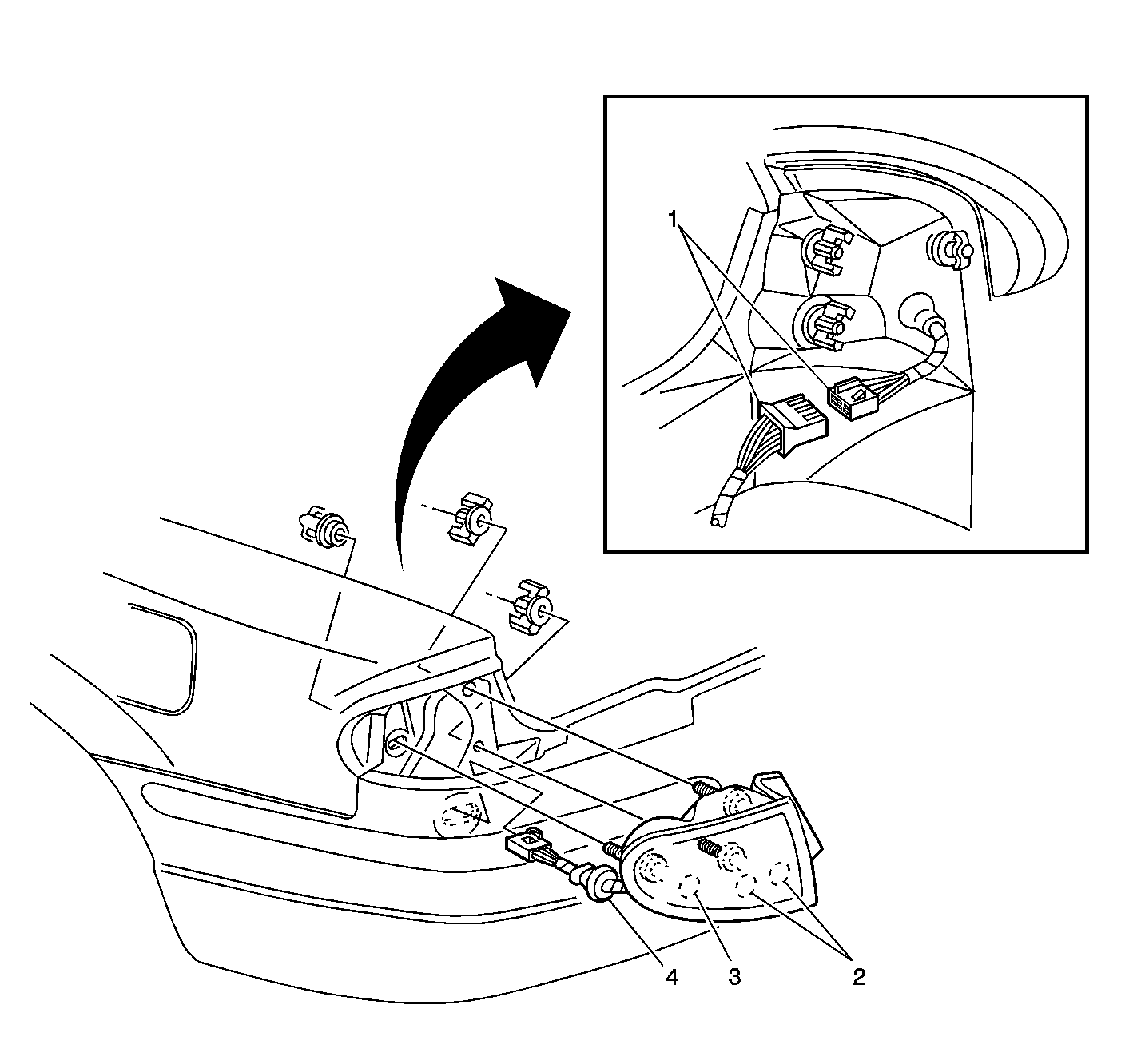

Fig 18: Left Rear Of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C401 Shown, C402 Similar
2	Tail/Stop and Turn Signal Lamp - Left Shown, Right Similar
3	Marker Lamp - LR Shown, RR Similar
4	P401 Shown, P402 Similar

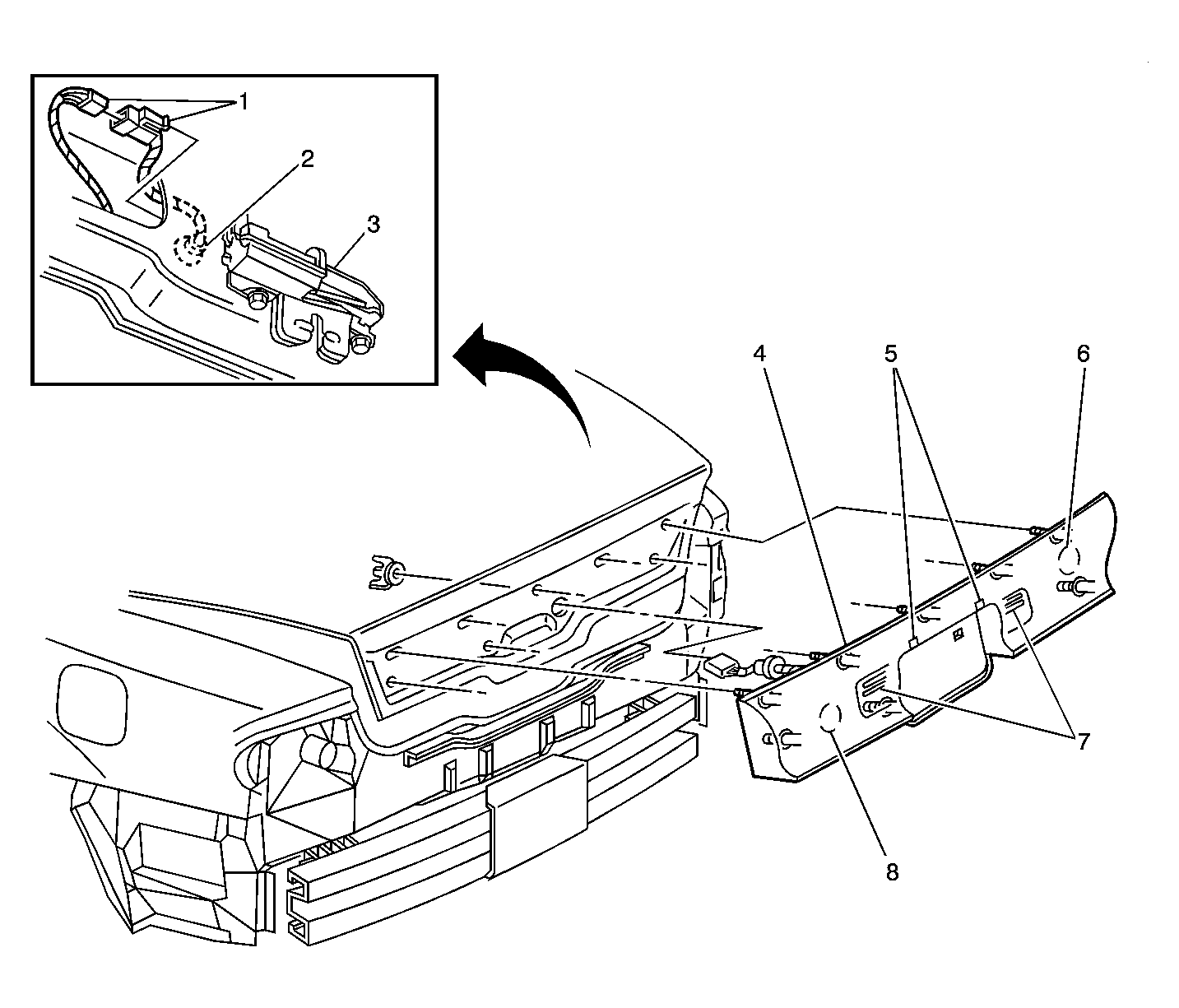

Fig 19: Rear Of The Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C915
2	P915
3	Rear Compartment Lid Lock Release Actuator
4	Rear Compartment Lid Applique
5	License Lamps
6	Tail Lamp - Right
7	Back Up Lamps
8	Tail Lamp - Left
