Diagnostic Procedures

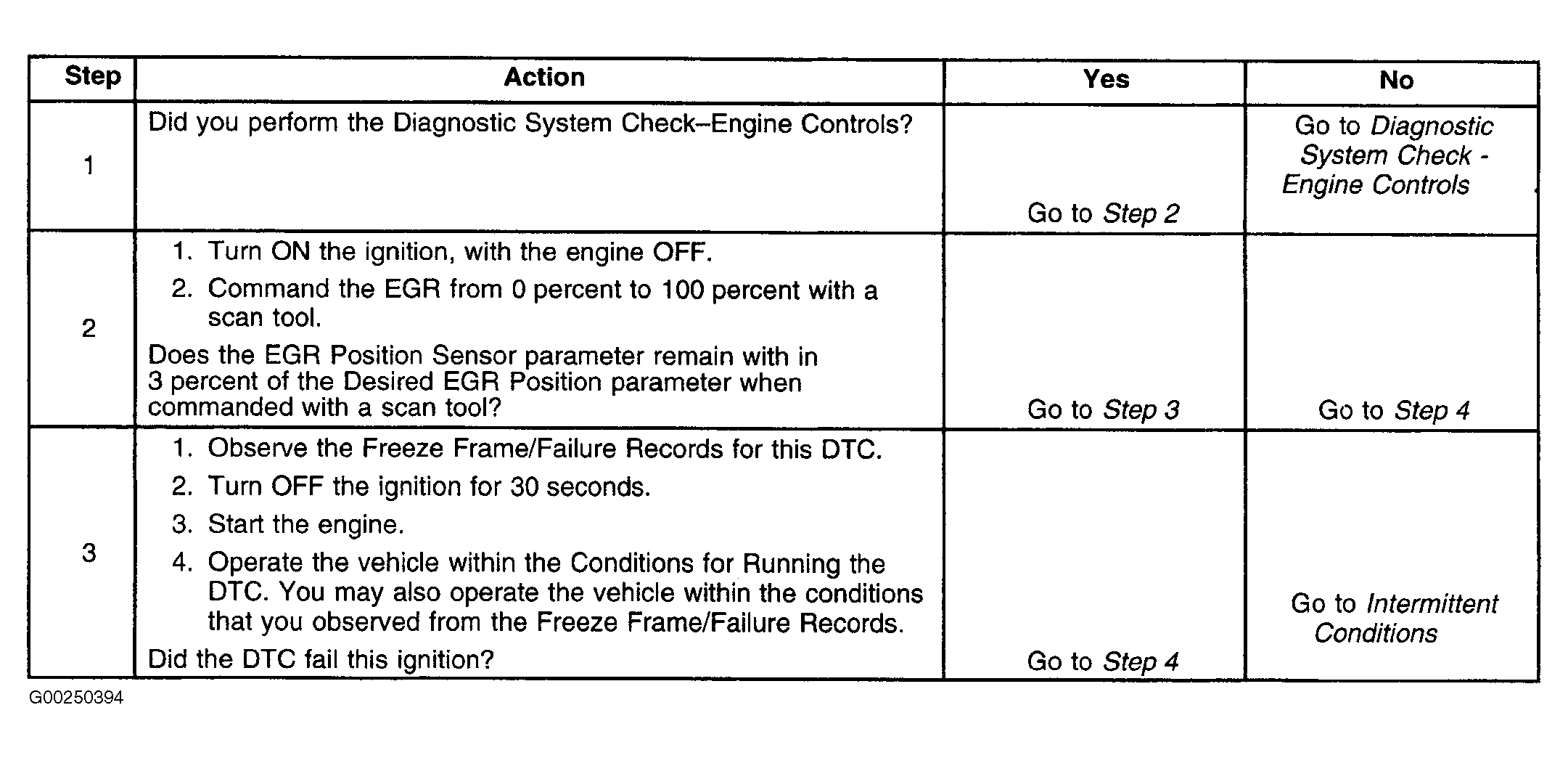

Fig 1: DTC P0403: Exhaust Gas Recirculation Solenoid Control Circuit (Steps 1-3)
G00250394Courtesy of GENERAL MOTORS CORP.
Fig 2: DTC P0403: Exhaust Gas Recirculation Solenoid Control Circuit (Steps 4-15)
G00250395Courtesy of GENERAL MOTORS CORP.
