Engine Control System Self-Diagnostics - 3.8L
>>
Diagnostic Tests
>>
DTC P0230: Fuel Pump Control Circuit
>>
Diagnostic Procedures
Diagnostic Procedures

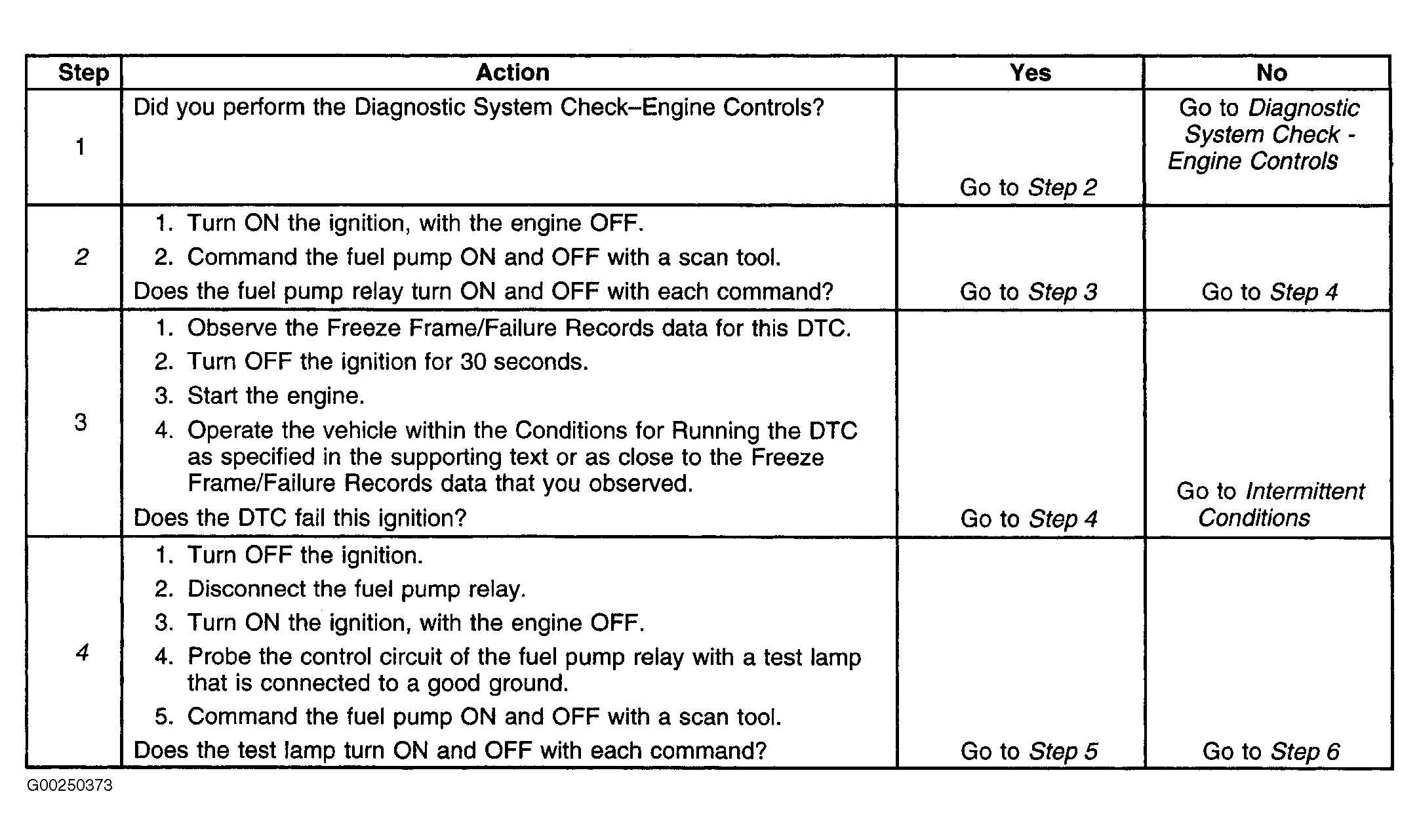

Fig 1: DTC P0230: Fuel Pump Control Circuit (Steps 1-4)
Courtesy of GENERAL MOTORS CORP.

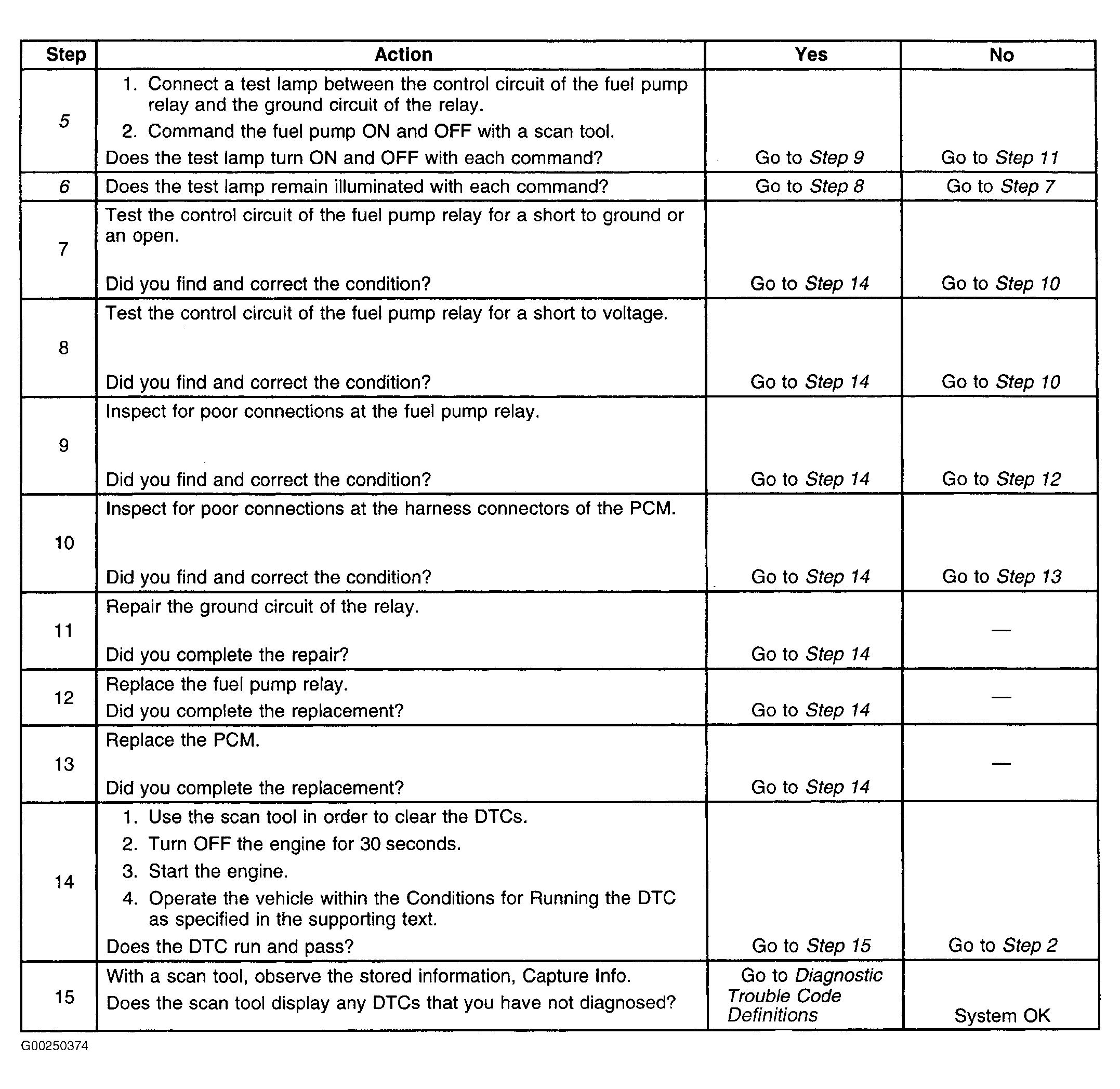

Fig 2: DTC P0230: Fuel Pump Control Circuit (Steps 5-15)
Courtesy of GENERAL MOTORS CORP.
