Diagnostic Procedures

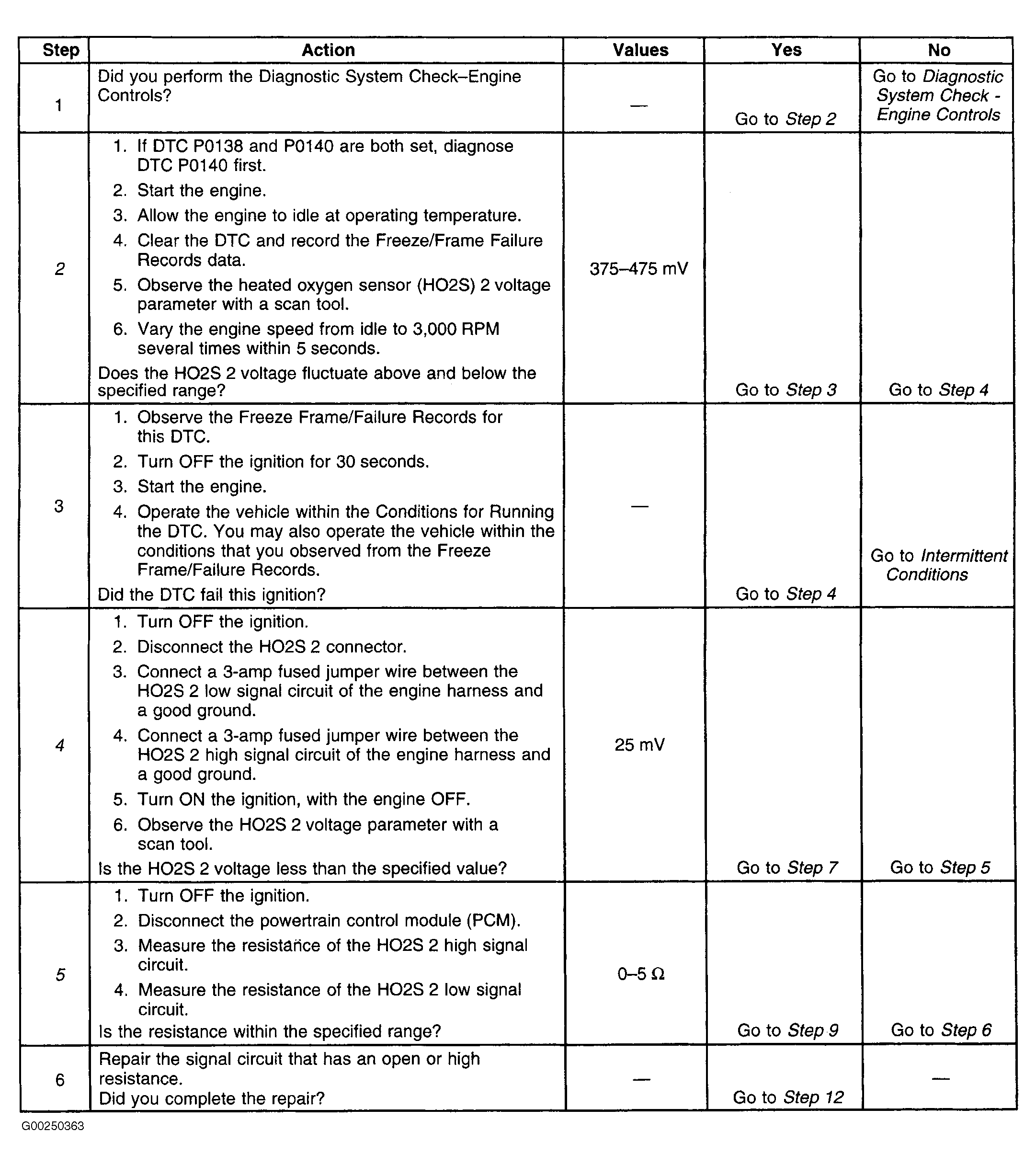

Fig 1: DTC P0140: HO2S Circuit Insufficient Activity - Sensor 2 (Steps 1-6)
G00250363Courtesy of GENERAL MOTORS CORP.

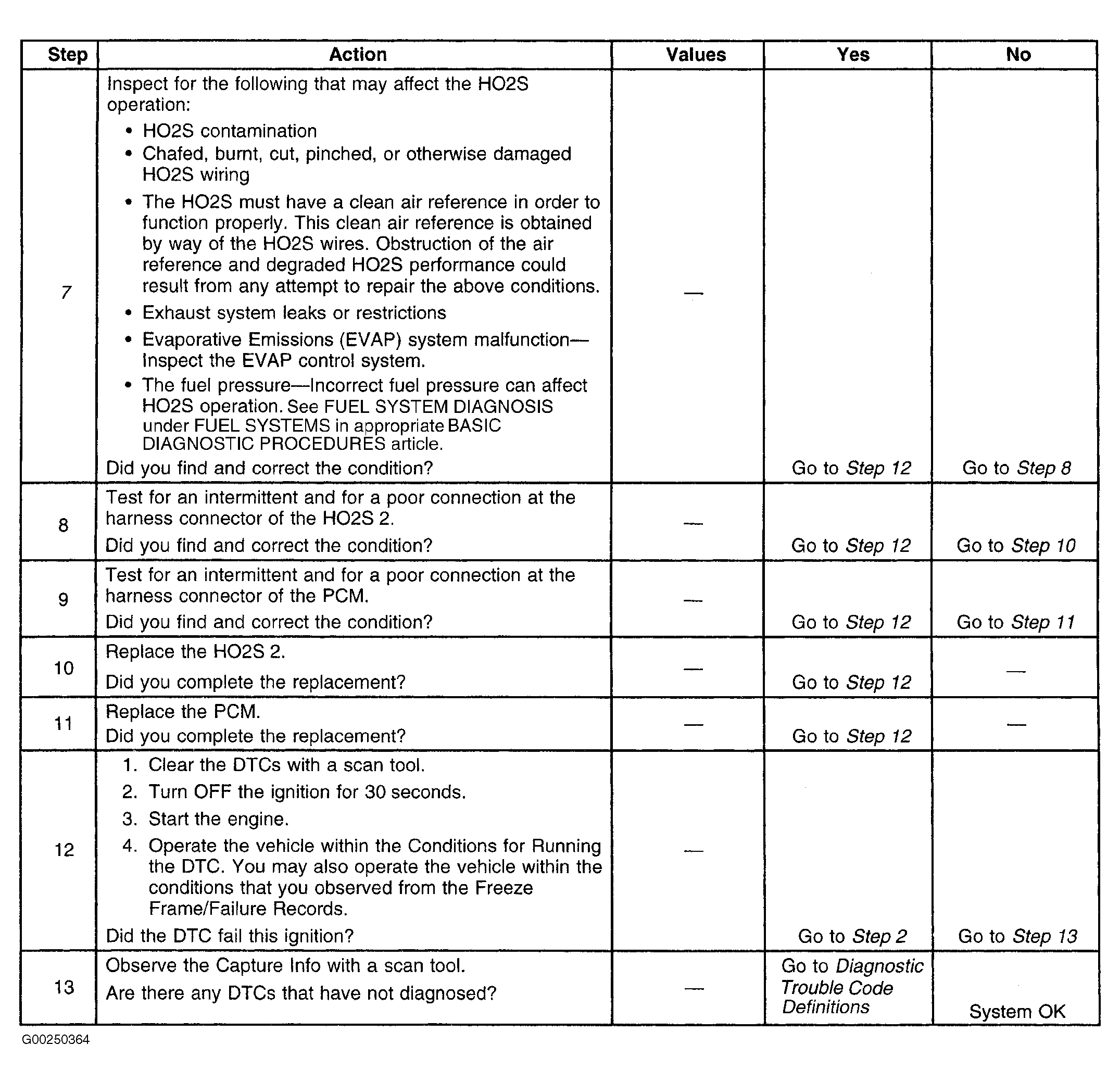

Fig 2: DTC P0140: HO2S Circuit Insufficient Activity - Sensor 2 (Steps 7-13)
G00250364Courtesy of GENERAL MOTORS CORP.
