Diagnostic Procedures

NOTE: If any other DTCs are set, diagnose those DTCs first.

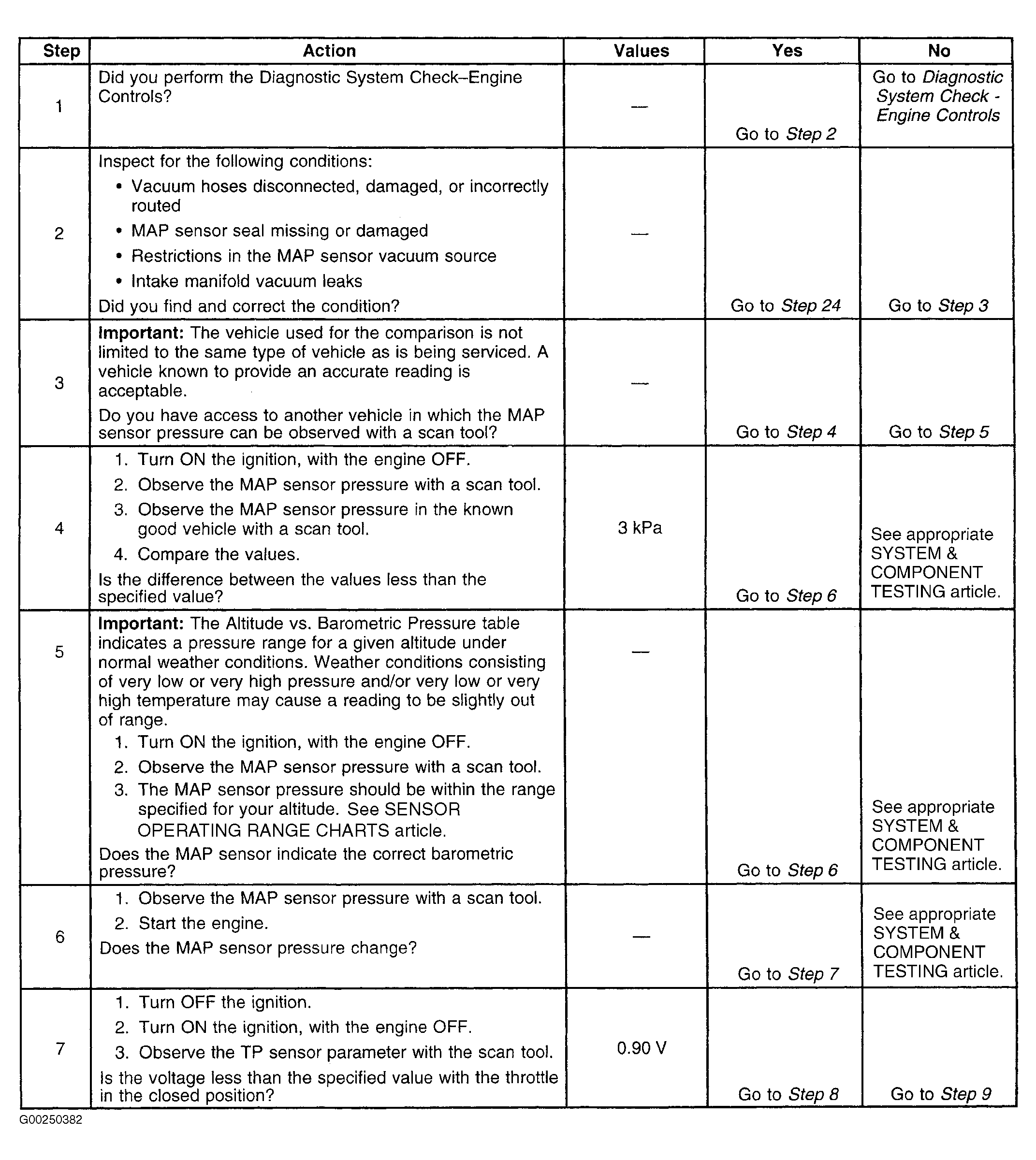

Fig 1: DTC P0121: TP Sensor Performance (Steps 1-7)
G00250382Courtesy of GENERAL MOTORS CORP.

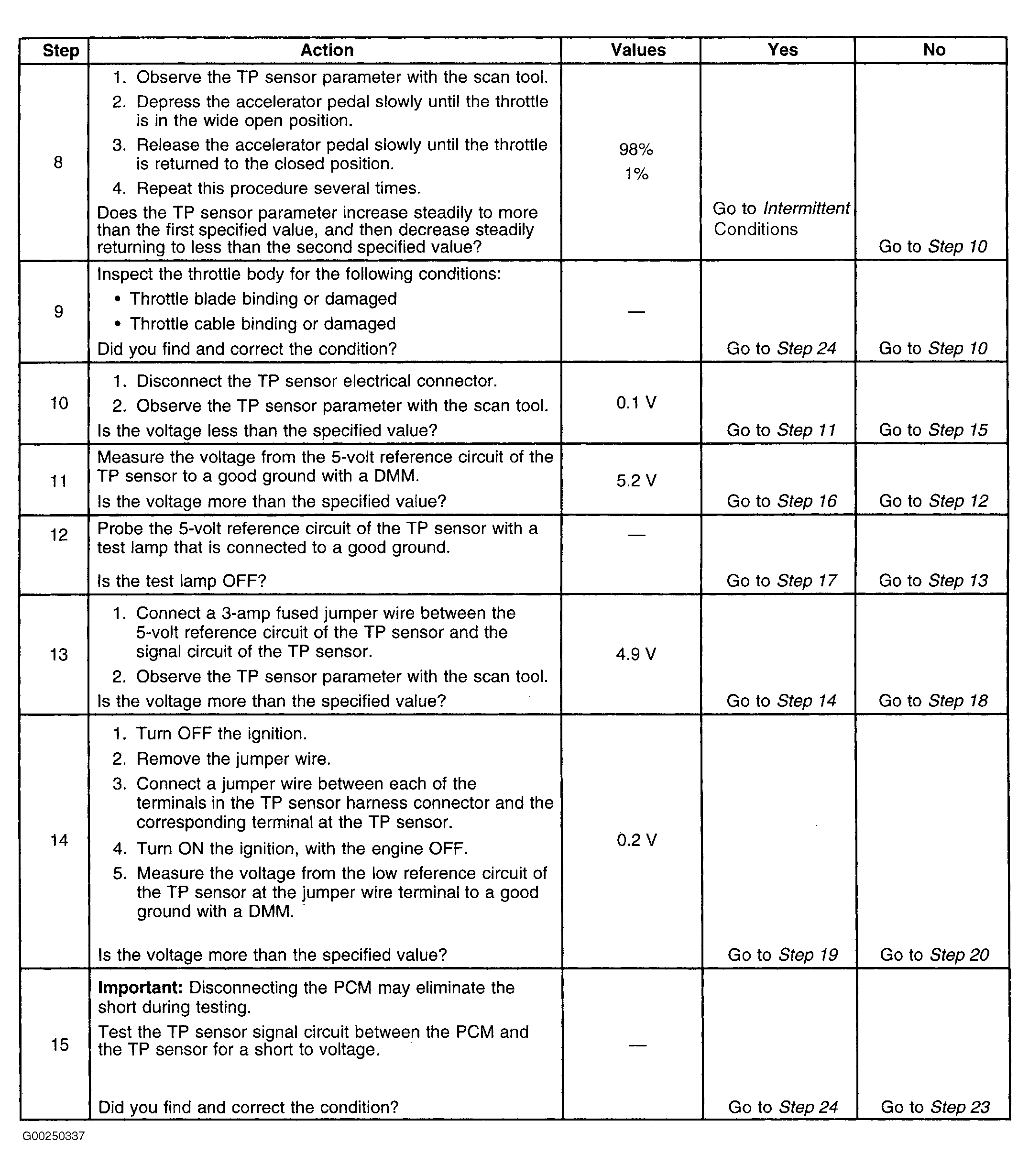

Fig 2: DTC P0121: TP Sensor Performance (Steps 8-15)
G00250337Courtesy of GENERAL MOTORS CORP.

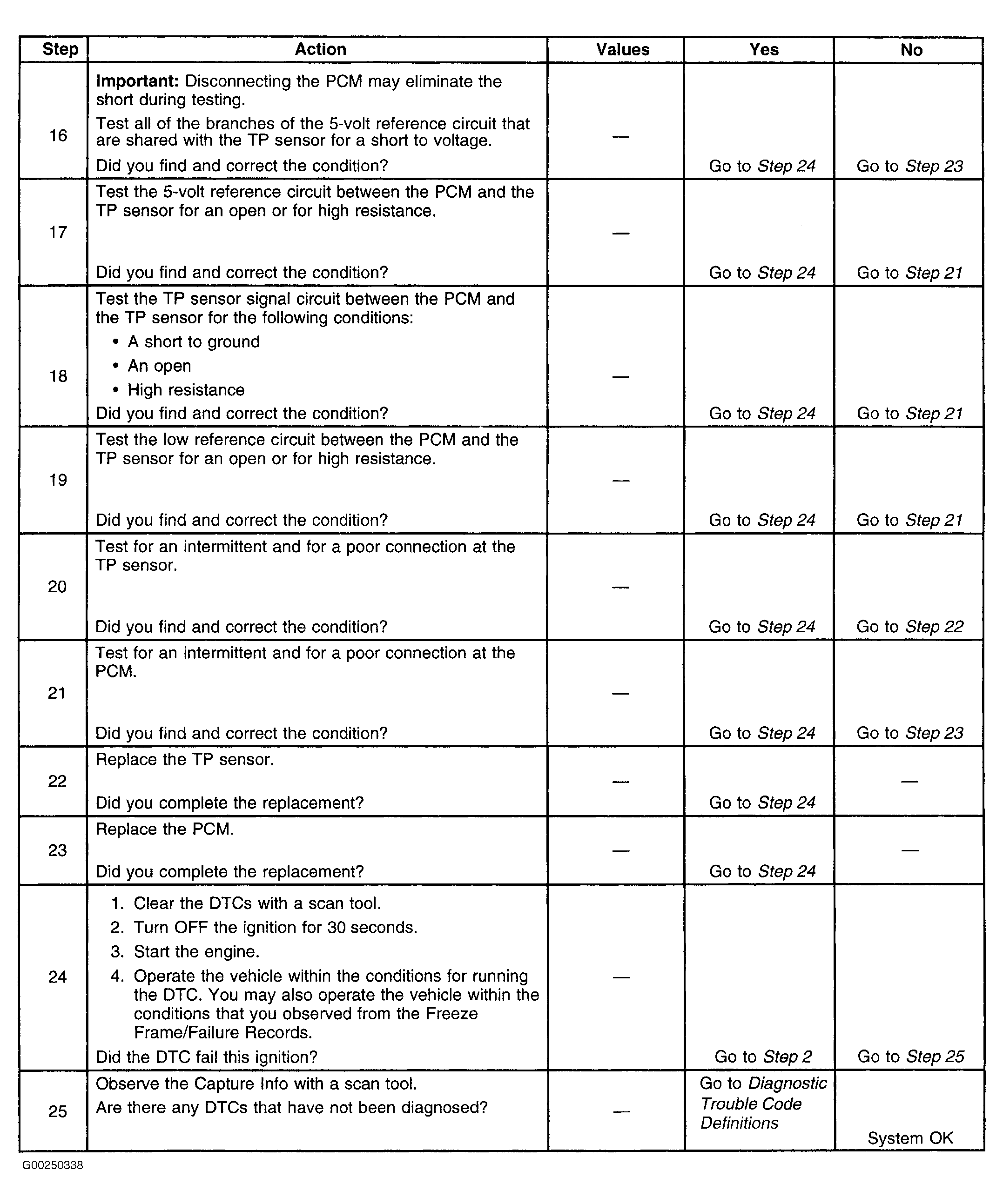

Fig 3: DTC P0121: TP Sensor Performance (Steps 16-25)
G00250338Courtesy of GENERAL MOTORS CORP.
