Engine Control System Self-Diagnostics - 3.8L
>>
Diagnostic Tests
>>
DTC P0101: MAF System Performance
>>
Diagnostic Procedures
Diagnostic Procedures

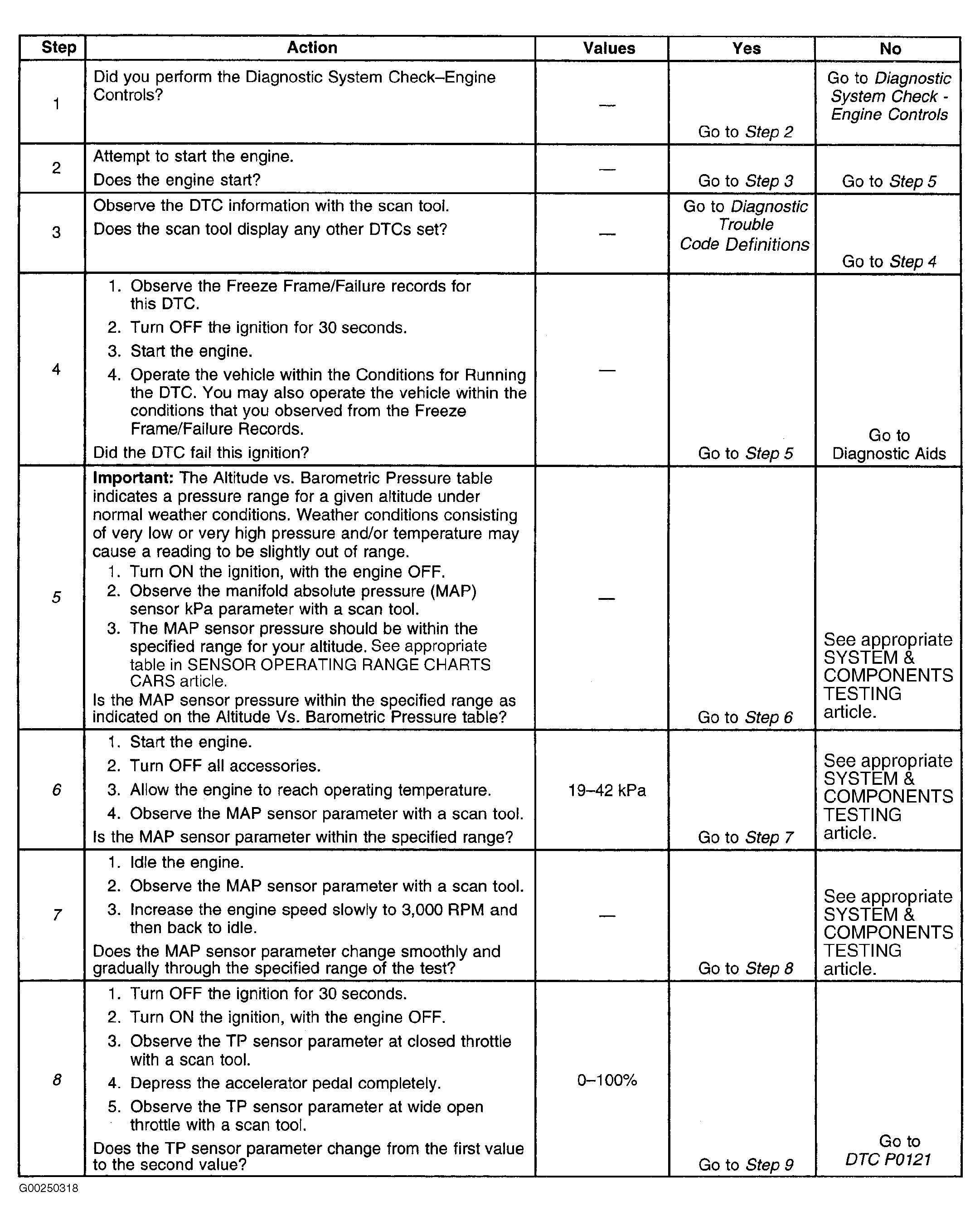

Fig 1: DTC P0101: MAF System Performance (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.

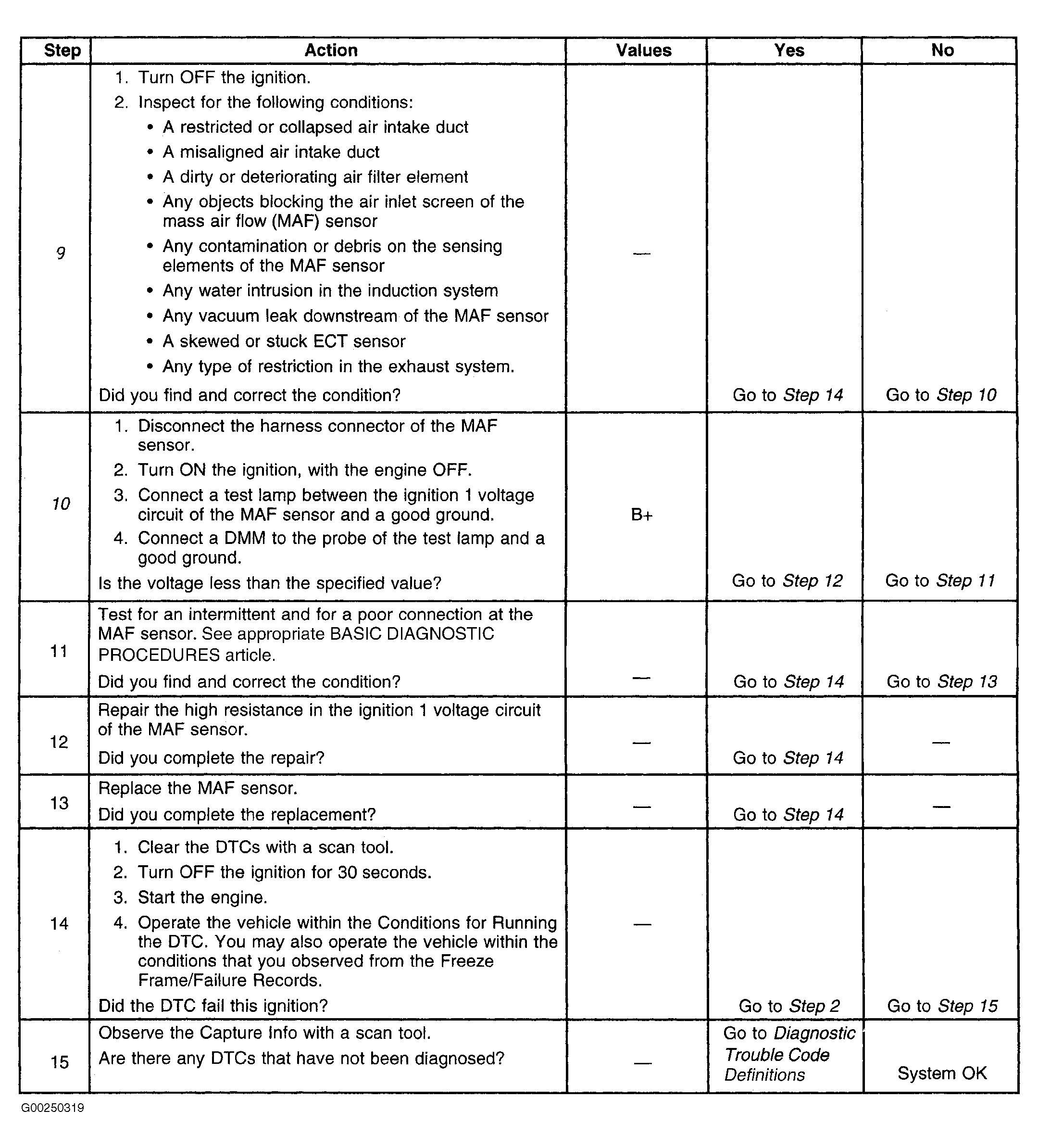

Fig 2: DTC P0101: MAF System Performance (Steps 9-15)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
