Removal Procedure

  1. Grasp the switch on the left and right sides.
    IMPORTANT: The switch must be rotated, pulled down on the left side, to be removed.
  2. Use 2 small, flat-bladed tools to disengage the clips which are located at the front and rear of the switch. Hold the flat-bladed tools parallel to the roof and push straight in.
  3. Rotate the switch toward the left side to disengage it from the mounting bracket and pull down.
  4. Disconnect the electrical connector from the switch.
  5. Remove the switch from the vehicle.

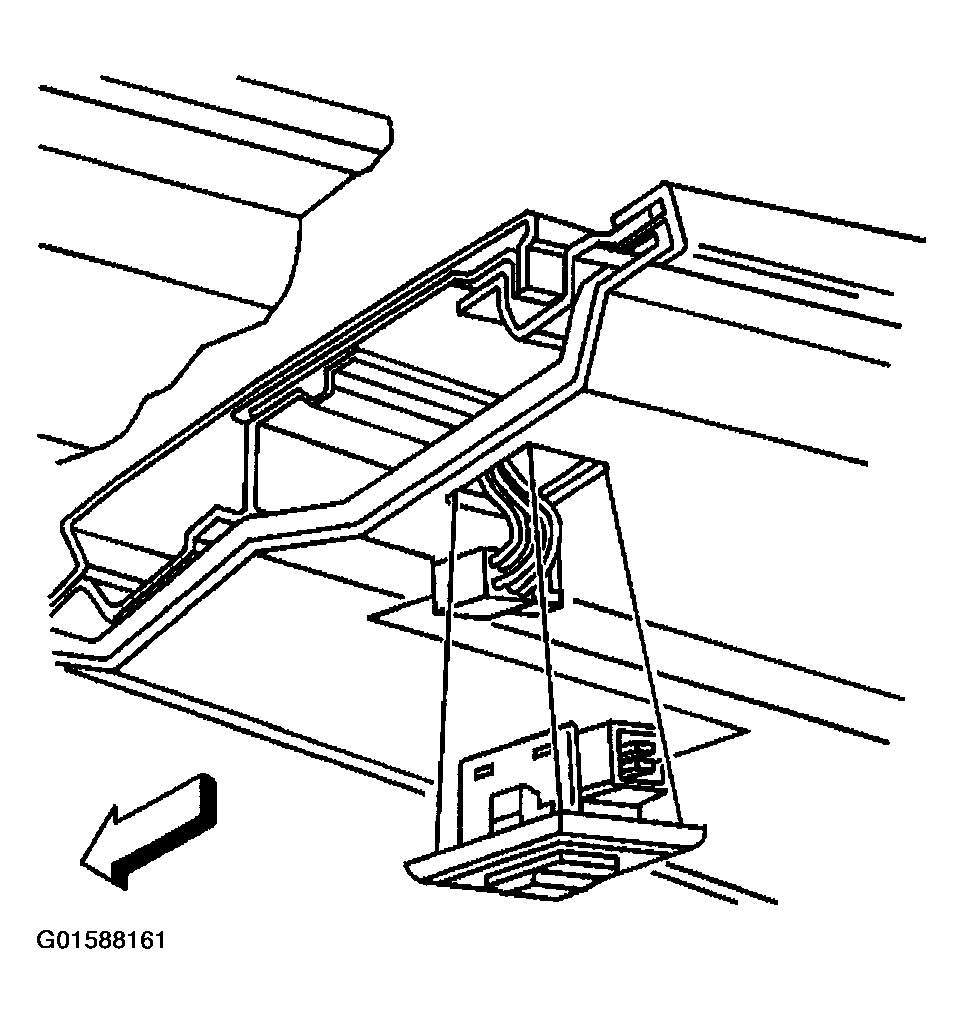

    6. Fig 1: Disconnecting Electrical Connector From Switch
    G01588161Courtesy of GENERAL MOTORS CORP.
