Power Roof Systems Connector End Views

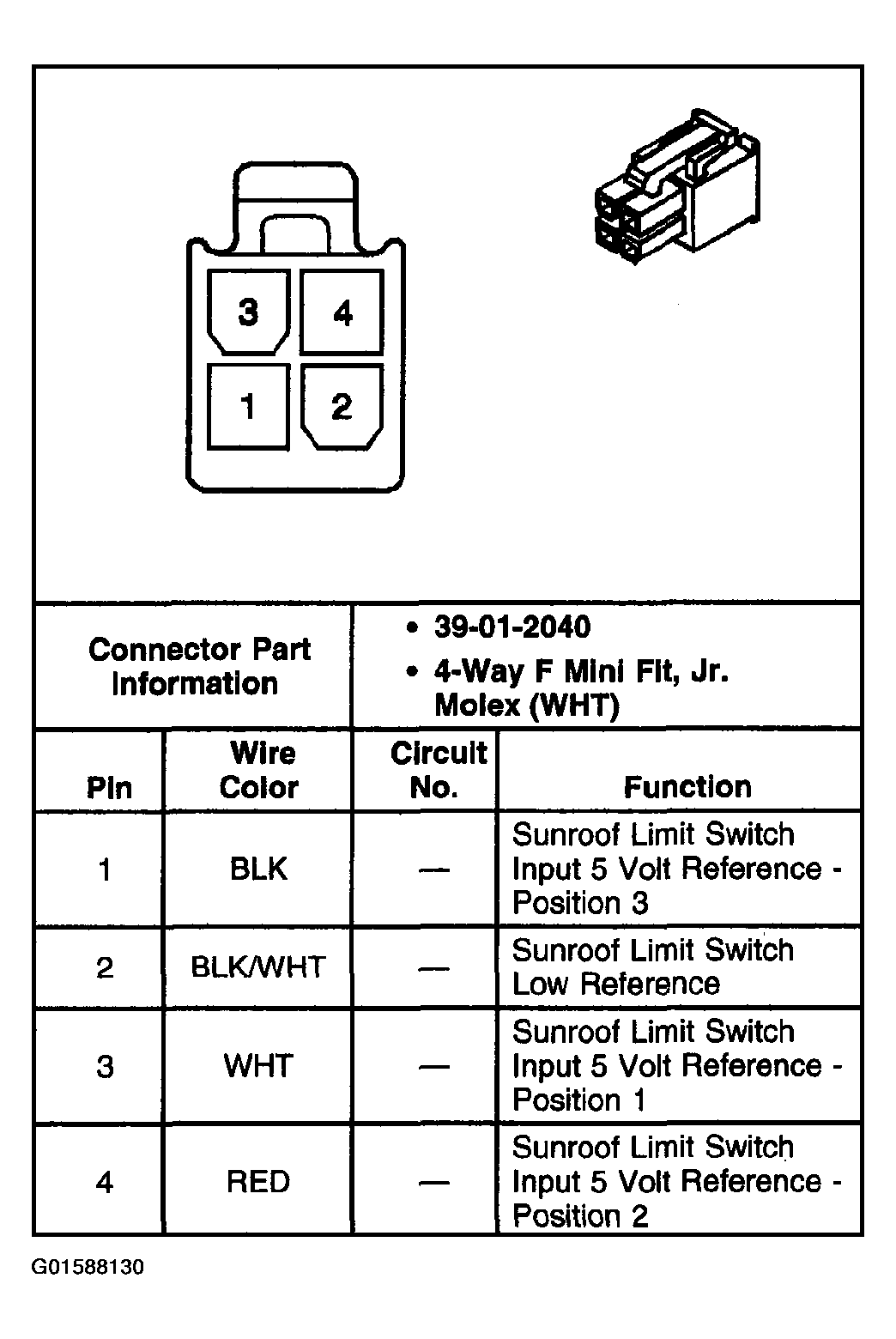

Fig 1: Sunroof Limit Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Sunroof Module (Express Open), C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

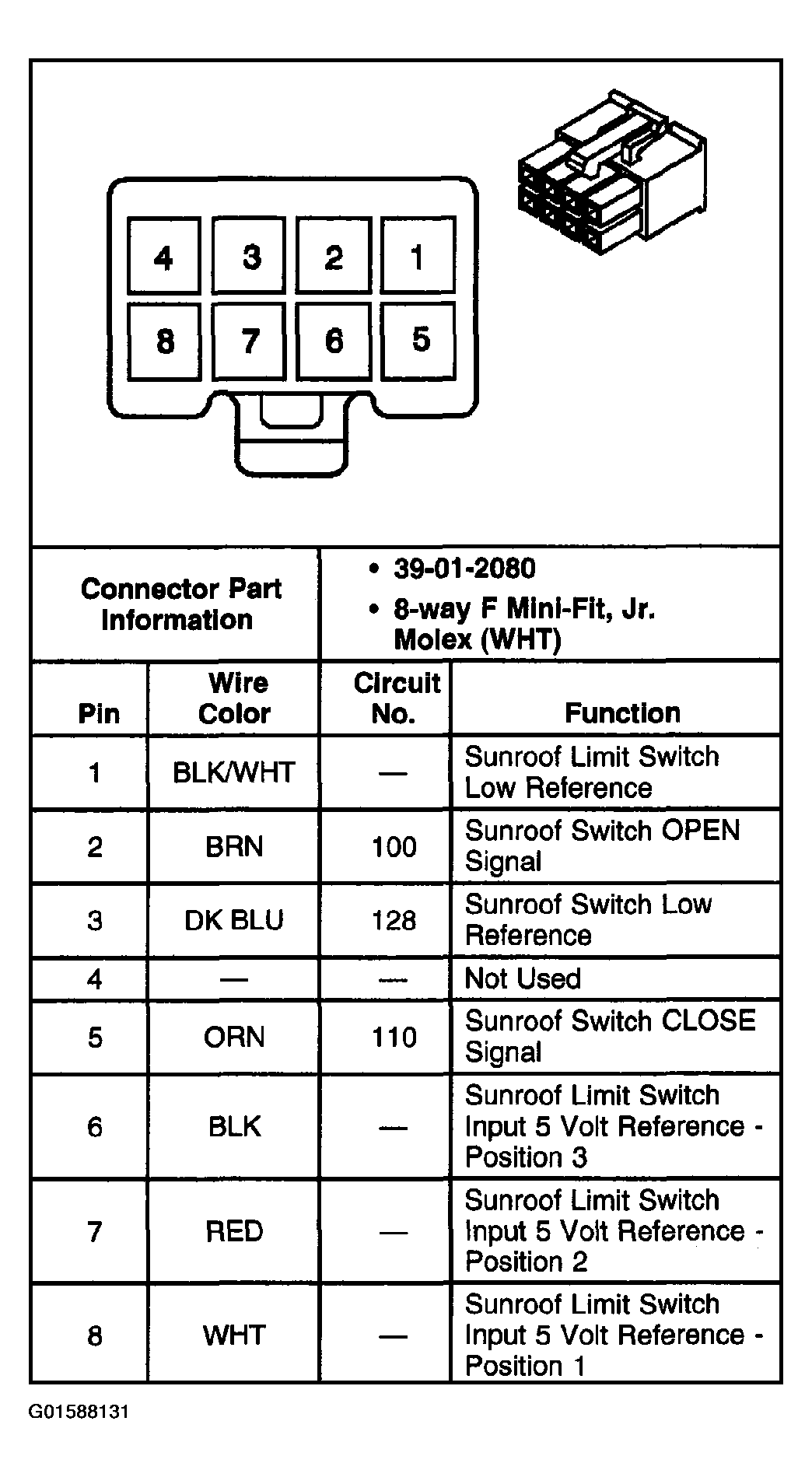

Fig 3: Sunroof Module (Express Open), C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

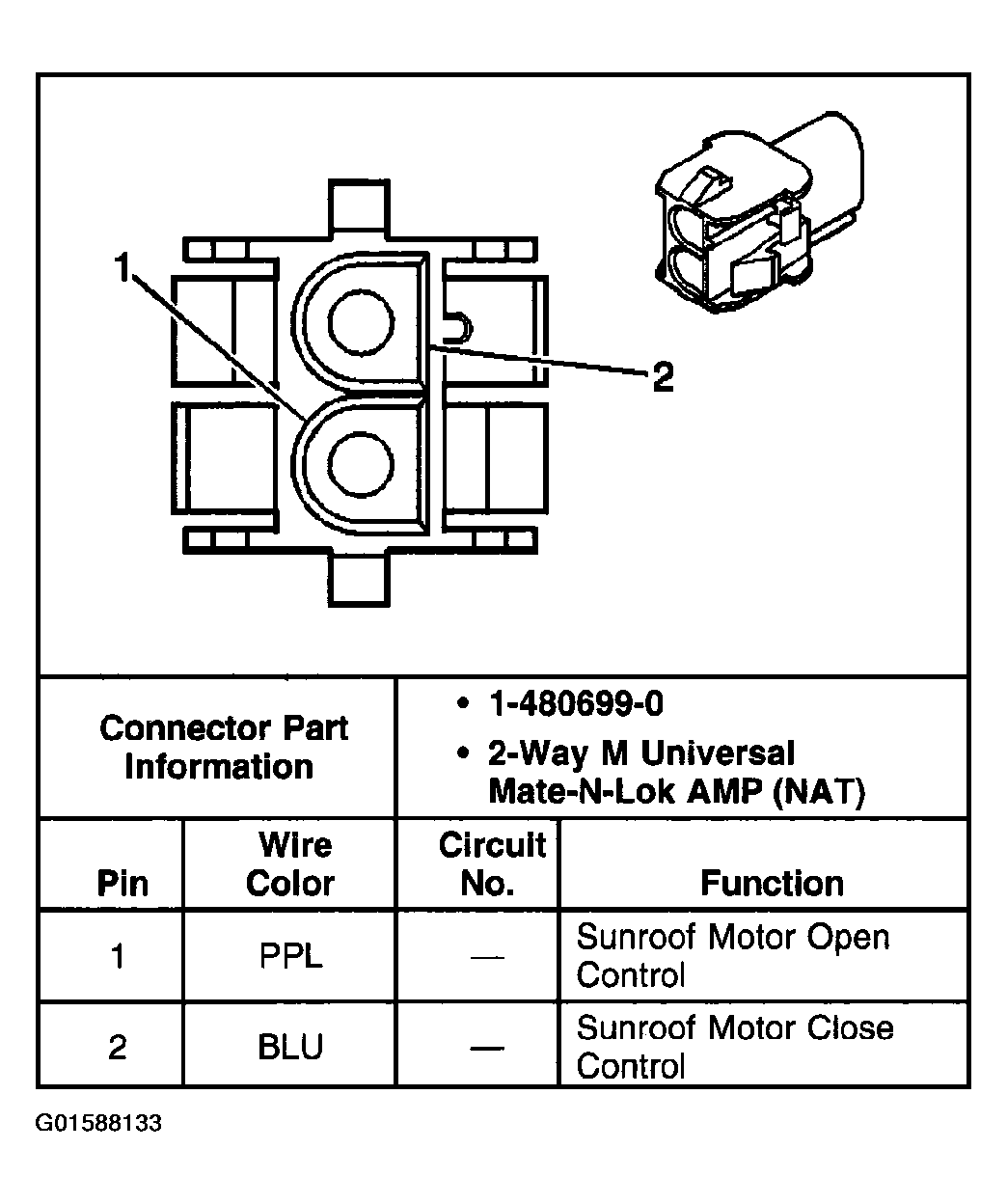

Fig 4: Sunroof Motor Connector End View

Courtesy of GENERAL MOTORS CORP.

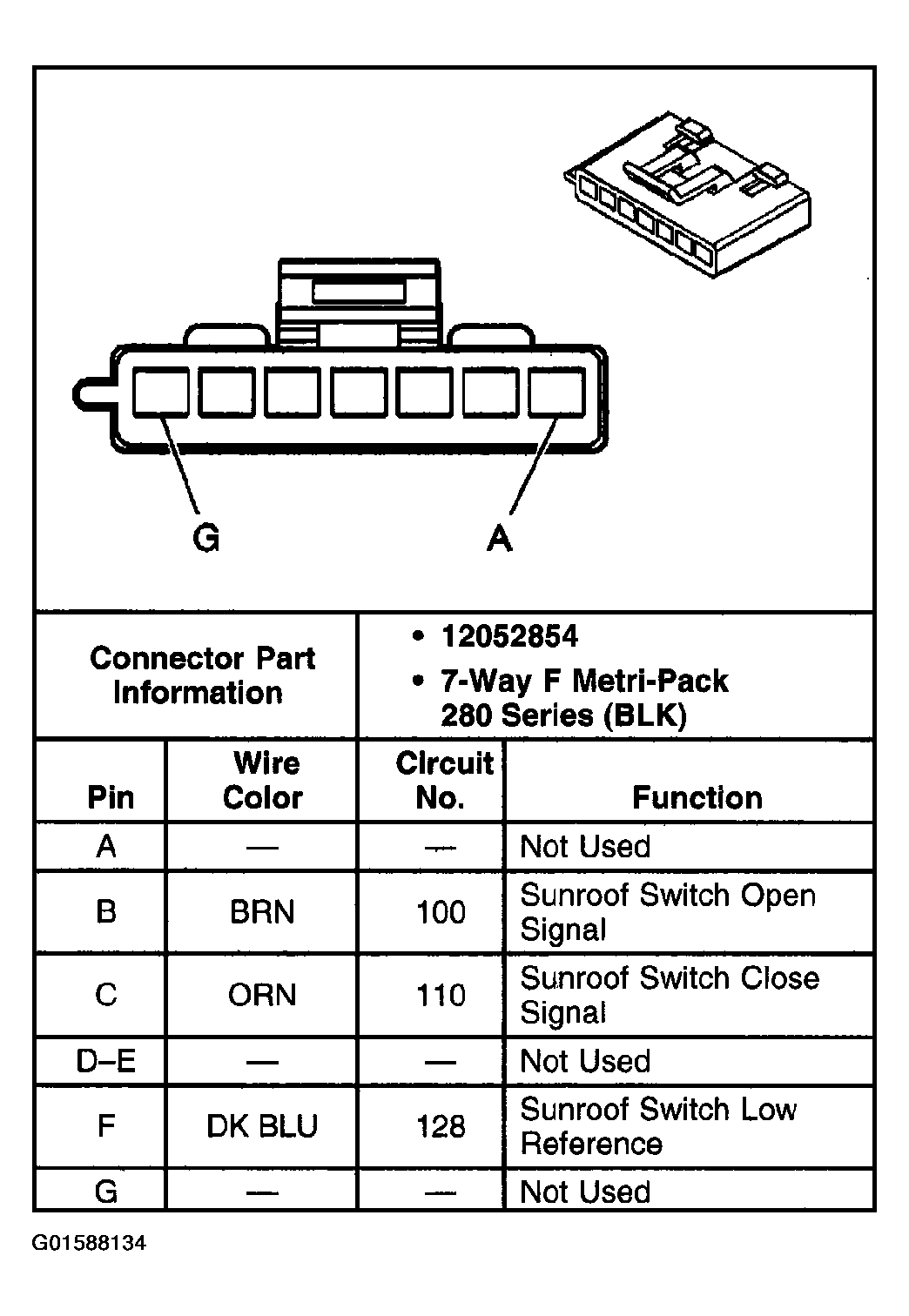

Fig 5: Sunroof Switch Connector End View
