| AIR Pump Bracket |
36 (50) |
| Engine Frame Insulator Fasteners |
141 (191) |
| Flywheel-To-Torque Converter Bolts |
47 (63) |
| Ground Cable Bolt |
13 (17) |
| Intermediate Shaft Lower Pinch Bolt |
33 (45) |

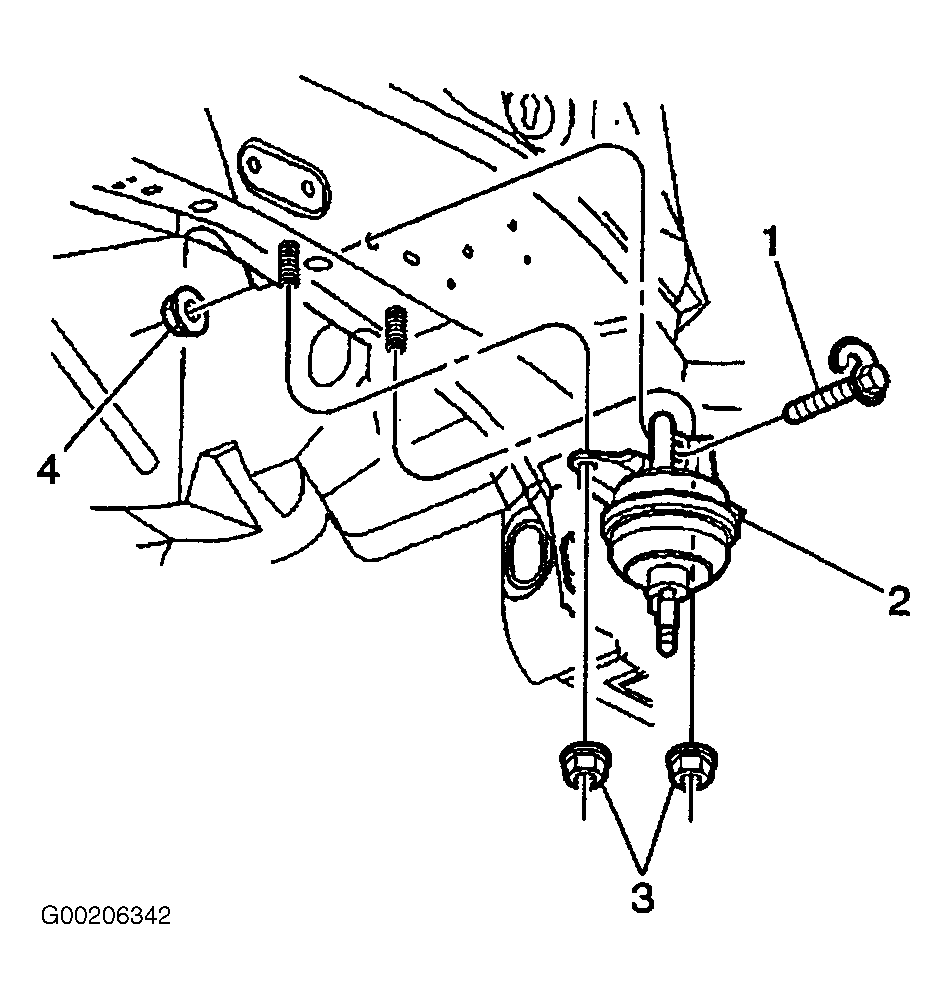

| Mount Nuts 3 & 4 |
52 (70) |
| Mount Stud Nut |
59 (80) |
| Power Steering Gear Mounting Bolts |
70 (95) |
| Rack & Pinion Bolt (Left & Right) |
24 (33) |
| Range Selector Cable Bracket Nuts |
18 (25) |
| Strut Tower Bolts |
44 (60) |
| Torque Strut Bracket-To-Engine Bolts |
48 (65) |
| Torque Strut Bracket-To-Transaxle Bolts |
26 (36) |
| Transaxle Bracket Bolt |
| Front |
42 (58) |
| Left |
81 (110) |
| Rear |
46 (63) |
| Transaxle Case-To-Engine Bolts |
55 (75) |
| Transaxle Mount Nut |
59 (80) |
| Transaxle Mount-To-Bracket Fasteners |
29.5 (40) |
| Transaxle Mount-To-Engine Frame |
29.5 (40) |
| Upper Transaxle Case-To-Engine Bolts |
55 (75) |
| INCH Lbs. (N.m) |
| Brake Pressure Modulator Valve Nuts |
89 (10) |
| Frame Rail Bolt Retaining Screw |
35 (4) |
| Torque Converter Cover Bolts |
115 (13) |
