Installation Procedure

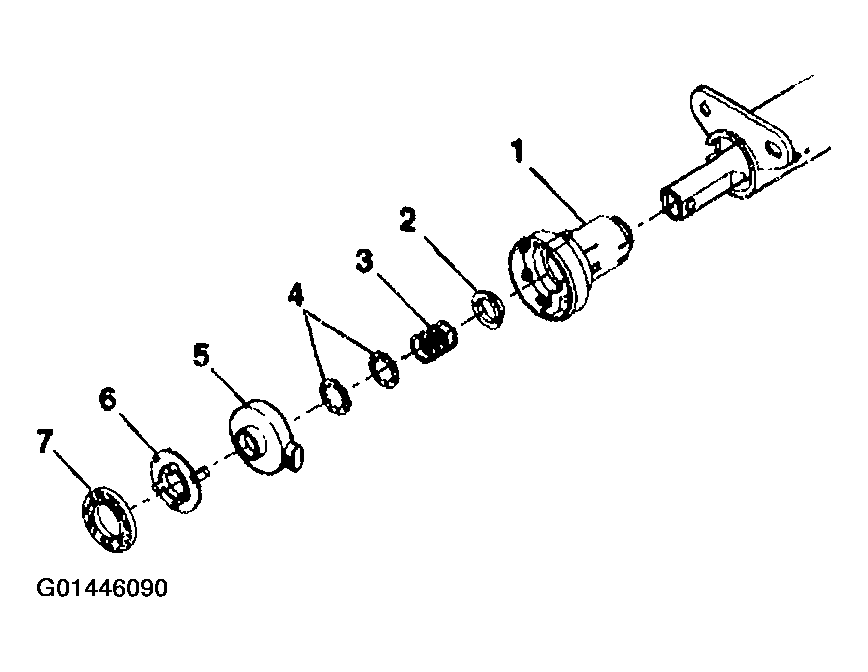

    Fig 1: Locating Steering Shaft Components
    G01446090Courtesy of GENERAL MOTORS CORP.
  1. Install the following onto the steering shaft:
    1. adapter and bearing assembly (1)
    2. lower bearing seat (2)
    3. lower bearing spring (3)
    4. 2 lower spring retainers (4)
    5. steering wheel position sensor (5) refer to STEERING WHEEL POSITION SENSOR CENTERING  .
    6. sensor retainer (6)
    7. steering shaft seal (7)
  2. Install the steering column to the vehicle. Refer to STEERING WHEEL REPLACEMENT  .
  3. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
