Installation procedure

Connect the electrical connector.
Align the switch to the opening in the steering wheel.
Push the switch into the steering wheel.

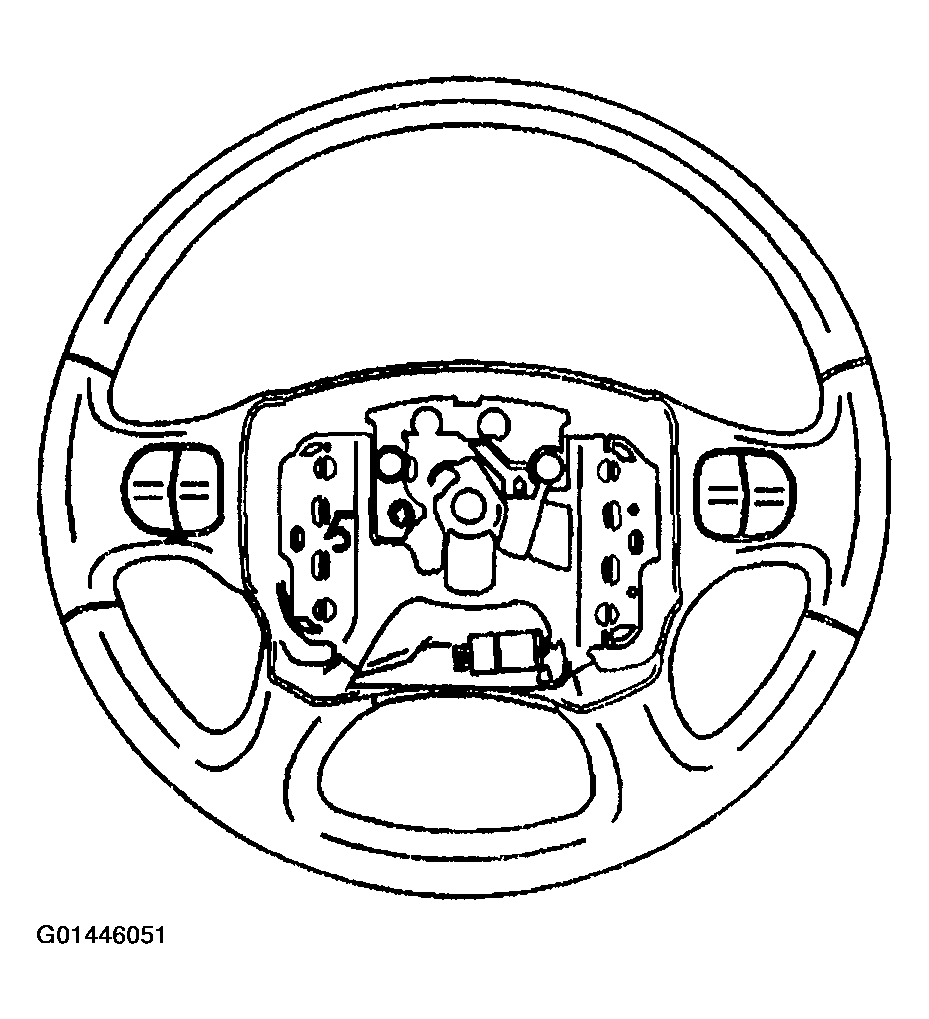

Fig 1: Installing Steering Wheel Control Switch Assembly
Courtesy of GENERAL MOTORS CORP.
Install the steering wheel rear bezel (1).

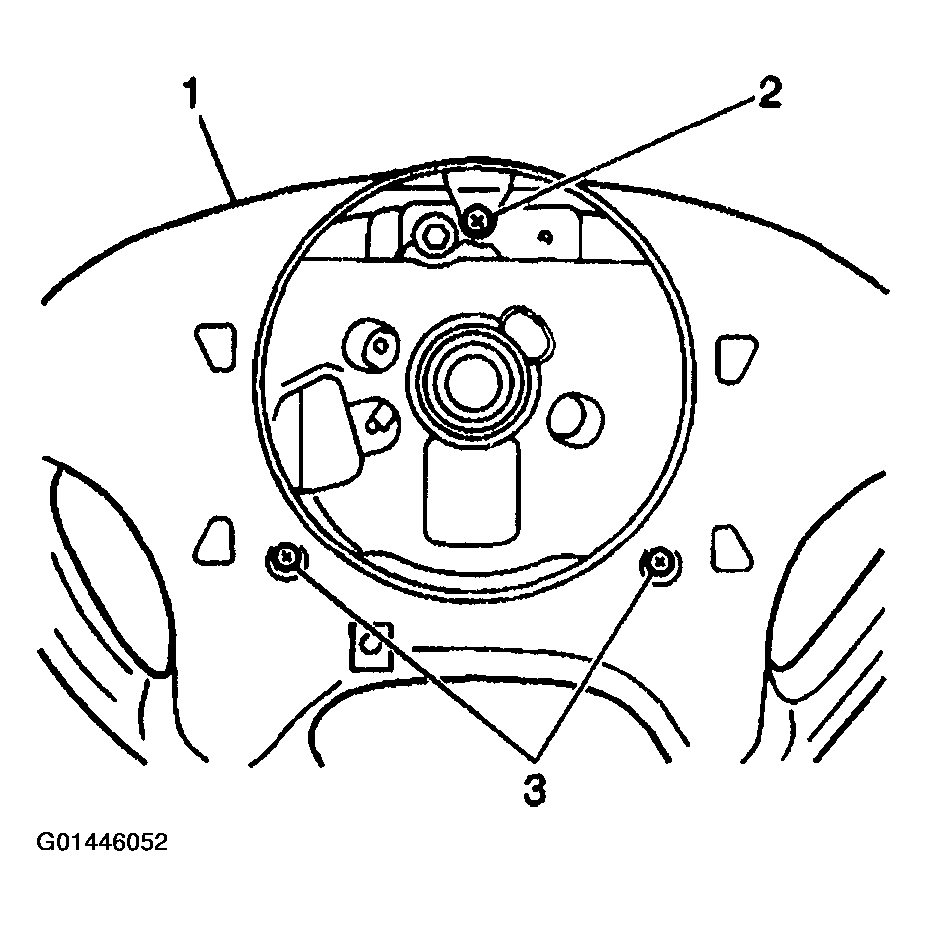

Fig 2: Installing Steering Wheel Rear Bezel
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the retaining screws (2,3) to the steering wheel rear bezel.
Tighten

Tighten the screws to 3 N.m (26.5 lb in).
Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT .
Enable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
